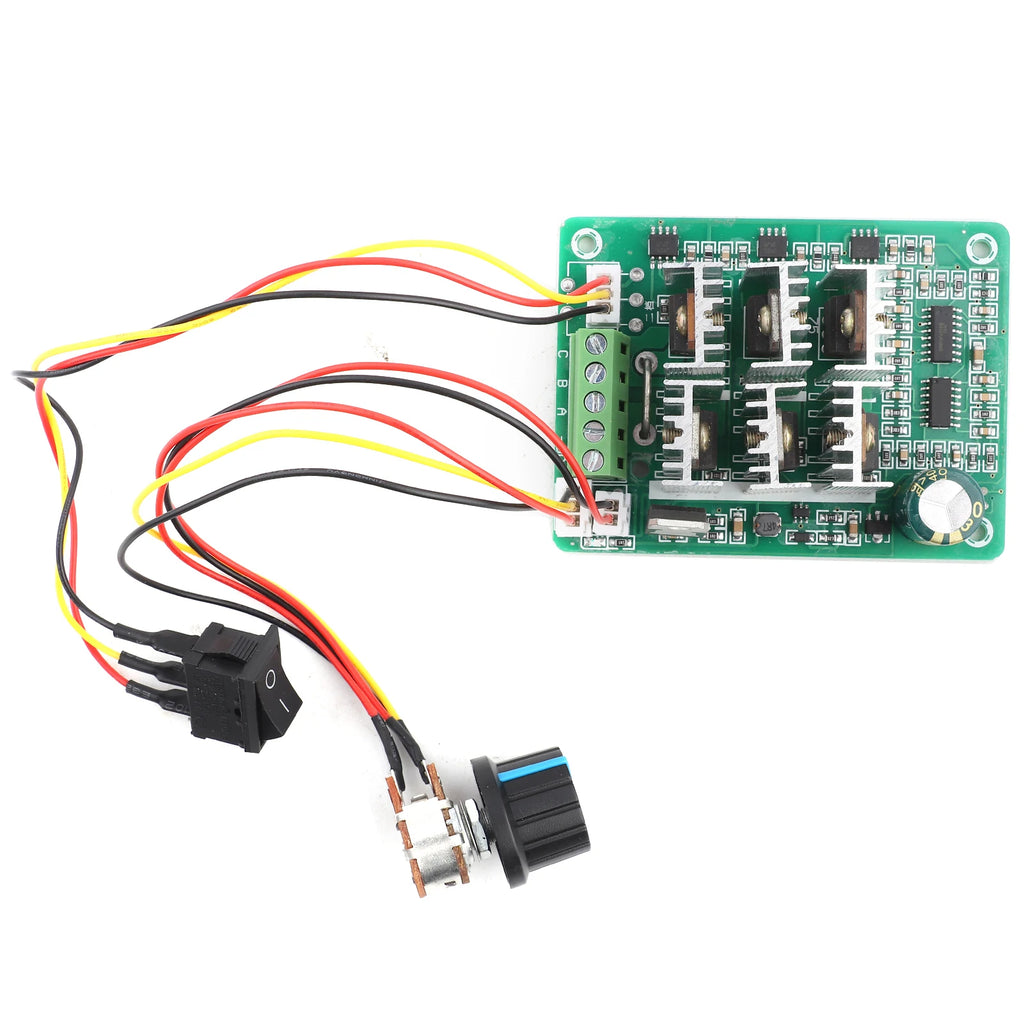

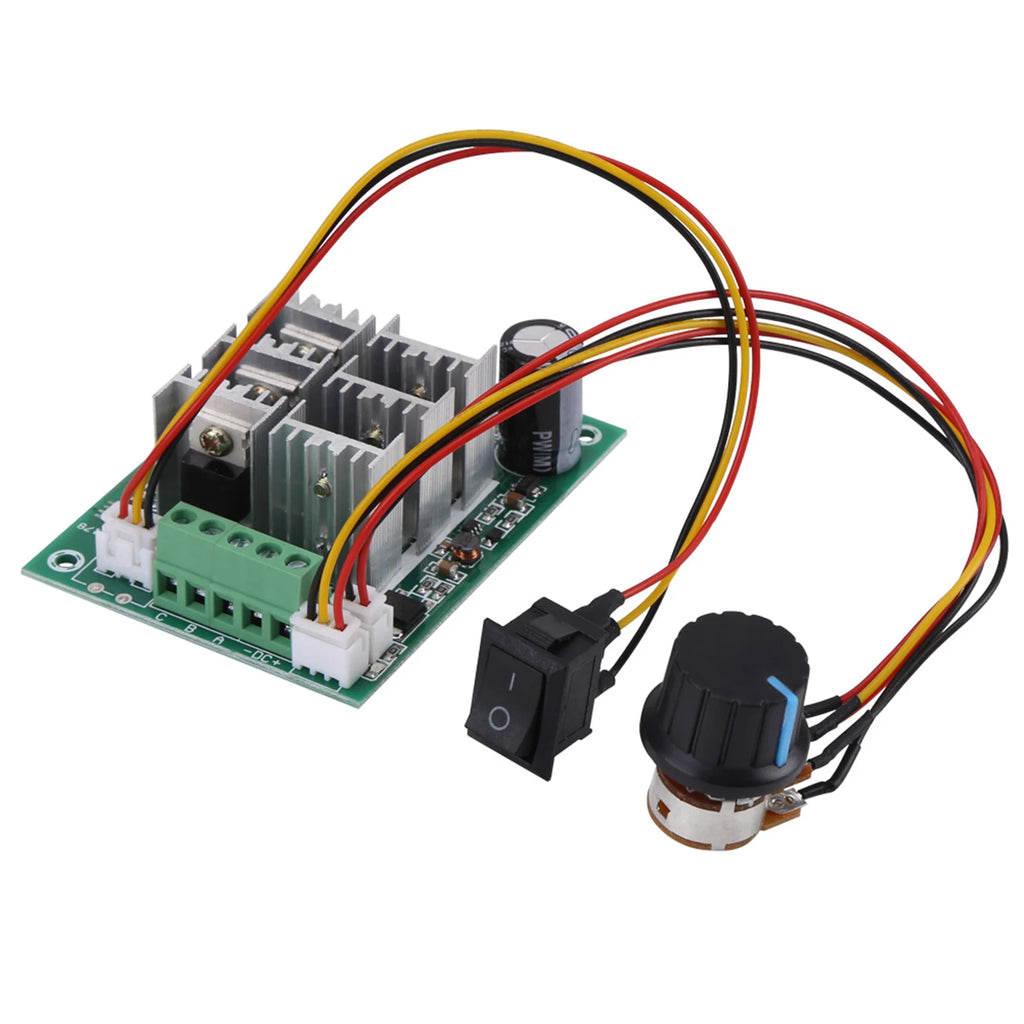

DC 5V–36V 15A 3-Phase Brushless Motor Speed Controller with CW/CCW Reversible Switch
Take precise command of your brushless motor projects with this compact, versatile 3-Phase Brushless Motor Speed Controller. Designed for a wide DC voltage range of 5V to 36V with a protective current rating of 15A, this module delivers stable, efficient speed regulation through a smooth 270° linear potentiometer — making it an ideal solution for hobbyists, makers, and engineers alike.
Key Features
- Wide Voltage Compatibility: Operates across DC 5V–36V, suitable for a broad range of brushless motor applications.
- CW & CCW Direction Control: Supports both clockwise and counter-clockwise motor rotation — reversible at the switch.
- Smooth Speed Regulation: Potentiometer-based 270° linear control allows precise 0–100% speed adjustment.
- 15A Protective Current: Built-in overcurrent protection keeps your motor and circuit safe during operation.
- Fence-Type Terminal Connections: Secure, easy-to-use terminal block for quick and reliable wiring.
- Compact & Lightweight: Module measures approx. 8 × 6 × 2.8 cm and weighs just 87g — easy to integrate into any build.
- Cost-Effective Multi-Function Operation: Stable performance with a simple layout — great value for a feature-rich controller.
Specifications
| Input Voltage | DC 5V – 36V |
| Protective Current | 15A |
| Motor Support | 3-Phase Brushless Motor |
| Direction Control | CW / CCW Reversible |
| Speed Regulation Mode | Potentiometer – 270° Linear |
| Speed Adjustment Range | 0 – 100% |
| Connection Type | Fence-Type Terminal |
| Knob Specification | 100K (with switch) |
| Module Size | Approx. 8 × 6 × 2.8 cm (3.15 × 2.36 × 1.1 in) |
| Weight | 87g |
Package Includes
- 1 × Motor Speed Controller Module
Important Notes
- Input must be DC only — do not connect to 220V AC mains power.
- Input voltage must match the rated voltage of your motor (DC 5V–36V).
- Motor wires A, B, C have no sequence distinction — no need to worry about phase order.
- Product styling (new or old type) may be sent randomly; both are functionally equivalent.
Made in Mainland China.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of motors is this brushless motor speed controller compatible with?
A: This controller is specifically designed for 3-phase brushless DC motors. It is not suitable for brushed motors or AC motors. Ensure your motor operates within the DC 5V–36V voltage range for safe and optimal performance.
Q: Can I use this controller to reverse my motor's direction?
A: Yes! This module supports both clockwise (CW) and counter-clockwise (CCW) rotation, making it easy to reverse your motor's direction via the integrated reversible switch — ideal for robotics, conveyors, and DIY automation projects.
Q: How do I adjust the motor speed with this controller?
A: Speed is adjusted using the built-in 270° linear potentiometer, allowing smooth and precise control from 0% to 100% of the motor's speed. Simply turn the knob to dial in your desired speed — no additional hardware required.
Q: Is overcurrent protection included in this speed controller?
A: Yes. The controller features a 15A protective current limit that helps safeguard both the controller module and your motor from overcurrent conditions during operation.
