DC Motor Speed Controller 220V AC to 90V DC Regulator
DC Motor Speed Controller 220V AC to 90V DC Regulator
DC Motor Speed Controller – 220V AC Input / 90V DC Output

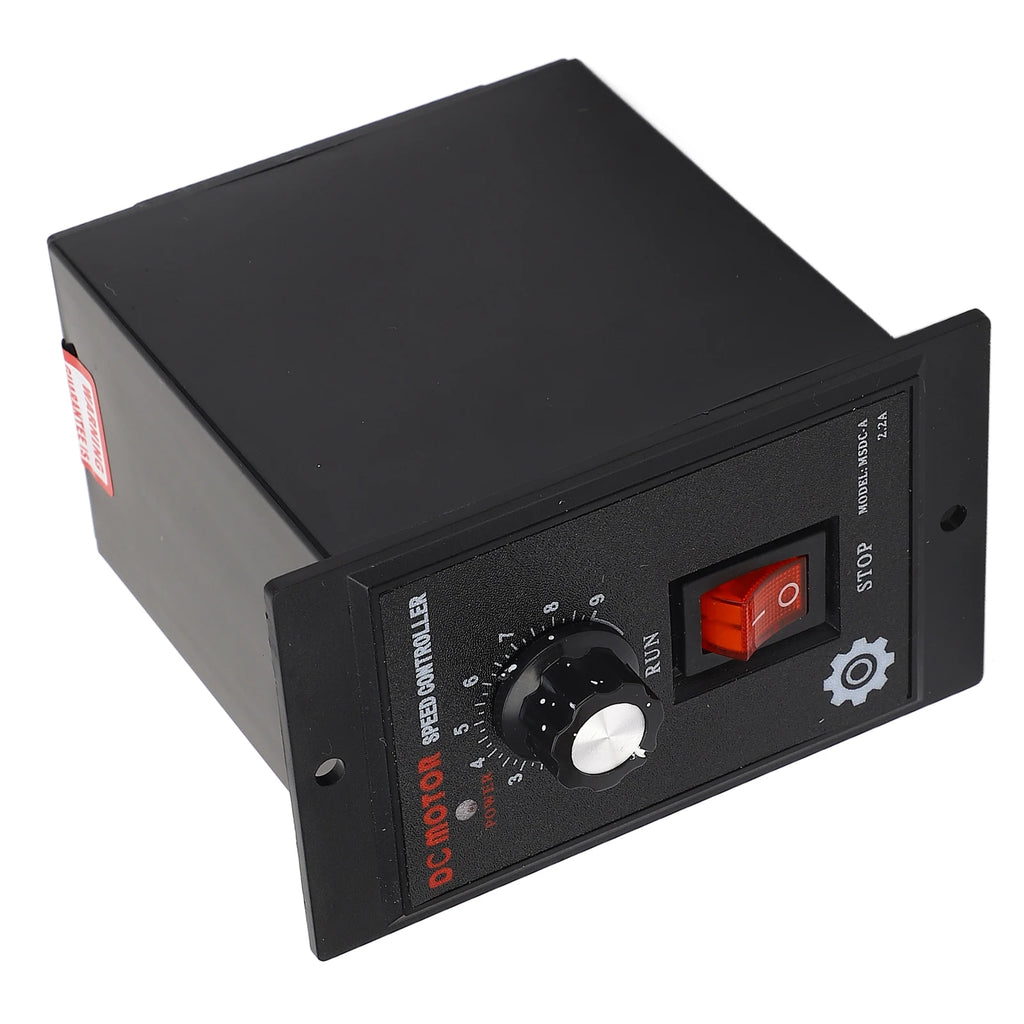

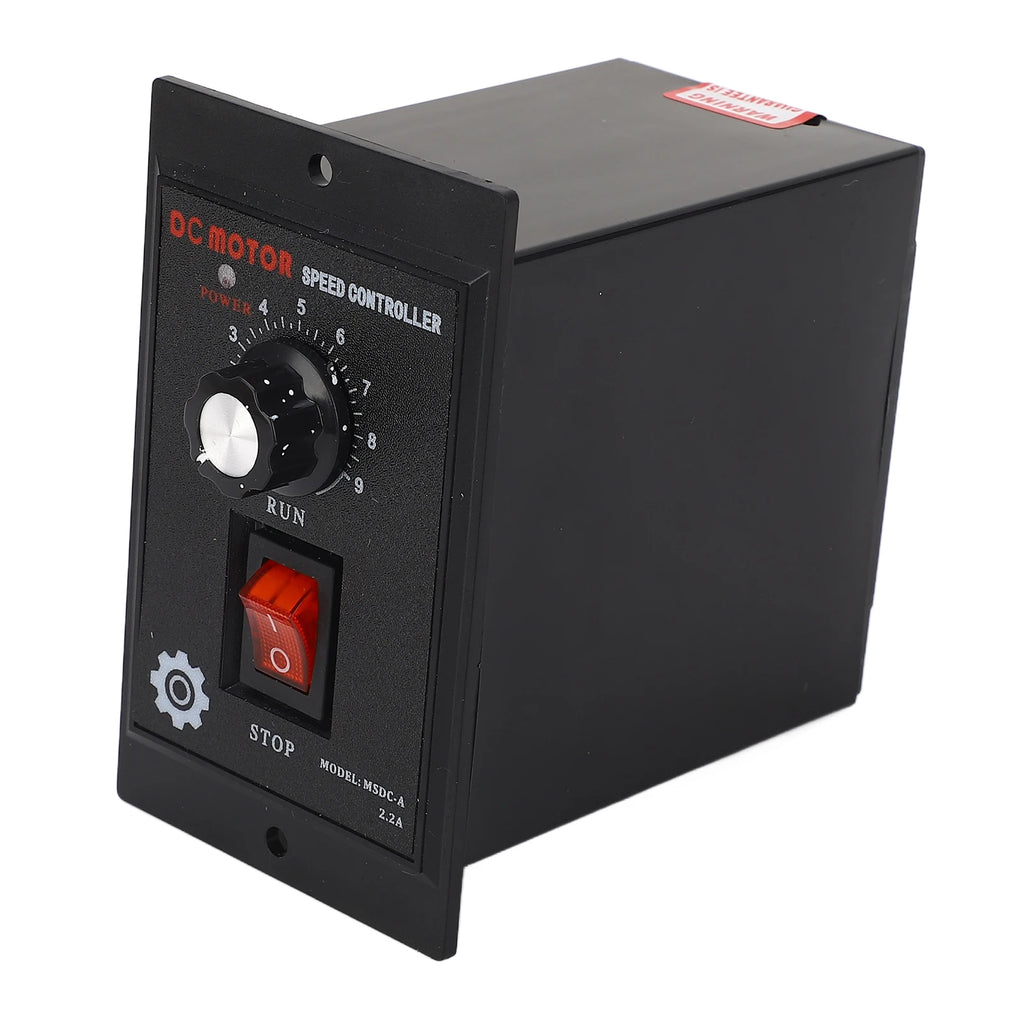

Take precise command of your DC motor with this compact, easy-to-install speed controller. Designed for workshop machinery, industrial equipment, and DIY projects, this regulator converts 220V AC input to a regulated 90V DC output, giving you smooth, stepless speed control at your fingertips. Made in Mainland China.
Key Features
- Wide Speed Adjustment Range: Delivers stable, high-efficiency performance across the full speed spectrum — from near-zero to full rated speed.
- 220V AC In / 90V DC Out: Standard voltage configuration allows direct motor start-up whenever DC voltage is present — no additional converter needed.
- Reversible Motor Direction: Easily switch between clockwise (CW) and counter-clockwise (CCW) rotation by swapping the wiring at the M+ and M− terminals.
- Broad Motor Compatibility: Suited for DC motors rated at 50W, 100W, 120W, 200W, 300W, 400W, and more — highly flexible for a variety of applications.
- Built-In Overcurrent Protection: Features an integrated safety fuse for overcurrent and short-circuit protection, keeping your equipment safe.
- Emergency Stop Function: Short the P1 and P2 terminals to instantly stop motor operation — a critical safety feature for industrial use.
- Compact & Lightweight: Panel screw installation in minutes; fits neatly into a standard control cabinet or enclosure.
Specifications
| Item Type | DC Motor Speed Controller |
| Input Voltage | 220V AC |
| Output Voltage | 90V DC |

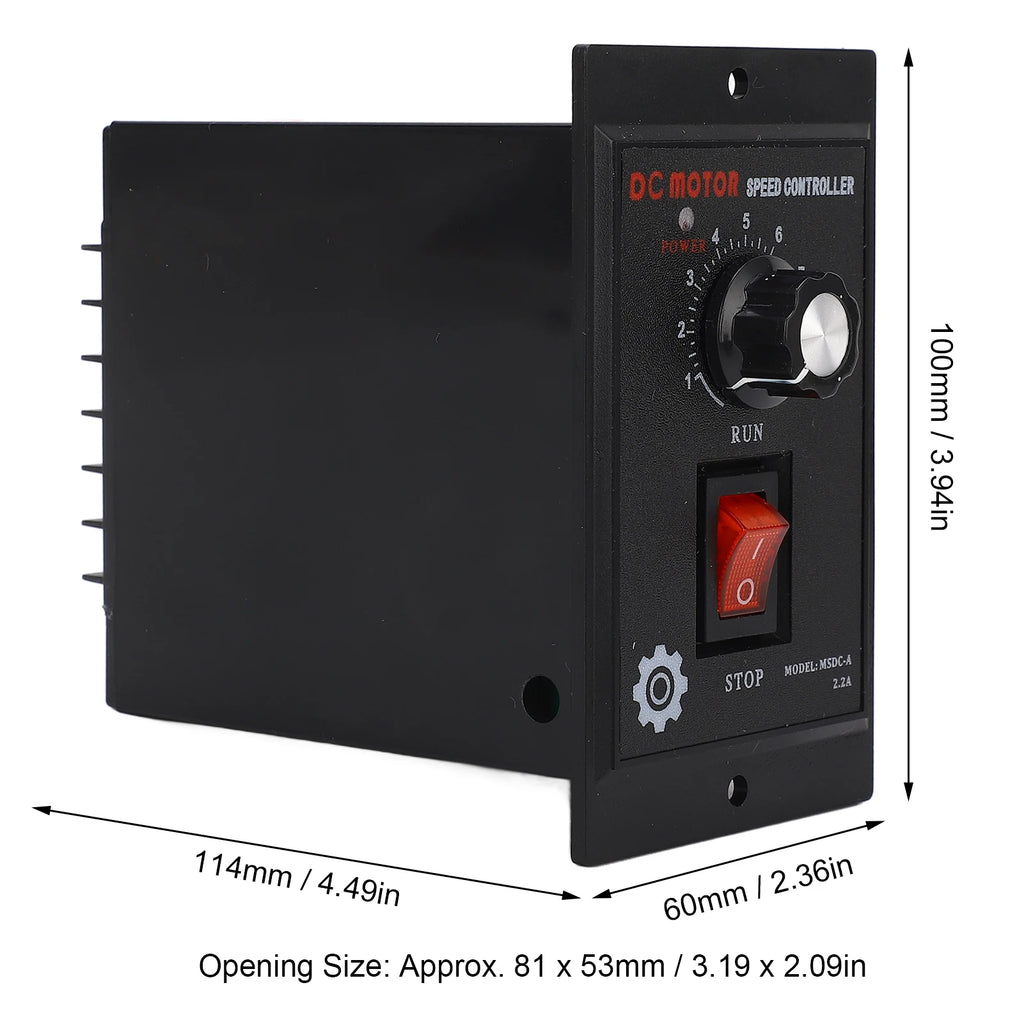

| Overall Dimensions | Approx. 100 × 60 × 114 mm (3.94 × 2.36 × 4.49 in) |
| Panel Opening Size | Approx. 81 × 53 mm (3.19 × 2.09 in) |
| Installation Method | Panel Screw Installation |
| Country of Origin | Mainland China |
How to Use
- Before powering on, turn the external speed knob to 0 to prevent a large instantaneous current surge that could damage the controller.
- Wiring terminals: The AC terminals accept the AC input voltage. M+ and M− connect to the DC motor output. P1 and P2 are the emergency stop terminals — shorting them halts the motor immediately.
- Fuse replacement: If the built-in safety fuse blows due to overcurrent or a short circuit, replace it with a fuse of the identical specification. Note that the panel action switch controls motor start/stop only — it does not disconnect power supply.
Package Contents
- 1 × DC Motor Speed Controller
