Build Your Own Portable Power Bank – No Soldering Required
The DIY 4-Slot 18650 Power Bank Box lets you assemble a custom portable charger in minutes — no soldering, no complicated wiring. Just load up to four 18650 flat-head batteries (sold separately), snap the case closed, and you have a compact, reusable power supply ready for everyday use at home, outdoors, or on the go.
Made in Mainland China.
Key Features

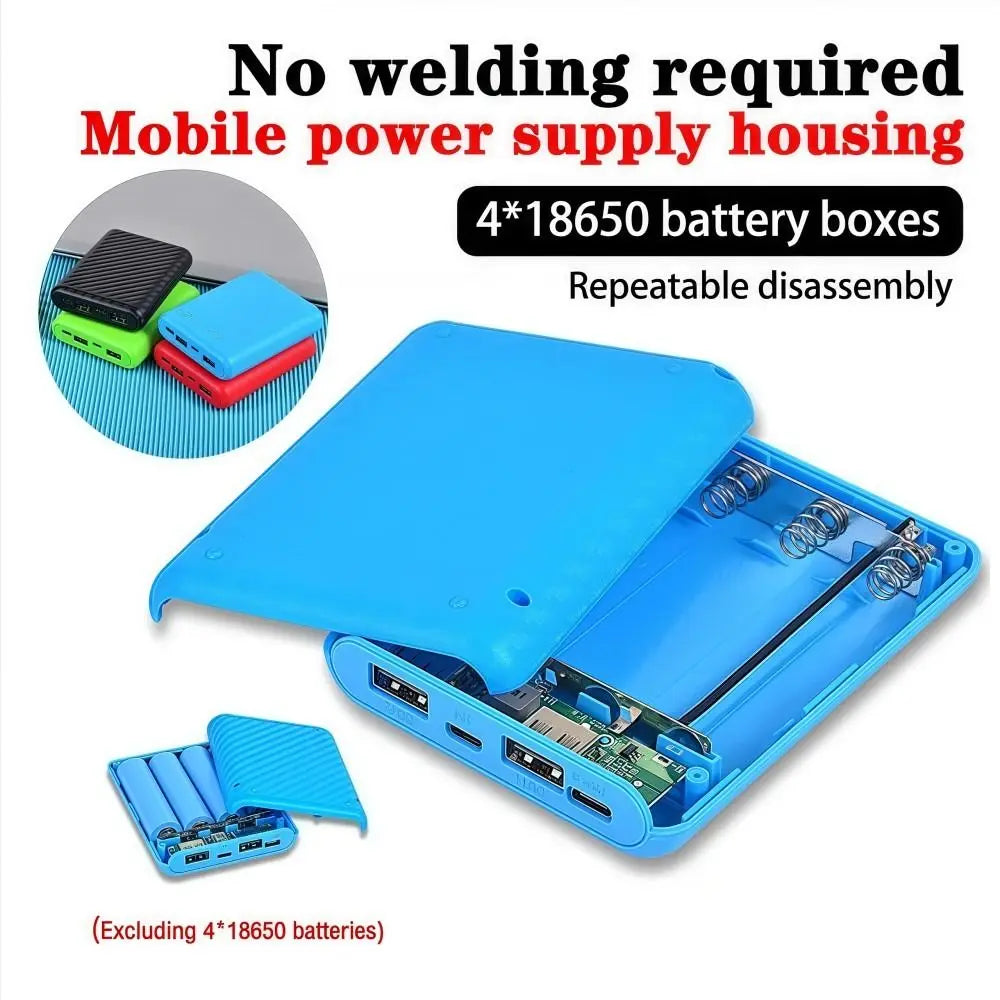

- Solderless Design: Batteries slot directly into the case and are secured with screws — simple to assemble, disassemble, and replace batteries whenever needed.
- Reverse-Polarity Protection: The onboard circuit protects the motherboard if a battery is inserted the wrong way — simply reinsert correctly and you're good to go.
- 4-Level Battery Indicator: LED indicator lights show remaining charge at a glance so you always know when it's time to swap or recharge.
- Dual USB Output: Powers two devices simultaneously at 5V/2.4A (MAX) — ideal for smartphones, earbuds, and other USB-charged gadgets.
- Dual Input Ports: Recharge the power bank via either a Micro-USB or Type-C port (5V/2.1A input; PD/DP not supported).
- Compact & Lightweight: Measures just 103 × 80 × 24 mm — easily fits in a pocket, bag, or backpack.
- Auto Shut-Off: The motherboard automatically powers down when not in use to preserve battery life.
- ABS Housing: Durable, lightweight plastic shell available in Black, White, Blue, and Green.
Specifications
| Material | ABS Plastic |
| Dimensions | 103 × 80 × 24 mm / 4.05 × 3.14 × 0.94 in |
| Battery Slots | 4 × 18650 (3.7V flat-head, no protective plate; each 3.3–4.2V, internal resistance <50 mΩ, 1C discharge rate) |
| USB Output | Dual USB-A, 5V/2.4A (MAX) |
| Input | 5V/2.1A via Type-C or Micro-USB (PD not supported) |
| Power Display | 4-level LED indicator (voltage-based calculation) |
| Colors | Black, White, Blue, Green |
| Batteries Included | No (batteries sold separately) |
Important Safety Notes
- This is a parallel battery box — always load batteries with the same capacity and charge level; never mix old and new or damaged batteries.

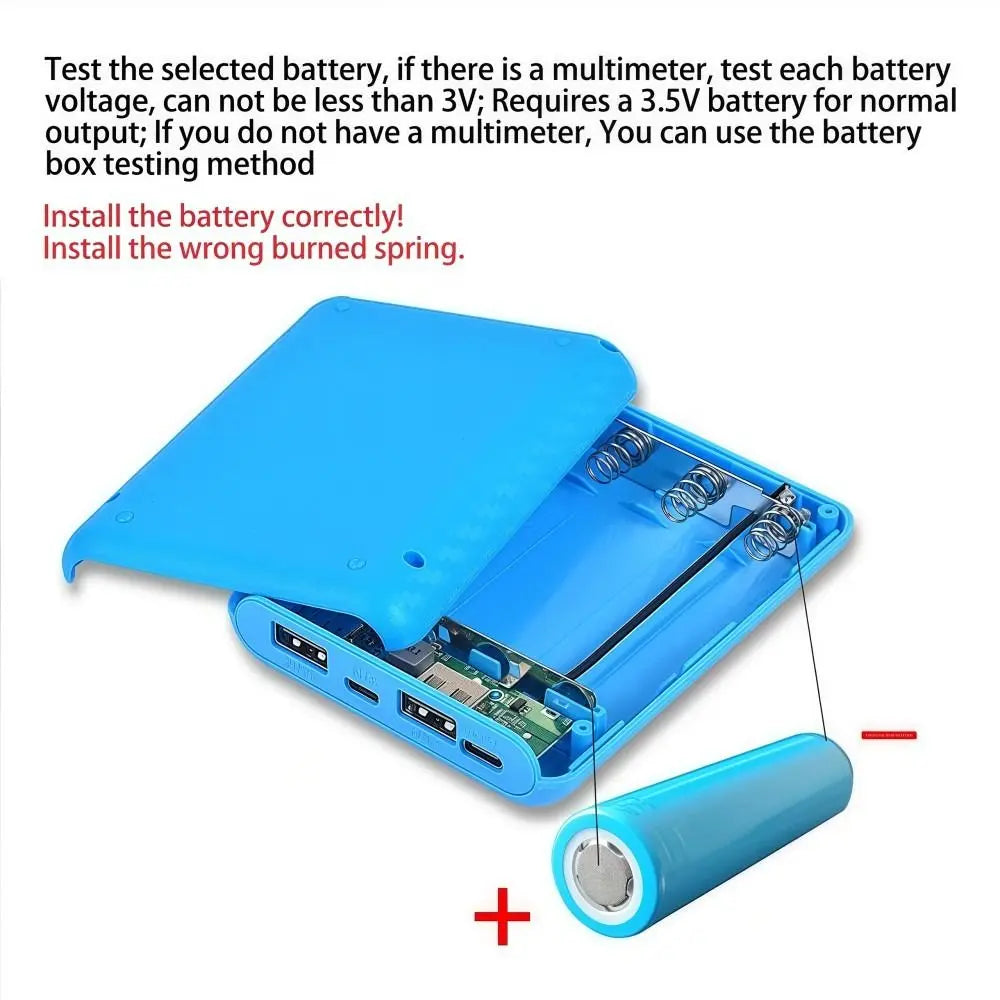

- Use only flat-head 18650 batteries with a stable voltage and low internal resistance. Pointed-tip batteries are not compatible.
- High-drain flashlight or radio batteries are generally not suitable — use high-rate cells for stable output.
- If the case becomes warm during use, remove the batteries immediately and inspect them before reuse.
- Recommended for users who are comfortable with DIY electronics assembly. Please read all instructions before purchasing.
What's in the Box
- 1 × DIY 18650 Power Bank Box (batteries not included)
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit – HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of 18650 batteries are compatible with this power bank box?

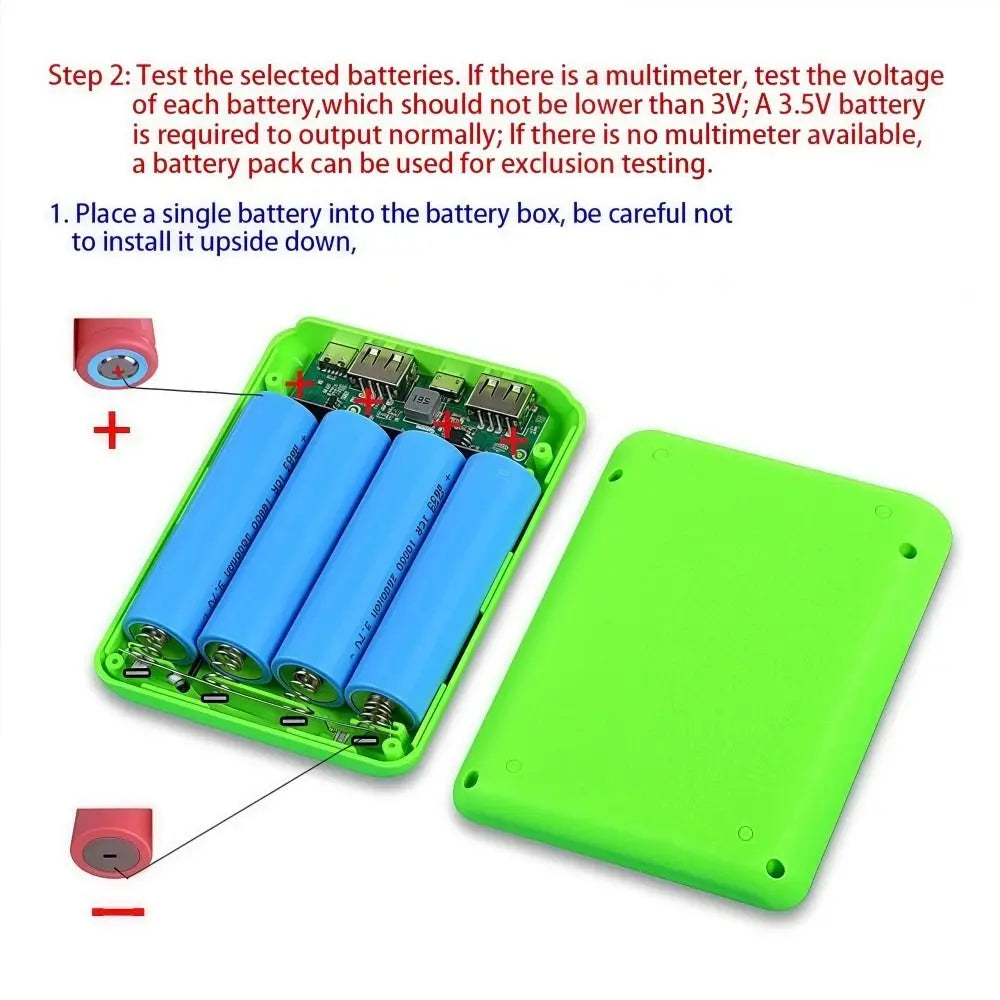

A: This DIY power bank box is designed for 3.7V flat-head 18650 batteries with no protective plate, internal resistance under 50 mΩ, and a voltage between 3.3V and 4.2V per cell. Pointed-tip batteries and low-drain cells (such as those used in flashlights or radios) are not compatible. For best results, use high-rate 18650 cells with a minimum capacity of 1200mAh each.
Q: Does this power bank box support fast charging (PD/Quick Charge)?
A: No — the input ports (Type-C and Micro-USB) accept standard 5V/2.1A charging only. PD (Power Delivery) and DP protocols are not supported. The dual USB-A outputs deliver up to 5V/2.4A (MAX) combined for charging your devices.
Q: How many devices can I charge at the same time?
A: The case features dual USB-A output ports, so you can charge two devices simultaneously. Total output is shared at 5V/2.4A (MAX) across both ports.
Q: Is soldering required to assemble this power bank?
A: No soldering is needed at all. Simply insert up to four compatible 18650 flat-head batteries into the slots, secure the cover with the included screws, and the unit is ready to use. Batteries can be swapped or replaced at any time.
