DIY Dual Channel Speaker Protection Board Boot Delay Kit

$15.94 $18.86

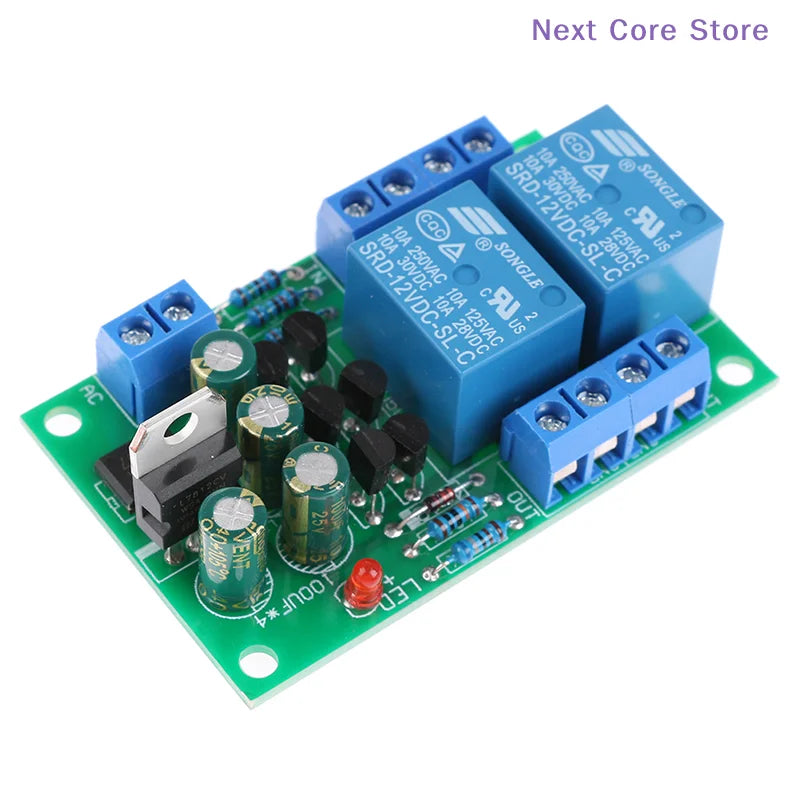

DIY Dual Channel Speaker Protection Board – Boot Delay Kit

Build your own reliable speaker protection circuit with this complete DIY component kit. Designed for stereo audio systems, this double-channel protection board introduces a 3–5 second boot delay so your speakers are safely connected only after your amplifier has fully powered on — eliminating unwanted startup noise and protecting your drivers.

Whether you're a hobbyist assembling a custom audio setup or an electronics enthusiast upgrading an existing amplifier, this kit gives you everything you need: all PCB components plus the board itself, ready for you to solder together.

Key Features

Dual Channel Protection: Safeguards both left and right speaker channels simultaneously.
3–5 Second Boot Delay: 1.2V DC sampling triggers a controlled delay on startup, keeping your speakers safe from power-on transients.
Simple, Safe Circuit Design: Straightforward schematic ideal for DIY builders of all skill levels.

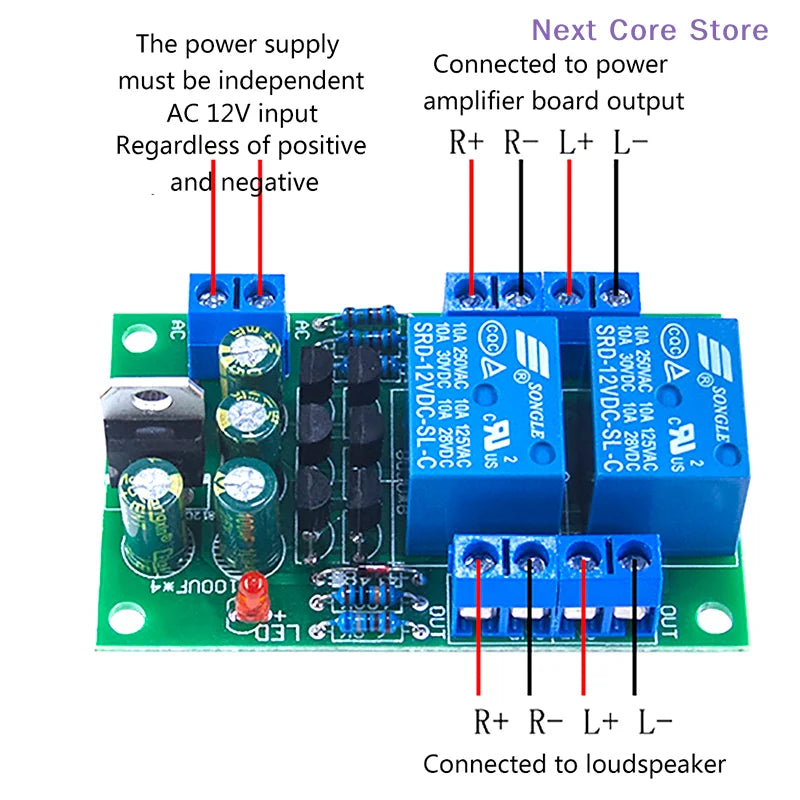

AC 12–16V Operating Voltage: Use an independent power supply (not shared with the amplifier) for best results.
Metal Construction: Durable metal components for long-lasting performance.

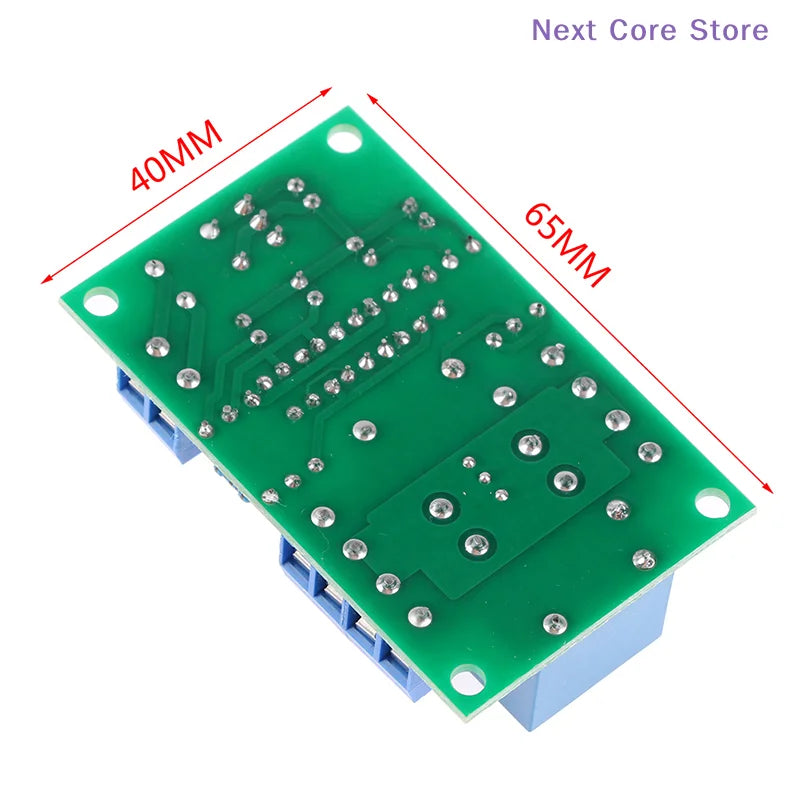

Compact Size: 65mm (L) × 40mm (W) × 25mm (H) — fits neatly inside most amplifier enclosures.

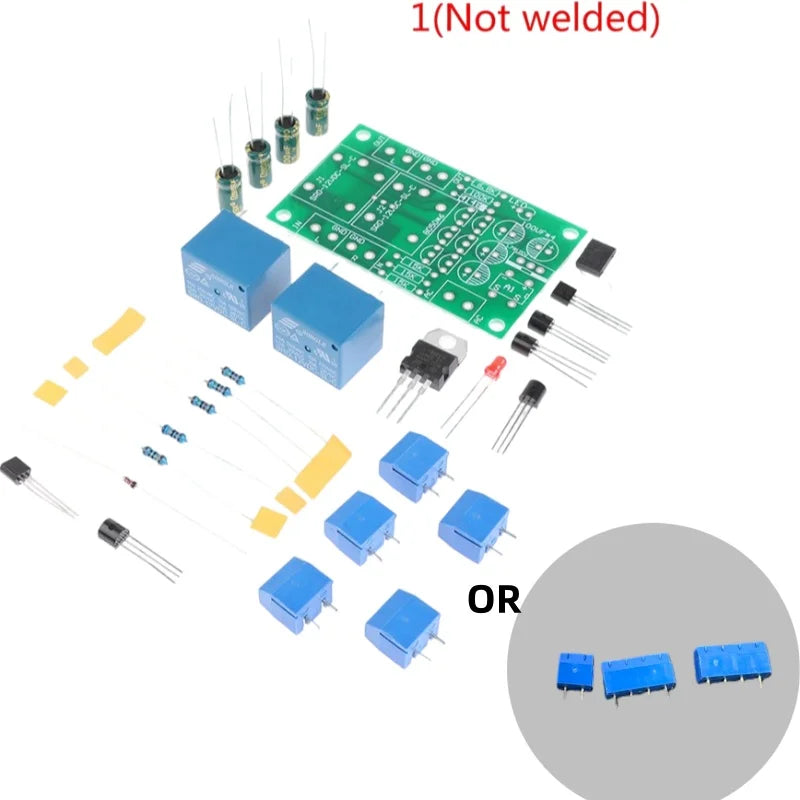

Complete DIY Kit: Includes all components and PCB as pictured — not pre-assembled; soldering required.

Specifications

Type: Dual Channel Speaker Protection Board (DIY Kit)
Operating Voltage: AC 12–16V (independent power supply recommended)
Delay Time: 3–5 seconds (1.2V DC sampling)
Dimensions: 65mm × 40mm × 25mm
Material: Metal
Compatible Equipment: Stereo speakers / amplifier systems

What's in the Box

1 × Speaker Protection Board DIY Component Kit (PCB + all electronic components)

Note: This kit is supplied unassembled. Soldering skills are required for assembly. Use an independent power supply — do not share a power supply with the amplifier unit.

Made in Mainland China.

Frequently Asked Questions

Q: Does this speaker protection board kit come pre-assembled?

A: No, this is a DIY kit. It includes all the electronic components and the PCB as shown in the product images, but it is not pre-assembled. You will need basic soldering skills and equipment to build the circuit yourself.

Q: What power supply should I use with this speaker protection board?

A: The board operates on AC 12–16V. It is strongly recommended to use an independent power supply dedicated to this protection board — do not share a power supply with your power amplifier, as this can affect performance and reliability.

Q: What is the purpose of the 3–5 second boot delay on this protection board?

A: The boot delay prevents your speakers from being connected to the amplifier output immediately at power-on. This short delay allows the amplifier to stabilize before the relay engages, protecting your speakers from unwanted transient noise or voltage spikes during startup.

Q: What audio setups is this dual channel speaker protection board compatible with?

A: This board is designed for stereo speaker systems and is compatible with most dual-channel (left/right) amplifier setups that operate within the specified voltage range. It is ideal for DIY amplifier builds, hi-fi projects, and custom audio enclosures.
