DIY Type-C Integrated Charging & Flashlight Driver Board
Take your DIY flashlight projects to the next level with this compact, all-in-one circuit board. Combining a touch switch, LED driver, and USB Type-C charging port into a single 17.5mm board, this module is the perfect upgrade component for hobbyists and electronics enthusiasts who want a cleaner, more capable flashlight build — no extra modules or wiring mess required.
Made in Mainland China.
Key Features

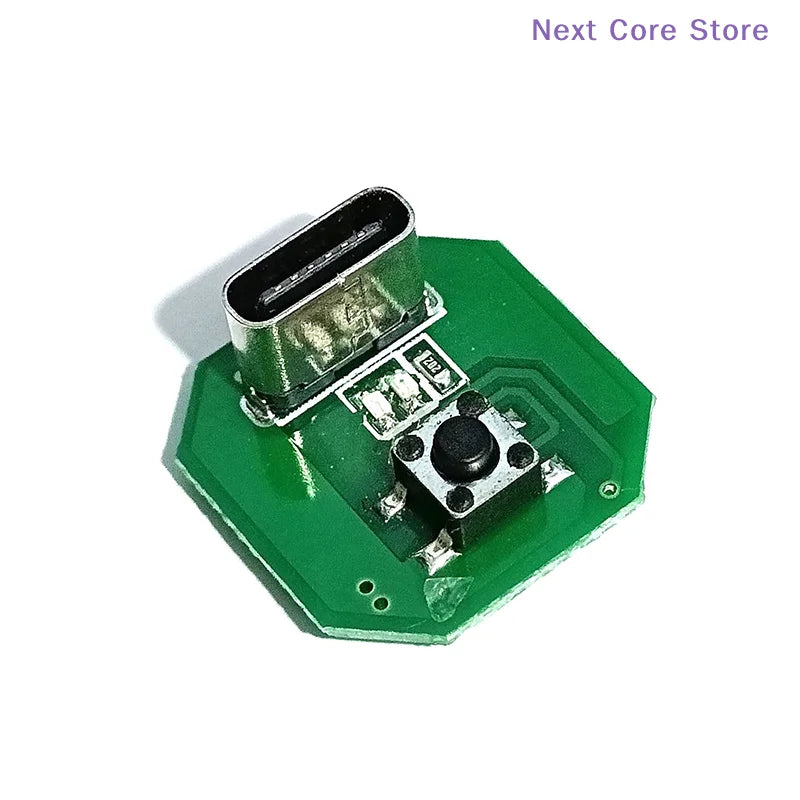

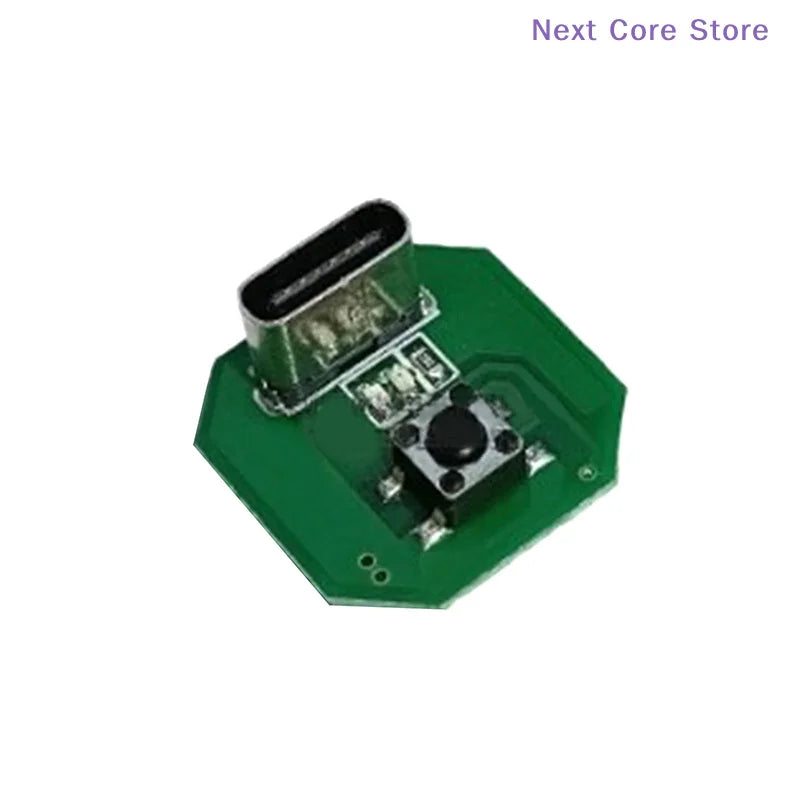

- 3-in-1 Integration: Touch switch, flashlight driver, and charging circuit all on one compact PCB
- USB Type-C Charging Port: Modern, reversible charging input for convenience and compatibility
- Compatible with 10W LED: Designed to drive 10-watt LEDs efficiently for bright, reliable output
- Compact Size: ~17.5mm square — fits neatly into most standard flashlight bodies
- Single-Cell Input: Operates on 3.7V–4.2V (one Li-ion cell); no external charger needed
- Reusable & Durable: High-quality PCB construction built for repeated use across multiple builds
- Single Brightness Mode: Clean, straightforward single-gear output — ideal for reliable everyday flashlight use
Specifications
| Input Voltage | 3.7V – 4.2V (single Li-ion cell) |
| Charging Port | USB Type-C |
| LED Compatibility | 10W LED |

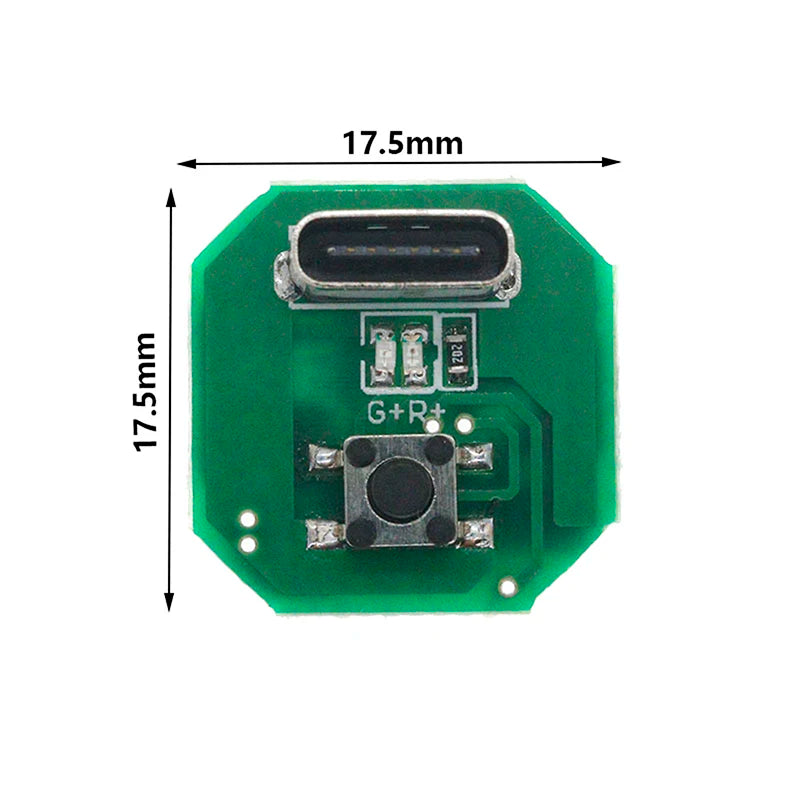

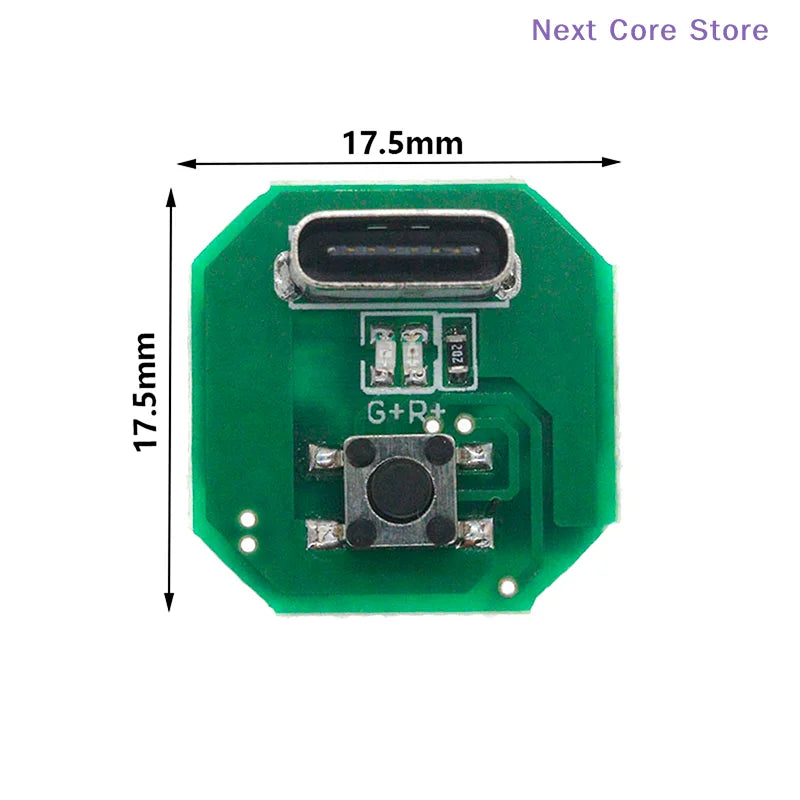

| Board Size | Approx. 17.5mm (side length) |
| Brightness Modes | Single gear (1 mode) |
| Switch Type | Touch switch (integrated) |
| Package Contents | 1x Driver Board PCB |
| Battery Included | No |
| Charger Included | No |
Perfect For
- DIY flashlight builds and upgrades
- Electronics hobbyists and makers
- Replacing outdated or single-function driver boards
- Adding Type-C charging capability to existing flashlight projects
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Note: Actual product color may vary slightly from images due to differences in monitor settings and photography lighting. Size measurements are manual and subject to a small tolerance range.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What battery type does this flashlight driver board support?
A: This driver board is designed for a single Li-ion cell with an input voltage range of 3.7V to 4.2V — the standard specification for most 18650 or similar lithium cells. Battery is not included.
Q: What LED wattage is compatible with this DIY driver board?
A: The board is specifically designed to drive a 10-watt LED, making it well-suited for high-brightness DIY flashlight builds and upgrades.
Q: Does this board include a charging circuit, or do I need a separate charger?
A: Yes — the charging circuit is fully integrated into this board along with the driver and touch switch. Simply connect a USB Type-C cable to charge the battery directly through the board. No external charger module is required.
Q: What are the dimensions of this driver board?
A: The board has a side length of approximately 17.5mm, making it compact enough to fit inside most standard DIY flashlight housings.
