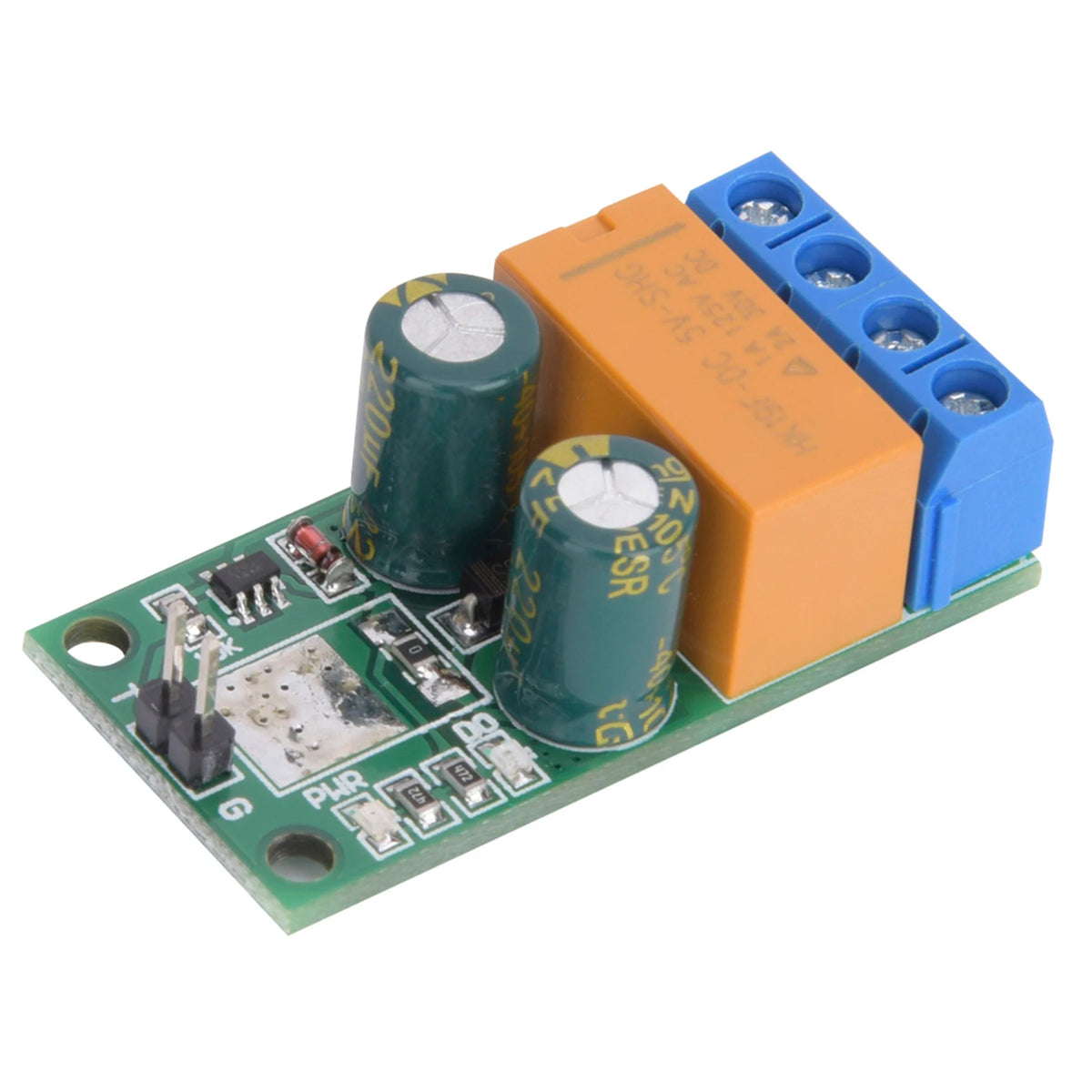

DR55B01 Motor Forward/Reverse Controller Module

Take full control of your DC motor direction with the DR55B01 Self-Locking Bistable Reverse Polarity Relay Module. Designed for makers, hobbyists, and electronics engineers, this compact CW/CCW controller lets you toggle motor direction with a simple low-pulse trigger — no complex wiring or programming required. Made in Mainland China from high-quality electronic components for stable, reliable performance.

Key Features

• Self-Locking (Bistable) Operation: Trigger once to reverse polarity output (held); trigger again to restore normal output (held). State is maintained without continuous signal.
• Easy Direction Control: Controls clockwise and counter-clockwise motor rotation; power on/off handles start and stop.
• Built-In Indicators: Includes a power indicator LED and a reverse polarity indicator LED for instant status feedback.
• Low Pulse Control: Operates on a 0.2–2 second low pulse trigger — simple and convenient for automation or manual switching.

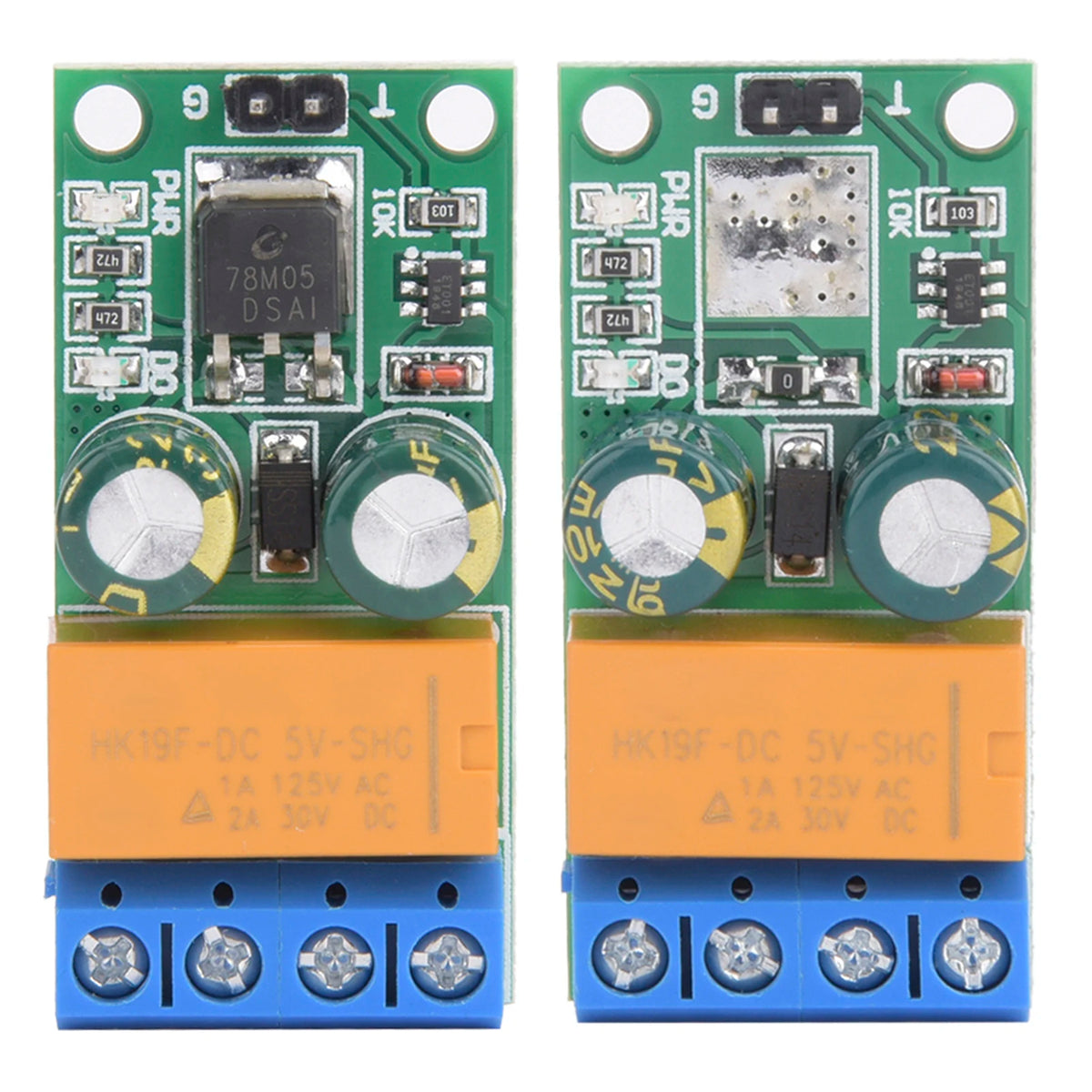

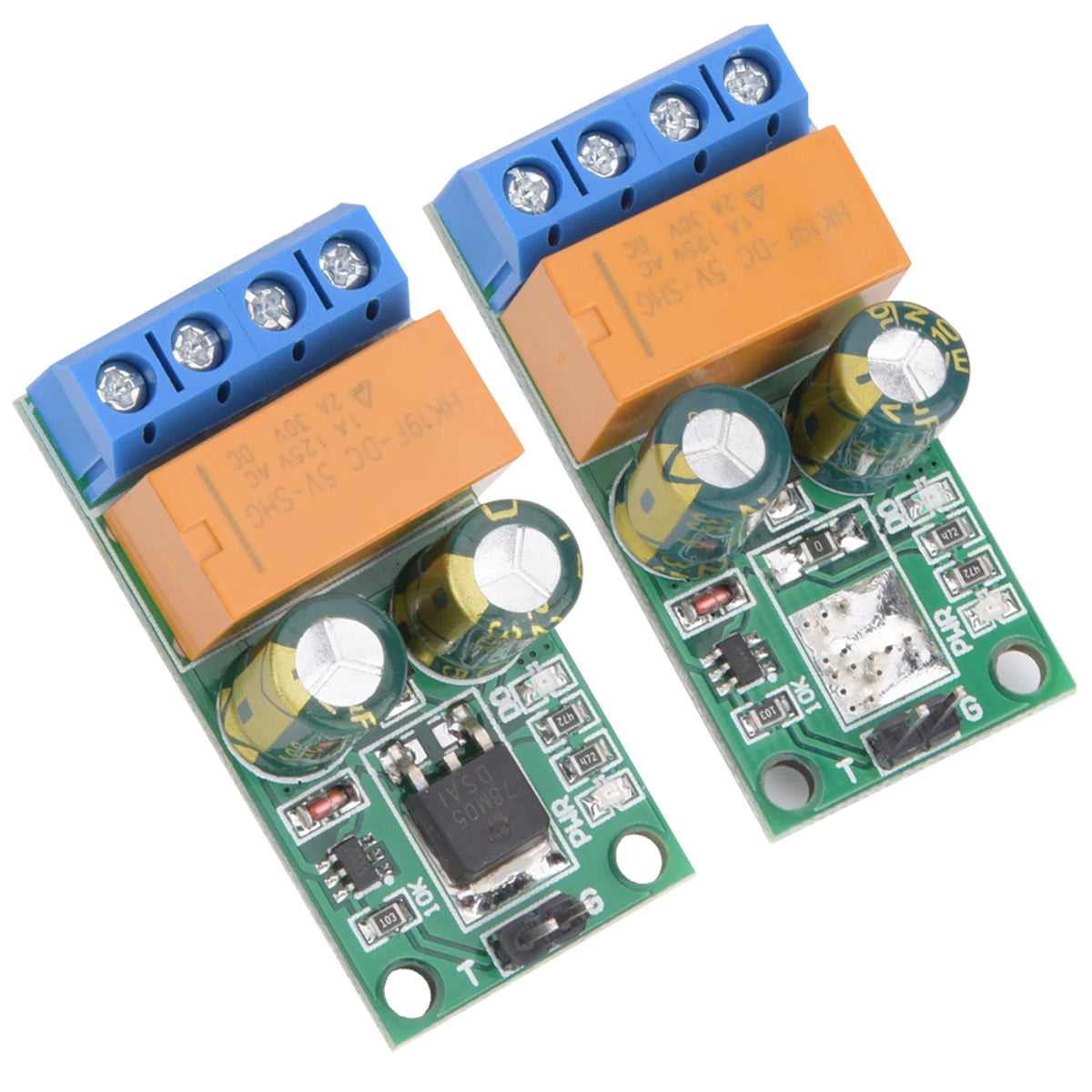

• Dual Voltage Versions: Available in DC 5V and DC 6–24V (12V) versions to suit a wide range of project requirements.
• Compact & Lightweight: Measures just 43 × 21 × 16 mm and weighs only 13.5 g — perfect for space-constrained builds.

Specifications

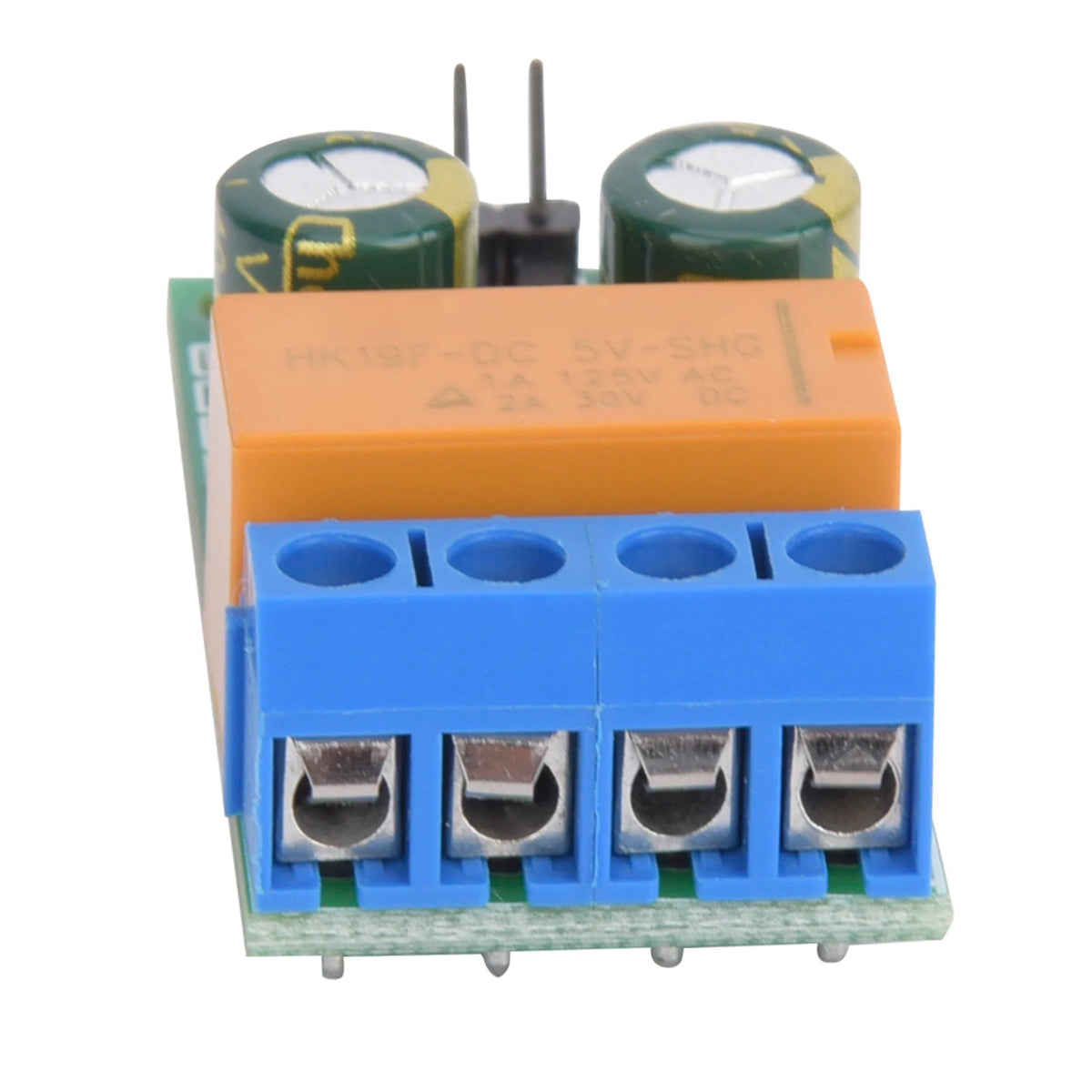

Pin Description

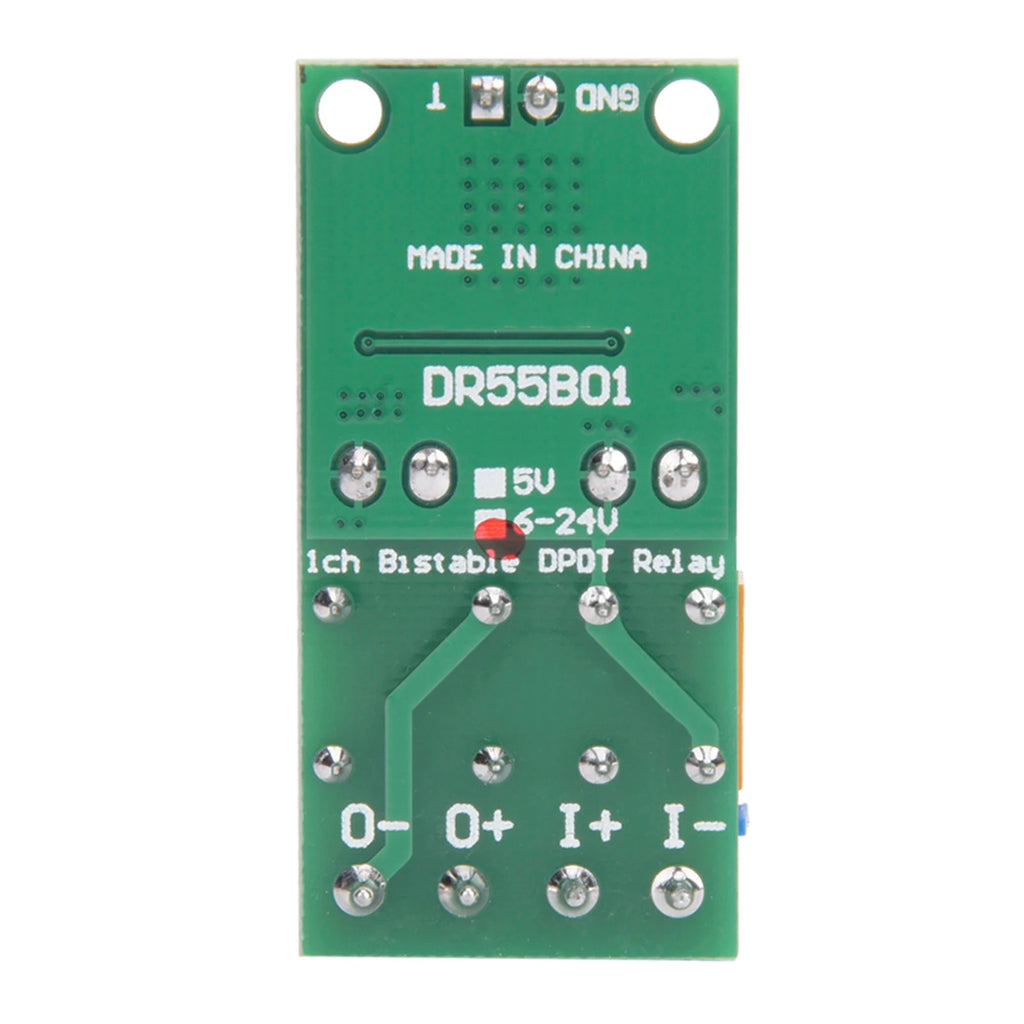

• I+ – Power input positive
• I– – Power input negative
• O+ – Power output positive (outputs negative in reverse polarity mode)
• O– – Power output negative (outputs positive in reverse polarity mode)
• G – Trigger signal ground
• T – Trigger signal input (0.2–2 second low pulse)

How It Works

1. Power on → Output equals input (normal polarity).
2. Press trigger → Reverse polarity output activated and held.
3. Press trigger again → Normal polarity restored and held.
4. Repeat as needed. Power off to stop output entirely.

Important Notes

• Use a power supply rated at at least 2× the load power for stable operation; for motor loads, use 3× or more.
• Maximum load current is 2A (general); for motor loads, limit to 1A max.
• This module controls direction only — start/stop is managed by powering the module on or off.

What's in the Box
