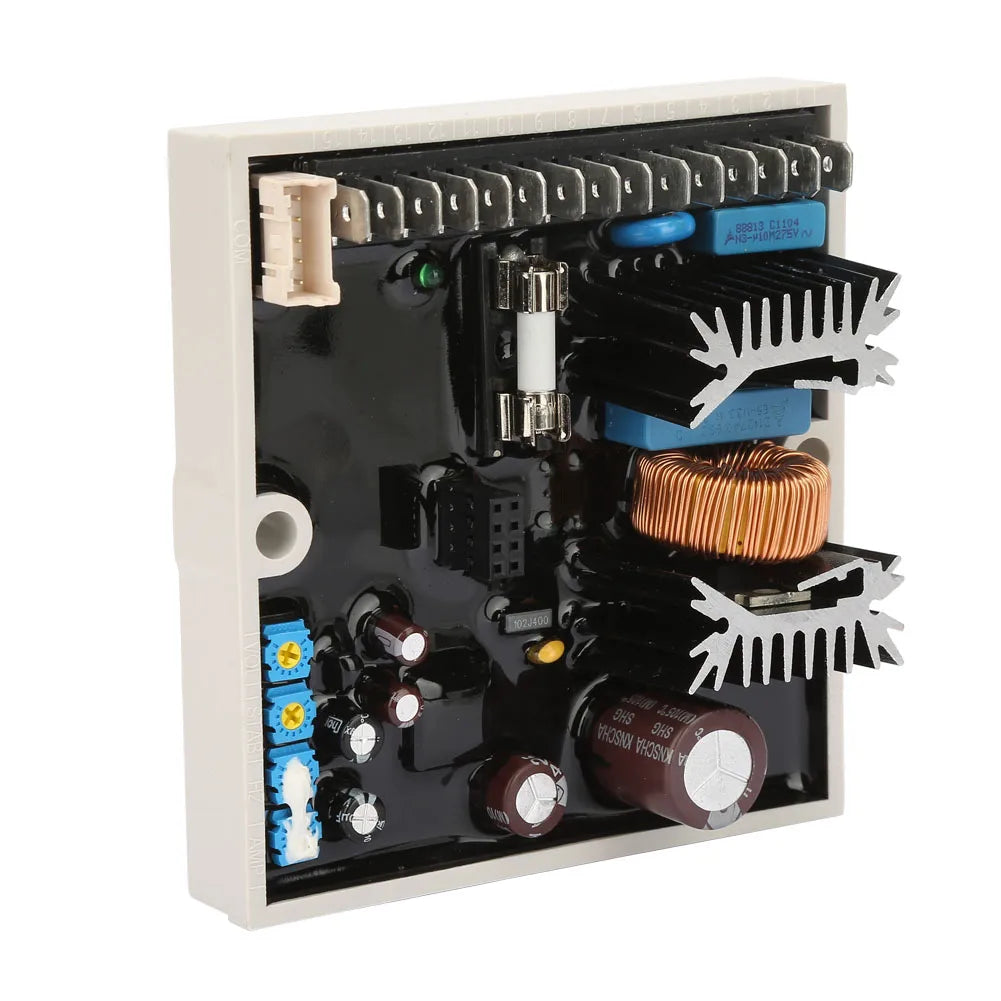

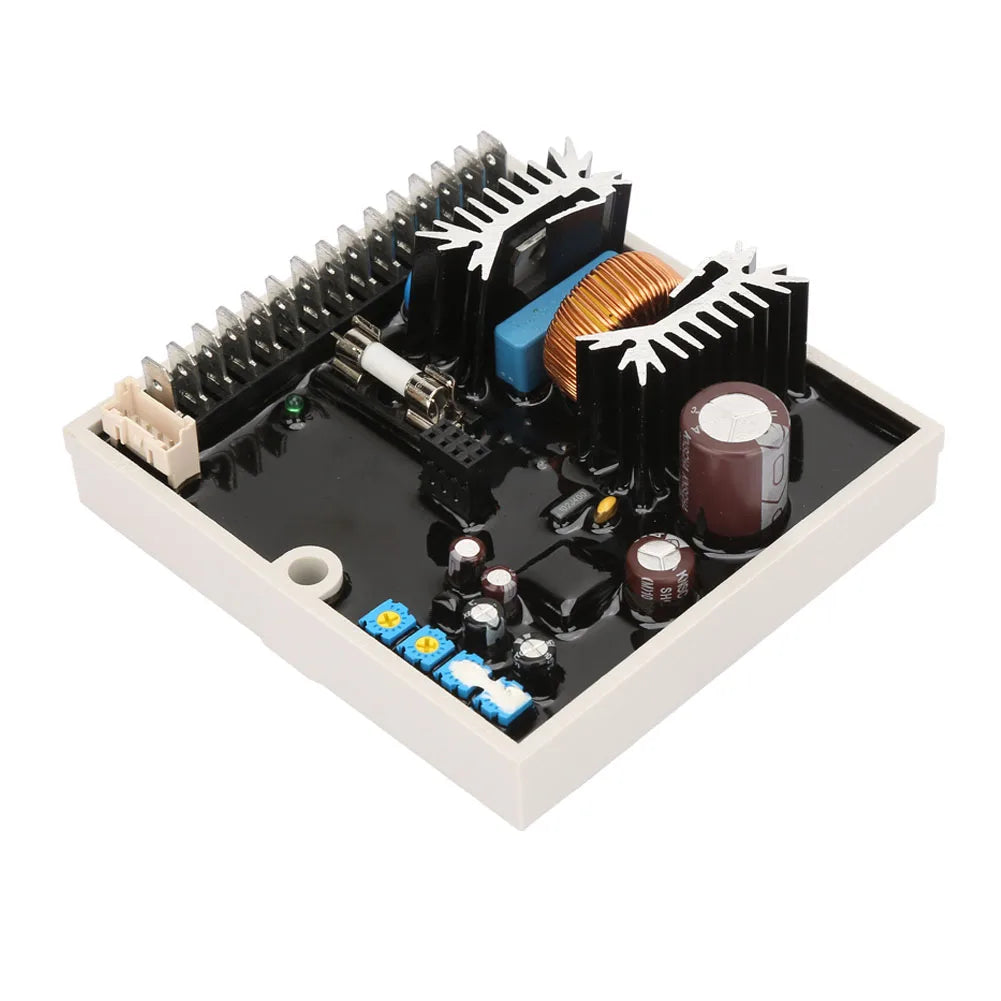

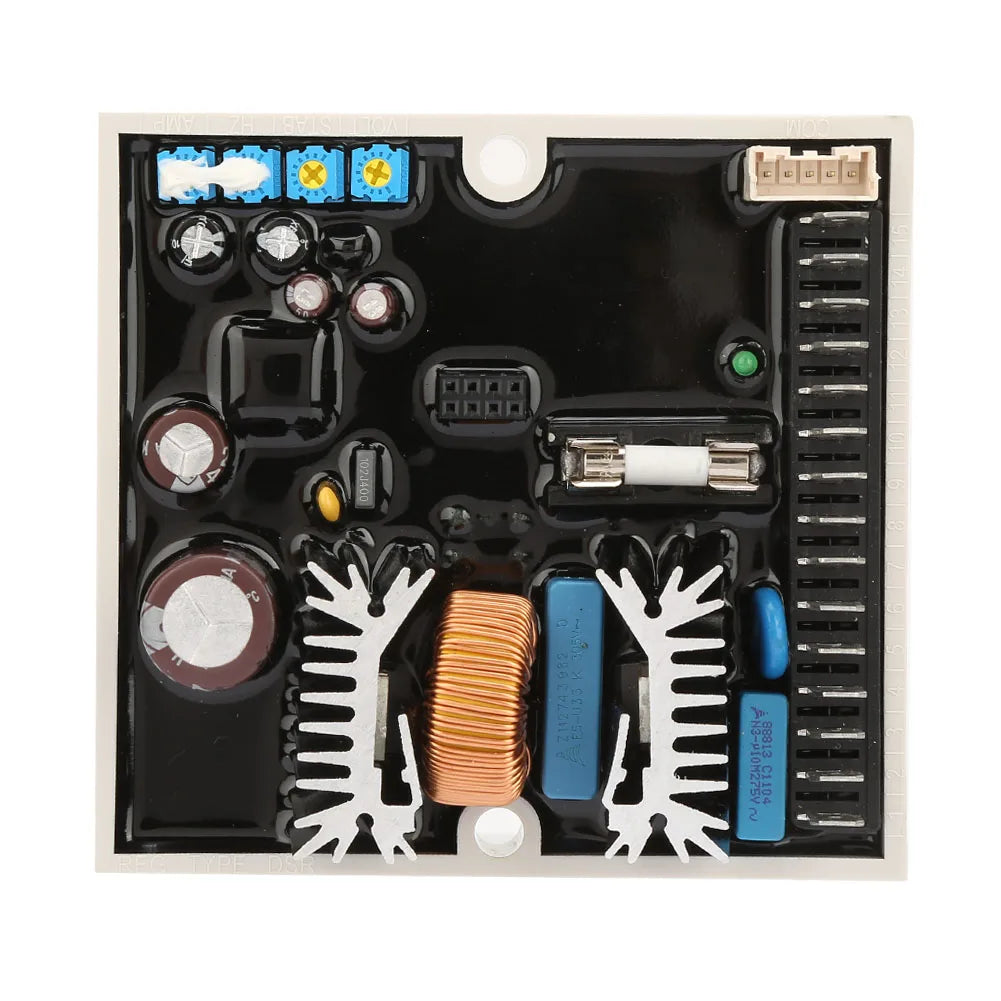

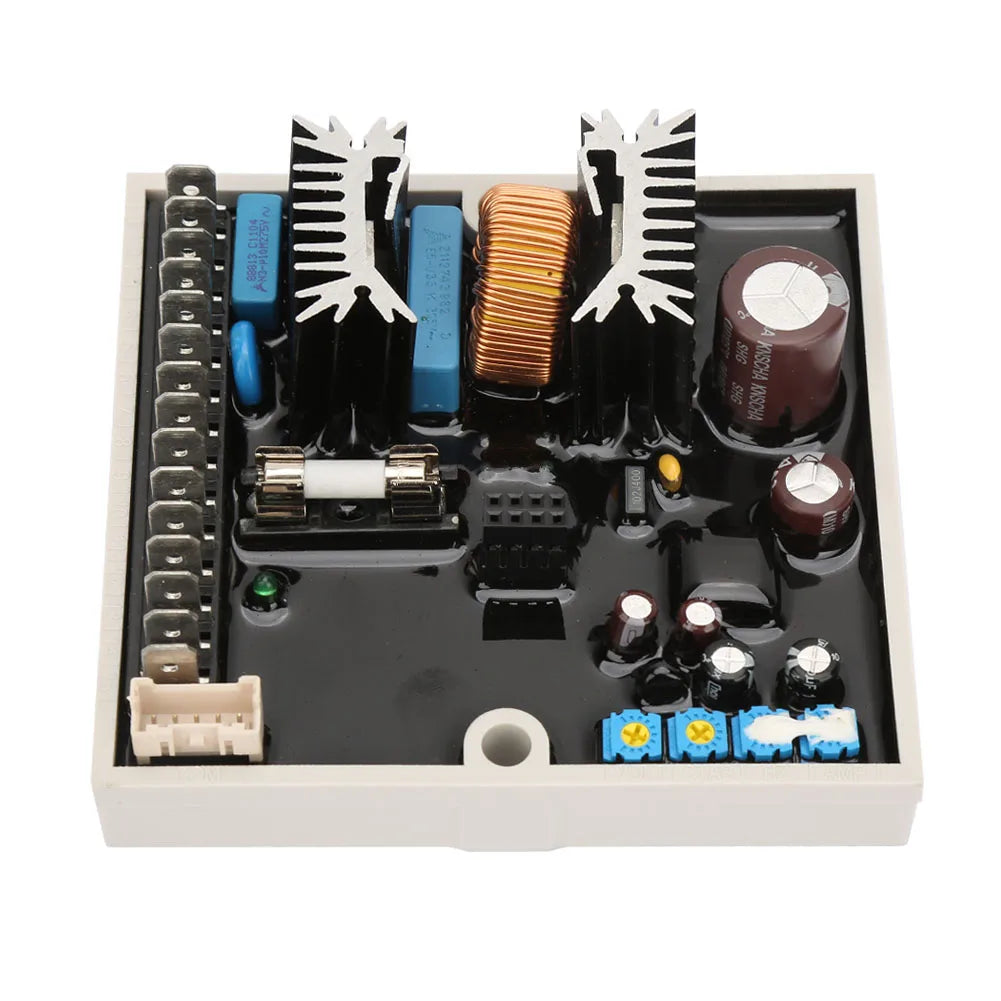

DSR AVR Automatic Voltage Regulator for Meccalte Generator A6762
DSR AVR Automatic Voltage Regulator for Meccalte Generator A6762
DSR AVR Automatic Voltage Regulator – Compatible with Meccalte Generator A6762 (40–270VAC)
Keep your generator running at peak efficiency with the DSR AVR Automatic Voltage Regulator, engineered for compatibility with Meccalte generators (model A6762). Featuring fully digital control, a wide input voltage range of 40–270VAC, and real-time monitoring of voltage and frequency, this AVR is designed for reliable, precise power regulation in demanding environments.
Key Features
- Fully Digital Control: Supports computer/PLC connectivity for seamless integration into automated systems.
- Multi-Function Control System: Easy to operate with intuitive controls including fast opening and fast closing functionality.
- Real-Time Monitoring: Continuously tracks voltage and frequency for consistent, stable output.
- Wide Voltage Range: Accepts variable voltage input from 40–270VAC — suitable for diverse power environments.
- High Accuracy: Voltage regulation accuracy of ±1%, ensuring dependable and stable generator output.
- Rapid Voltage Recovery: Returns to within ±3% of the set value in under 300 milliseconds.
- Broad Temperature Tolerance: Operates reliably from -25°C to +70°C (-13°F to +158°F).
- Brand New Condition: 100% new unit, complete with fuse and user manual.
Technical Specifications
| Variable Voltage Power Supply | 40–270VAC |
| Frequency Range | 15 Hz – 72 Hz |
| Voltage Regulation Accuracy | ±1% |
| Maximum Continuous Output Current | 5A DC |
| Ambient Temperature Range | -25°C to +70°C |
| True RMS / Average Measured Value Adjustment | 70–280V DC |
| Transient Voltage Variation | Within ±15% |
| Voltage Recovery Time | <300ms to within ±3% of set value |
| Start-Up Transient Overvoltage | <5% of nominal voltage |
| Type | Induction, Single Phase |
| Compatible Model | Meccalte Generator A6762 |

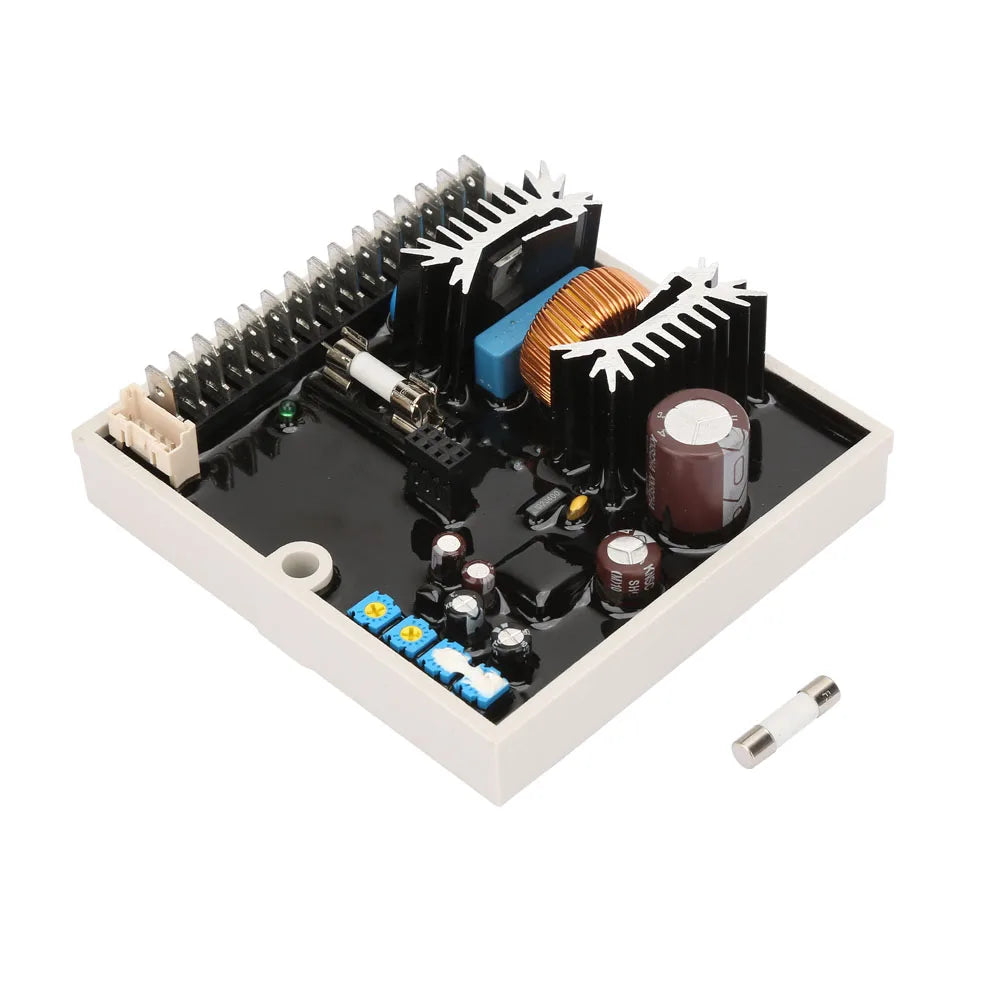

What's in the Box
- 1 × DSR AVR Voltage Regulator
- 1 × Fuse
- 1 × User Manual
Made in Mainland China.
Explore Related Products
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which generators is this DSR AVR Automatic Voltage Regulator compatible with?
A: This DSR AVR is specifically designed for compatibility with the Meccalte Generator model A6762. Its wide voltage input range of 40–270VAC also makes it suitable for use in a variety of single-phase, induction-type generator applications. Always confirm compatibility with your generator's specifications before installation.
Q: What is the voltage regulation accuracy of this AVR?
A: The DSR AVR Automatic Voltage Regulator delivers a voltage regulation accuracy of ±1%, ensuring stable and consistent generator output. Voltage recovery time is less than 300 milliseconds to return within ±3% of the set value after a transient fluctuation.
Q: Can this voltage regulator be connected to a computer or PLC system?
A: Yes. This AVR features fully digital control and supports both computer links and PLC connections, making it ideal for integration into automated or remotely monitored generator systems.
Q: What is included in the package?
A: Each order includes one (1) DSR AVR Voltage Regulator unit, one (1) fuse, and one (1) user manual — everything needed to get started with installation.
