Fdit 24V Automatic Water Pressure Booster Pump – Low Noise
Fdit 24V Automatic Water Pressure Booster Pump – Low Noise

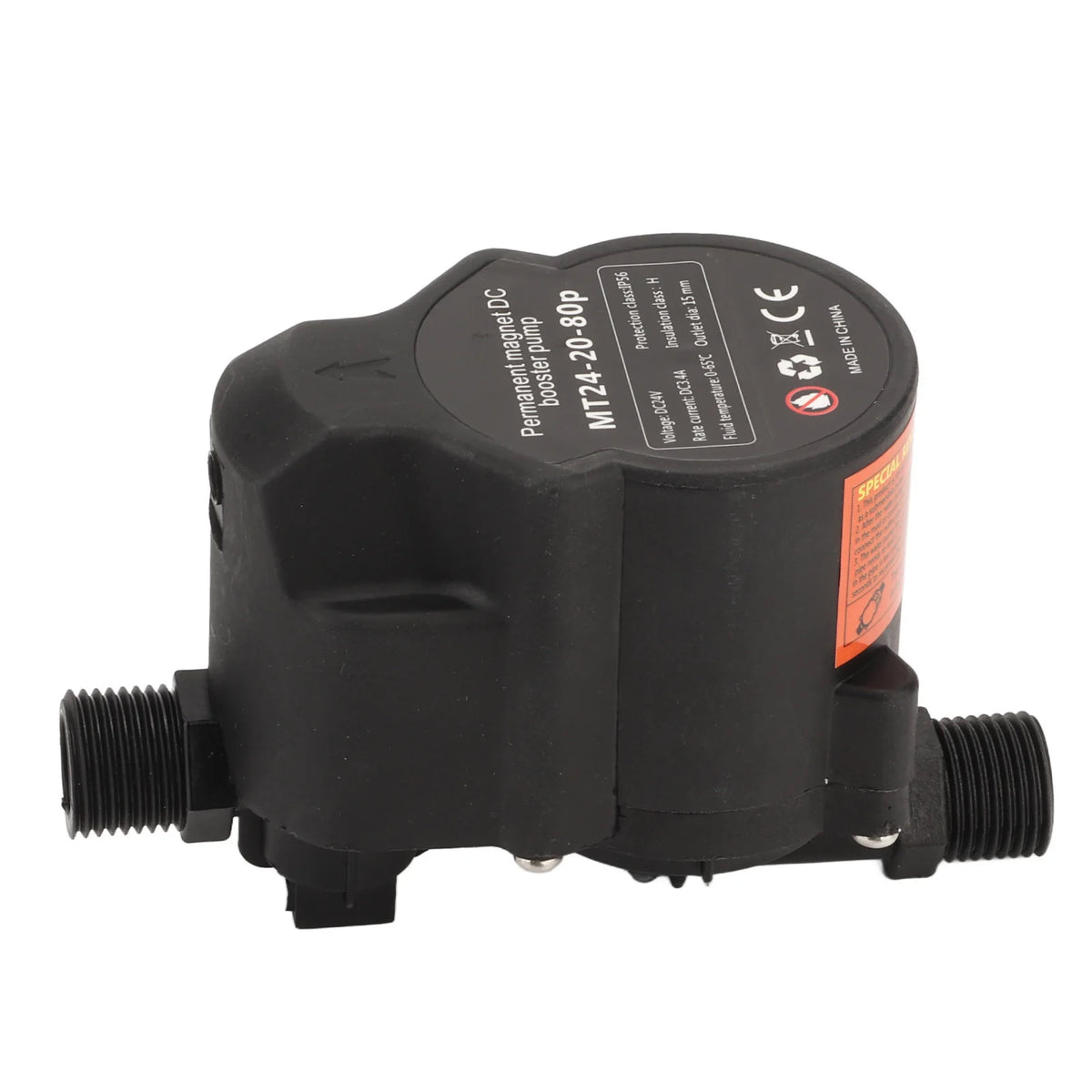

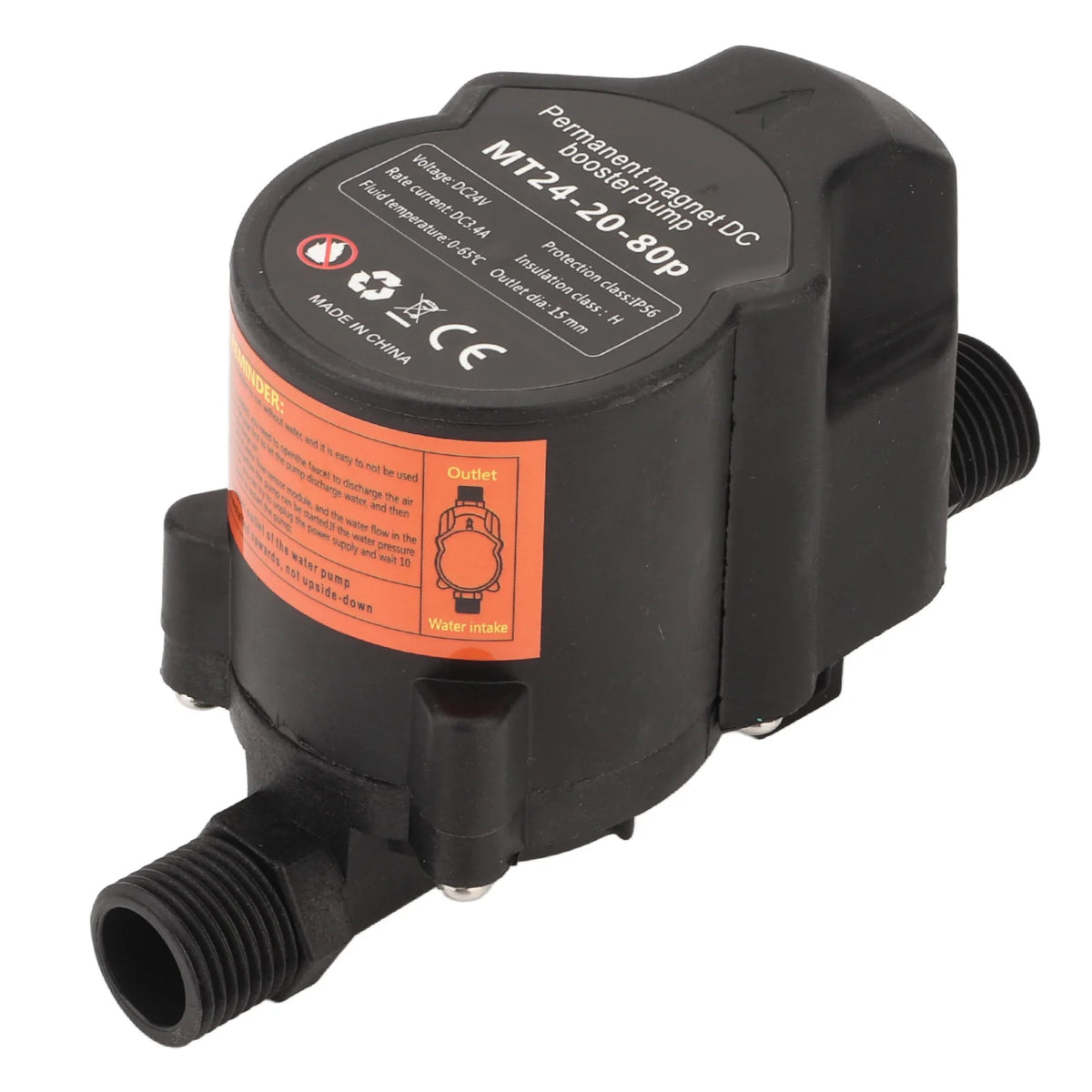

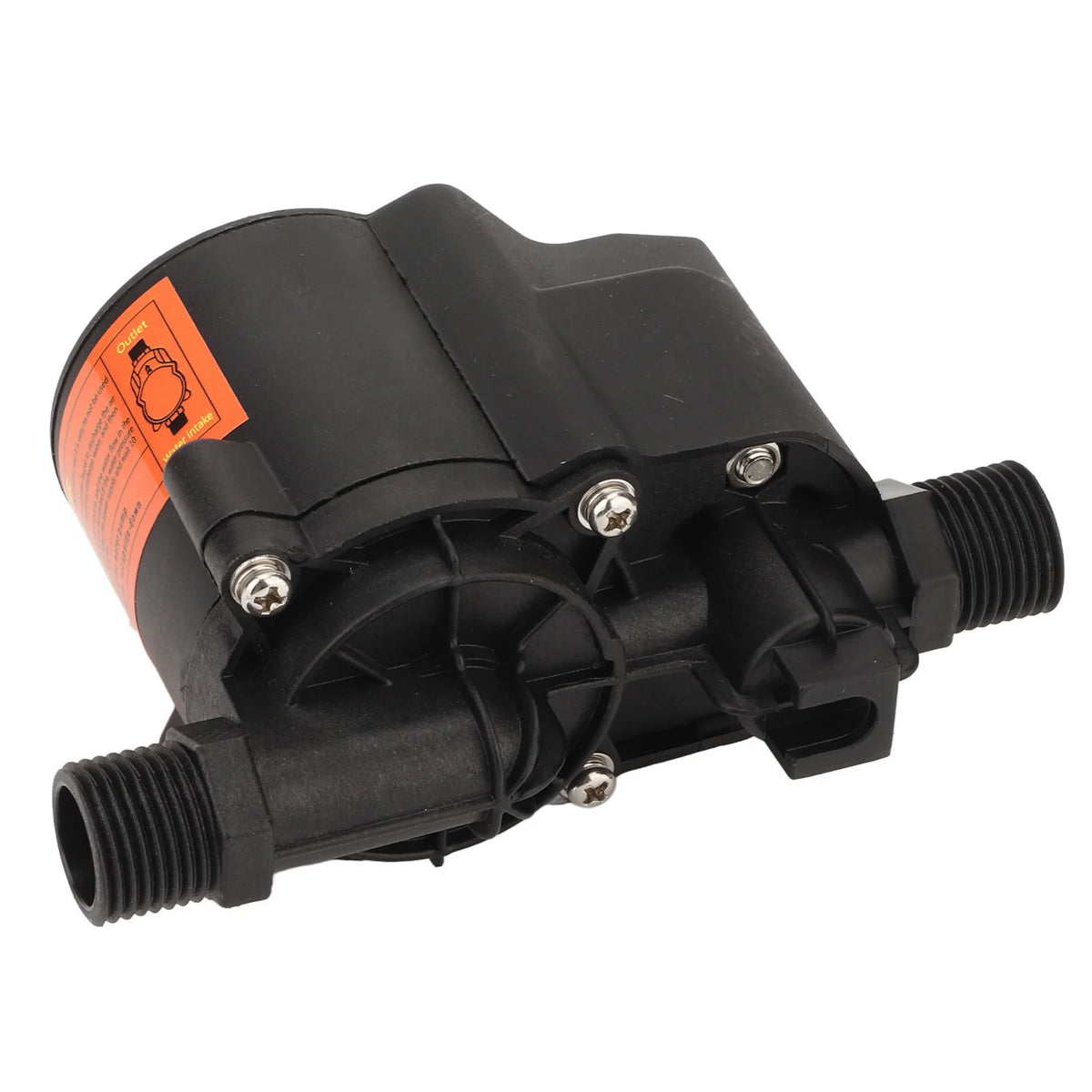

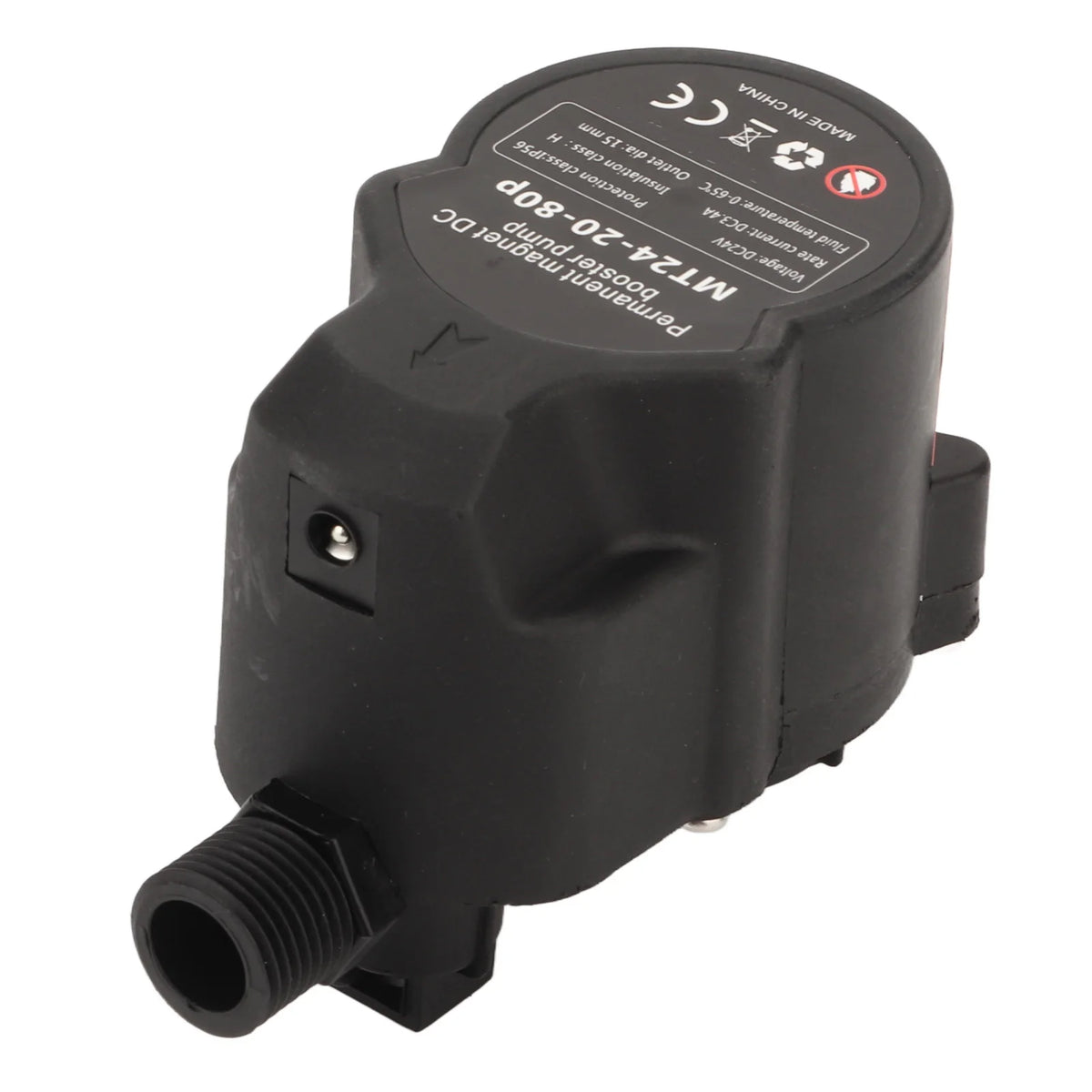

Fdit 24V Fully Automatic Water Pressure Booster Pump
Enjoy a stronger, more consistent water flow throughout your home with the Fdit DC 24V Water Pressure Booster Pump. Designed for quiet, energy-efficient operation, this compact recirculating pump automatically activates when water flows and shuts off when not in use — making it a smart, hands-free upgrade for showers, water heaters, and household plumbing systems.
Made in Mainland China.
Key Features
- Fully Automatic Operation: Built-in water flow sensor switch activates the pump automatically when the faucet is turned on — no manual controls needed.
- Water Shortage Protection: When inlet water pressure approaches zero, the pump detects it and automatically shuts down to protect the motor and system integrity.
- High Performance: Delivers a maximum flow of 4.4 GPM, a maximum head of 60 ft, and an input power of 80W — powerful yet energy-conscious.

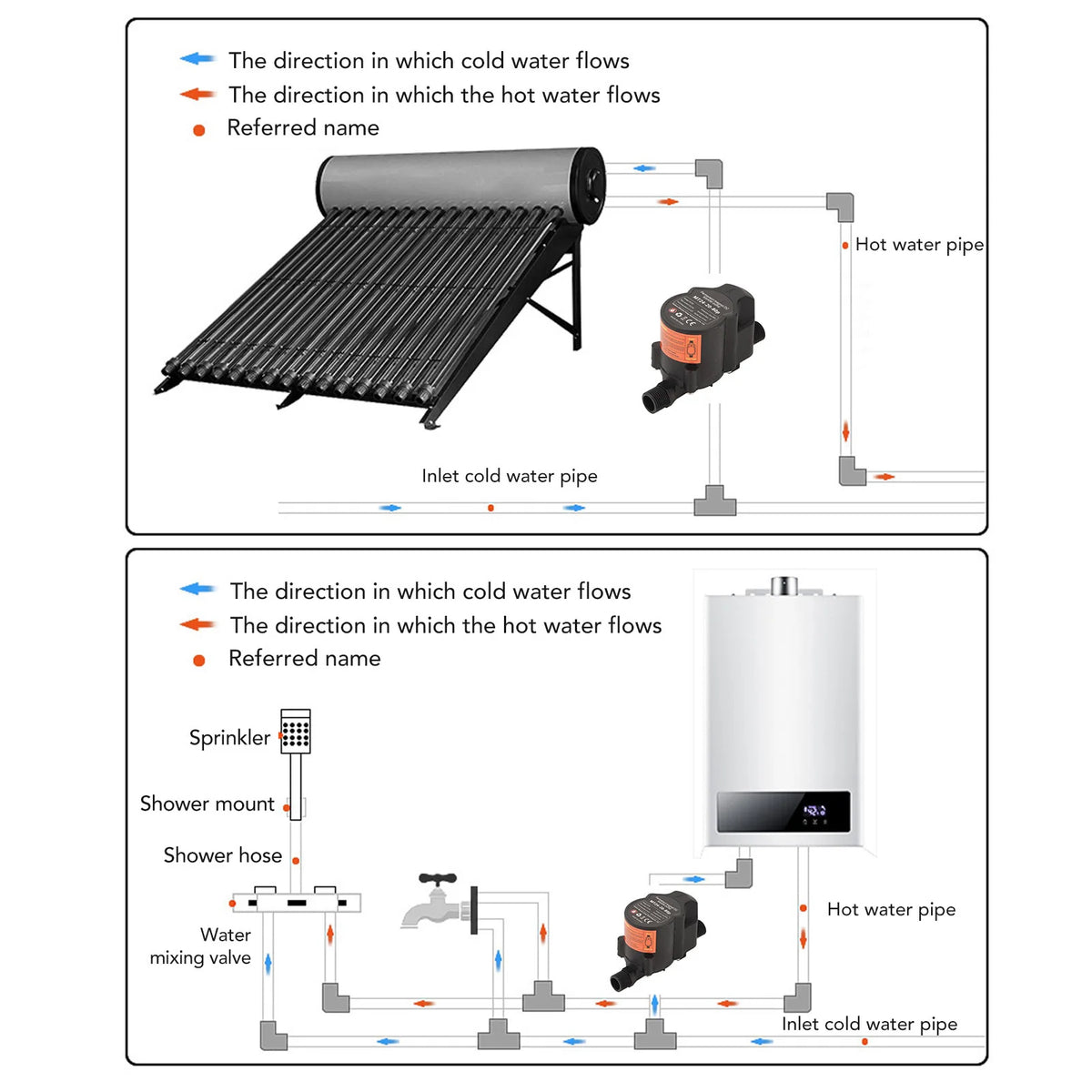

- Wide Compatibility: Works with water heaters with or without a storage tank, making it highly versatile for different home setups.
- Low Noise Design: Engineered for quiet operation so you can run it day or night without disturbing your household.
- CE Certified: Meets international safety and quality standards.
Specifications
| Item Type | Water Pressure Booster Pump |
| Model Number | MT24 20 80P |
| Material | ABS, Red Copper |
| Voltage | DC 24V |
| Input Power | 80W |
| Max Flow Rate | 4.4 GPM |
| Max Head | Approx. 20m / 65.6 ft |
| Piping Inner Diameter | Approx. 15mm / 0.6 in |
| Medium Temperature | 2–65°C |
| Insulation Class | Class H |
| Open Mode | Automatic water flow control |
| Noise Level | Low |
| Certification | CE |
| Origin | Mainland China |
How to Use
- Connect the pump inline with your existing water supply line.
- Turn on your faucet before powering on the pump to ensure water is flowing through the system.
- The pump will automatically start and stop based on water flow detection.
- If the flow switch does not activate, disconnect power for 3–5 seconds, then reconnect. The pump will force-start for 10 seconds to prime the switch.

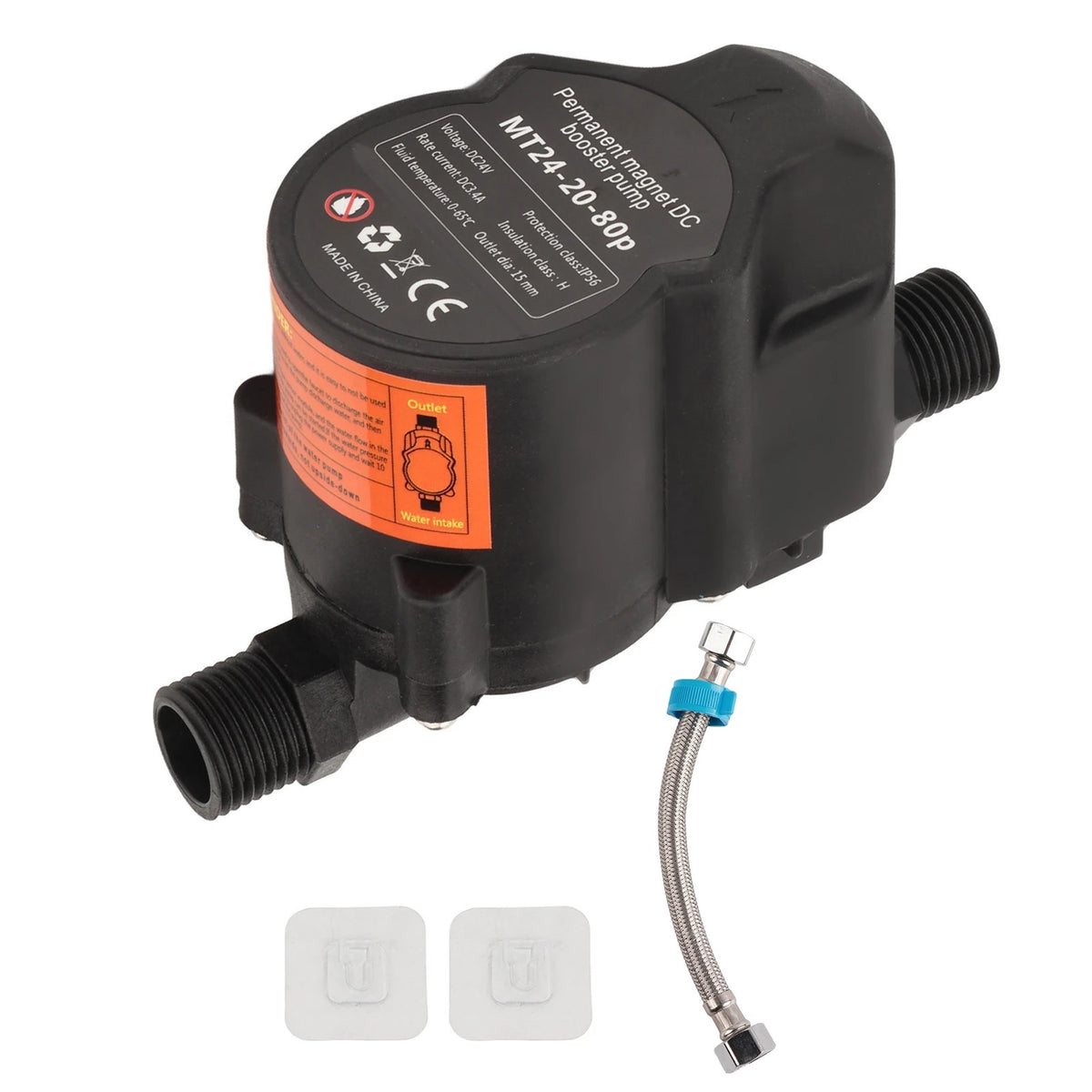

What's in the Box
- 1 × Water Pressure Booster Pump
- 1 × Power Adapter
- 1 × Water Pipe
- 2 × Mounting Hooks
- 1 × Instruction Manual
Important Notes
- A minimum flow rate of 1.5 L/min is required to open the internal valve and start the pump.
- Quick flow test: fill approximately 3 standard 500ml bottles per minute — if achievable, the pump is ready for installation.
- Product appearance (new vs. old type) may vary; unit functionality remains the same.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the operating voltage of this water pressure booster pump?
A: This booster pump operates on DC 24V power. A compatible power adapter is included in the package, so no additional purchases are needed for standard installation.
Q: Is this water pressure booster pump compatible with tankless water heaters?
A: Yes! The Fdit booster pump is designed for wide compatibility — it works with both tank-style and tankless (on-demand) water heaters, making it a versatile choice for most residential plumbing setups.
Q: How loud is this shower booster pump during operation?
A: The pump features a low-noise design, making it suitable for home use without causing disturbances. It runs quietly during automatic operation cycles, both day and night.
Q: What happens if the water supply runs low or runs out?
A: The pump includes built-in water shortage protection. When inlet water pressure drops close to zero, the pump automatically shuts down to protect the motor from running dry.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
