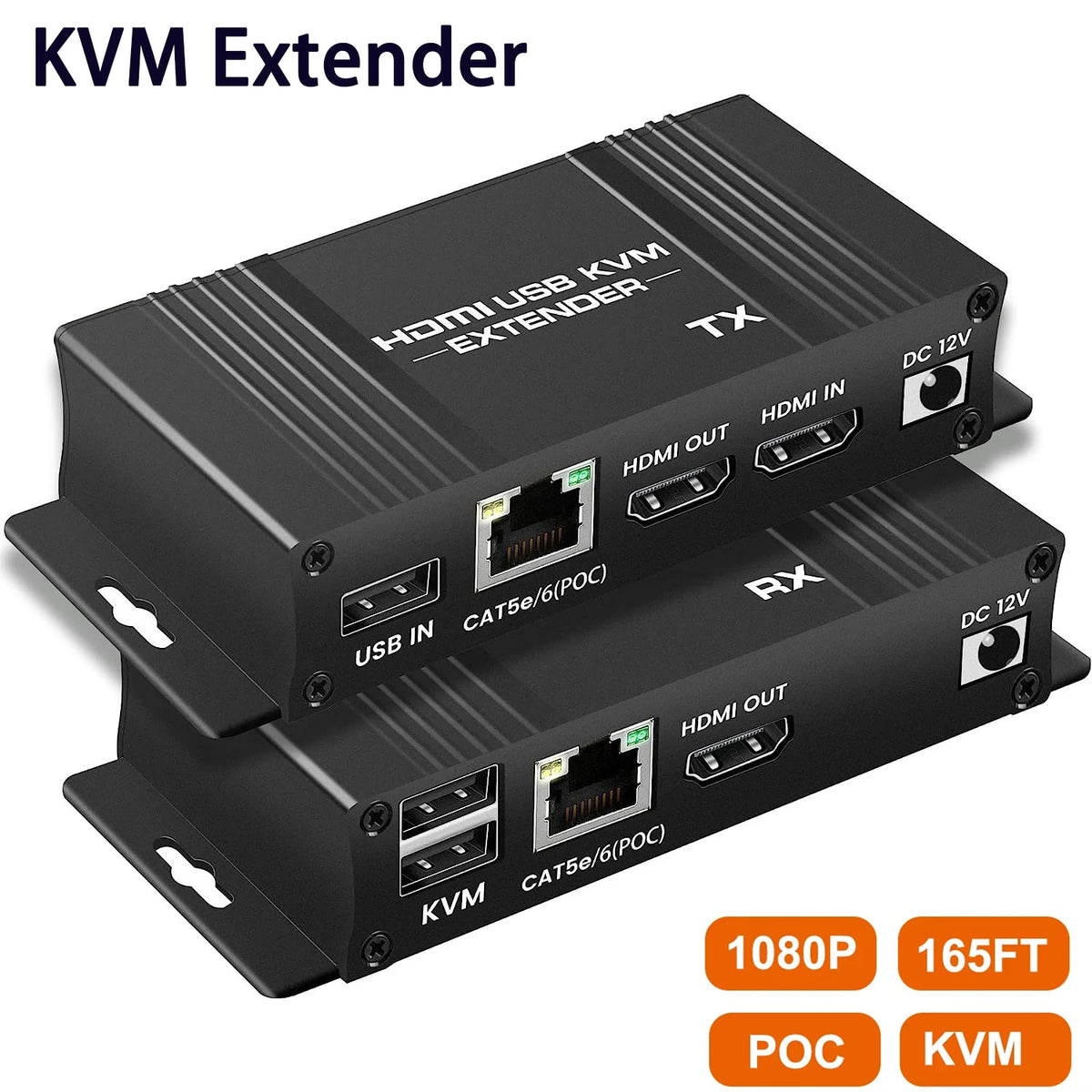

HDMI KVM Extender 60m Cat5e/6 – 1080P USB POC Loop Out

HDMI KVM Extender 60m Cat5e/6 – 1080P USB POC Loop Out

$133.73 $158.21
Color

Extend Your Desktop Up to 60 Metres — Keyboard, Mouse & Full HD Display Included

Take full control of your PC from across the building with this HDMI KVM Extender. Transmit a crisp 1080p @ 60Hz video signal — plus USB keyboard and mouse control — up to 50–60 metres over a single Cat5e or Cat6 Ethernet cable. The built-in HDMI Loop Out on the TX unit lets you monitor the source signal locally at the same time, making it ideal for AV installations, server rooms, digital signage, classrooms, and home-office setups.

Made in Mainland China.

Key Features

  • 📡 Up to 60m range over Cat5e / Cat6 Ethernet cable (pure copper conductor recommended for best results)
  • 🖥️ Full HD 1080p @ 60Hz — sharp, lag-free video transmission
  • 🔁 HDMI Loop Out on TX — simultaneously monitor the source at the transmitter end

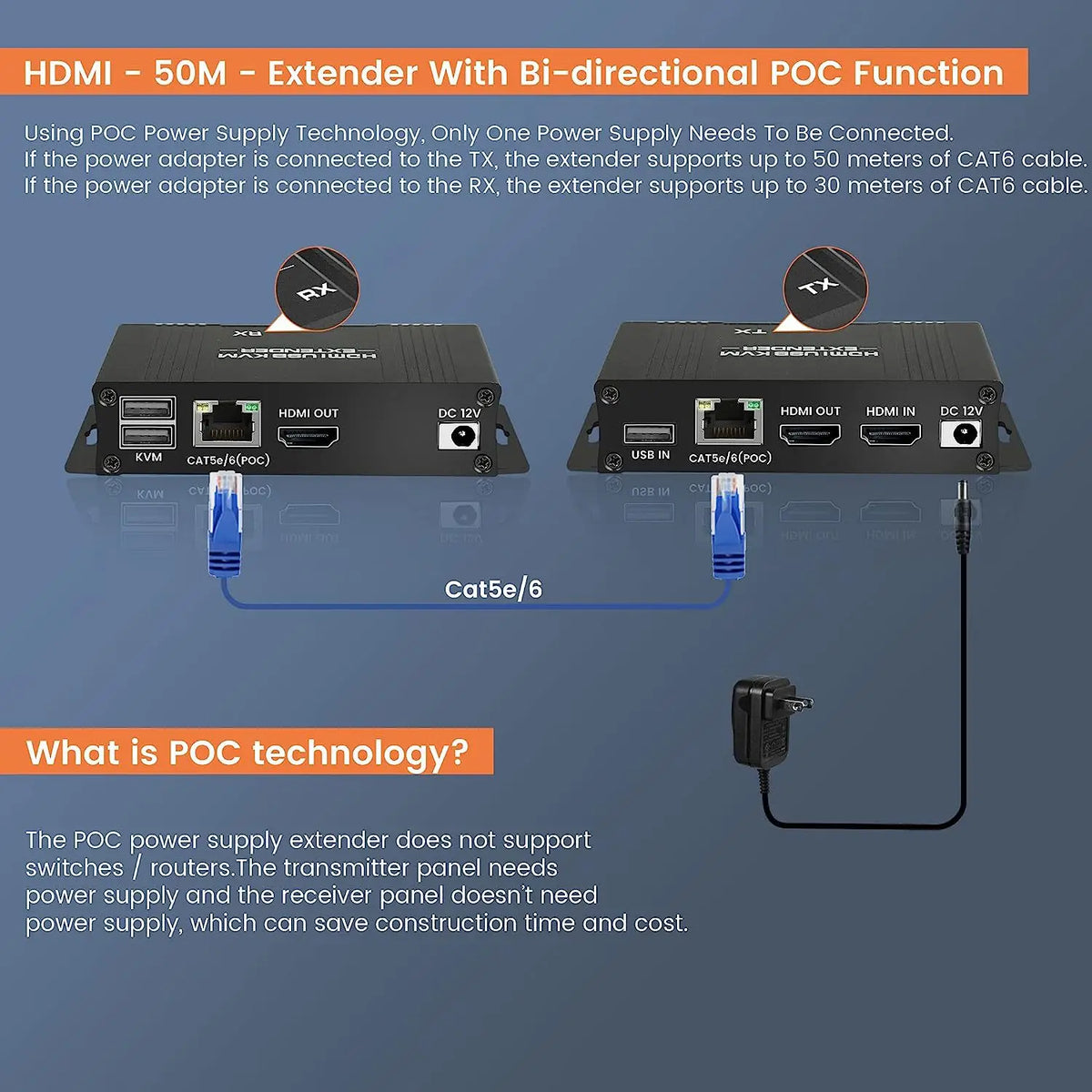

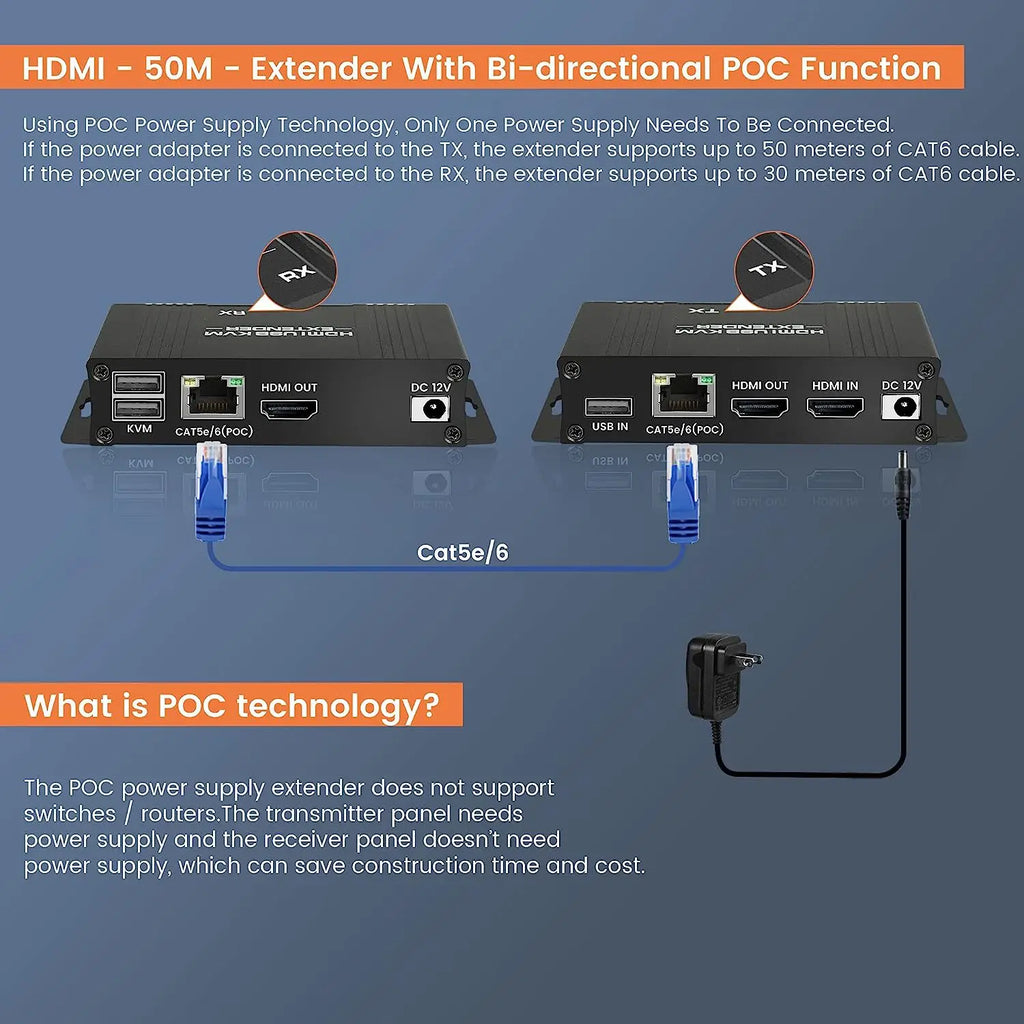

  • ⚡ POC (Power over Cable) supported at both TX and RX — only one 12V power supply required

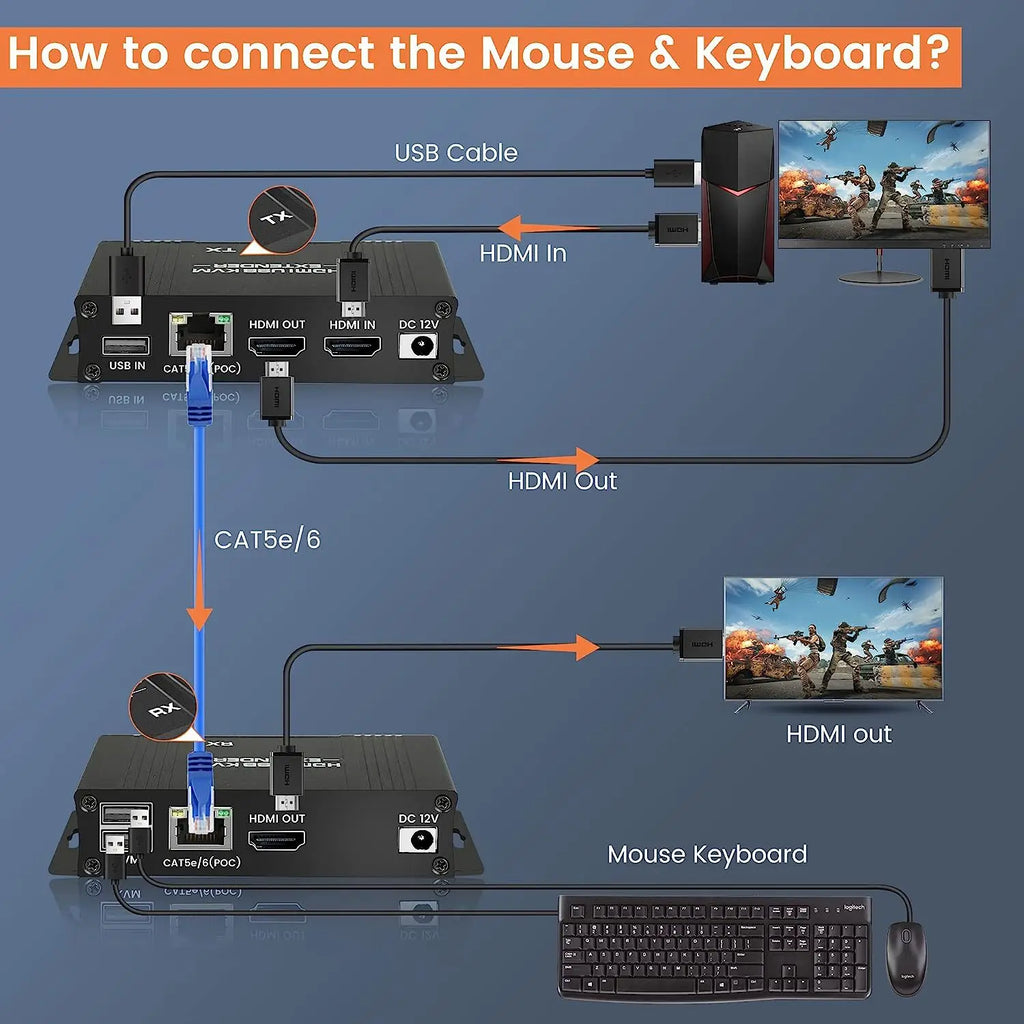

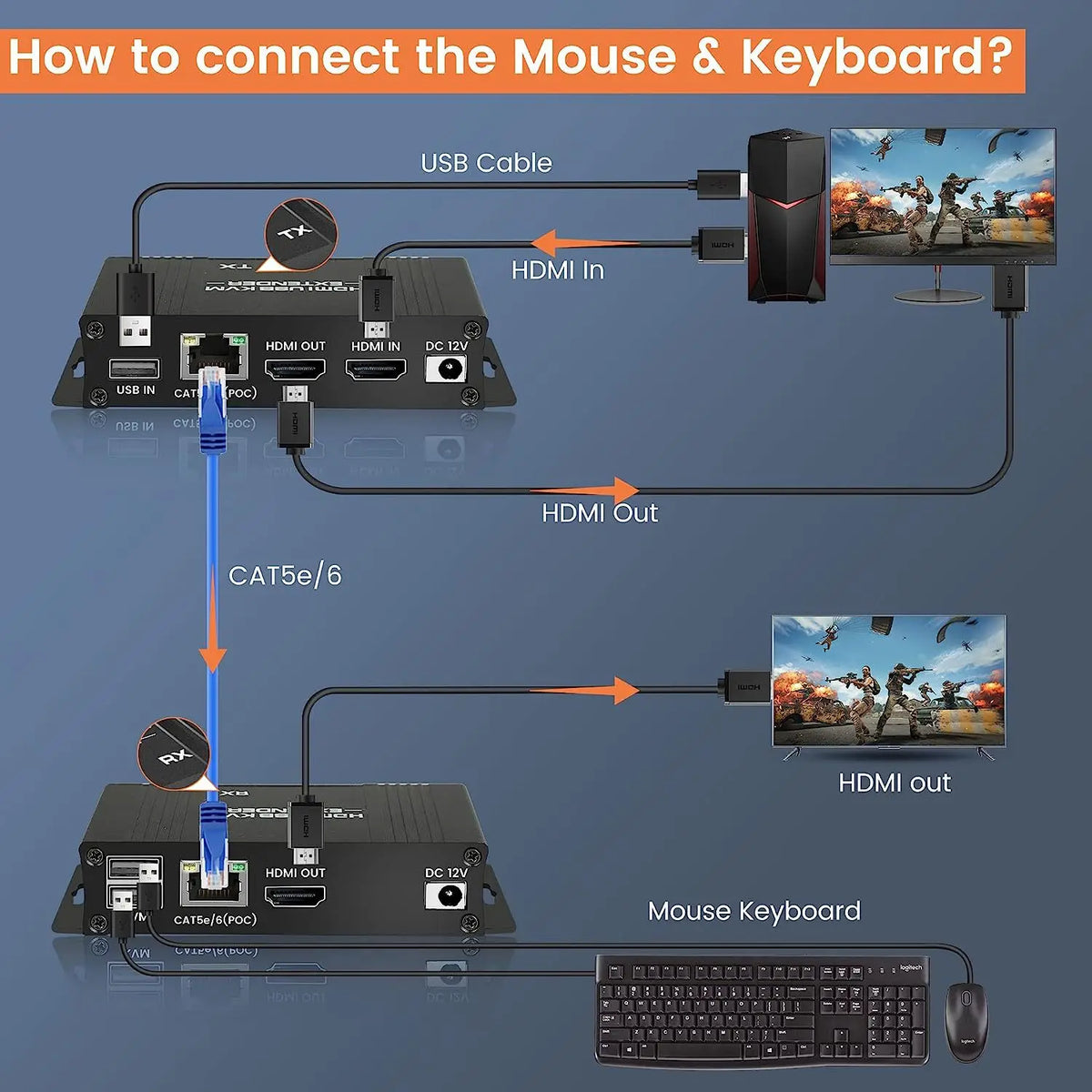

  • 🖱️ USB KVM control — extend wired keyboard and mouse to the remote location
  • 🔗 Point-to-point connection — simple, stable, and no network switches needed
  • ✅ CE Certified — meets European safety and electromagnetic compatibility standards

Technical Specifications

Max Transmission Distance Up to 60m (tested at 50m with Cat6e 26AWG)
Max Resolution 1920×1080 @ 60Hz (1080p Full HD)

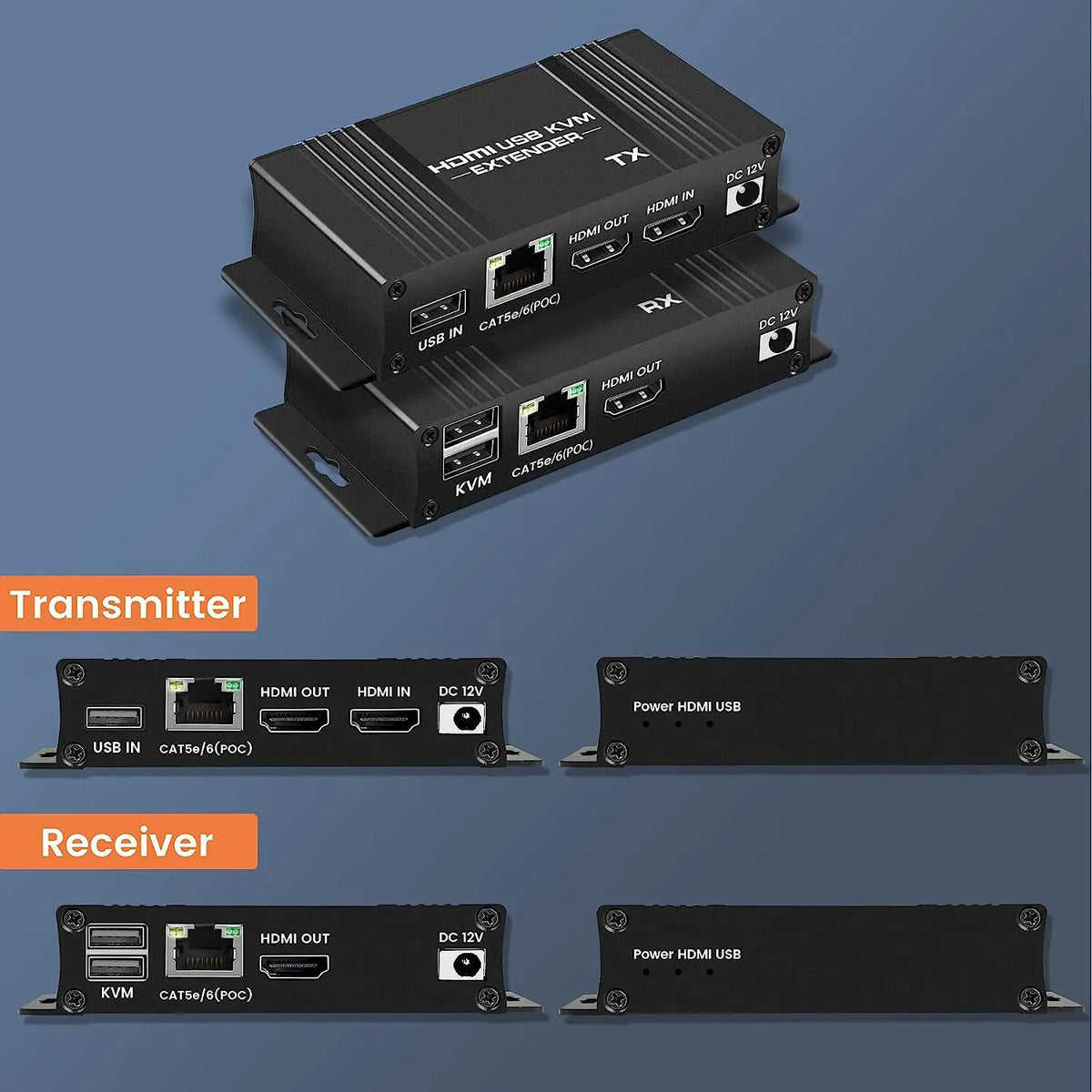

Connector A (TX) USB + HDMI
Connector B (RX) HDMI
Cable Required Cat5e or Cat6 (pure copper, sold separately)

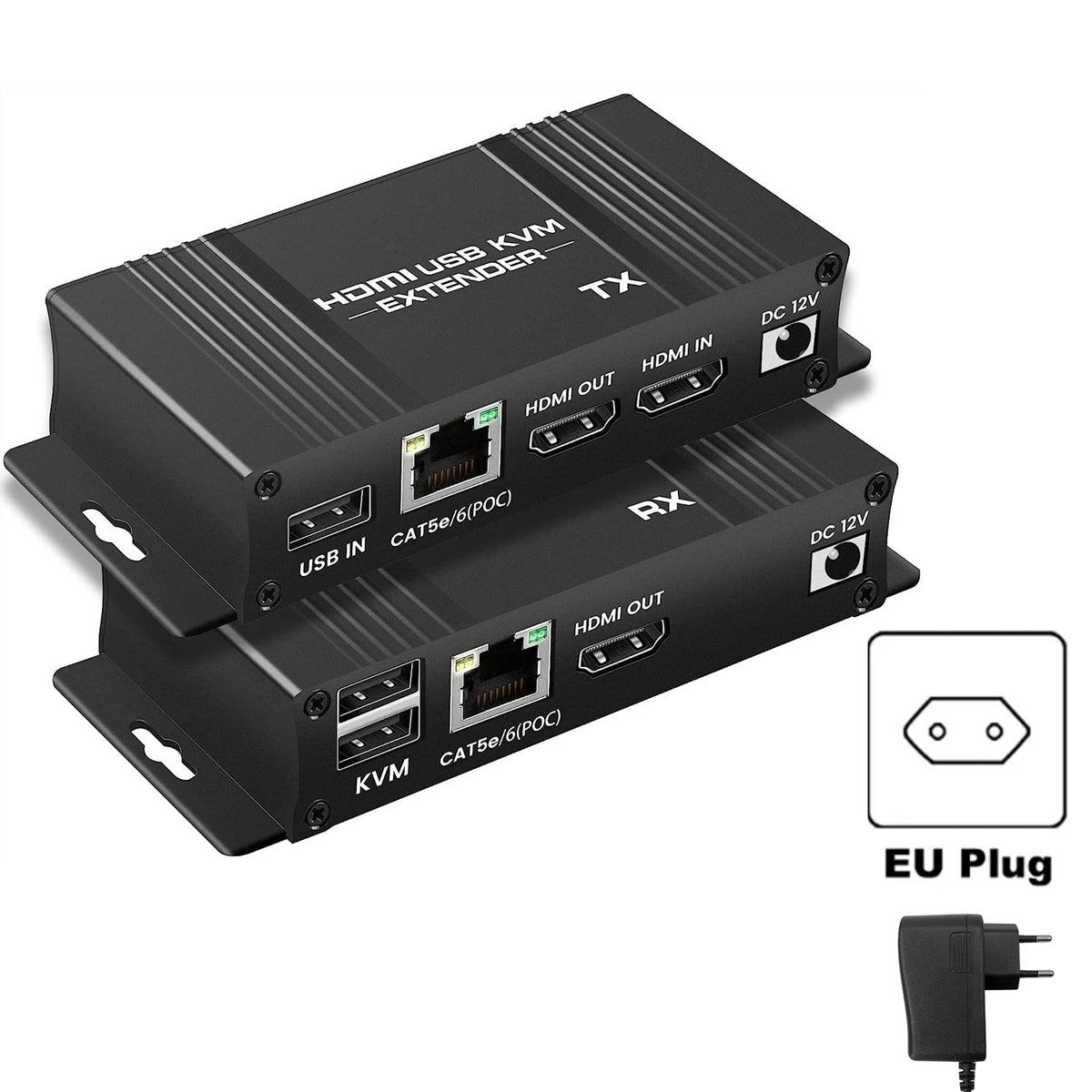

Power Supply 12V External (EU Plug, included)
POC Yes — TX & RX both supported
HDMI Loop Out Yes — on TX unit
Dimensions 170 × 147 × 51 mm
Weight 365g
Certification CE
Country of Origin Mainland China

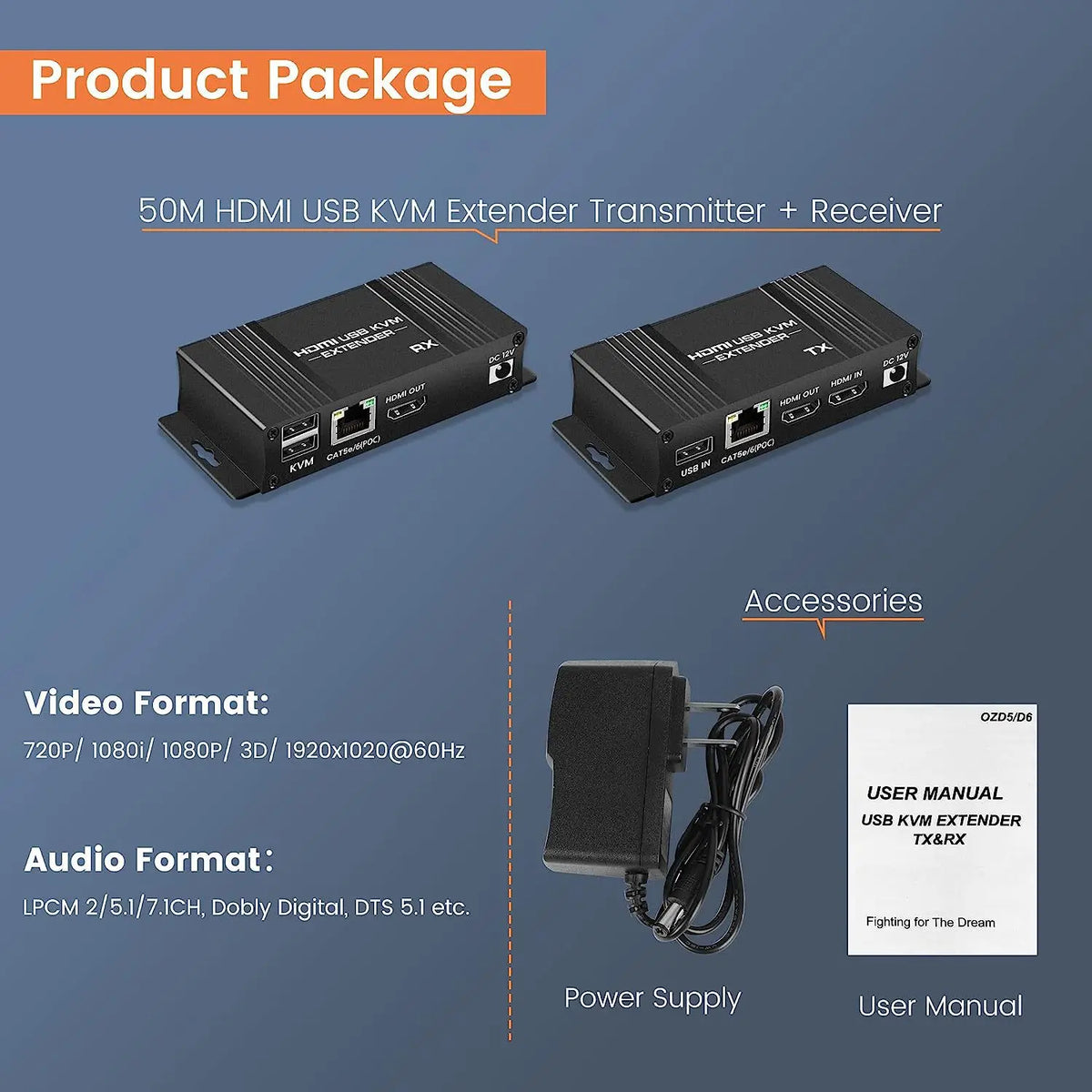

What's in the Box

  • HDMI KVM Extender TX Unit × 1
  • HDMI KVM Extender RX Unit × 1
  • USB Data Cable × 1
  • 12V Power Supply × 1 (EU Plug)

Important Notes Before You Buy

  1. Use a qualified Cat5e or higher cable with a pure copper conductor for reliable signal transmission.
  2. Use an HDMI ATC-certified cable between your video source and display for best picture quality.
  3. This extender has limited compatibility with wireless or mechanical keyboards and mice. A standard 104-key wired keyboard and wired mouse are strongly recommended.
  4. Only one 12V power supply is included; POC allows it to power both TX and RX via the Cat cable.
  5. Actual transmission distance depends on the quality and gauge of the Ethernet cable used.
  6. The branding or silk printing on the unit may vary — you will receive a fully functional KVM extender regardless of the label shown.

You May Also Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: How far can the HDMI KVM Extender transmit a signal?

A: The HDMI KVM Extender supports transmission distances of up to 60 metres using a Cat5e or Cat6 Ethernet cable with a pure copper conductor. Performance was tested at 50 metres using Cat6e 26AWG cable. Actual range will depend on the quality of the cable you use — always choose pure copper over copper-clad aluminium (CCA) for the best results.

Q: What video resolution does this KVM Extender support?

A: This extender supports Full HD 1080p resolution at up to 60Hz, delivering a smooth and sharp display at the remote end — perfect for workstations, presentations, classrooms, and AV installations.

Q: Do I need a power supply at both the TX and RX ends?

A: No. Thanks to the built-in POC (Power over Cable) feature, a single 12V power supply (included) connected to one end can power both the TX and RX units through the Cat cable — simplifying your installation and reducing cable clutter.

Q: What type of keyboard and mouse work best with this extender?

A: For optimal compatibility, use a standard wired 104-key keyboard and a wired USB mouse. Wireless keyboards and mice, as well as mechanical keyboards, have limited compatibility with this KVM extender.

Q: Can I monitor the video source locally while extending to a remote display?

A: Yes! The TX (transmitter) unit features an HDMI Loop Out port, allowing you to connect a local monitor at the source end while simultaneously extending the signal up to 60 metres to a remote display.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
