3-Port HDMI Switch with Audio Extractor — 4K@60Hz, ARC, Toslink & SPDIF
Upgrade your home theater setup with this versatile 3-in-1 HDMI Switch and Audio Extractor. Connect up to three HDMI sources — such as a PS4/PS5, Xbox, laptop, Blu-ray player, or streaming stick — to a single display, while simultaneously routing high-fidelity audio to your soundbar, speakers, or A/V receiver via optical Toslink, coaxial SPDIF, or RCA L/R. Made in Mainland China.
Key Features
- 3-in-1 HDMI Switch: Routes up to 3 HDMI input sources to one display output, eliminating the need to swap cables constantly.
- 4K Ultra HD @ 60Hz: Supports 4K×2K@60Hz YUV 4:4:4, 3D, HDCP 2.2, HDR10, Dolby Vision, and Dolby Atmos for a stunning visual and audio experience.

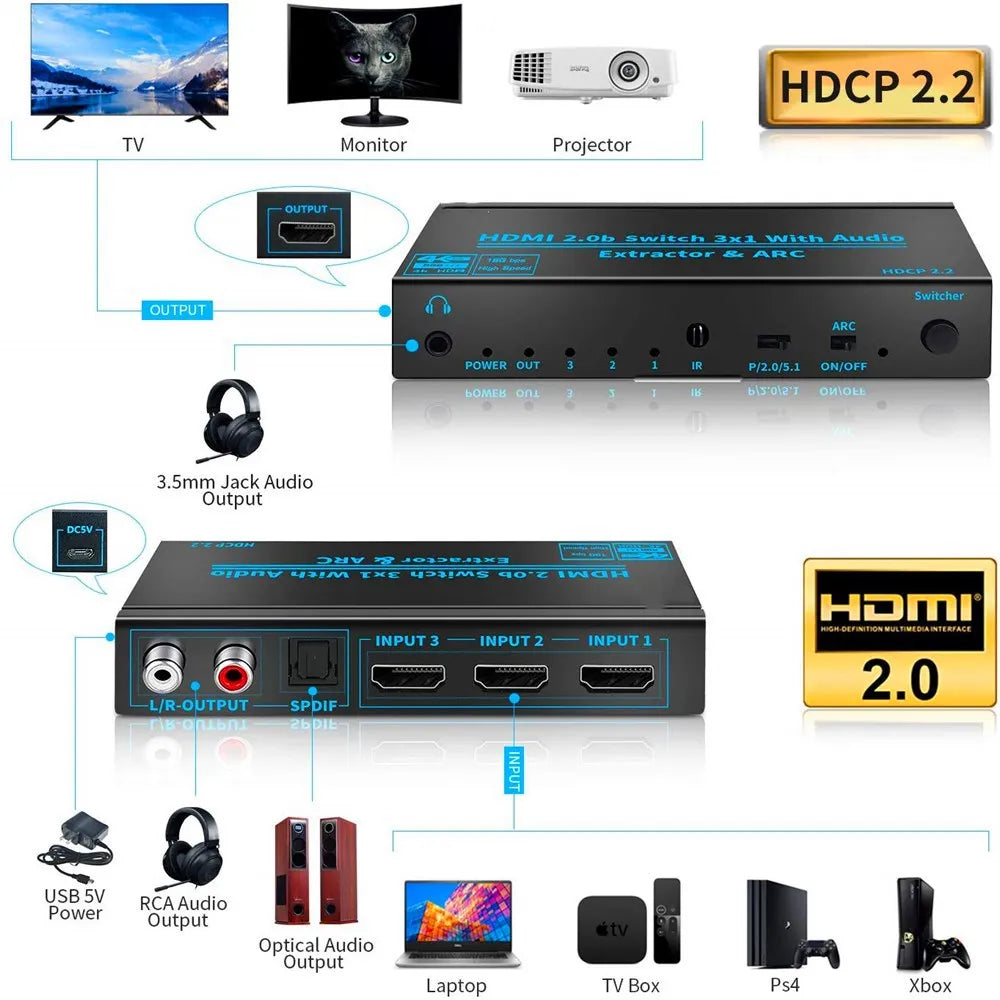

- Audio Extraction: Separates audio from the video signal and outputs it via optical Toslink (SPDIF), RCA L/R, or 3.5mm jack — perfect for connecting soundbars, stereo speakers, or home theater systems.
- ARC Support (Audio Return Channel): Connect your TV's HDMI ARC port to route audio back from the TV to your soundbar or amplifier — no extra cables needed.

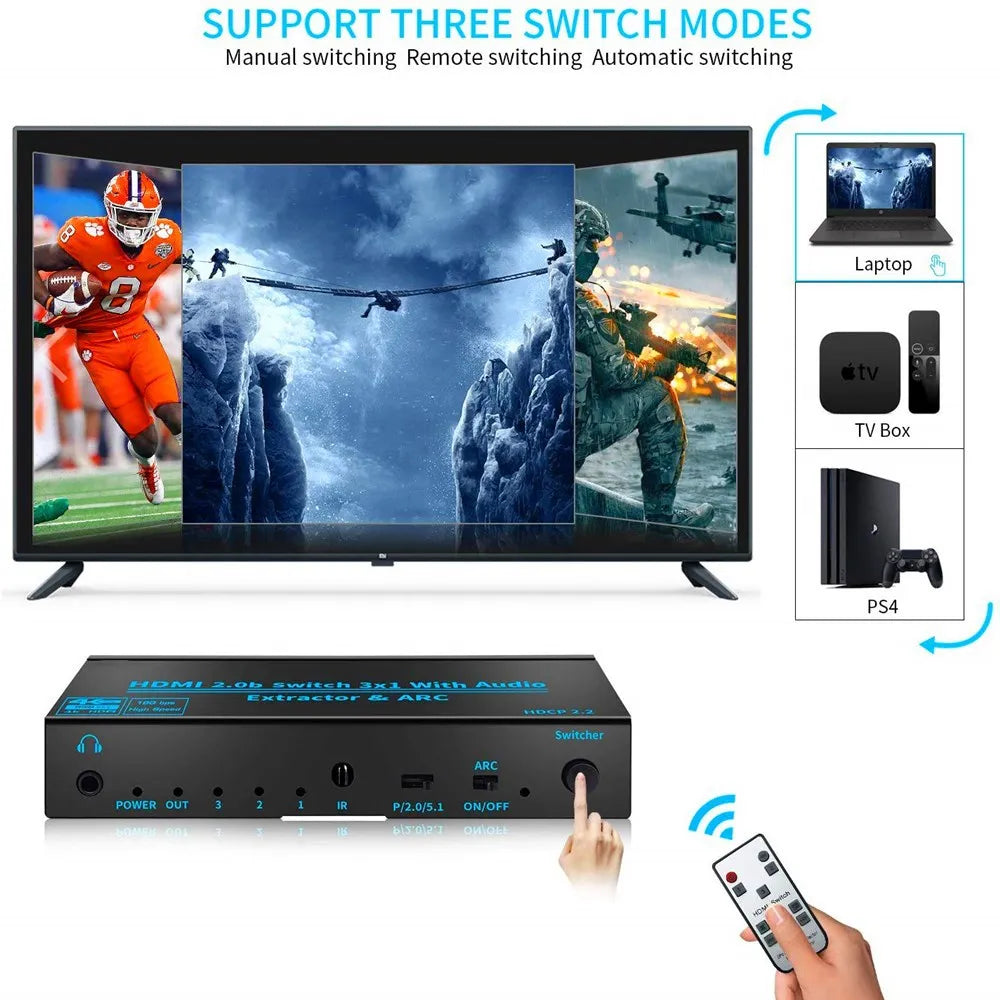

- Three Switching Modes: Switch between inputs automatically, manually via the front-panel button, or remotely with the included infrared remote control.
- Wide Format Compatibility: Supports Dolby TrueHD, DTS-HD, LPCM 7.1, DTS, Dolby AC3, DSD, Blu-ray 24/50/60fps, HD-DVD, and xvYCC.

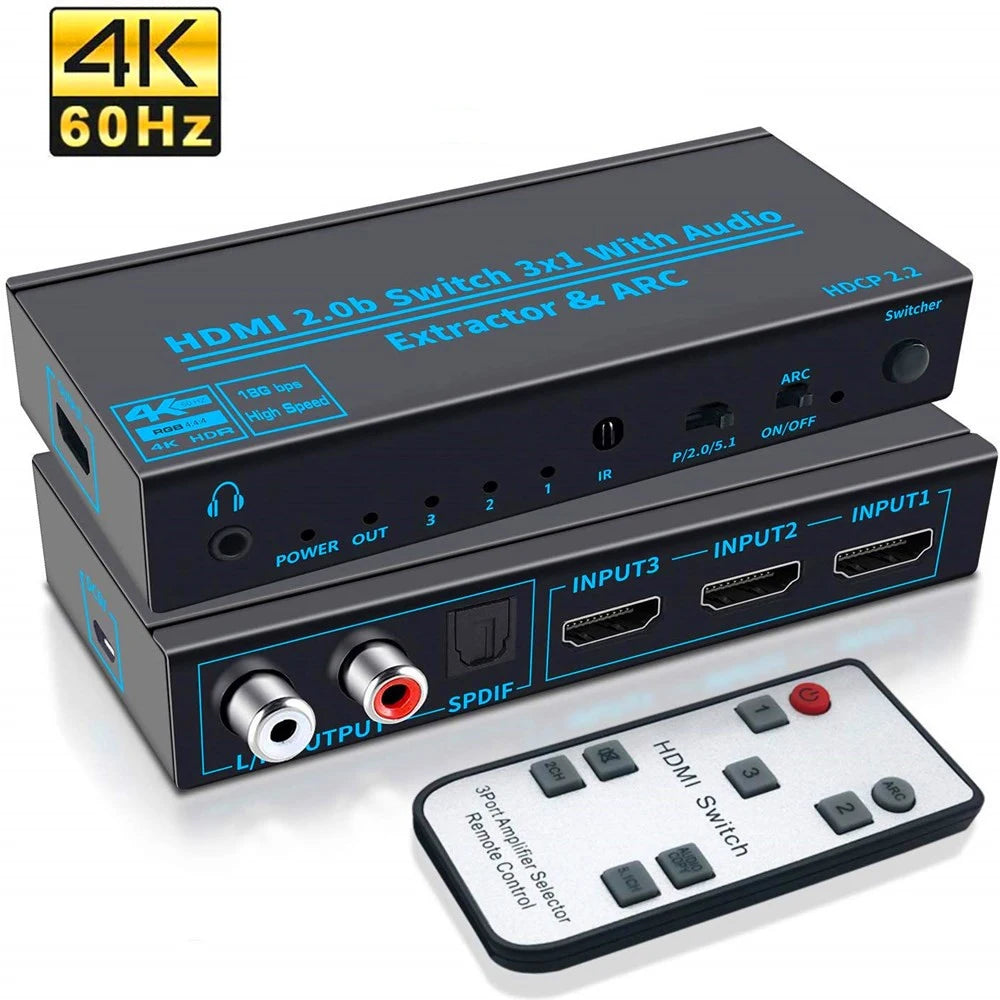

- Premium Aluminum Alloy Build: Durable and compact aluminum alloy housing (115 × 58 × 21 mm) that sits neatly behind your TV or on your media shelf.
- Plug & Play: No drivers or software required. Simply connect and go.
Technical Specifications
| Inputs | 3 × HDMI 2.0 |
| Outputs | 1 × HDMI 2.0 (ARC) + Optical Toslink + RCA L/R + 3.5mm Jack |
| Max Resolution | 4K×2K @ 60Hz (YUV 4:4:4); 1080p / 720p / 576p / 480p also supported |
| Max Bandwidth | 600 MHz / 18 Gbps |
| HDR Support | HDR10, Dolby Vision |
| Audio Formats | Dolby TrueHD, Dolby Atmos, DTS-HD, LPCM 7.1, DTS, AC3, DSD |
| Cable Distance | ≤ 10m (AWG26 HDMI 2.0a standard cable) |
| Power Supply | DC 5V via Micro-USB (cable included; adapter not included) |
| Material | Aluminum alloy |
| Dimensions | 115 × 58 × 21 mm |
| Certification | CE |
What's in the Box
- 1 × HDMI Audio Switch/Extractor unit
- 1 × Infrared remote control (battery included)
- 1 × Micro-USB power cable (adapter not included)
- 1 × User manual
Compatible Devices
Works seamlessly with PS4, PS5, Xbox, Nintendo Switch, Fire TV Stick, Apple TV, Blu-ray/DVD players, laptops, desktop PCs, projectors, monitors, and any HDMI 2.0-enabled device.
Important Notes
- When ARC mode is active, TV remote volume control is disabled — volume must be adjusted on your connected speakers or soundbar.
- This device passes Dolby/DTS signals — it does not decode them. Ensure your display or audio system supports these formats.
- For HDR/Dolby Vision, ensure your HDMI cable meets the HDMI 2.0 specification.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Can this HDMI switch handle 4K@60Hz from all three input ports simultaneously?
A: The switch supports 4K@60Hz on all three HDMI 2.0 input ports, but only one source is displayed at a time on the single HDMI output. You can switch between inputs automatically or manually using the remote or front-panel button.
Q: Does the HDMI audio extractor work with a soundbar via optical Toslink?
A: Yes! This unit extracts audio from any connected HDMI source and outputs it simultaneously through the optical Toslink (SPDIF) port, RCA L/R ports, and 3.5mm jack — making it fully compatible with soundbars, stereo receivers, and home theater systems.

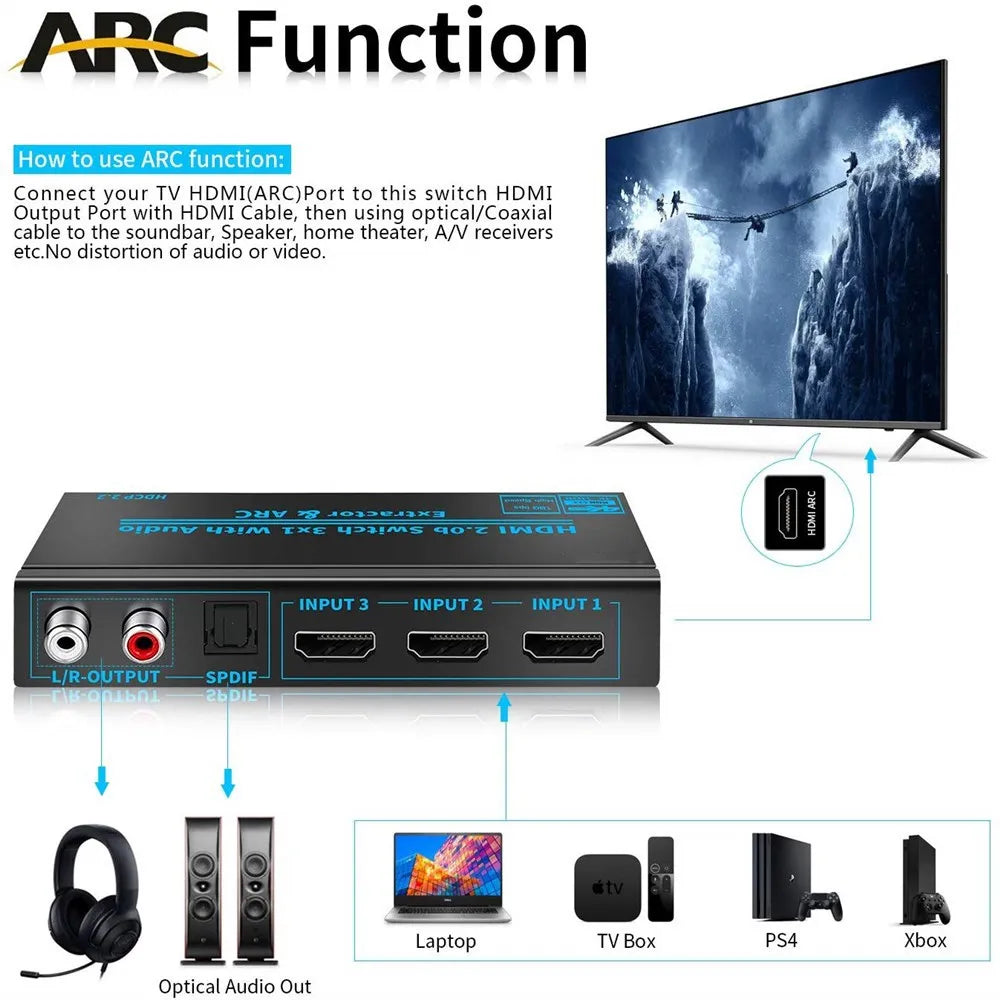

Q: What is the ARC function and how do I use it?
A: ARC (Audio Return Channel) allows your TV to send its own audio — such as from built-in apps — back through the HDMI cable to the switch, and then out to your soundbar or amplifier via optical or RCA. Simply connect your TV's HDMI ARC port to the switch's HDMI output port and connect your audio device to the optical or RCA output.
Q: Do I need a special power adapter for this device?
A: The switch requires a DC 5V power supply via Micro-USB. A Micro-USB cable is included in the box, but a USB power adapter (e.g., a standard phone charger) is not included and must be provided separately.
