HiFi DAC Amplifier – Digital to Analog Audio Converter with Toslink, Coaxial, RCA & 3.5mm Output

Unlock true high-fidelity audio from your TV, DVD player, projector, or set-top box with this versatile HiFi DAC Amp. Convert digital optical (Toslink) or coaxial S/PDIF signals into rich analog audio through RCA L/R outputs or a 3.5mm headphone jack — all with a built-in headphone amplifier and precision volume control. Plug and play simplicity meets audiophile-grade performance.

Made in Mainland China.

Key Features

• Digital to Analog Conversion: Converts Toslink or Coaxial digital audio signals into clean analog audio via RCA L/R or 3.5mm headphone jack — ideal for home theater setups, amplifiers, and hi-fi headphones.
• Bidirectional Digital Switch: Not just a DAC — this unit also supports digital-to-digital switching (Toslink ↔ Coaxial), making it an extremely versatile audio hub. Note: Digital-to-Analog only; Analog-to-Digital is NOT supported.
• Built-in HiFi Headphone Amplifier: Drives headphones and speakers with impedance from 16–300Ω. The volume control knob adjusts output for the RCA L/R and 3.5mm interfaces (does not control Toslink or Coaxial output).
• 192kHz / 24-Bit High-Resolution Audio: Supports sampling rates of 32, 44.1, 48, 96, and 192kHz and 16–24-bit S/PDIF streams for crystal-clear, high-resolution audio playback.
• Plug and Play: No drivers or software needed. Simply connect, set your source device to PCM/LPCM output, and enjoy. Includes Toslink optical cable and DC USB power cable.
• Premium Aluminum Build: Sturdy aluminum enclosure for durability and reduced electromagnetic interference.

Specifications

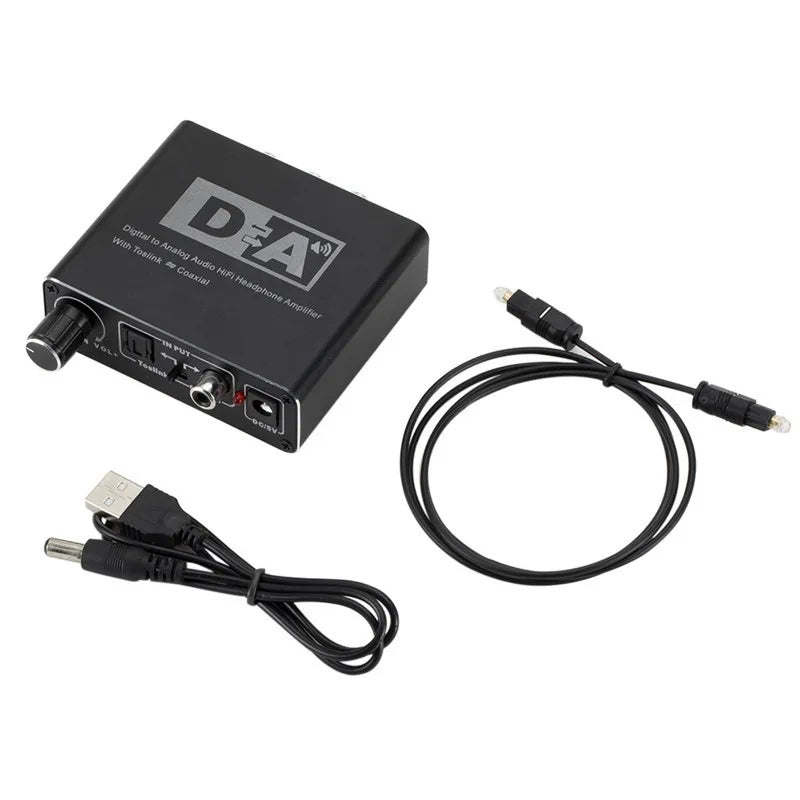

What's in the Box

• 1× Digital to Analog R/L Audio Converter / DAC Amp
• 1× DC USB Power Cable
• 1× Toslink Optical Cable (4.0 OD)
• 1× User Manual

Note: USB power adapter and RCA cable are NOT included.

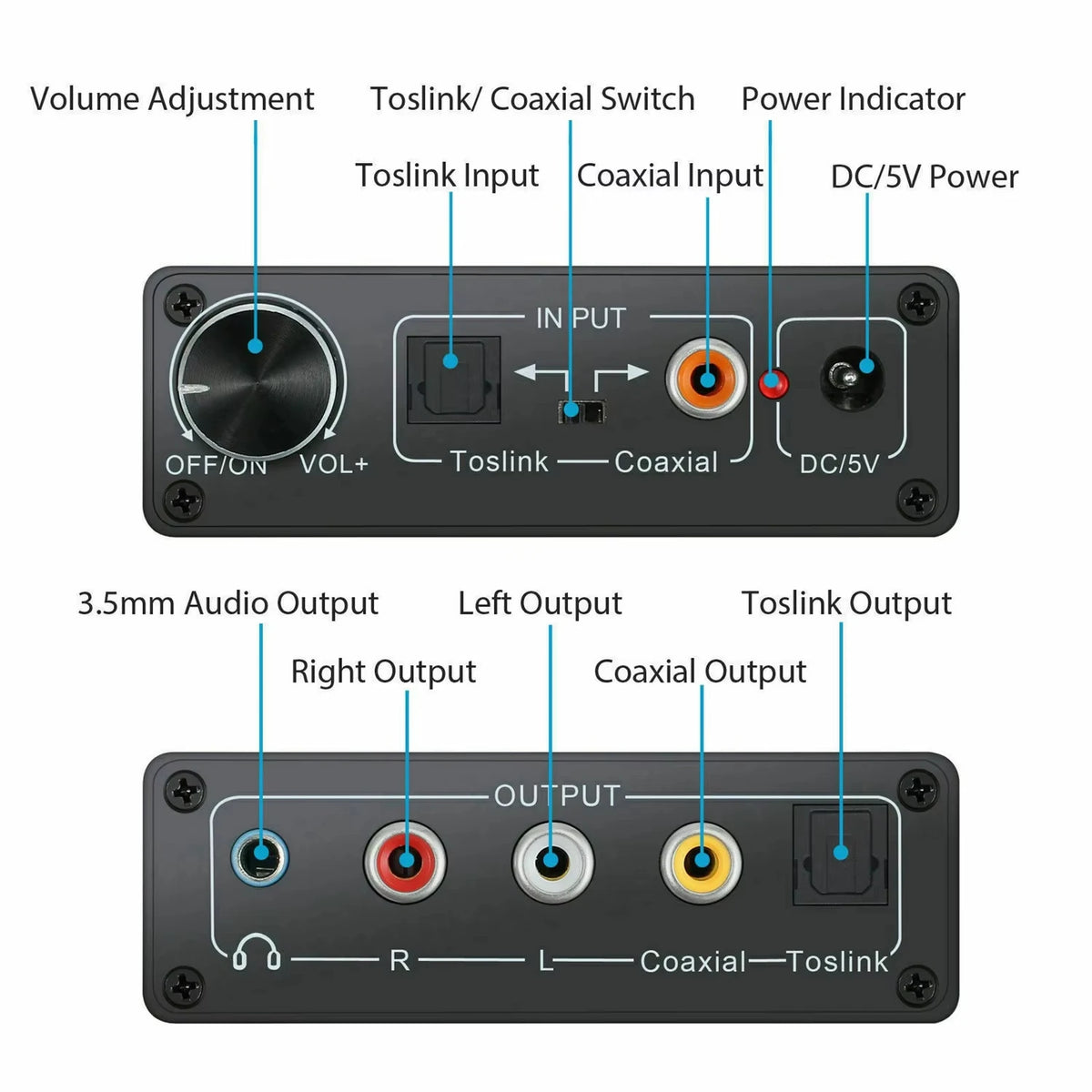

How to Connect

1. Plug the included USB cable into a 5V USB power adapter (not included) to power the DAC.
2. Connect the included Toslink optical cable from your TV's or device's optical output to the DAC's Toslink input.
3. Connect your receiver, amplifier, or headphones to the RCA or 3.5mm output on the DAC.
4. Set your source device's audio output to PCM or LPCM format for optimal results.

TV-Specific Setup Tips

• LG TV: Home → System Settings → Picture & Sound → Voice Settings → Digital Audio Output → PCM/LPCM
• Samsung TV: Menu → Sound → Speaker Setup → External Speakers → ON
• Panasonic TV: Set audio output to SPDIF output.

Important Compatibility Notes

• This DAC does NOT support 5.1-channel formats such as Dolby AC3 or DTS. Set your source to PCM/LPCM stereo output.
• PS4 Pro and PS4 Slim are NOT compatible — these consoles do not have an optical fiber output interface.
• Volume knob controls RCA and 3.5mm output only — it does not affect Toslink or Coaxial passthrough output.
• Power on the DAC by turning the volume knob (which also serves as the power switch) before use.
• Use only a 5V USB power supply to power this unit.

Related Products You May Like

• 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What audio formats does this HiFi DAC converter support?

A: This DAC amp supports PCM and LPCM stereo digital audio formats at sampling rates of 32, 44.1, 48, 96, and 192kHz with 16–24-bit depth. It does NOT support 5.1-channel formats such as Dolby AC3 or DTS. Please ensure your source device is set to PCM or LPCM output before use.

Q: Can this DAC convert analog audio back to digital?

A: No. This converter supports digital-to-analog conversion (Toslink or Coaxial input → RCA / 3.5mm output) and digital-to-digital switching (Toslink ↔ Coaxial). It does NOT support analog-to-digital conversion.

Q: Is this DAC amp compatible with PS4 Pro or PS4 Slim?

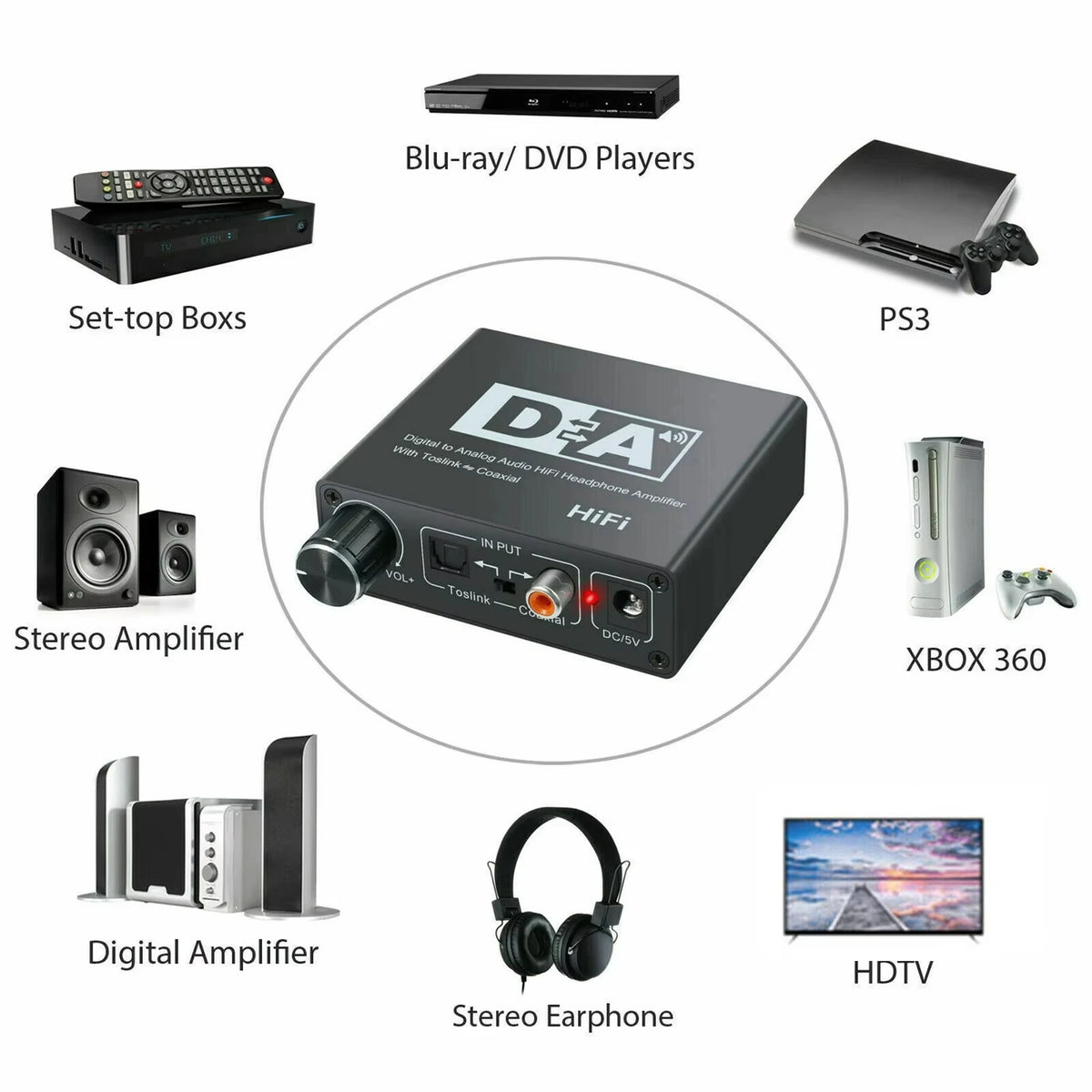

A: No. The PS4 Pro and PS4 Slim do not have an optical (Toslink) output interface, so they are not compatible with this converter. It works best with TVs, DVD players, projectors, Blu-ray players, and set-top boxes that have a Toslink or coaxial digital audio output.

Q: Does the volume knob control all audio outputs?

A: The volume knob controls the RCA L/R and 3.5mm headphone jack outputs only. The Toslink and Coaxial passthrough outputs are not affected by the volume knob. The volume knob also doubles as the power switch — turn it to power the unit on.

Q: What headphone impedance does this amplifier support?

A: The built-in HiFi amplifier supports headphones and speakers with an impedance range of 16 to 300 ohms, making it compatible with a wide variety of headphones and audio equipment.
