HVAC Condensate Drain Pump – Automatic, Quiet & Efficient
Keep your air conditioning system, dehumidifier, or ice maker running smoothly with this reliable HVAC Condensate Removal Pump. Engineered for effortless automatic operation, it quietly manages condensate water so you never have to worry about overflow or manual drainage again.
Key Features
- 600ml Water Tank: The built-in 0.6L storage tank handles typical condensate volumes from air conditioners, ice makers, and dehumidifiers with ease, delivering a flow rate of up to 100L/H for fast, efficient drainage.
- Ultra-Quiet 5W Motor: Operates at just 22 decibels — quieter than a whisper — so your home or office environment stays undisturbed. Ventilation holes allow rapid heat dissipation, while shock-absorption feet minimize vibration.
- Fully Automatic Operation: Smart probe sensors detect water levels automatically. When water reaches the lower probe, the pump activates; when the tank is full, it triggers self-drainage. No manual intervention needed.
- Built-in Water Level Safety Sensor: Two signal wires connect directly to your HVAC device as a security switch. If a high water level is detected, the unit automatically shuts down to prevent overflow and potential water damage.
- Wide Compatibility: Ideal for residential and commercial use — compatible with air conditioners, ice makers, stoves, and dehumidifiers in homes, offices, beverage stores, and shopping centres.
Specifications
| Model | QS 100L |
| Material | ABS |
| Power | 5W |
| Voltage | AC 110–240V |
| Max Lift | ~2 m / 6.6 ft |
| Max Flow Rate | 100 L/H |
| Tank Capacity | 0.6 L (600ml) |
| Inlet Outer Diameter | ~25mm / 1 in |
| Outlet Outer Diameter | ~10mm / 0.4 in |
| Noise Level | 22 dB |
| Operation | Non-Continuous (Automatic On/Off) |
| Applicable Power | 15kW (1P–5P) |
| Certification | CE |
| Structure | Diaphragm Pump |
How to Install & Use
- Turn off power before starting any installation.

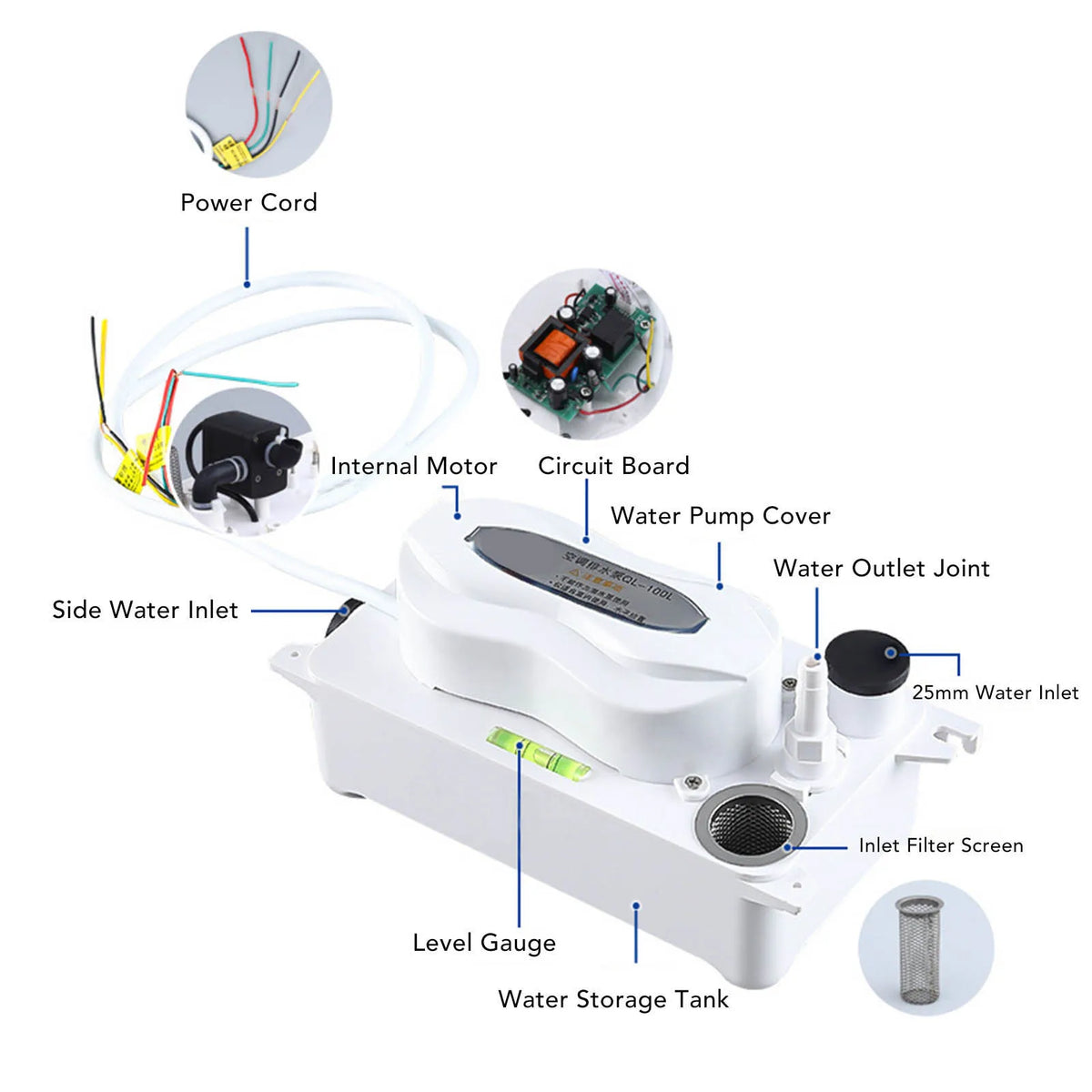

- Select the most suitable inlet — one on the top and one on the left side of the pump (outer diameter: 20mm).
- Fix the included mounting plate in the desired position.
- Connect the system drainage pipe to the pump inlet; connect the outlet port using a plastic pipe (outer diameter 9mm, inner diameter 6mm) and secure with the included cable ties.
- Do not install the pump inside the air conditioner host unit or inside an electrical circuit box.
- After connection, power on the pump, run the air conditioner, and verify that the pump operates correctly. If abnormal operation occurs, the system will automatically cut power — contact a qualified technician if needed.
What's in the Box

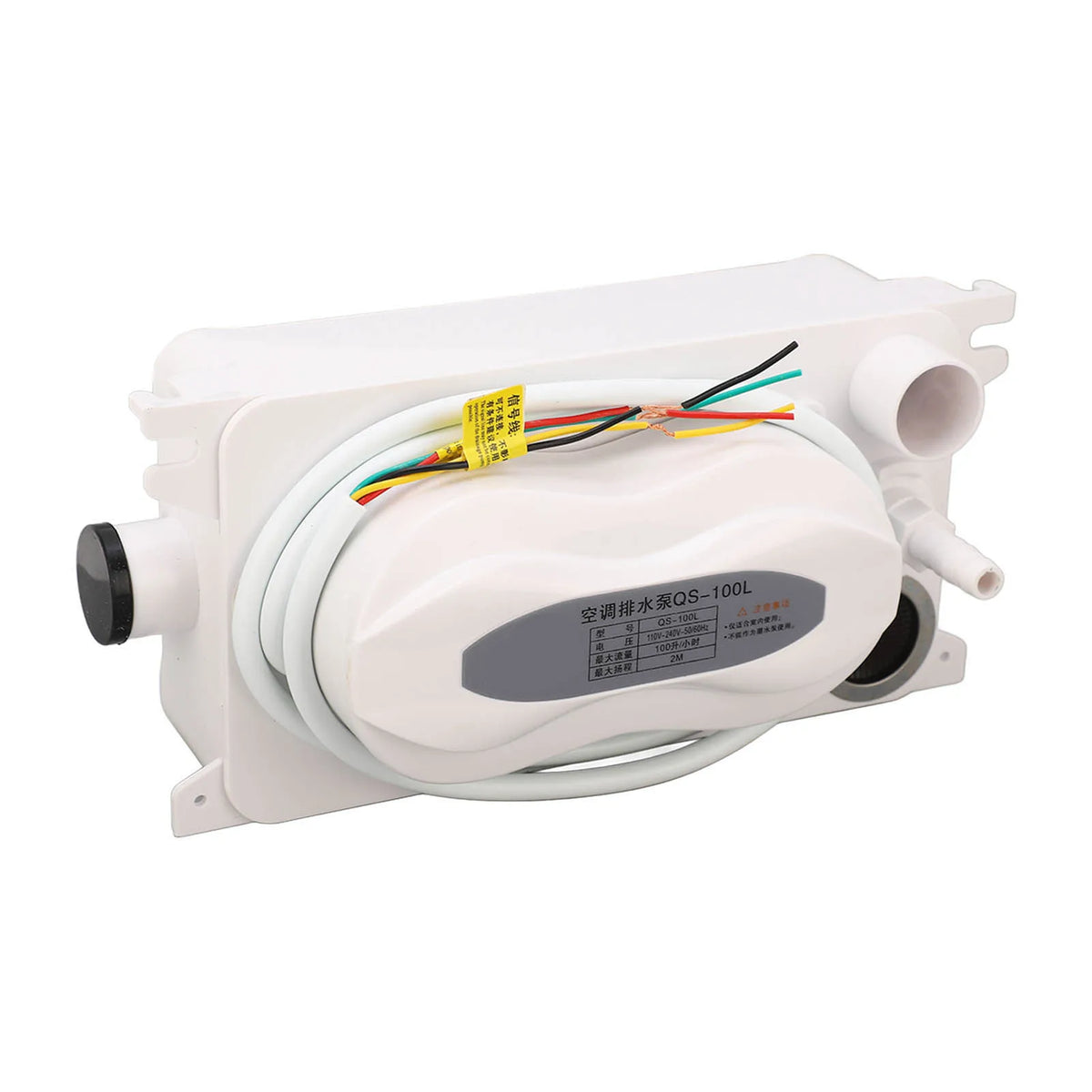

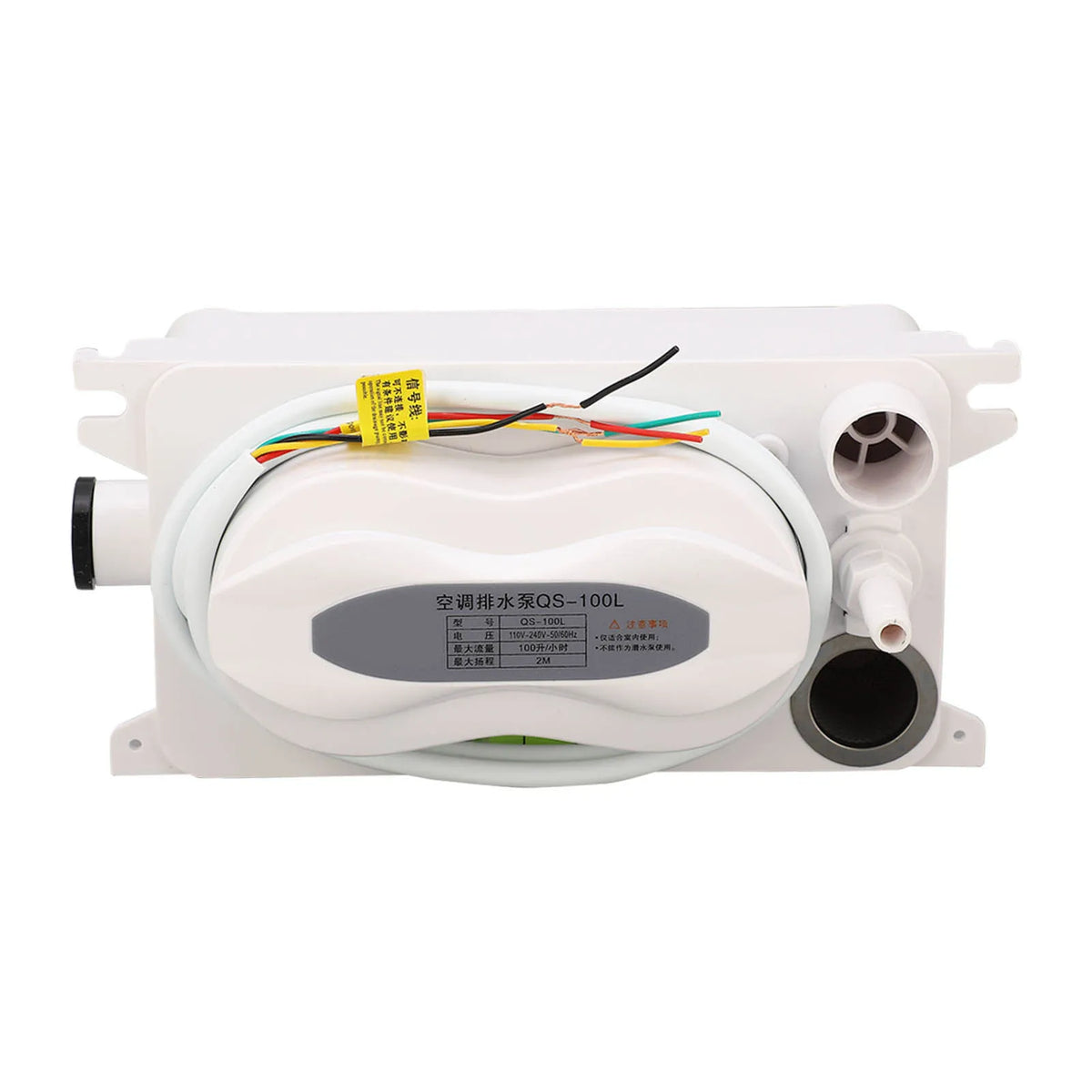

- 1 × Condensate Pump (QS 100L)
- 2 × Drainage Tubes
- 2 × Cable Ties
Important Safety Notes
- Always turn off the power before performing any maintenance or installation.
- Must be used with water present — do not run the pump dry.
- Not suitable for use in swimming pools or submerged in water.
- Ensure the float magnet side always faces upward and the unit sits on a level surface.
- For indoor use only — not recommended for greasy or heavily soiled environments.
- Cannot be used as a submersible pump.
Made in Mainland China.
Looking to complete your home utility setup? You might also find these useful:
10-Piece Gardening Tool Kit – Iron Head & Plastic Handle | 1/2″ Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What appliances is this HVAC condensate drain pump compatible with?
A: This condensate pump is compatible with a wide range of appliances including air conditioners, commercial ice makers, dehumidifiers, and stoves. It is suitable for use in homes, offices, beverage stores, and shopping centres. It operates on AC 110–240V, making it universally usable in most regions.
Q: How does the automatic water level sensor work?
A: The pump features two probe sensors. When water in the 600ml tank reaches the lower probe, the pump automatically starts draining. When the water level rises to the high-water sensor threshold, the safety switch triggers and shuts down the connected HVAC device to prevent overflow — all without any manual input required.
Q: Is this condensate pump noisy during operation?
A: No. The pump operates at just 22 decibels — an extremely low noise level comparable to a quiet library. Its shock-absorption feet further reduce vibration, making it suitable for use in bedrooms, offices, and other noise-sensitive environments.
Q: Can this pump be used outdoors or submerged in water?
A: No. This unit is designed for indoor use only. It must not be submerged in water (e.g., swimming pools) and should not be used in greasy or heavily contaminated environments. It is not a submersible pump.
