2-in-1 IDE to SATA Adapter Converter 40-Pin | HDD DVD CD

OULLX 2-in-1 IDE to SATA / SATA to IDE Adapter Converter

Breathe new life into your older PC hardware with the OULLX 2-in-1 IDE to SATA Bidirectional Adapter. This compact conversion card lets you seamlessly bridge legacy 40-pin IDE (PATA) interfaces with modern SATA drives — no drivers required, no hassle. Whether you're connecting a SATA hard drive to an IDE motherboard or vice versa, this adapter handles both directions with ease. Compatible with HDDs, DVD, and CD drives, it's the ideal solution for PC builders, upgraders, and retro-computing enthusiasts.

Made in Mainland China.

Key Features

• Bidirectional Compatibility: Converts IDE to SATA and SATA to IDE — one adapter, two directions
• 40-Pin IDE Interface: Fits standard 3.5" motherboard IDE (PATA) connectors
• High Transfer Speed: Supports Serial ATA transfer rates up to 1.5 Gb/s (150 MB/s)
• Ultra ATA Support: Compatible with Ultra ATA 100/133 for reliable data throughput
• Large Drive Support: Supports IDE drives larger than 240 GB
• Driver-Free: Plug-and-play design — no additional software or drivers needed
• Compact Form Factor: Mini board size conserves internal case space
• CE Certified: Meets CE compliance standards for safety and quality
• Broad OS Compatibility: Works with Windows 98/98SE/ME/2000/XP/Win7/Win10 and Mac OS 8.6 and above
• SATA 1.0 Compliant: Fully compliant with the Serial ATA 1.0 specification

Technical Specifications

How to Connect

1. Plug the adapter's IDE jack into your motherboard's IDE interface, aligning the connector carefully.
2. Connect one end of the included SATA data cable to the adapter, and the other end to your SATA hard drive.
3. Attach the included power cable to the adapter; connect the other end to your PC's chassis power supply.
4. Power on your system — the SATA drive should be recognised automatically once BIOS is set to auto-detect IDE interfaces.

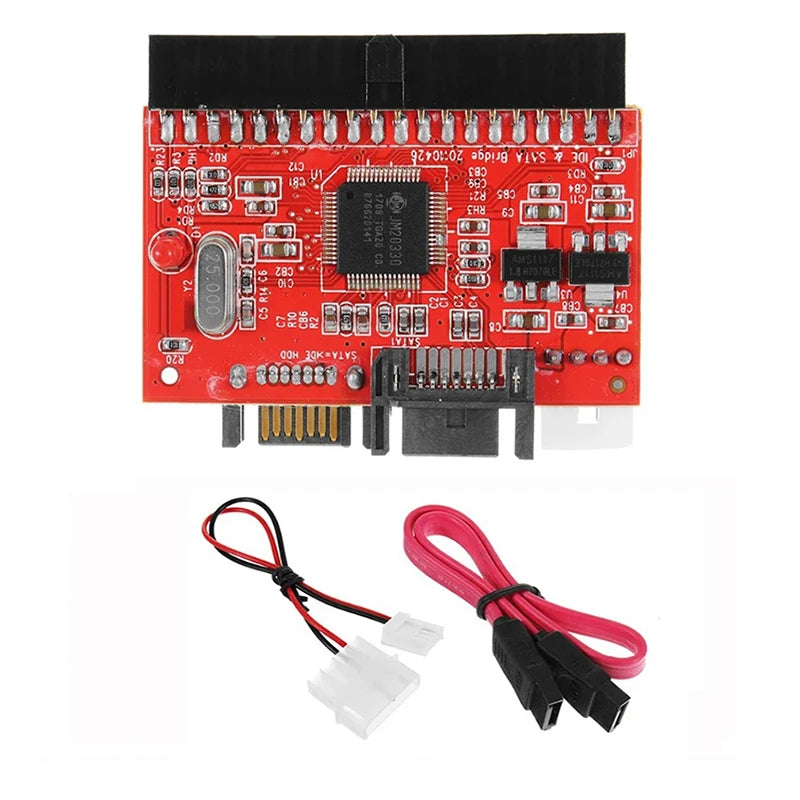

What's in the Box

• 1 × IDE to SATA Converter Adapter
• 1 × SATA Data Cable (7-Pin)
• 1 × Power Adapter Cable

Note: This item ships without a retail box.

Related Products You May Like

• 10-Pc Hex Nut & Bolt Extractor Kit – Hand Tools
• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: Can this adapter convert both IDE to SATA and SATA to IDE?

A: Yes! The OULLX adapter is fully bidirectional, meaning it supports both IDE-to-SATA and SATA-to-IDE conversion. This makes it extremely versatile for upgrading or repurposing older PC hardware.

Q: Do I need to install any drivers to use this IDE to SATA adapter?

A: No drivers are required. The adapter is plug-and-play and works natively with Windows 98 through Windows 10 and Mac OS 8.6 and above, so you can get set up quickly without downloading additional software.

Q: What should I do if my SATA drive is not recognised after connecting the adapter?

A: First, double-check all physical connections — ensure the IDE jack is properly aligned with the motherboard IDE interface (not staggered by a row), confirm the SATA data cable and power cable are both securely connected, and verify that your BIOS is configured to auto-detect IDE hard disk devices. If your motherboard only supports drives up to 136 GB, check with your motherboard manufacturer for a BIOS update to enable LBA48 addressing.

Q: Is this adapter compatible with DVD and CD drives as well as HDDs?

A: Yes, the adapter supports 3.5" hard disk drives (HDD) as well as DVD and CD optical drives, making it suitable for a range of legacy storage and optical devices.
