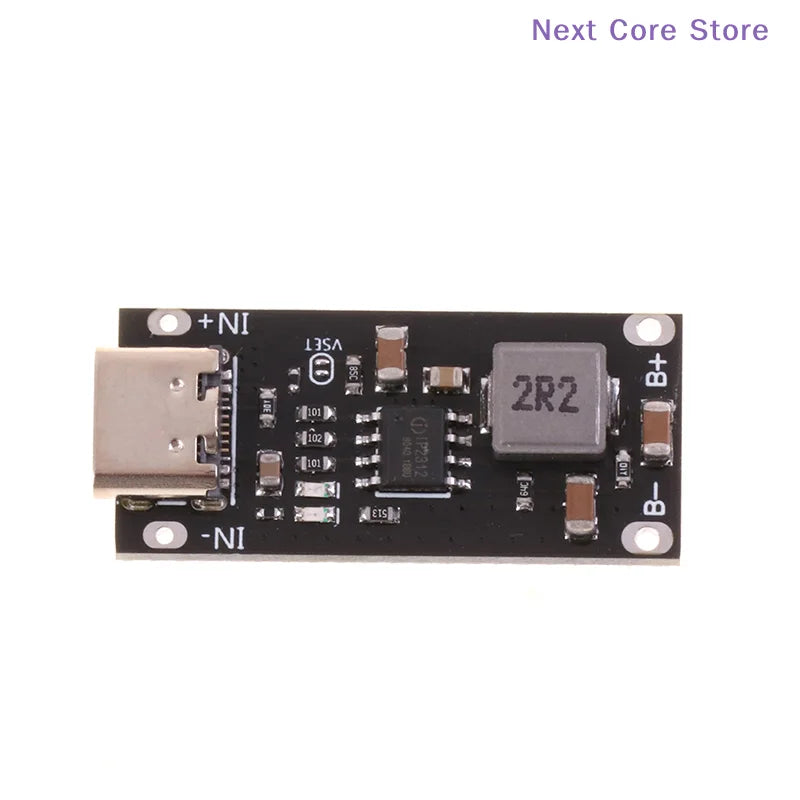

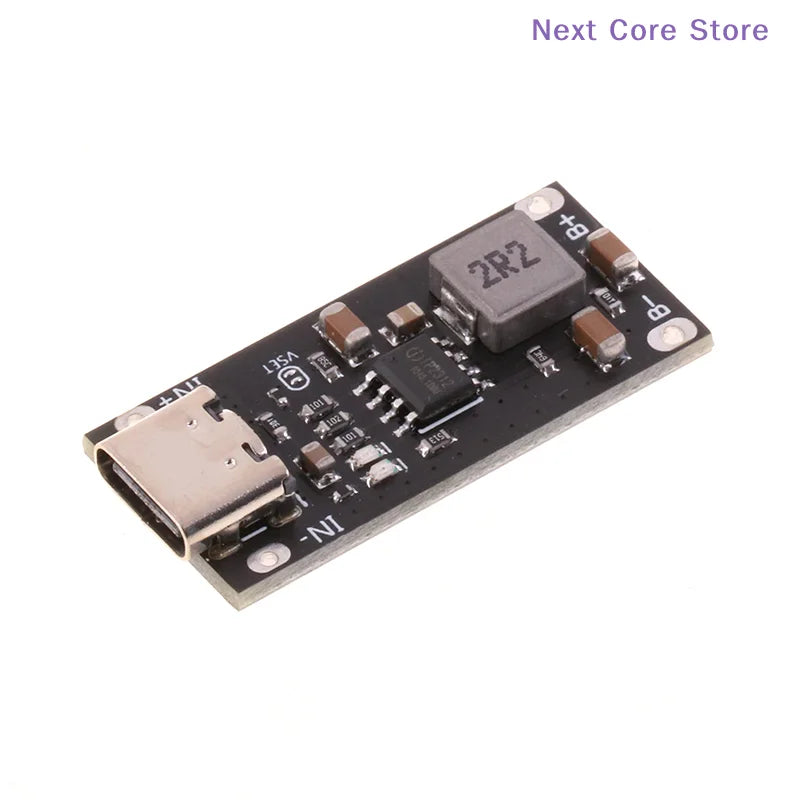

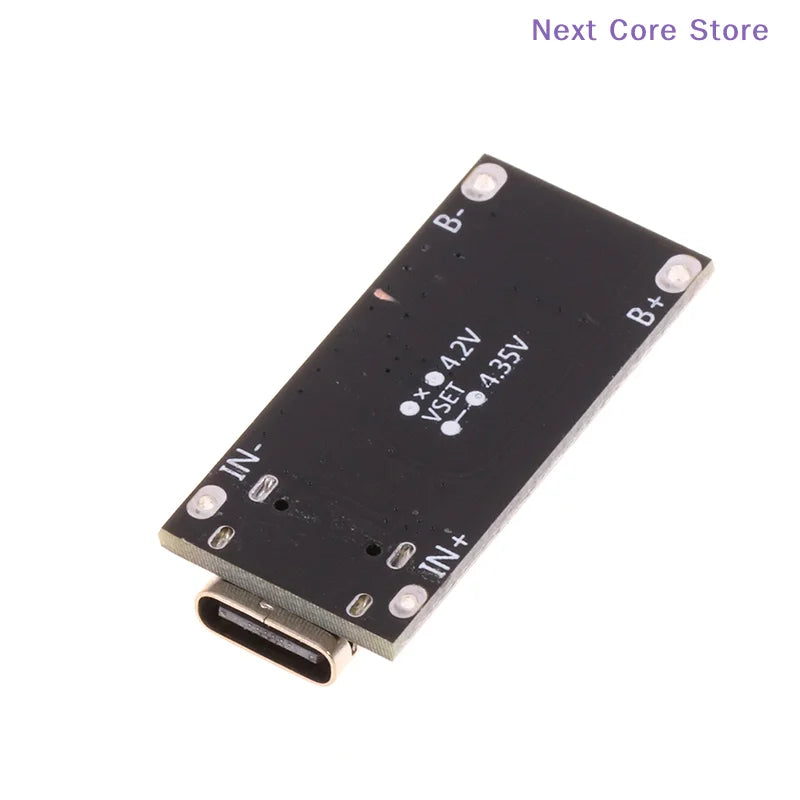

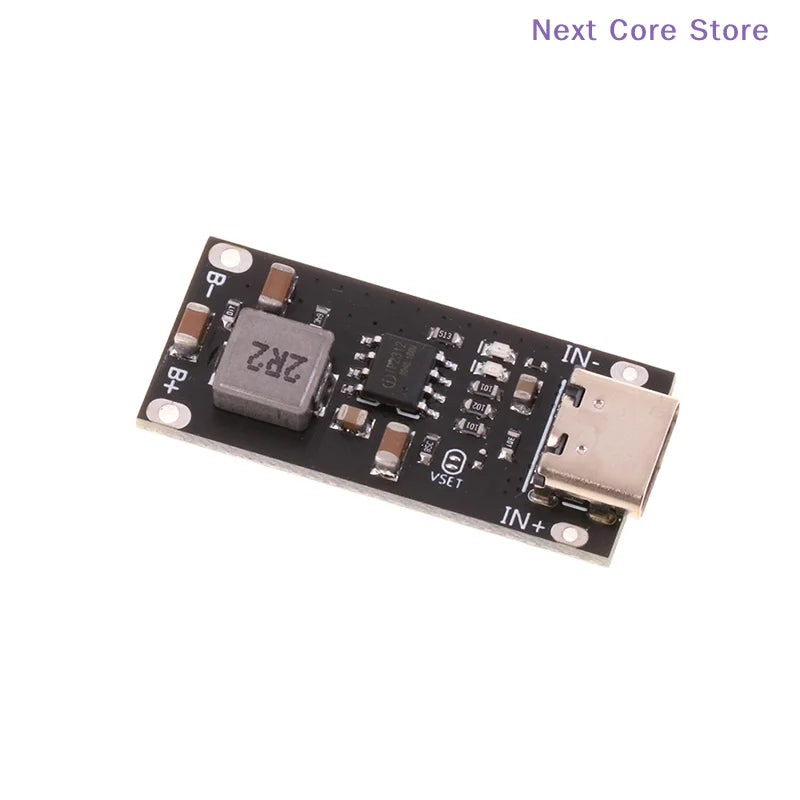

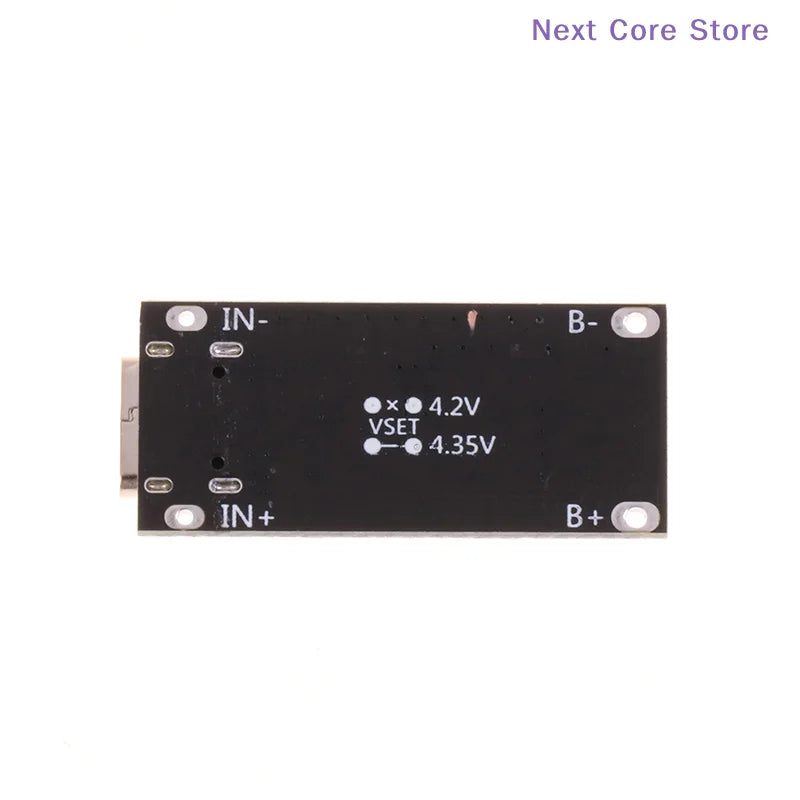

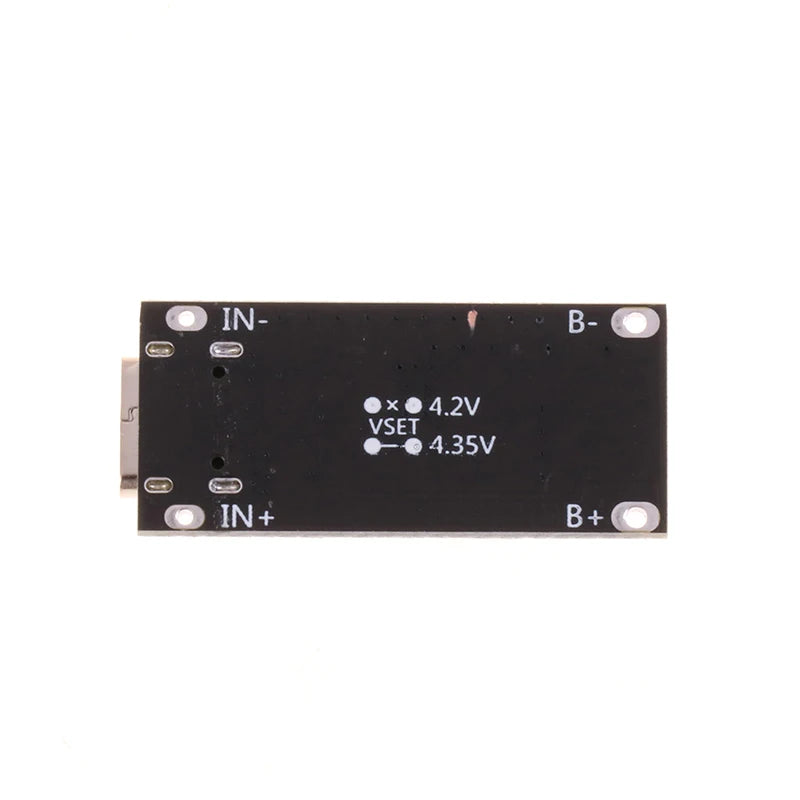

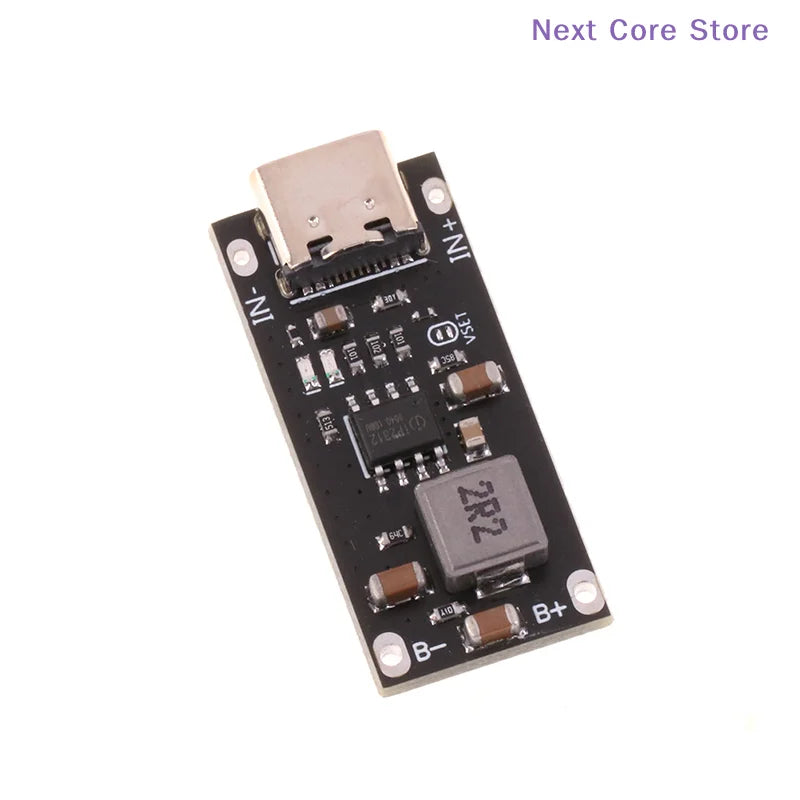

IP2312 USB Type-C 3A Fast Charging Module – CC/CV Mode for Lithium Polymer Batteries
Power your DIY electronics projects with confidence. This compact IP2312 charging board delivers reliable, efficient fast charging for 3.7V single-cell polymer ternary lithium batteries. Featuring a Type-C USB input, CC/CV (Constant Current/Constant Voltage) charging logic, and a high-efficiency switching topology, it's the ideal drop-in charging solution for custom battery packs, portable devices, and maker projects.
Key Features
- Main Control Chip: IP2312 – a high-performance lithium battery charge management IC
- Input Interface: USB Type-C (5V input, 4.5V–5.5V operating range)
- Charging Mode: CC/CV (Constant Current / Constant Voltage) for safe, precise battery charging
- Charging Current: Up to 3A (adjustable via onboard resistance)
- Charge Cut-Off Voltage: 4.2V – perfectly matched to single-cell Li-Po / Li-ion cells
- High Conversion Efficiency: 93% @ 3A | 94% @ 2A | 95% @ 1A
- LED Status Indicators: Red = Charging in progress | Blue = Battery fully charged
- PCB Included: Yes – ready to integrate into your project
- Reusable & Compact: Designed for repeated use across multiple builds
Technical Specifications
| Item Type | Charging Module / Board |
| Chip | IP2312 |
| Input Voltage | 4.5V – 5.5V (via USB Type-C) |
| Output / Cut-Off Voltage | 4.2V |
| Max Charging Current | 3A (adjustable) |
| Charging Mode | CC/CV |
| Indicator Lights | Red (Charging) / Blue (Full) |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × IP2312 Battery Charging Board
Note: Battery, charger, and cable are NOT included.
Perfect For
- DIY electronics & maker projects
- Custom portable power banks
- Wearable electronics and IoT devices
- Robotics and RC battery management
- Prototyping lithium battery chargers
Looking for more electronics and tools for your projects? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel or explore our 105° Right Angle Driver with 1/4" Hex Screwdriver Bit for your workbench toolkit.
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What type of battery is this IP2312 charging board compatible with?
A: This charging board is designed specifically for single-cell 3.7V polymer ternary lithium batteries (Li-Po / Li-ion). It charges to a cut-off voltage of 4.2V using CC/CV mode, which is the standard safe charging profile for these battery types.
Q: Can I adjust the charging current on this board?
A: Yes. The charging current is set at 3A by default but can be adjusted by modifying the onboard sense resistor. Lower currents (1A, 2A) also yield higher conversion efficiency (up to 95%), making it flexible for various battery capacities and project requirements.
Q: What do the LED indicator lights mean?
A: The board features two LED status indicators: a Red LED that illuminates while the battery is actively charging, and a Blue LED that lights up when the battery is fully charged and the charging process is complete.
Q: What input is required to power this charging module?
A: The module accepts input via a USB Type-C connector with an operating voltage range of 4.5V to 5.5V (standard 5V USB). A USB charger or power supply capable of delivering at least 3A output is recommended for maximum charging speed.
