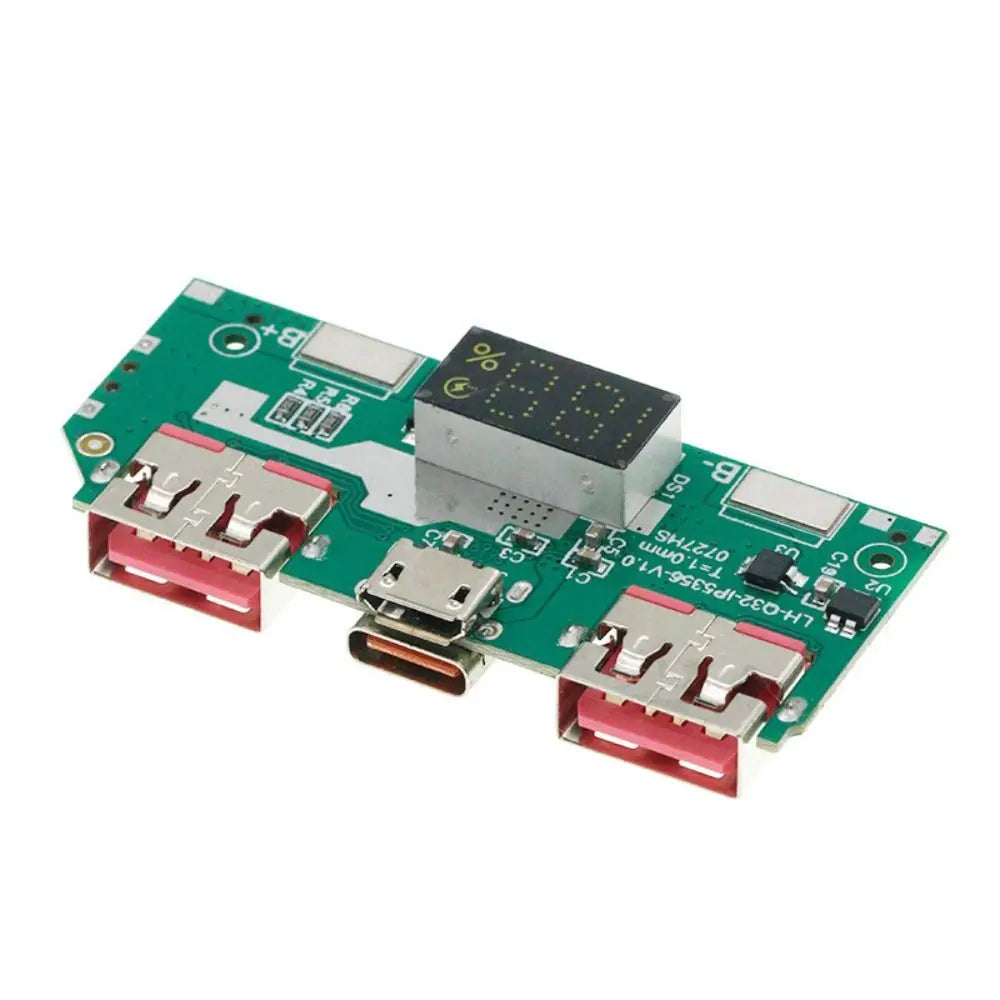

IP5356 5V 3A QC/PD3.0 Fast Charge Module with Digital Display
Power your DIY electronics and industrial projects with confidence. The IP5356 Fast Charge Module delivers a stable 5V 3A output and supports a wide range of fast-charging protocols — including QC3.0, QC2.0, PD3.0, AFC, FCP, and SCP — all packed into a compact, precision-engineered board. A built-in digital display keeps you informed of real-time charge status at a glance.
Whether you're building a custom power bank, a portable charging station, or an embedded industrial device, this module offers the reliability and versatility you need.
Made in Mainland China.
Key Features
- Multi-Protocol Fast Charging: USB-A supports QC3.0/QC2.0/AFC/FCP/SCP; Type-C supports PD3.0/PD2.0/QC3.0/QC2.0/AFC/FCP/SCP; Micro input supports AFC/FCP
- Stable 5V 3A Output: Consistent discharge constant current for reliable device charging

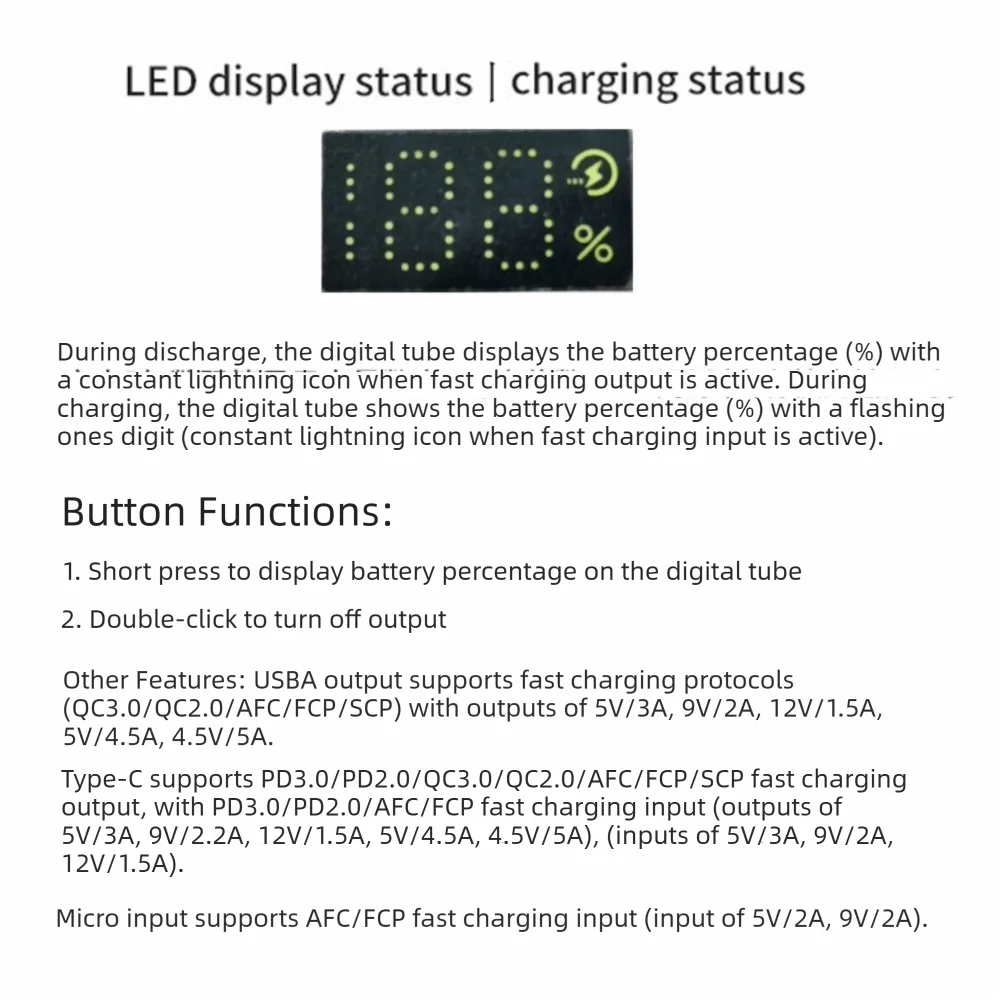

- Digital Display: Monitor charging status in real time with the integrated digital readout
- Short Circuit Protection: Reacts in under 50µS to keep your devices and project safe
- 3 Charging Ports: USB-A, Type-C, and Micro — all on one compact board
- Wide Input Voltage Range: Accepts 4.5V–14V charging input, ideal for varied power sources

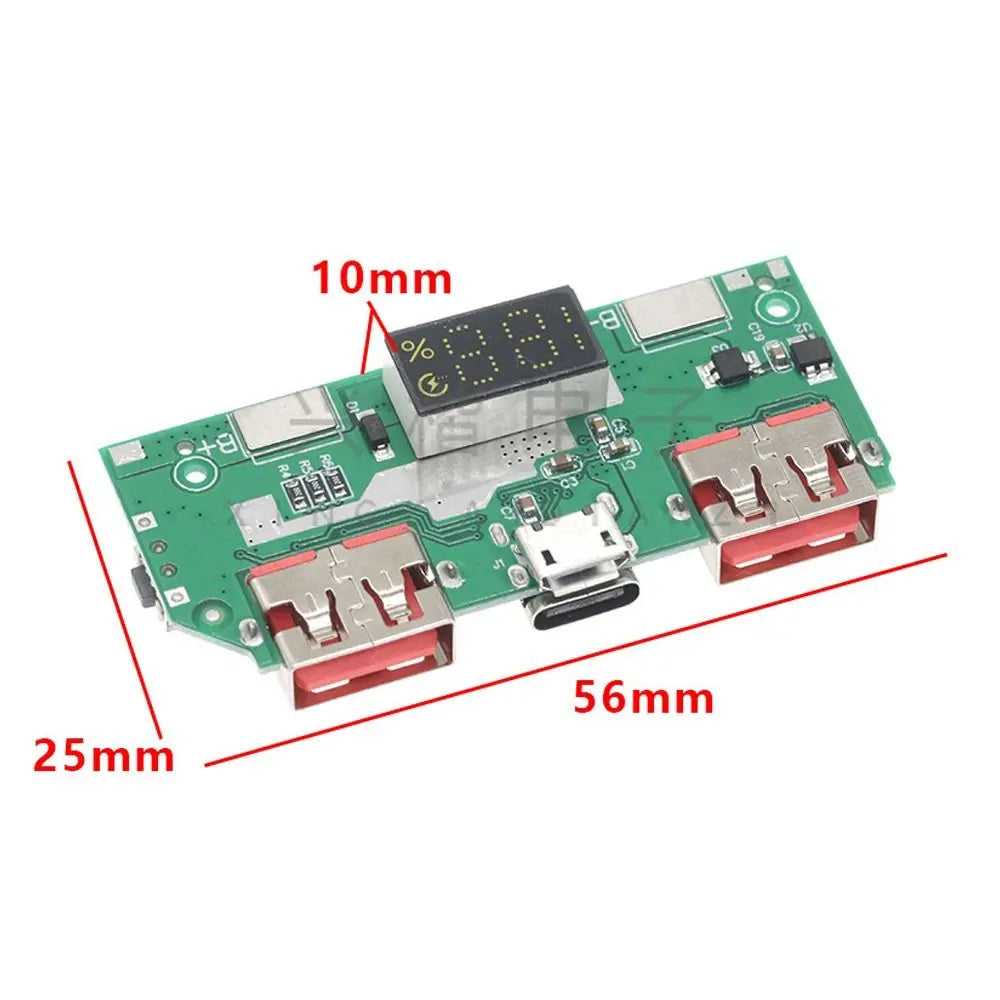

- Compact & Robust Design: High-quality components arranged in an efficient, space-saving layout
- Ultra-Low Self-Dissipation: Max 150µA standby draw for efficient operation

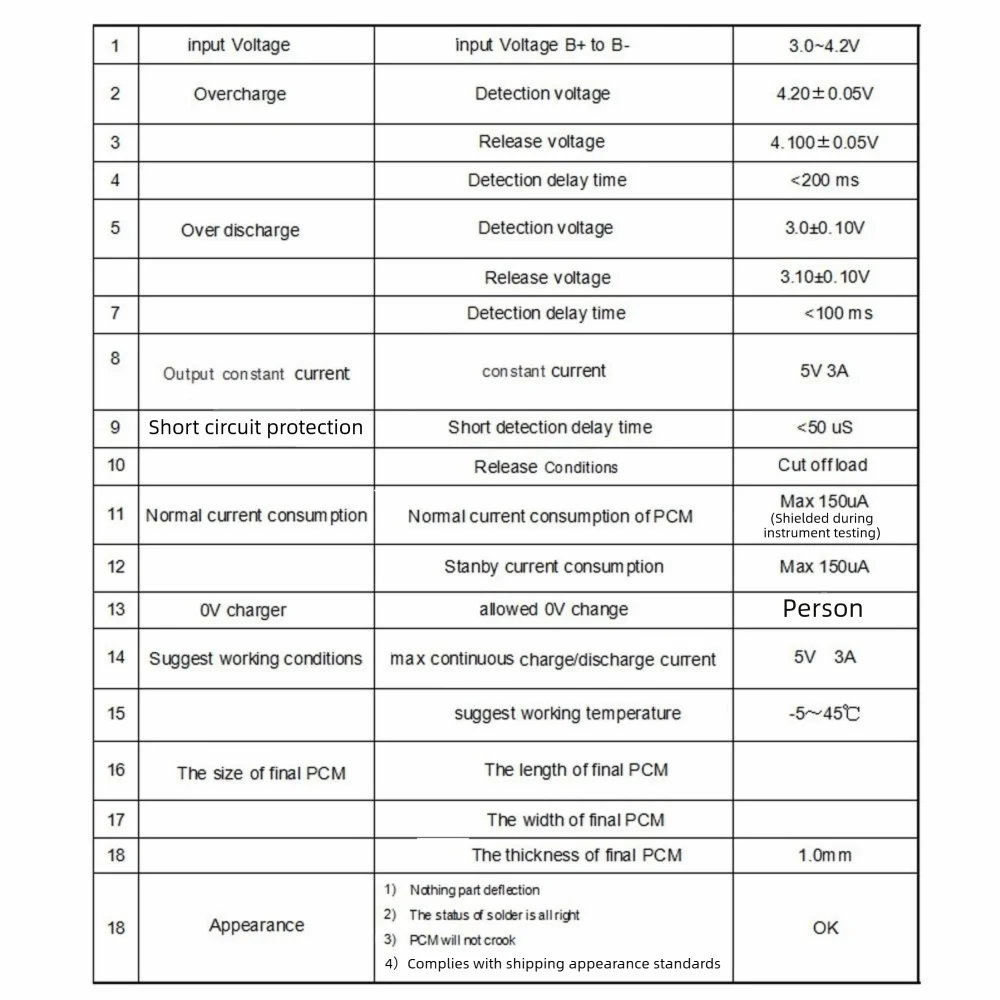

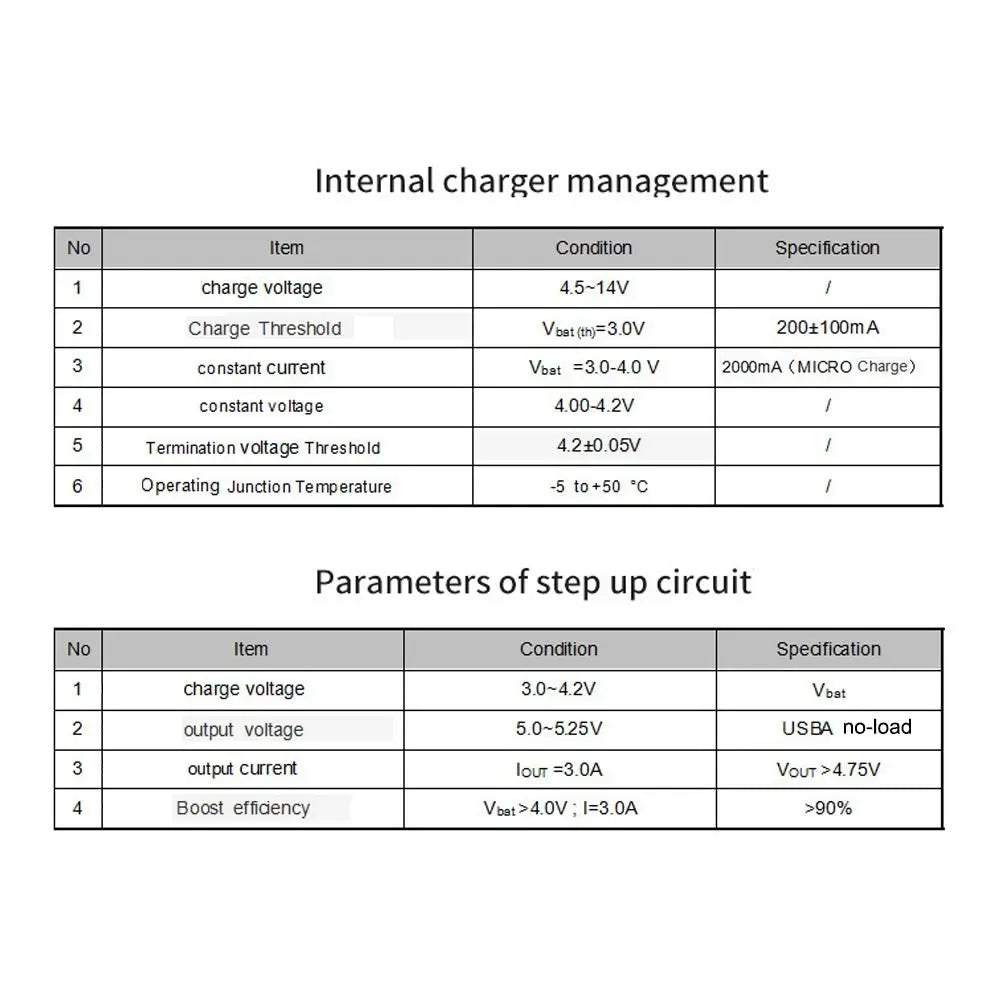

Technical Specifications
| Chipset | IP5356 |
| Discharge Output | 5V / 3A (constant current) |
| Charging Input Voltage | 4.5V – 14V |
| Constant Charging Voltage | 4.00V – 4.20V |
| Termination Charging Voltage | 4.20V ± 0.05V |
| Short Circuit Protection | <50µS response |
| Self-Dissipation | Max 150µA |
| Operating Temperature | -5°C to 45°C |
| USB-A Output Protocols | QC3.0, QC2.0, AFC, FCP, SCP — 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A |
| Type-C Output Protocols | PD3.0, PD2.0, QC3.0, QC2.0, AFC, FCP, SCP — 5V/3A, 9V/2A, 12V/1.5A, 5V/4.5A, 4.5V/5A |
| Type-C Input Protocols | PD3.0, PD2.0, AFC, FCP — 5V/3A, 9V/2A, 12V/1.5A |
| Micro Input Protocols | AFC, FCP — 5V/2A, 9V/2A |
| Recovery Condition | Disconnect load |
What's in the Box
- 1× IP5356 Fast Charge Module
Great Pairings for Your Build
Looking to complete your toolkit? Check out these related items from our store:
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
Learn more: EPA guidance on lithium-ion battery handling
Frequently Asked Questions
Q: What fast-charging protocols does the IP5356 module support?
A: The IP5356 module supports a wide range of protocols. The USB-A port supports QC3.0, QC2.0, AFC, FCP, and SCP. The Type-C port supports PD3.0, PD2.0, QC3.0, QC2.0, AFC, FCP, and SCP for both input and output. The Micro port supports AFC and FCP for input.
Q: What is the maximum output current of this fast charge module?
A: The module delivers a stable discharge constant current of 5V / 3A, suitable for powering or charging devices that require up to 15W of power. Higher voltage output modes (9V, 12V) are available via fast-charge protocols at correspondingly adjusted currents.
Q: Is this module suitable for DIY power bank or industrial projects?
A: Yes. The IP5356 module is designed specifically for DIY and industrial applications. Its compact footprint, multi-protocol fast-charging support, digital display, and short circuit protection make it ideal for custom power banks, embedded charging stations, and other electronics projects.
Q: What input voltage range does this module accept?
A: The charging input voltage range is 4.5V to 14V, making it compatible with a variety of power sources including standard USB adapters and higher-voltage fast chargers.
