IP5356 Fast Charge Module 5V 3A QC/PD3.0 Digital Display

IP5356 Fast Charge Module – 5V 3A QC/PD3.0 with Digital Display

Power your DIY and industrial projects with confidence. This compact IP5356 Fast Charge Module delivers stable 5V/3A output with support for the latest QC3.0, QC2.0, PD3.0, and multiple fast-charging protocols. Featuring a built-in digital display and three charging ports, this module is engineered for makers, electronics enthusiasts, and professional builders who demand reliable, high-speed power delivery.

Key Features

• Multi-Protocol Fast Charging: Supports QC3.0, QC2.0, AFC, FCP, SCP, PD3.0, PD2.0, OC3.0, and OC2.0 — compatible with a wide range of devices and setups

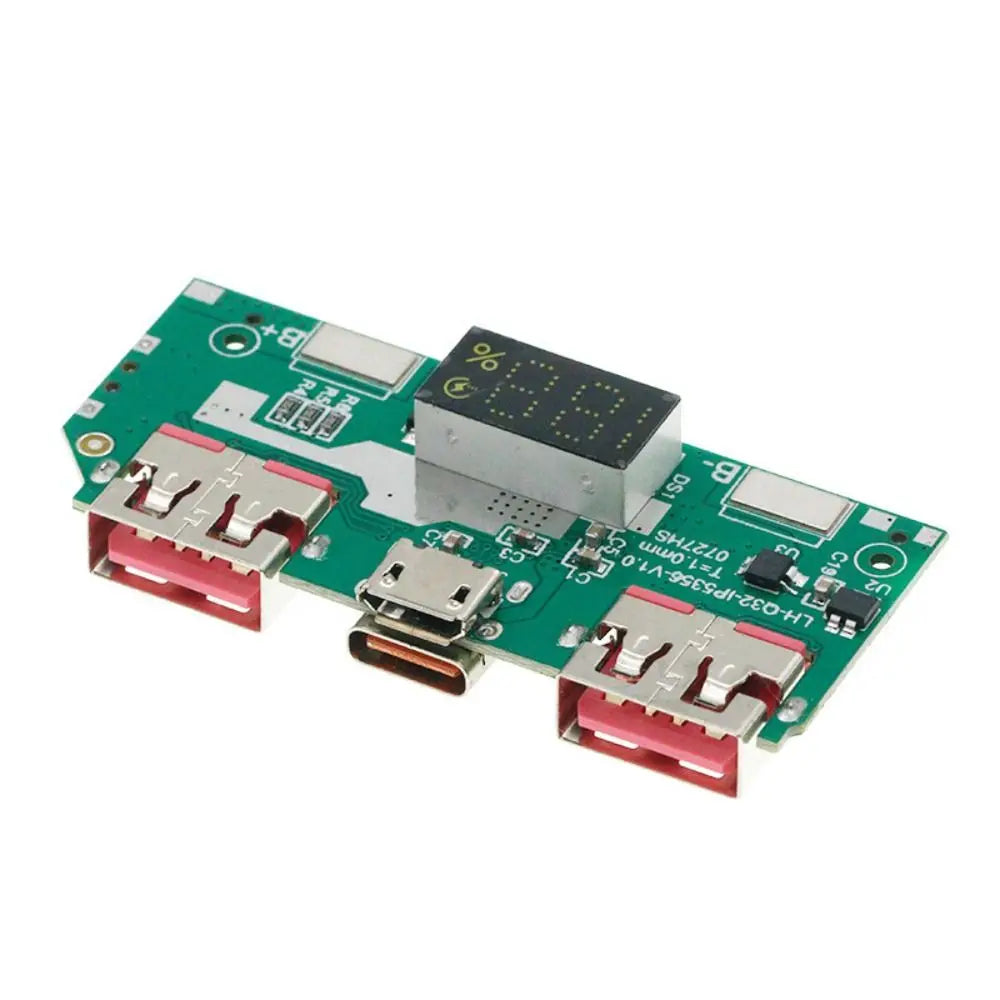

• Triple Port Output: USB-A, Type-C, and Micro input ports for maximum versatility

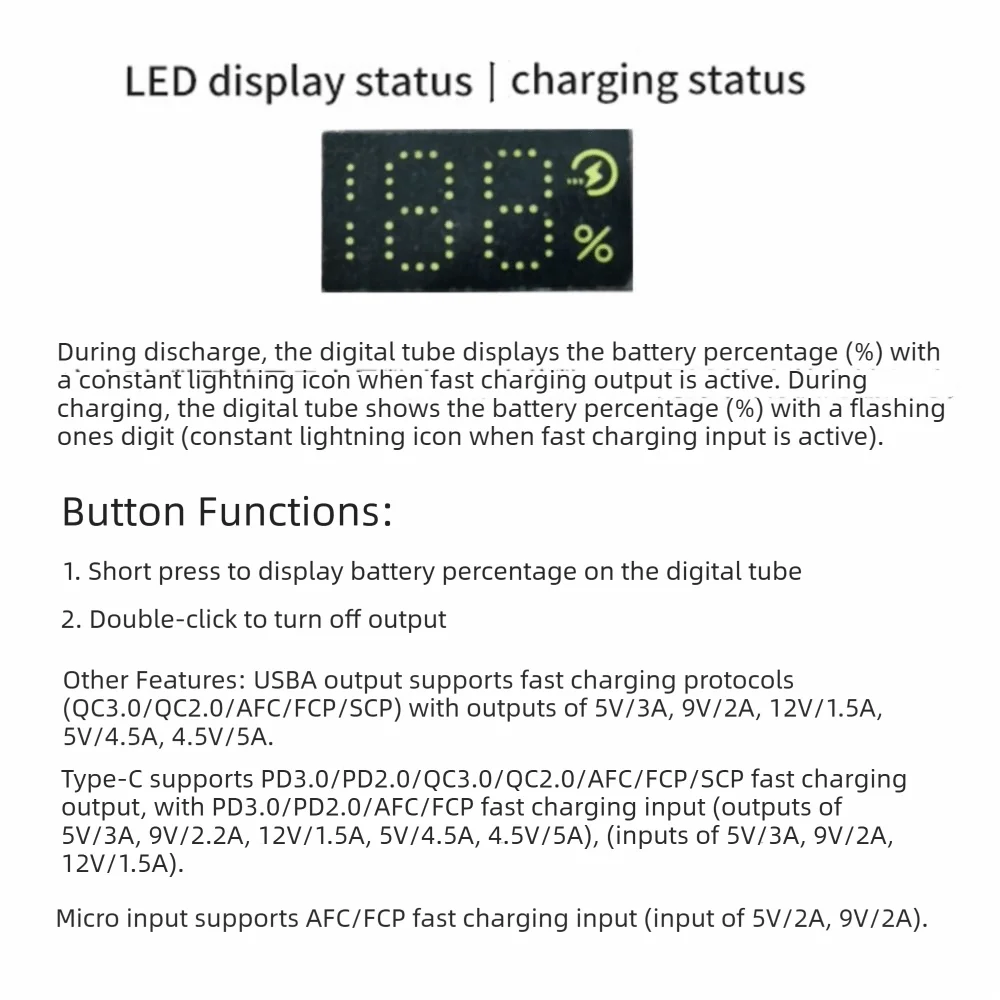

• Digital Display: Real-time monitoring of charging status at a glance
• Short Circuit Protection: Responds in under 50µS to protect your battery and connected components

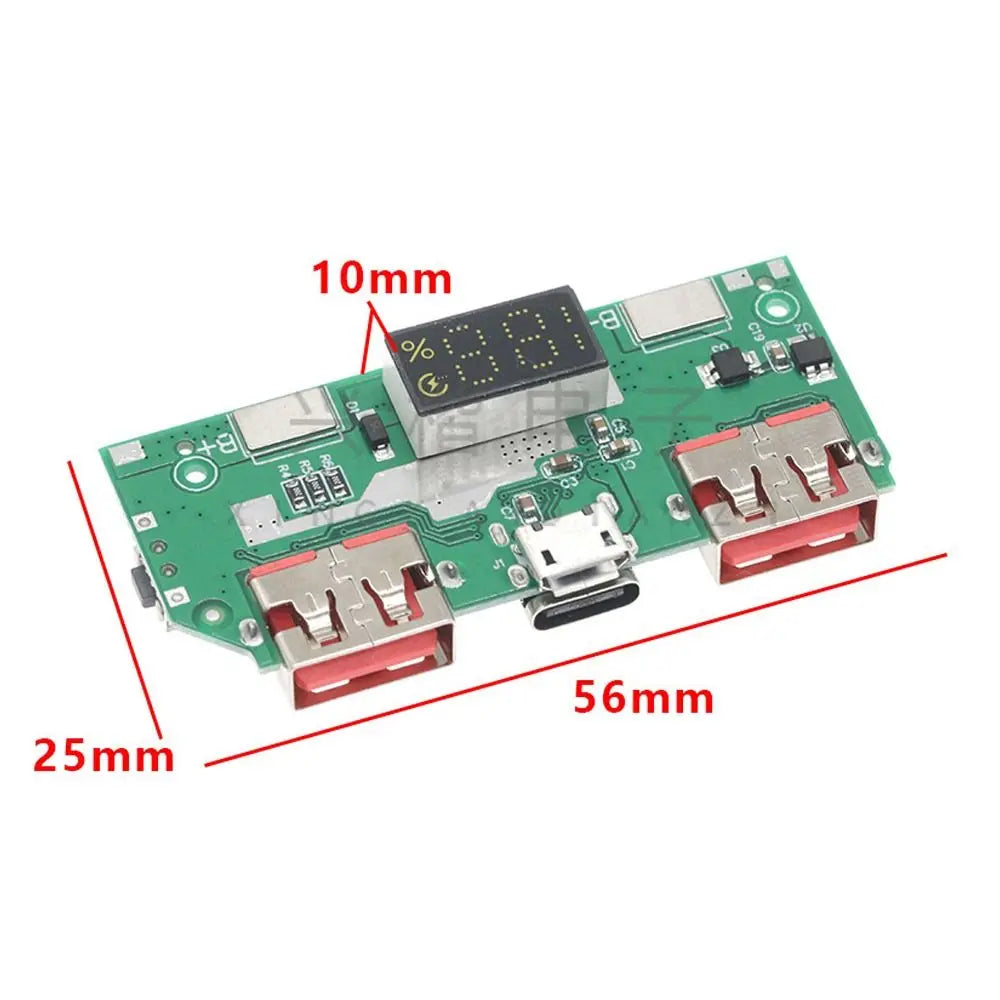

• Compact & Precise Build: Exquisite component layout with high-quality materials ensures long-term durability
• Wide Charging Input Range: Accepts 4.5V–14V input, making it flexible for various power sources
• Ultra-Low Self-Dissipation: Maximum 150µA standby draw — energy efficient by design
• Stable Performance: Constant current discharge at 5V/3A with termination voltage of 4.2V ±0.05V

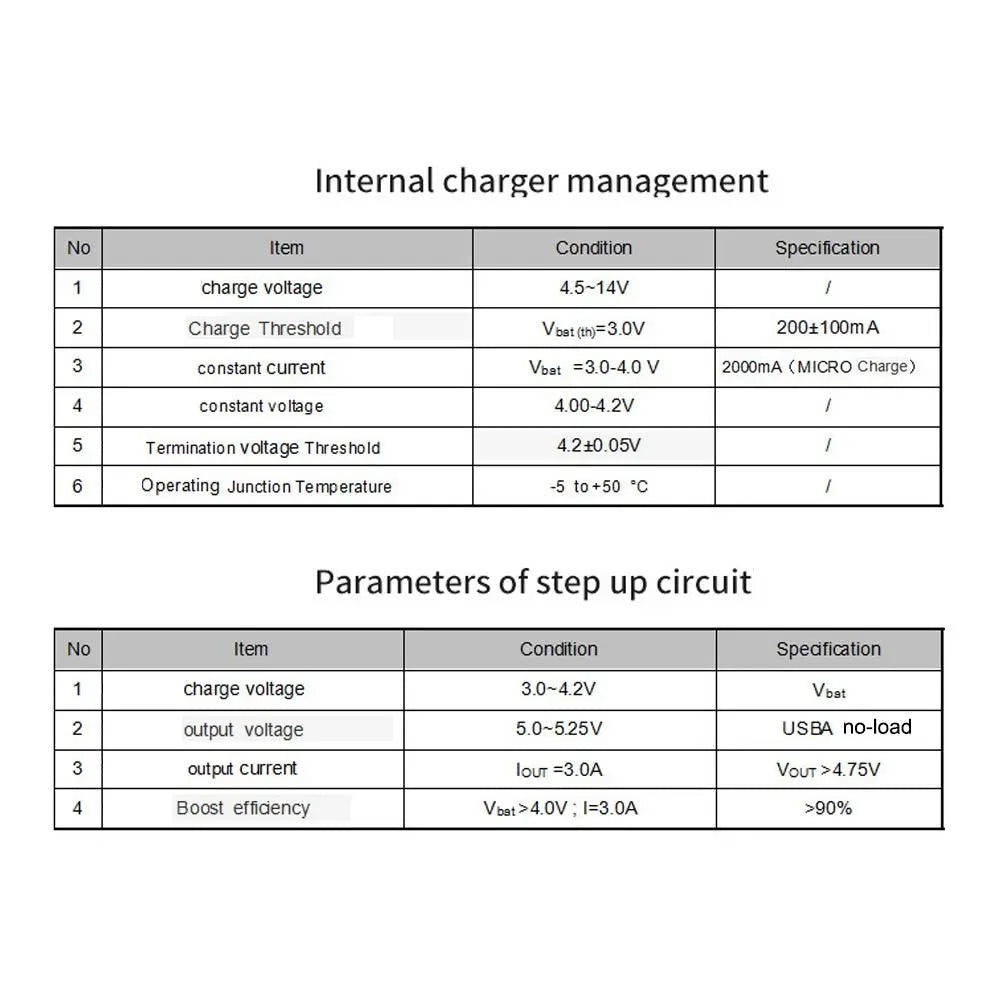

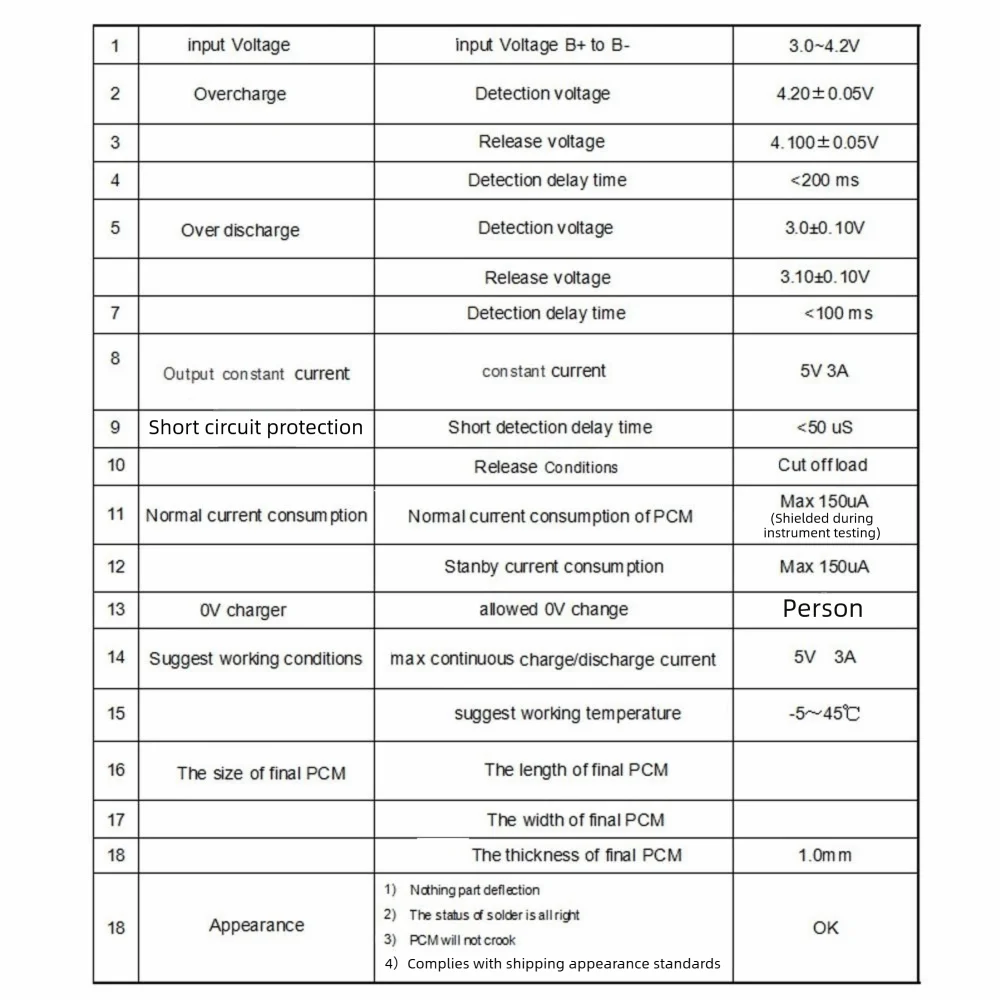

Technical Specifications

What's in the Box

• 1× IP5356 Fast Charge Module

Perfect For

This module is ideal for DIY electronics projects, industrial power applications, portable battery pack builds, and any maker project requiring a reliable multi-protocol fast charging solution. Whether you're prototyping or deploying in the field, this module delivers consistent, safe performance.

Made in Mainland China.

Related Products You May Like

• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What fast-charging protocols does the IP5356 module support?

A: The IP5356 Fast Charge Module supports a comprehensive range of protocols including QC3.0, QC2.0, PD3.0, PD2.0, OC3.0, OC2.0, AFC, FCP, and SCP — covering the vast majority of modern smartphones, tablets, and portable devices.

Q: How many ports does this fast charge module have?

A: The module features three ports: a USB-A output port, a Type-C input/output port, and a Micro input port — giving you maximum flexibility for charging and powering devices in your project.

Q: Is the IP5356 module suitable for DIY and industrial use?

A: Yes. This module is specifically designed for both DIY electronics projects and industrial applications. Its compact form factor, stable 5V/3A output, and built-in short circuit protection make it a reliable choice for custom power bank builds, prototyping, and embedded industrial systems.

Q: What is the input voltage range for this charging module?

A: The module accepts a wide input voltage range of 4.5V to 14V, making it compatible with a variety of power adapters and charging sources, including standard USB adapters and higher-voltage fast chargers.
