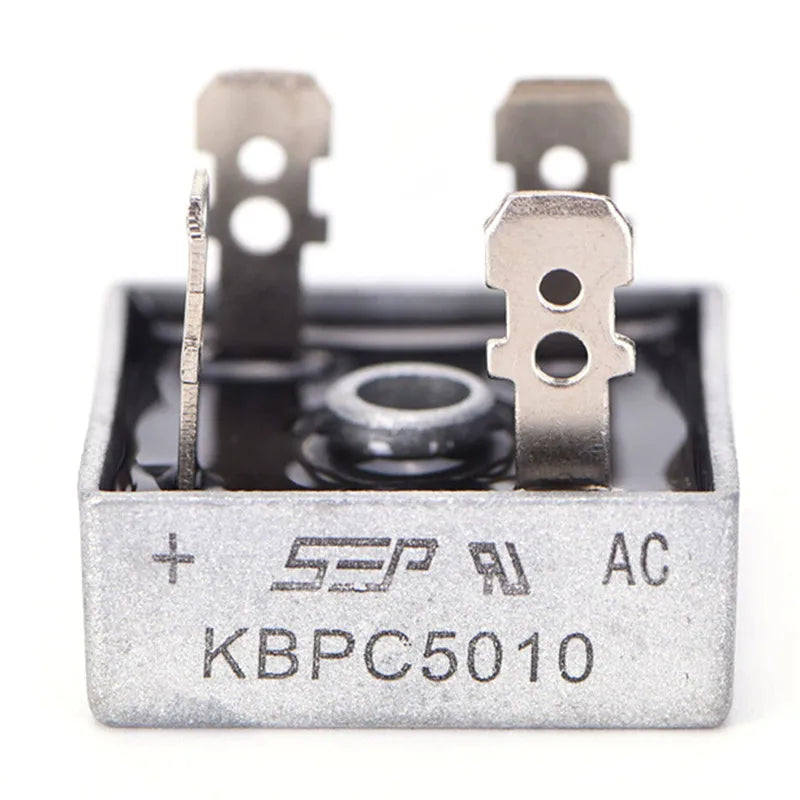

KBPC5010 Single-Phase Diode Bridge Rectifier — 50A / 1000V
Convert AC to DC with confidence using the KBPC5010 Metal Case Single-Phase Diode Bridge Rectifier. Rated at a robust 50 Amps and 1000 Volts, this heavy-duty component is ideal for power supply circuits, motor drives, welding equipment, battery chargers, and general industrial or DIY electronics applications. Available in convenient packs of 1, 3, or 5 units.
Key Features
- High Current & Voltage Rating: 50A current rating and 1000V peak voltage for demanding applications.
- Metal Casing: Rugged silver-tone metal enclosure maximizes heat dissipation and protects internal components.
- Center Mounting Hole: Convenient built-in mounting point for secure installation to a heatsink or chassis.
- Heavy-Duty Screw Terminals: Four sturdy screw-fastened pins ensure reliable, low-resistance connections.
- Single-Phase, 4-Pin Design: Standard full-wave bridge configuration, compatible with a wide range of power conversion projects.
- Compact & Portable: Compact 27 × 27 × 21 mm form factor fits easily into enclosures and PCB assemblies.
- Reusable: Built for long-term use and multiple installations.
Specifications
| Model | KBPC5010 |
| Type | Single-Phase Bridge Rectifier |
| Voltage Rating | 1000V |
| Current Rating | 50A |
| Number of Pins | 4 |
| Number of Phases | Single |
| Enclosure Material | Metal |
| Fastening Type | Screw Terminals |
| Color | Silver |
| Dimensions | 27 × 27 × 21 mm |
| Package | 1 × Bridge Rectifier (per unit) |
What's in the Box
- 1, 3, or 5 × KBPC5010 Bridge Rectifier (depending on selected quantity)
Made in Mainland China.
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What is the KBPC5010 bridge rectifier used for?
A: The KBPC5010 single-phase diode bridge rectifier is used to convert alternating current (AC) to direct current (DC) in a wide variety of electronics and electrical applications, including power supplies, battery chargers, motor controllers, welding machines, and industrial control systems. Its 50A / 1000V ratings make it well-suited for high-current, high-voltage circuits.
Q: How do I mount the KBPC5010 rectifier?
A: The KBPC5010 features a center mounting hole on its metal casing, allowing you to bolt it directly to a heatsink or equipment chassis using a standard screw or bolt. Attaching it to a heatsink is strongly recommended in high-current applications to aid heat dissipation and maintain long-term performance.
Q: Is the metal case important for performance?
A: Yes. The metal enclosure of the KBPC5010 serves as both a protective housing and a heat-dissipating surface. Compared to plastic-case equivalents, the metal case allows for much more efficient thermal transfer, which is critical when operating near the 50A maximum current rating.
Q: Can I buy multiple units?
A: Absolutely. This listing is available in packs of 1, 3, or 5 units, making it easy and cost-effective to stock up for multiple projects or repairs.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
