KNOMI V2.0 Circular Display Screen for 3D Printer Heads

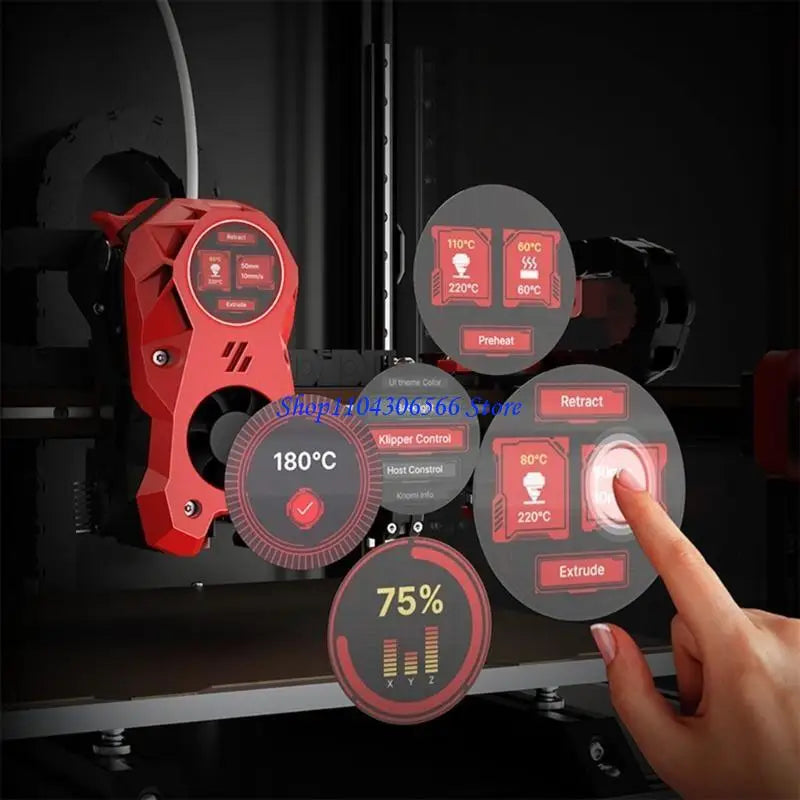

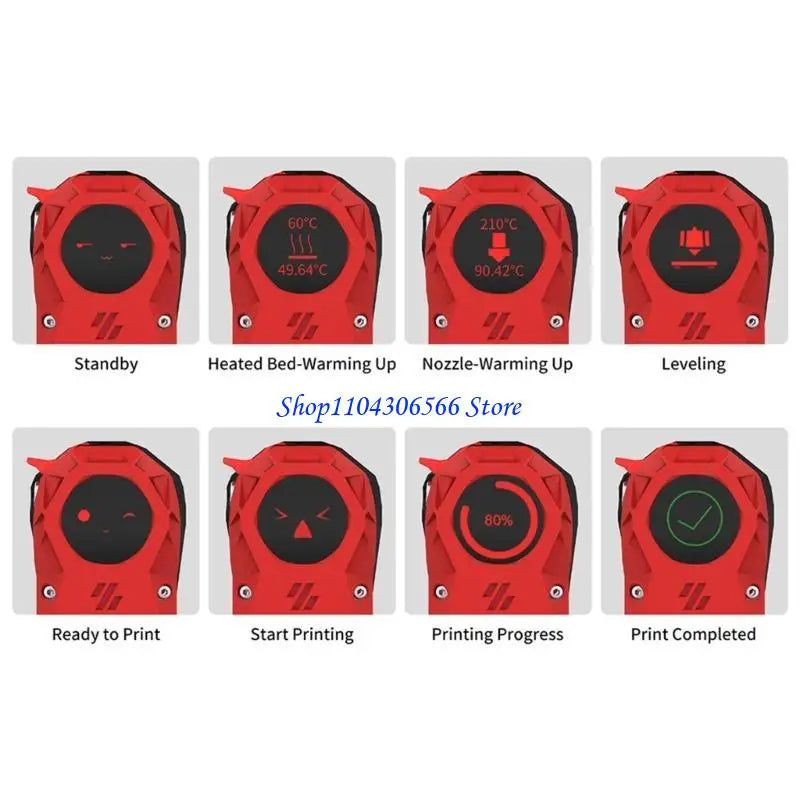

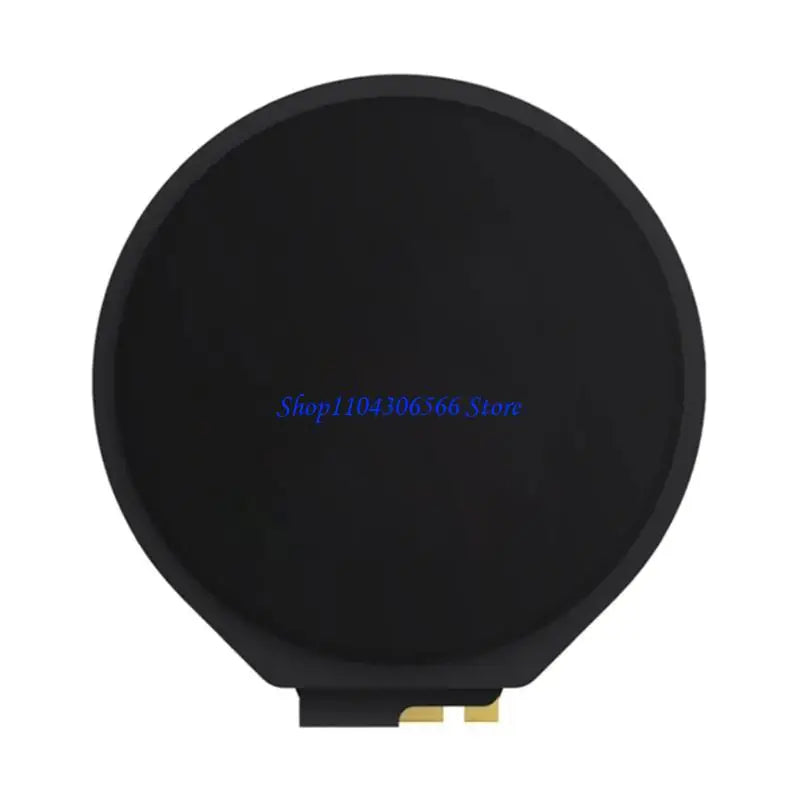

Upgrade your 3D printer with the KNOMI V2.0 Circular Display Screen — a compact, open-source round display designed specifically for 3D printer heads. With a sleek 39.5mm / 1.6-inch ABS body, this display integrates seamlessly into your printer setup, giving you real-time status at a glance right at the print head.
Key Features
- Reserved BOOT Port: Easily update firmware via USB without disassembling your setup.
- Adjustable Thermistor Pull-Up Resistance: Supports 2.2K pull-up resistance selectable via jumper — maximizing compatibility and convenience.
- 4-Wire Fan Interface: Onboard single-channel 4-wire fan connector with selectable 12V / 5V power support for flexible fan control.
- Dual Independent SPI Output Interfaces: Reserved ports can be used for filament runout detection, material cut-off, or custom DIY functions.
- MAX31865 Onboard: Supports 2-wire and 4-wire PT1000 temperature sensor configurations for precise thermal monitoring.
- CAN & USB Communication: Flexible connectivity options; the 120Ω CAN termination resistance is jumper-selectable, and a CAN expansion port is included for future upgrades.
- Complete Hardware Kit: Comes with terminals, double-way studs, and screws — everything you need for a clean, secure installation.
- Open Source: Fully open-source design, perfect for tinkerers, makers, and professional 3D printing enthusiasts.
Specifications
| Display Shape | Circular / Round |

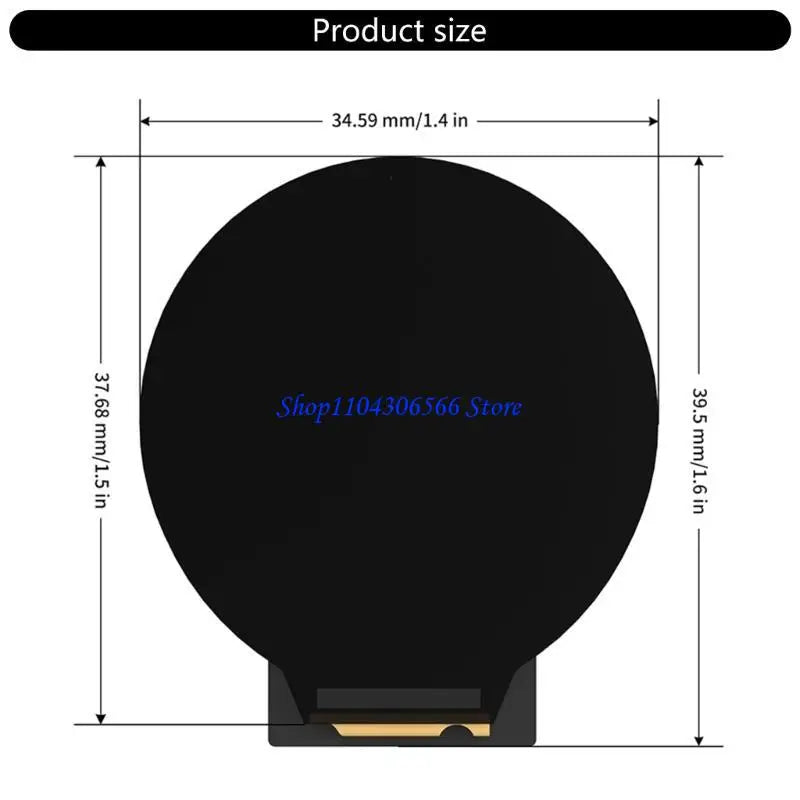

| Size | Approx. 39.5mm / 1.6 inch |
| Material | ABS |
| Fan Interface | 4-wire, 12V / 5V selectable |
| Temperature Sensor Support | PT1000 (2-wire / 4-wire via MAX31865) |
| Communication | CAN / USB |
| Country of Origin | Made in Mainland China |
Package Includes

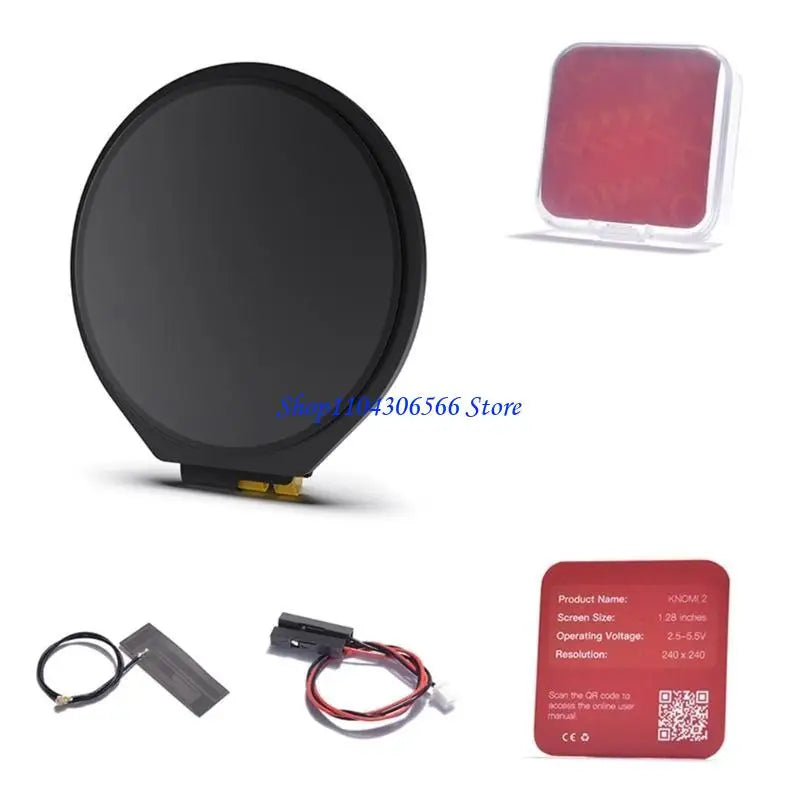

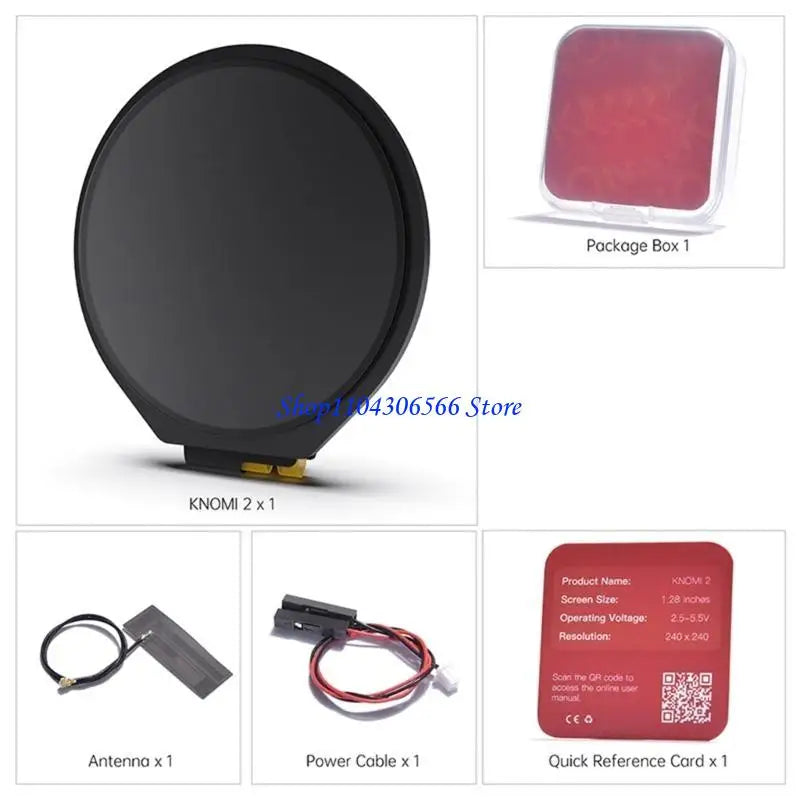

- 1 × KNOMI V2.0 Circular Display Screen Set (with terminals, studs, and screws)
You May Also Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the KNOMI V2.0 circular display compatible with all 3D printer head types?
A: The KNOMI V2.0 is an open-source display designed for a wide range of 3D printer heads. Its flexible communication options (CAN and USB) and jumper-selectable settings make it compatible with many popular printer platforms. Always verify compatibility with your specific printer firmware and toolhead before purchasing.
Q: Can I update the KNOMI V2.0 firmware without disassembling my printer?
A: Yes! The KNOMI V2.0 features a reserved BOOT port that allows you to connect directly via USB to update the firmware conveniently, without needing to remove or disassemble the display from your printer head.
Q: What temperature sensors does the KNOMI V2.0 support?
A: The KNOMI V2.0 includes an onboard MAX31865 chip, which supports both 2-wire and 4-wire PT1000 temperature sensor configurations, enabling precise and reliable thermal readings for your 3D printing operations.
Q: Does the KNOMI V2.0 support filament runout detection?
A: Yes. The dual independent SPI output interfaces can be configured to support filament runout detection, filament cut-off sensing, or other custom DIY functions, giving you a highly versatile toolhead display solution.
