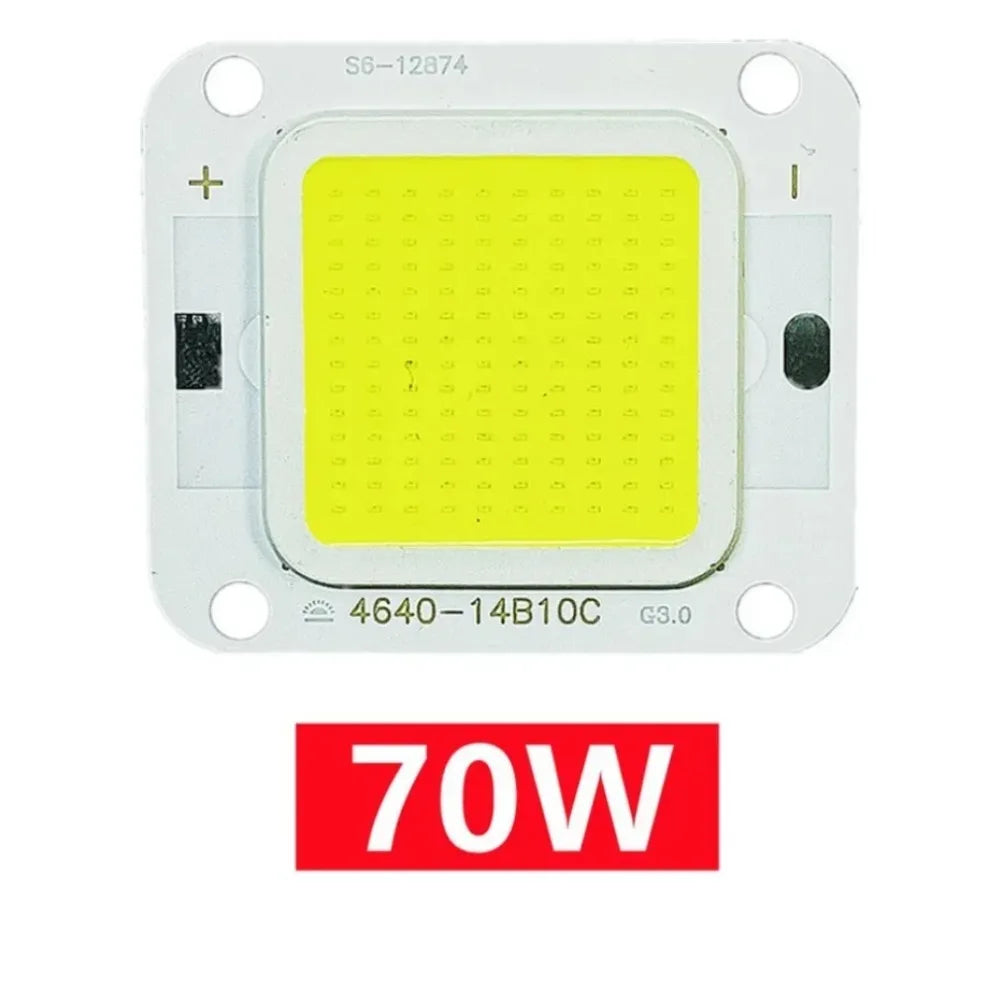

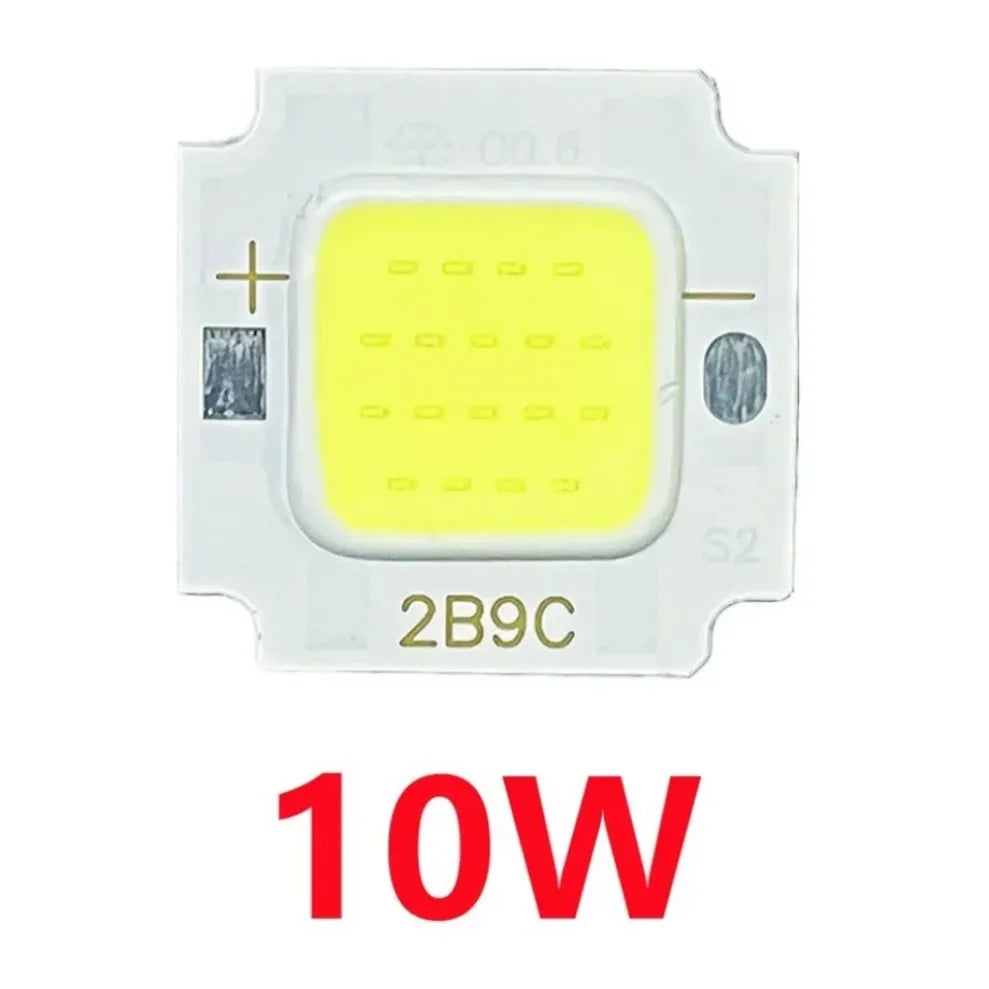

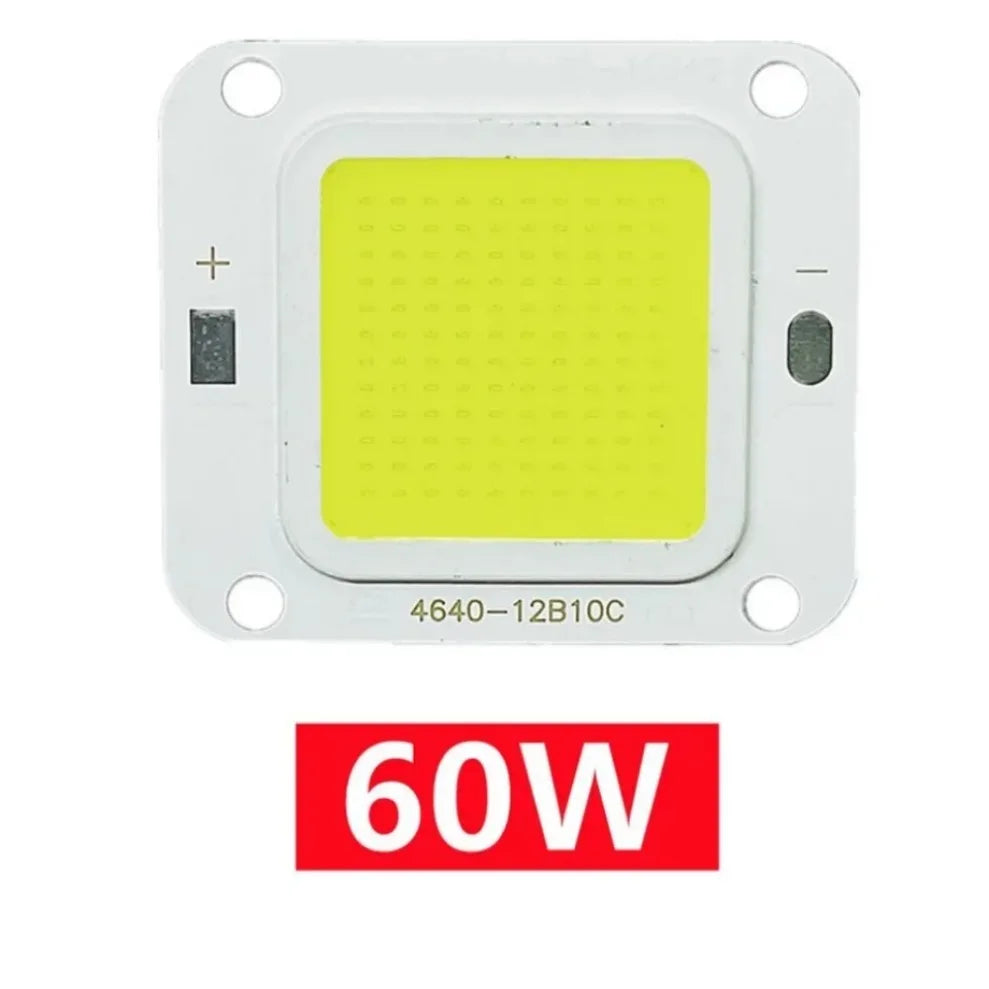

LDHLM LED COB Chip – High-Power Integrated Lamp Bead for DIY Lighting
Upgrade your DIY spotlight, floodlight, or ceiling light builds with the LDHLM High-Power LED COB Chip. Available in 10W, 20W, 40W, 50W, 60W, and 70W versions, these Epistar-based integrated lamp beads deliver an impressive 90–120 lumens per watt with an instant, flicker-free start — making them ideal for indoor and outdoor lighting projects alike. With up to 50,000 hours of rated lifespan and certifications including CCC, CE, FCC, PSE, and RoHS, these chips are built to perform reliably for years. Made in Mainland China.
Technical Specifications
- LED Chip Brand: Epistar
- Forward Voltage: 27–36V
- Forward Current: 10W (300mA) | 20W (600mA) | 40W (900mA) | 50W (1500mA) | 70W (2100mA)
- Luminous Flux: 90–120 LM/W
- Color Rendering Index (CRI): 60–85
- Beam Angle: 120°

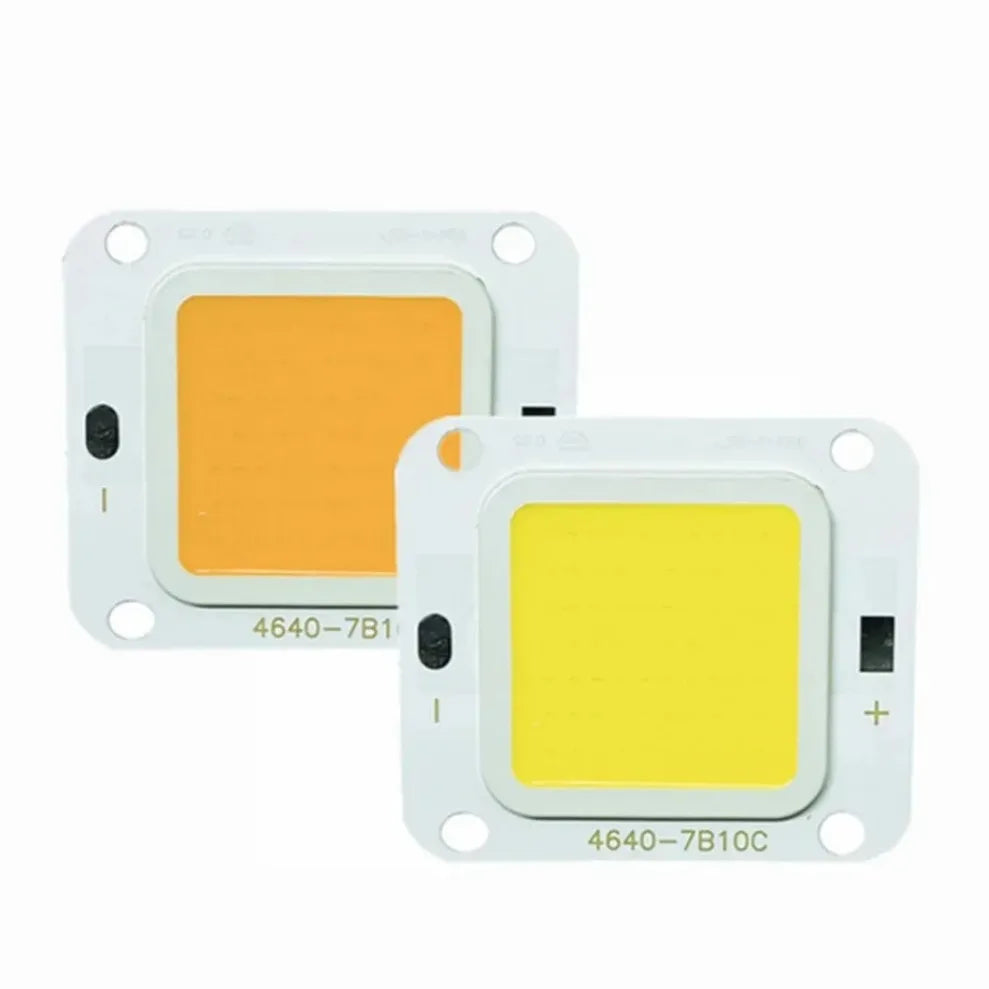

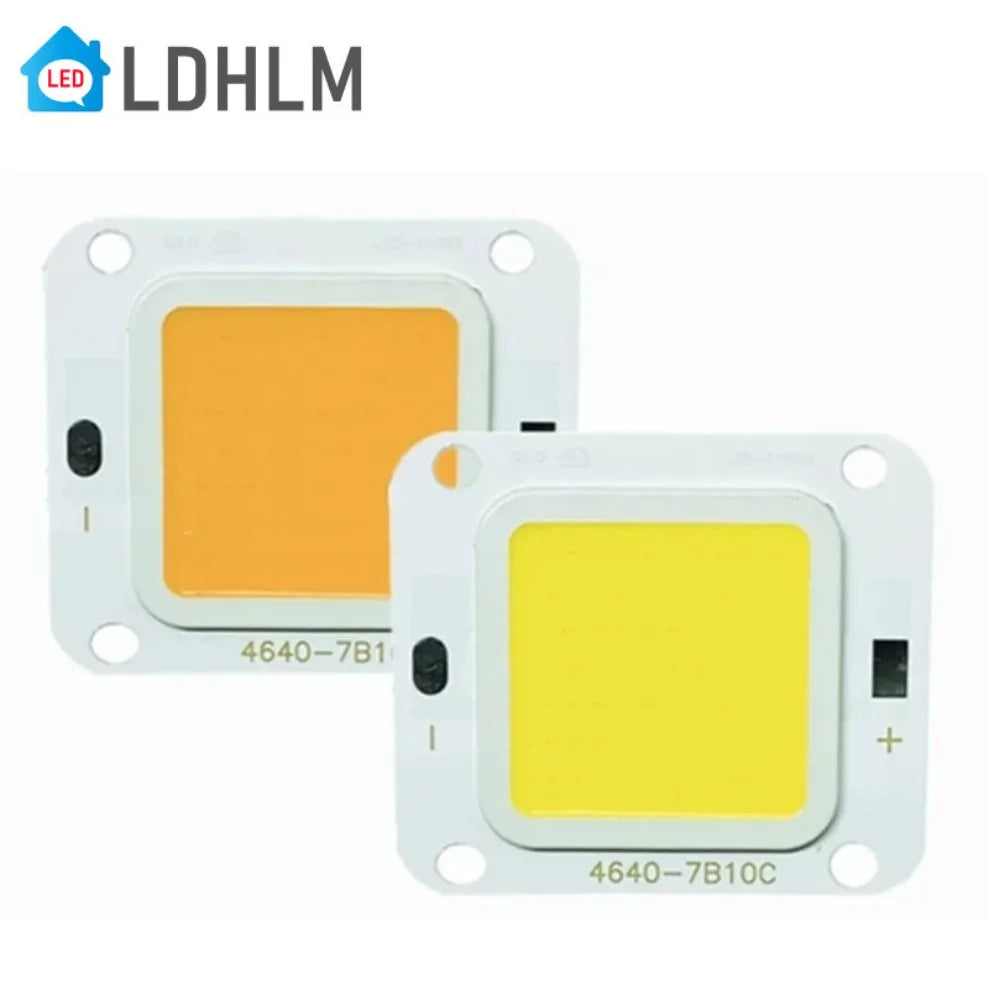

- Color Temperature: Warm White (3000–3200K) | Cool White (6000–6500K)
- Operating Temperature: -20°C to +60°C
- Power Source: AC 220–240V
- Power Tolerance: ±5%
- Average Lifespan: 50,000 hours
- Warranty: 3 Years
- Certifications: CCC, CE, FCC, PSE, RoHS
Key Features
- ✅ Energy-Efficient: Low heat generation reduces electricity consumption significantly
- ✅ Cost-Saving: Lower energy bills and minimal maintenance costs
- ✅ Eco-Friendly: Greatly reduces carbon emissions for a greener footprint
- ✅ Instant Start: No warm-up time, no flickering — full brightness immediately
- ✅ Shockproof Solid-State Design: Durable construction resistant to vibration
- ✅ Versatile Wattages: Choose from 10W to 70W to match your exact project needs
- ✅ Multiple Color Temperatures: Warm or cool white available to suit any atmosphere
Applications
These COB LED chips are widely used across a broad range of lighting applications:
- DIY Spotlights & Floodlights
- Indoor Ceiling Light Fixtures
- Landscape & Garden Lighting
- Traffic & Advertising Lighting
- Special-Purpose & Architectural Lighting
You Might Also Like
- 1-Bay 3.7V Lithium Battery Charger for 18650 & Multi-Size
- 1 to 2/4 Port Gigabit Ethernet Splitter 1000Mbps RJ45 Hub
- 1-to-8 PWM Fan Hub SATA Molex 3-Pin 4-Pin Speed Controller
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What wattages are available for this LED COB chip?
A: The LDHLM LED COB chip is available in six power ratings: 10W, 20W, 40W, 50W, 60W, and 70W. Each wattage has a corresponding forward current (e.g., 300mA for 10W up to 2100mA for 70W), so you can choose the right chip for your specific DIY spotlight, floodlight, or ceiling light project.
Q: What color temperatures are available?
A: These COB LED chips are available in two color temperatures: Warm White (3000–3200K) for a cozy, ambient glow, and Cool White (6000–6500K) for a bright, daylight-style output — perfect for task lighting, outdoor floodlights, or commercial applications.
Q: Are these LED COB chips compatible with standard AC power?
A: Yes. These chips are designed to operate on AC 220–240V power supplies. However, as bare COB lamp beads, they require a compatible LED driver to regulate the forward current — ensure you pair them with the correct driver for your chosen wattage for safe and optimal performance.
Q: What certifications do these LED chips carry?
A: The LDHLM LED COB chips are certified to CCC, CE, FCC, PSE, and RoHS standards, confirming they meet safety and environmental compliance requirements across multiple markets.
