LED COB Chip 3W–12W AC 220V Smart IC No Driver – IP65 DIY
LED COB Chip 3W–12W AC 220V Smart IC No Driver – IP65 DIY
LED COB Lamp Bead – Smart IC, No Driver Required

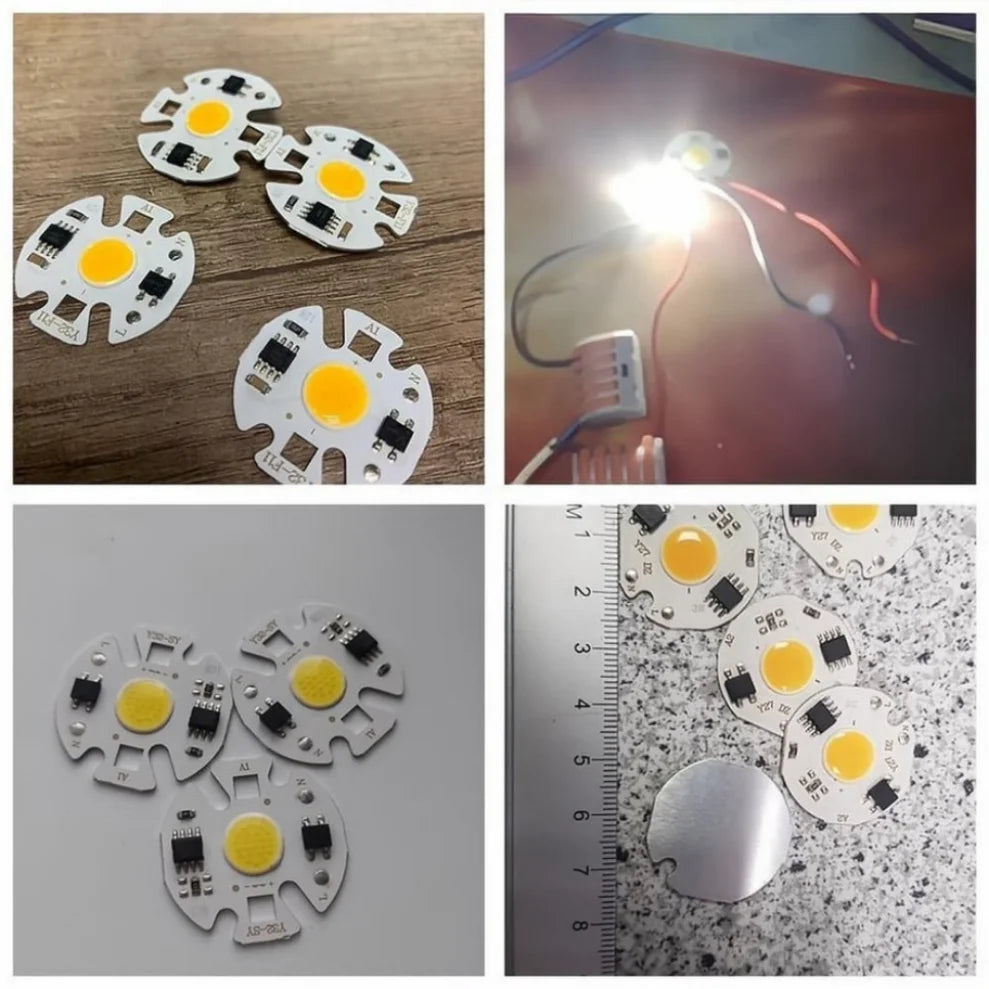

Upgrade your DIY lighting projects with this high-efficiency LED COB Chip (Model Y32), engineered for direct AC 220V–240V operation. Thanks to the integrated Smart IC driver, there's no external power supply or transformer needed — simply wire it in and go. Available in multiple wattages (3W, 5W, 7W, 9W, 10W, 12W), this compact aluminum-backed chip is ideal for flood lights, spotlights, downlights, and a wide range of outdoor and indoor DIY applications.
Key Features
- Wattage Options: 3W / 5W / 7W / 9W / 10W / 12W — choose the output that suits your project
- Smart IC Integrated: Built-in Smart IC driver eliminates the need for a separate LED driver or transformer
- Wide Voltage Compatibility: Works directly on AC 110V–240V mains power
- IP65 Rated: Dust-tight and water-resistant, suitable for outdoor and workshop environments

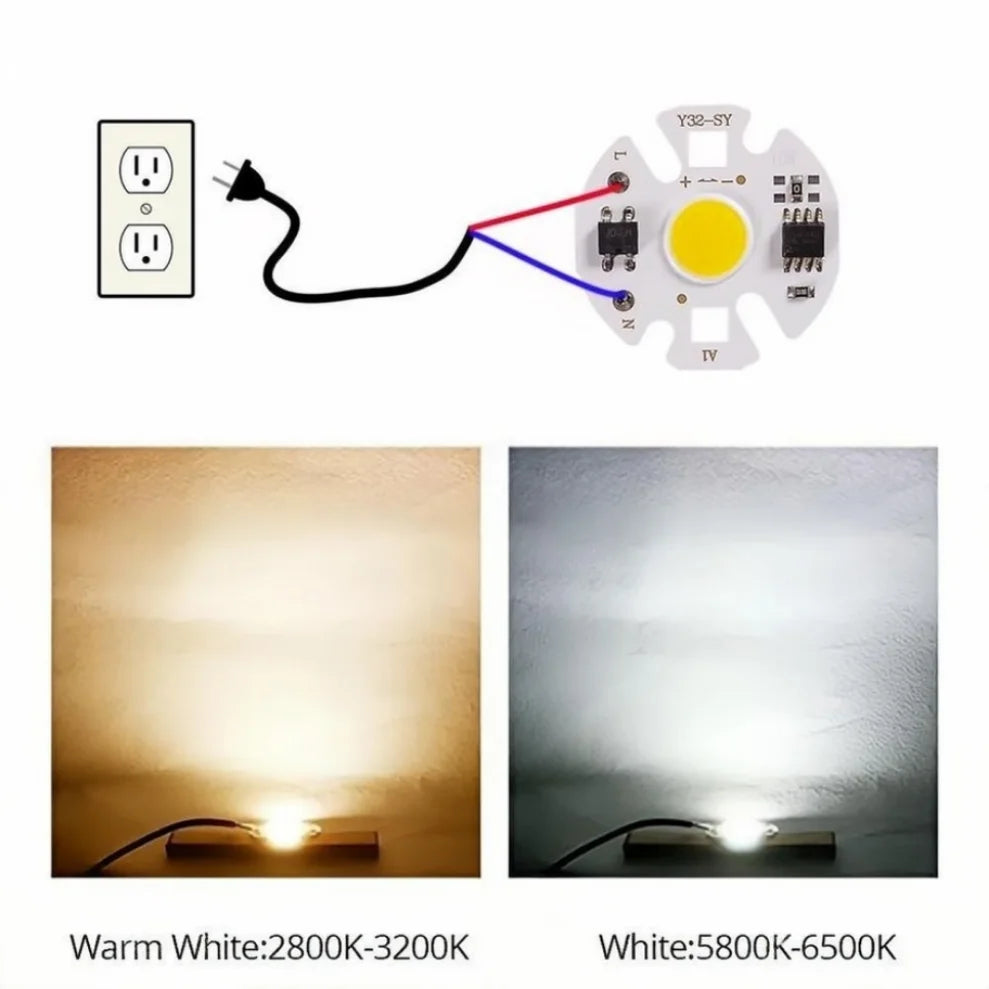

- Color Temperature Choices: Cool White (6000–6500K) or Warm White (2800–3200K)
- High Color Rendering: CRI Ra85 for true, vivid color representation
- Wide Beam Angle: 170° for broad, even light distribution
- Long Lifespan: Rated for 30,000 hours of continuous use
- Aluminum Construction: Efficient heat dissipation for stable, long-term performance

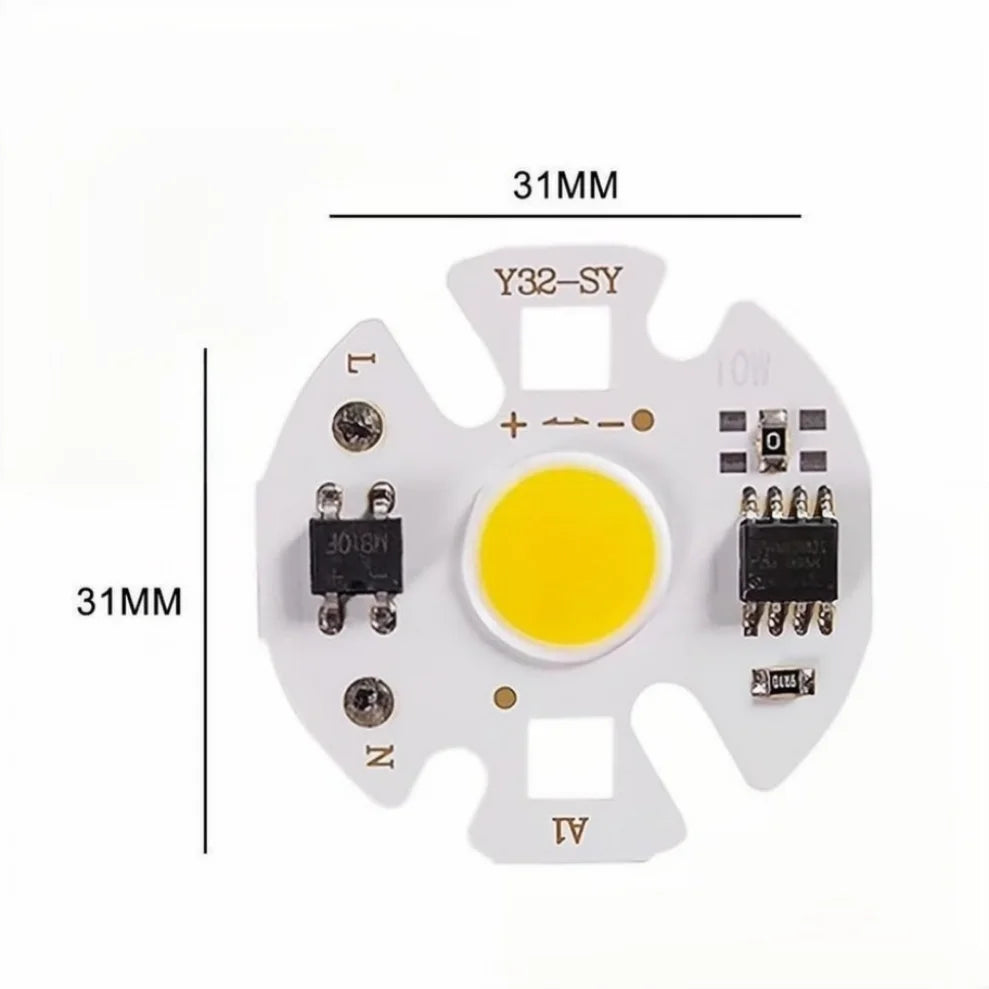

- Compact Size: 31mm × 31mm × 0.8mm — fits neatly into custom housings and fixtures
- CE Certified: Meets European safety and electromagnetic standards
Specifications
| Model | Y32 |
|---|---|
| Power | 3W / 5W / 7W / 9W / 10W / 12W |
| Input Voltage | AC 110V / 220V–240V (no driver needed) |
| Color Temperature | Cool White 6000–6500K | Warm White 2800–3200K |
| Chip Type | COB with Integrated Smart IC Driver |
| Material | Aluminum |
| CRI | Ra85 |
| Beam Angle | 170° |
| Lifespan | 30,000 hours |
| Size | 31mm × 31mm × 0.8mm |
| IP Rating | IP65 |
| Certification | CE |
Made in Mainland China.
Perfect For DIY Lighting Projects
Whether you're building a custom flood light, retrofitting a spotlight, or designing an outdoor feature light, the Y32 COB chip gives you professional-grade brightness with the simplicity of a direct-mains connection. The wide 170° beam angle ensures uniform illumination across large areas — making it ideal for garages, gardens, workshops, display lighting, and more.
Related Products You May Like
- 1-Bay 3.7V Lithium Battery Charger for 18650 & Multi-Size
- 1-to-8 PWM Fan Hub SATA Molex 3-Pin 4-Pin Speed Controller
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Do I need a separate LED driver or transformer to use this COB chip?
A: No — the Y32 LED COB chip features a built-in Smart IC driver that allows it to operate directly from AC 110V or AC 220V–240V mains power. No external driver, ballast, or lighting transformer is required, making it ideal for straightforward DIY flood light and spotlight builds.
Q: Is this LED COB chip suitable for outdoor use?
A: Yes. The chip carries an IP65 rating, meaning it is fully protected against dust ingress and resistant to low-pressure water jets. This makes it well suited for outdoor flood lights, garden spotlights, and workshop installations.
Q: What color temperature options are available?
A: The Y32 COB chip is available in Cool White (6000–6500K), which produces a bright daylight-style output, and Warm White (2800–3200K), which gives a softer, more ambient glow. Select the option that best suits your lighting application at checkout.
Q: What wattage should I choose for my project?
A: This chip is available in 3W, 5W, 7W, 9W, 10W, and 12W variants. For accent or decorative lighting, lower wattages (3W–5W) work well. For task lighting, workshops, or outdoor flood applications requiring higher brightness, 9W–12W options are recommended.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
