LED Driver — Constant Current Power Supply for LED Floodlights
Power your LED floodlights, chips, strips, and displays with confidence. This waterproof constant-current LED driver converts standard AC mains voltage (100–265V) to a stable 20–38V DC output, delivering precise, steady current for reliable lighting performance. Available in four power ratings — 10W, 20W, 30W, and 50W — to match a wide range of LED lighting applications.
Built with a durable aluminum housing and an IP67 waterproof rating, this driver is engineered for both indoor and outdoor installations. CE and RoHS certified for safety and environmental compliance. Made in China.
Key Features
- Universal Input: Accepts AC 100–265V, 50–60Hz — compatible with virtually any mains supply worldwide
- Stable DC Output: Delivers 20–38V DC with constant-current precision (±5%)
- Four Power Options: 10W (300mA), 20W (600mA), 30W (900mA), 50W (1500mA)
- IP67 Waterproof: Fully sealed aluminum case withstands dust and water immersion
- Wide Temperature Range: Operates from −40°C to +70°C; ideal for demanding environments
- Long Lifespan: Rated for 30,000 hours of continuous use
- CE & RoHS Certified: Meets international safety and environmental standards
- Versatile Use: Compatible with LED chips, LED strips, LED displays, floodlights, billboards, and industrial lighting equipment
Specifications
| Power | Input Voltage | Output Voltage | Output Current | Size | IP Rating |
|---|---|---|---|---|---|

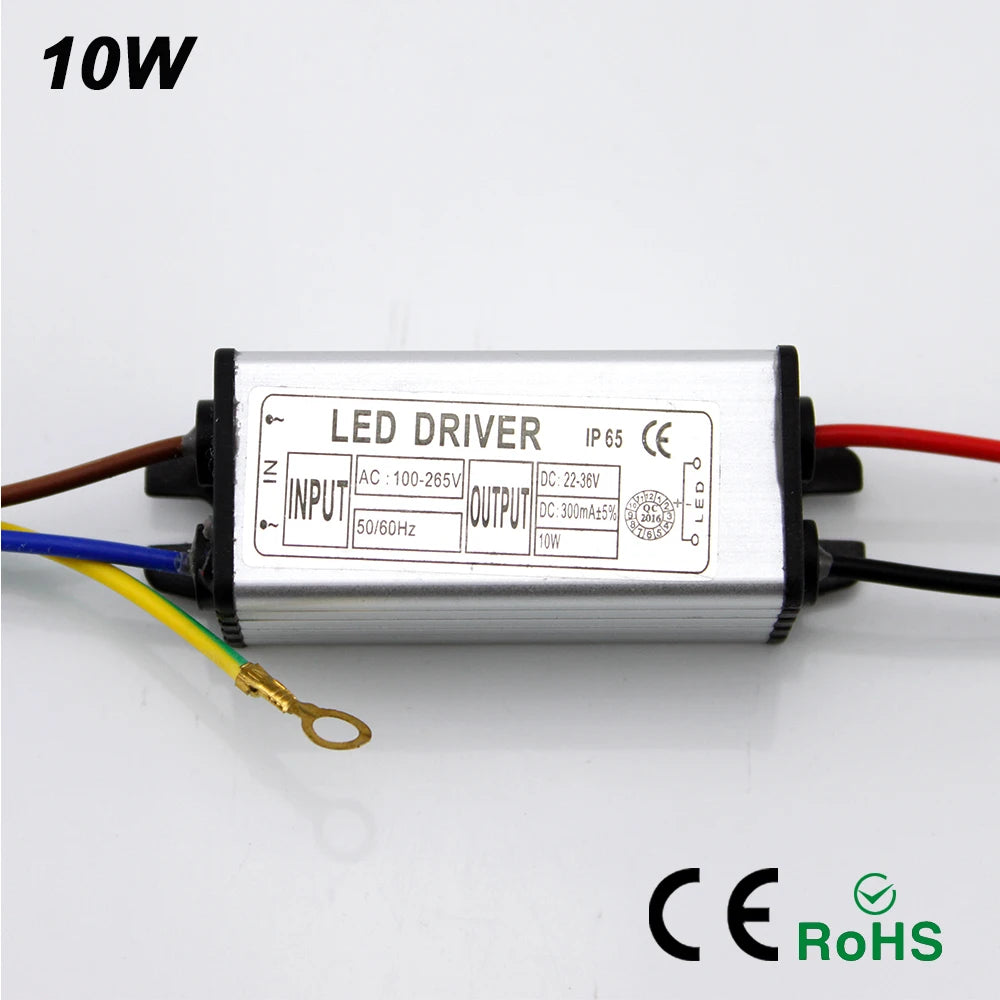

| 10W | AC 100–265V | DC 22–36V | 300mA ±5% | 25mm × 54mm | IP67 |

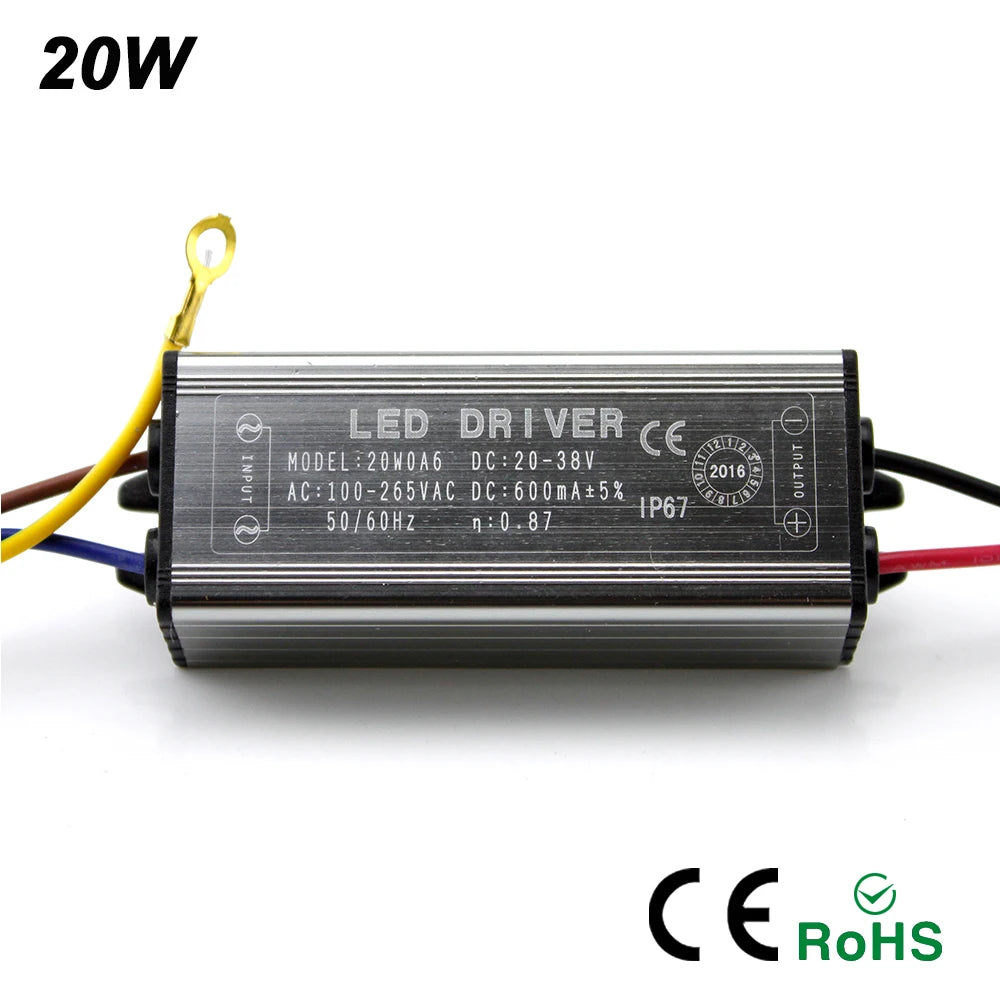

| 20W | AC 100–265V | DC 20–38V | 600mA ±5% | 30mm × 72mm | IP67 |

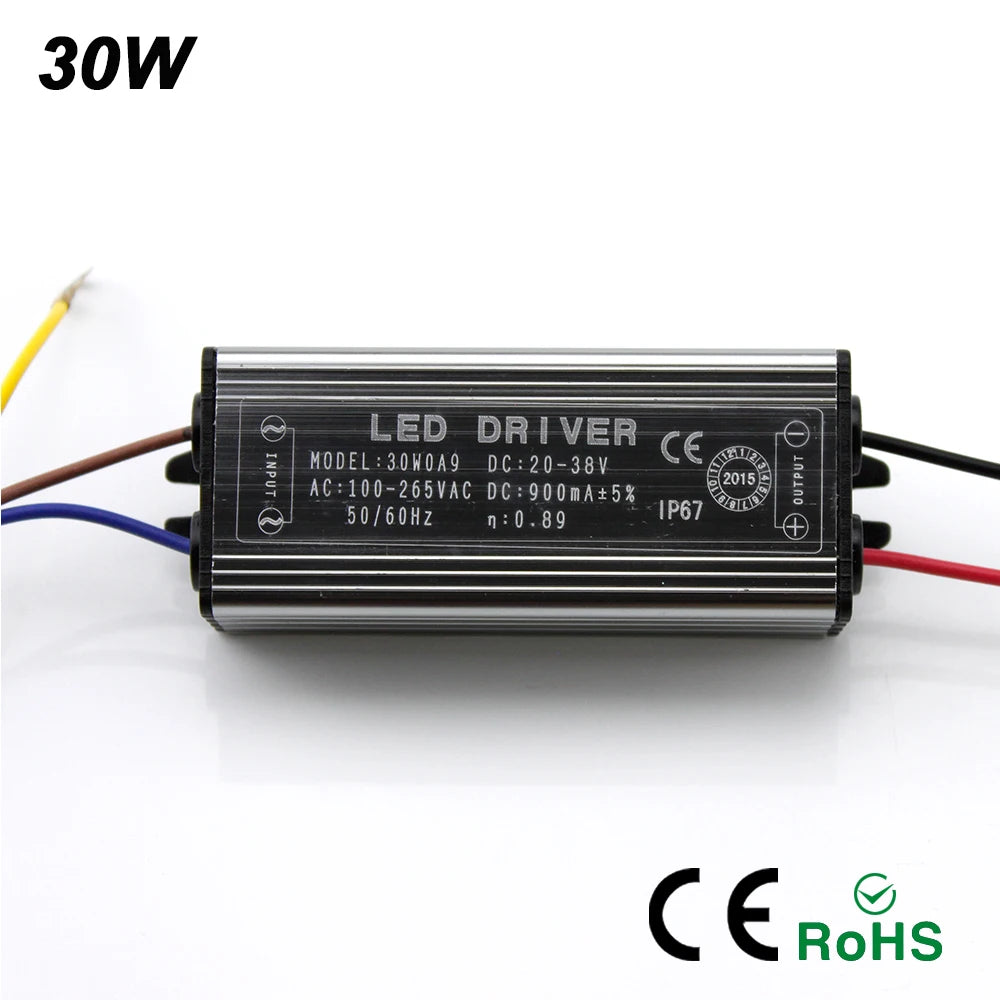

| 30W | AC 100–265V | DC 20–38V | 900mA ±5% | 36mm × 85mm | IP67 |

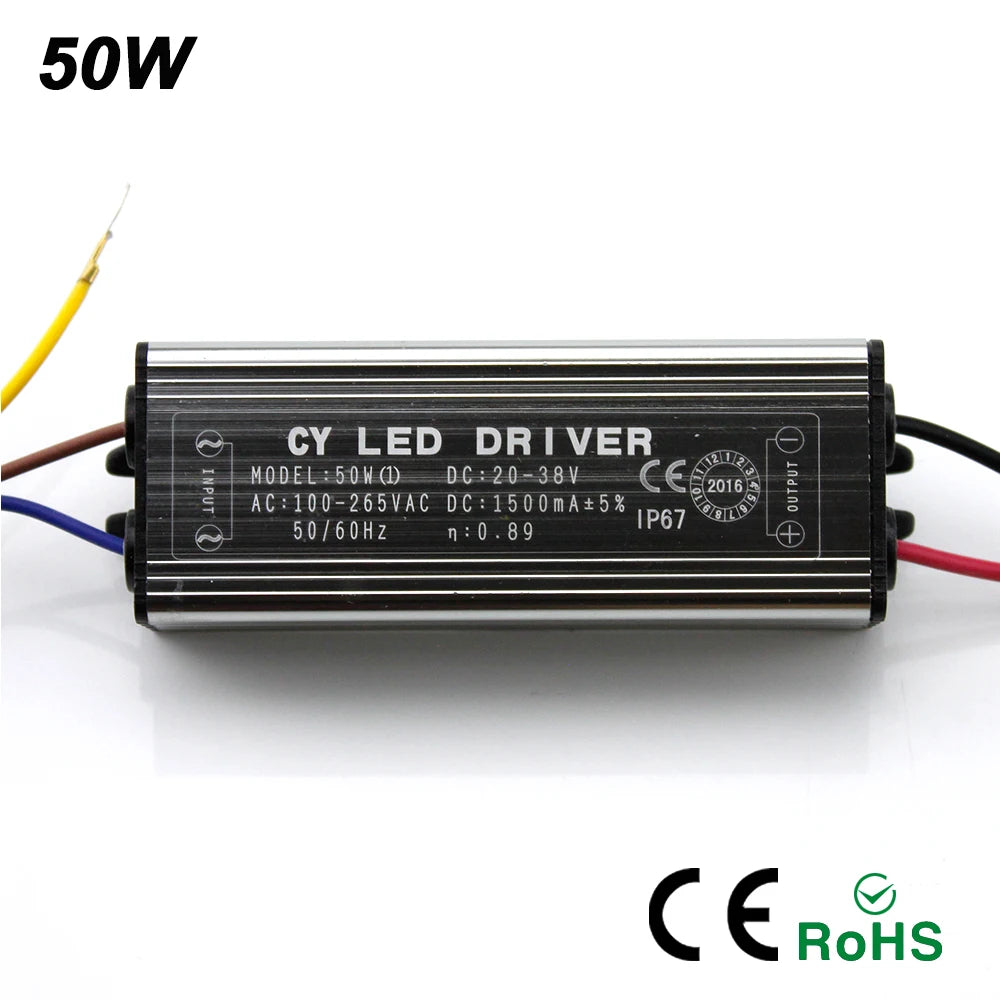

| 50W | AC 100–265V | DC 20–38V | 1500mA ±5% | 36mm × 95mm | IP67 |
- Material: Aluminum alloy housing
- Body Color: Silver
- Frequency: 50–60Hz
- Operating Temperature: −40°C to +70°C
- Lifespan: 30,000 hours
- Certifications: CE, RoHS
- Warranty: 1 Year
Compatible With
This LED driver is suitable for use with a broad range of LED lighting products including LED chips, LED strip lights, LED display panels, outdoor floodlights, billboard lighting, and general industrial lighting equipment.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What LED applications is this constant-current LED driver compatible with?
A: This LED driver is designed for use with LED chips, LED strips, LED display panels, outdoor LED floodlights, billboard lighting, and industrial lighting equipment requiring a stable 20–38V DC constant-current power supply.
Q: Is this LED driver waterproof and suitable for outdoor use?
A: Yes. The LED driver carries an IP67 waterproof rating, meaning it is fully protected against dust ingress and can withstand temporary water immersion. Its aluminum housing and wide operating temperature range (−40°C to +70°C) make it well suited for outdoor and demanding environments.
Q: Which power rating should I choose for my LED floodlight?
A: Match the driver's wattage to your LED load: 10W (300mA) for 10W LEDs, 20W (600mA) for 20W LEDs, 30W (900mA) for 30W LEDs, and 50W (1500mA) for 50W LEDs. Always select a driver rated at or slightly above your LED's wattage requirement for optimal, stable performance.
Q: What input voltage does this LED driver accept?
A: The driver accepts a universal AC input of 100–265V at 50–60Hz, making it compatible with mains electricity supplies in most countries worldwide.
