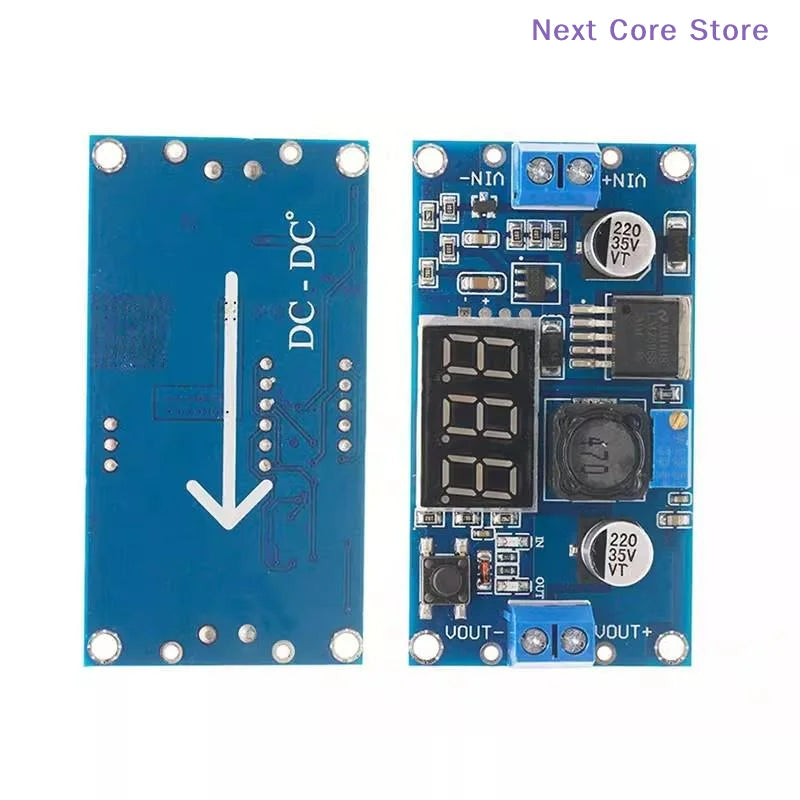

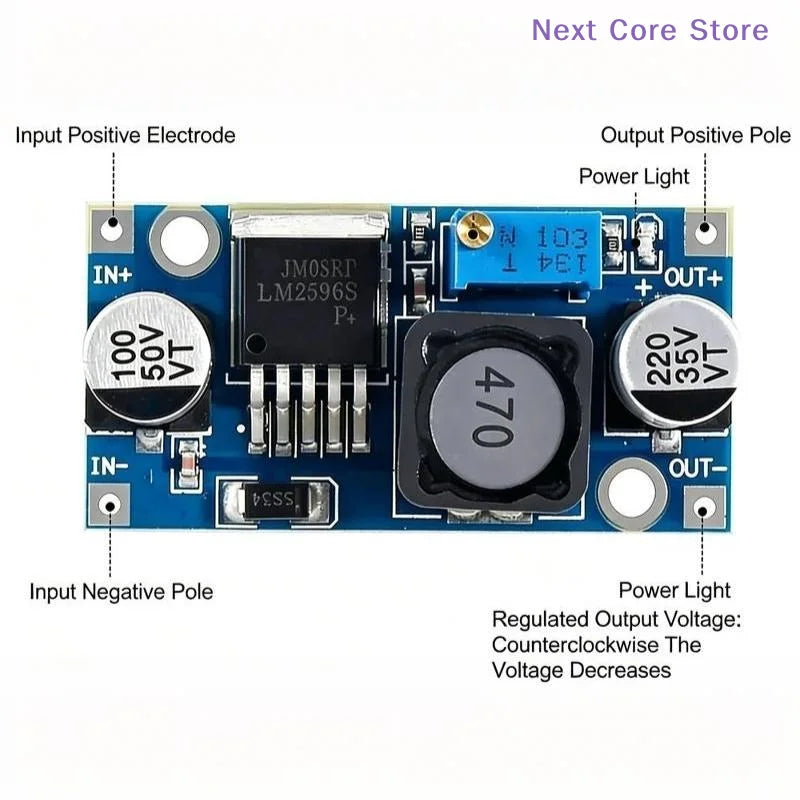

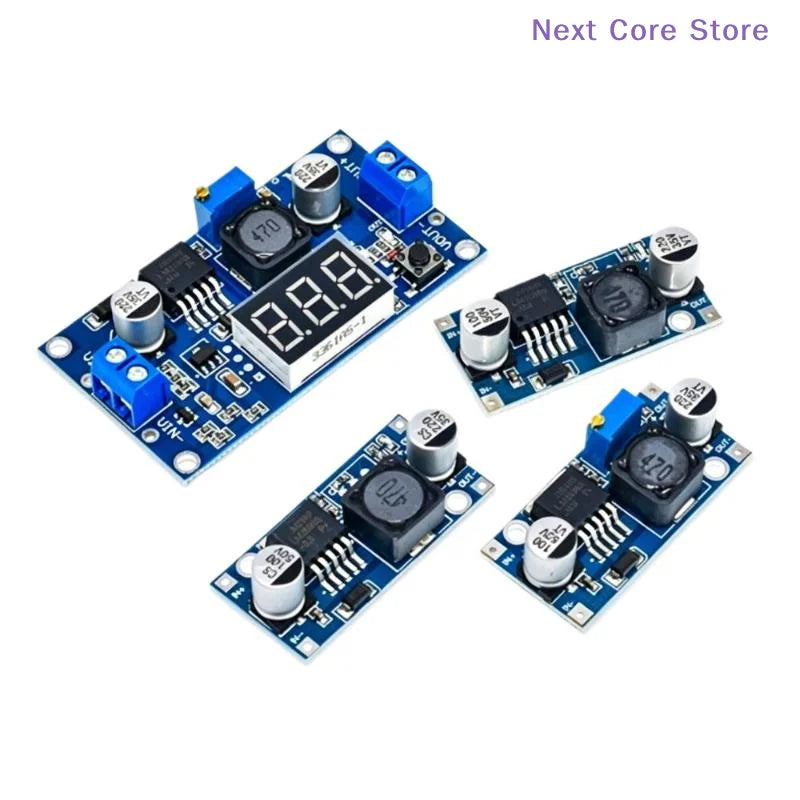

LM2596 DC-DC Step-Down Power Module with LED Voltmeter Display

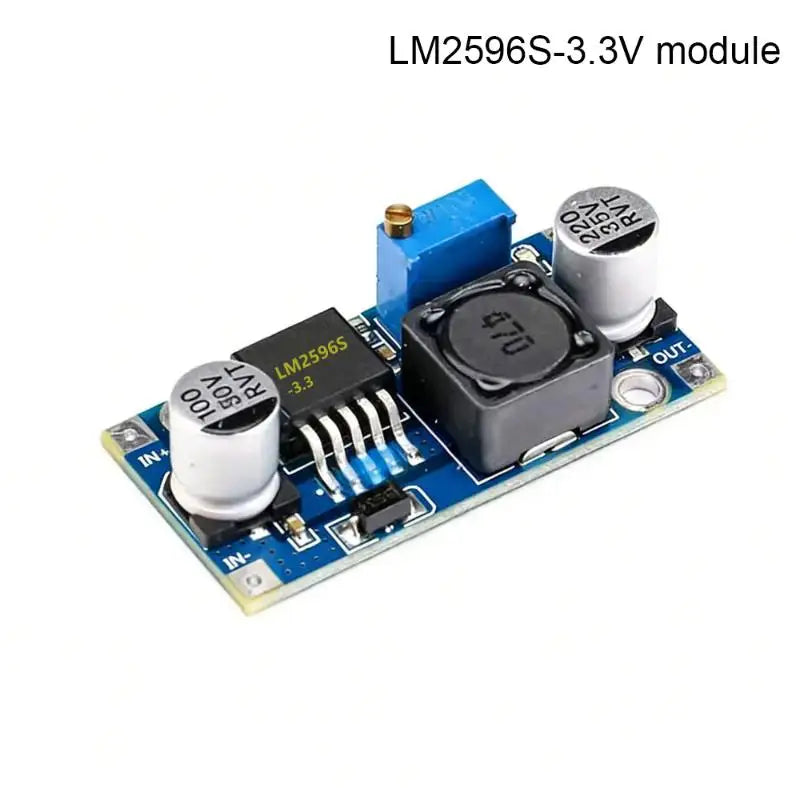

The LM2596 DC-DC Adjustable Step-Down Power Supply Module is a compact, high-efficiency buck converter designed for electronics enthusiasts, makers, and engineers. Whether you're powering DIY circuits, modifying equipment, or running experiments, this versatile module delivers stable, continuously adjustable output voltage from a wide range of DC input sources — including 24V down to 12V, 5V, or 3.3V.

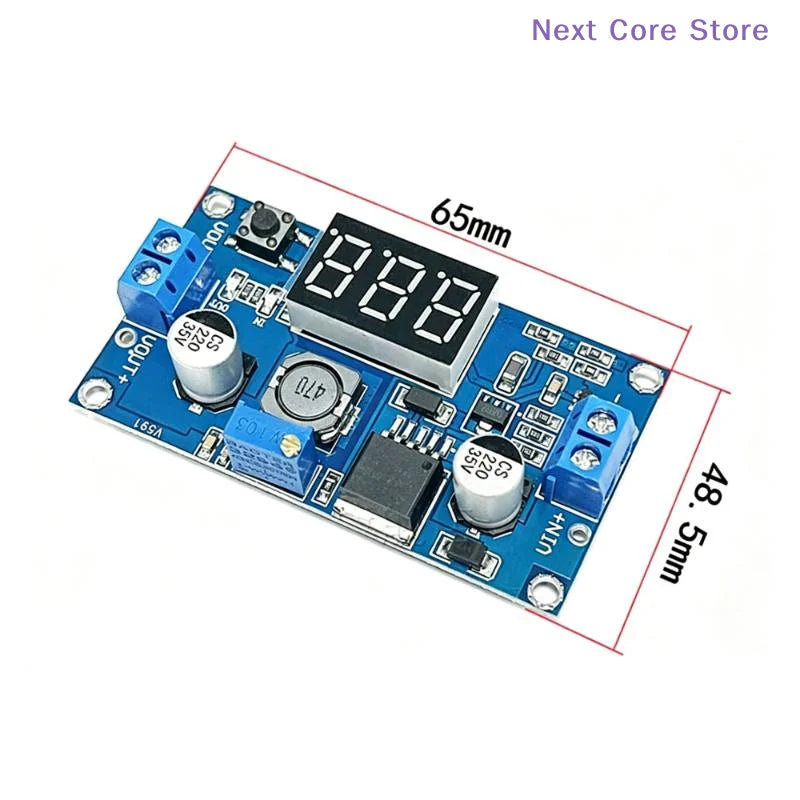

Available with an optional built-in LED digital voltmeter display, you can monitor your output voltage in real time for precise parameter adjustment and faster prototyping.

Made in Mainland China.

Key Features

• Wide Input Voltage Range: Accepts a broad range of DC power sources — ideal for versatile bench or field applications.
• Continuously Adjustable Output: Dial in exactly the voltage your circuit needs, from standard rails like 3.3V, 5V, and 12V and beyond.
• High-Efficiency Conversion: Low heat generation and stable output protect downstream components from voltage fluctuations.
• Optional Digital Voltmeter Display: Real-time LED voltage readout makes tuning and monitoring quick and effortless.
• Built-In Protections: Overcurrent, overheat, and short-circuit protection safeguards your module and connected circuits.
• Breadboard-Compatible PCB: Compact design slots easily into maker circuits, breadboards, and custom enclosures.
• Ideal for DIY & Education: Perfect for electronic teaching experiments, equipment modification, and low-voltage device power supply projects.

Specifications

What's in the Box

• 1 × LM2596 DC-DC Step-Down Power Module (with or without LED voltmeter, per selection)

Please Note: Product images are for reference only and may not reflect actual size or colour. Please allow minor measurement differences due to manual measuring.

Explore More Tools & Electronics

• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the LM2596 step-down power module used for?

A: The LM2596 DC-DC step-down converter module is used to reduce a higher DC input voltage to a lower, adjustable DC output voltage. It is widely used in DIY electronics, circuit prototyping, equipment modification, educational experiments, and anywhere a stable lower voltage is needed from a higher-voltage DC source (e.g. converting 24V to 12V, 5V, or 3.3V).

Q: What does the LED voltmeter version do differently?

A: The LED digital voltmeter version features a built-in display that shows your output voltage in real time, allowing you to monitor and fine-tune the output without needing a separate multimeter. This is especially useful during development, testing, and classroom experiments.

Q: Is this module compatible with breadboards?

A: Yes. The compact PCB design is breadboard-compatible, making it easy to integrate into maker circuits, hobbyist projects, and educational setups without additional hardware.

Q: Does the module include overcurrent or short-circuit protection?

A: Yes. The LM2596 module features built-in overcurrent, overheat, and short-circuit protection to help safeguard both the module itself and any downstream components connected to it.
