Log Periodic UWB WiFi Antenna – 600–6000MHz | 50W PCB

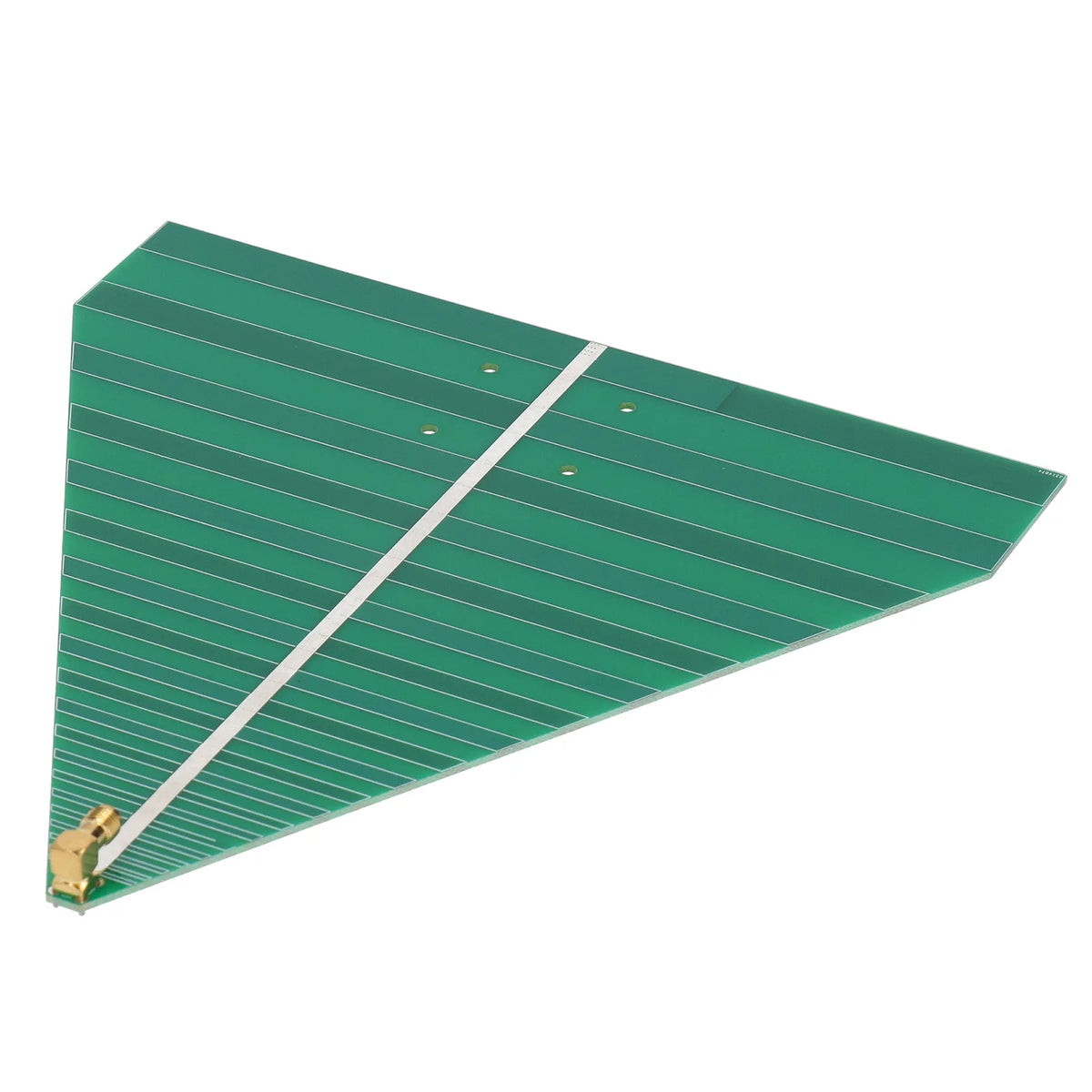

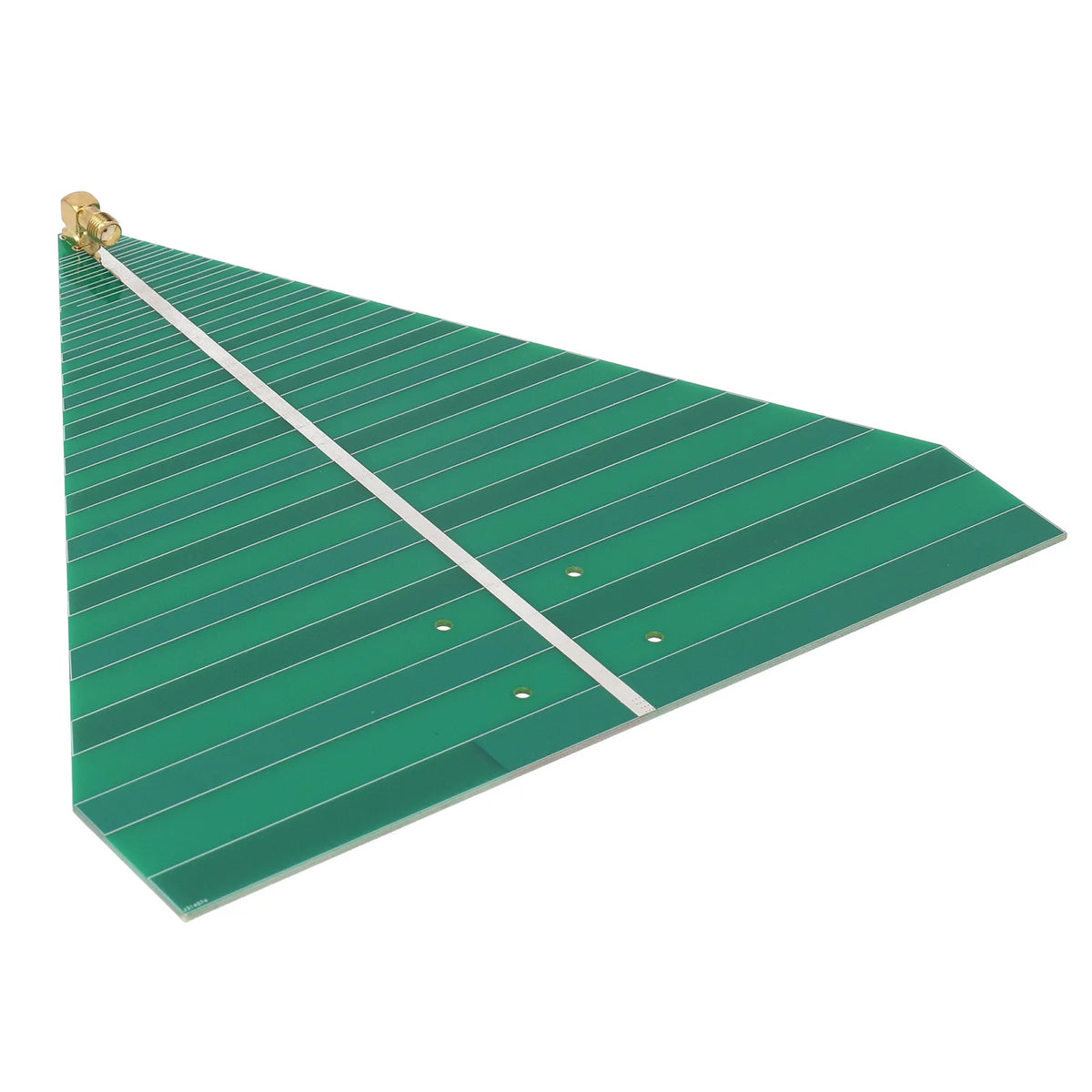

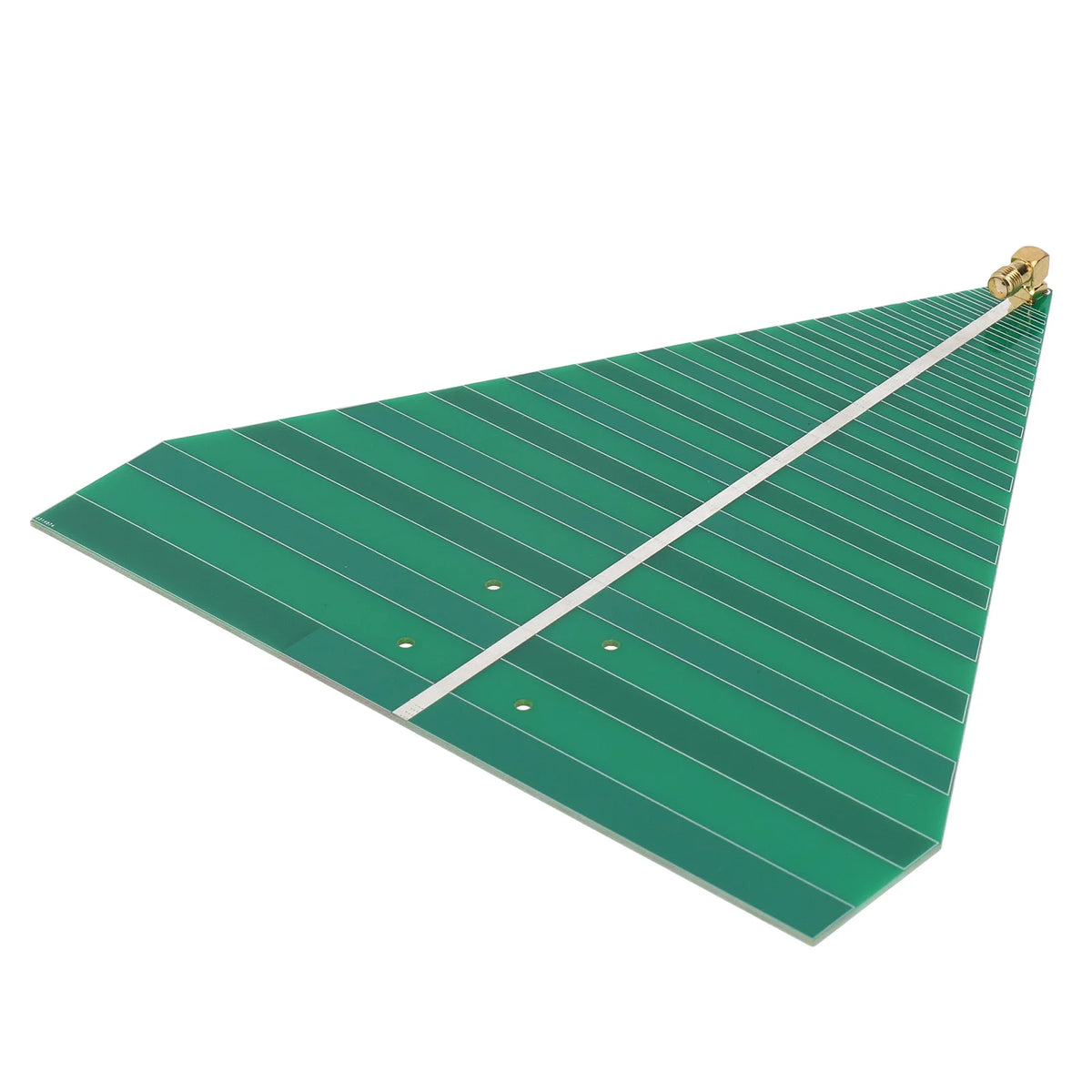

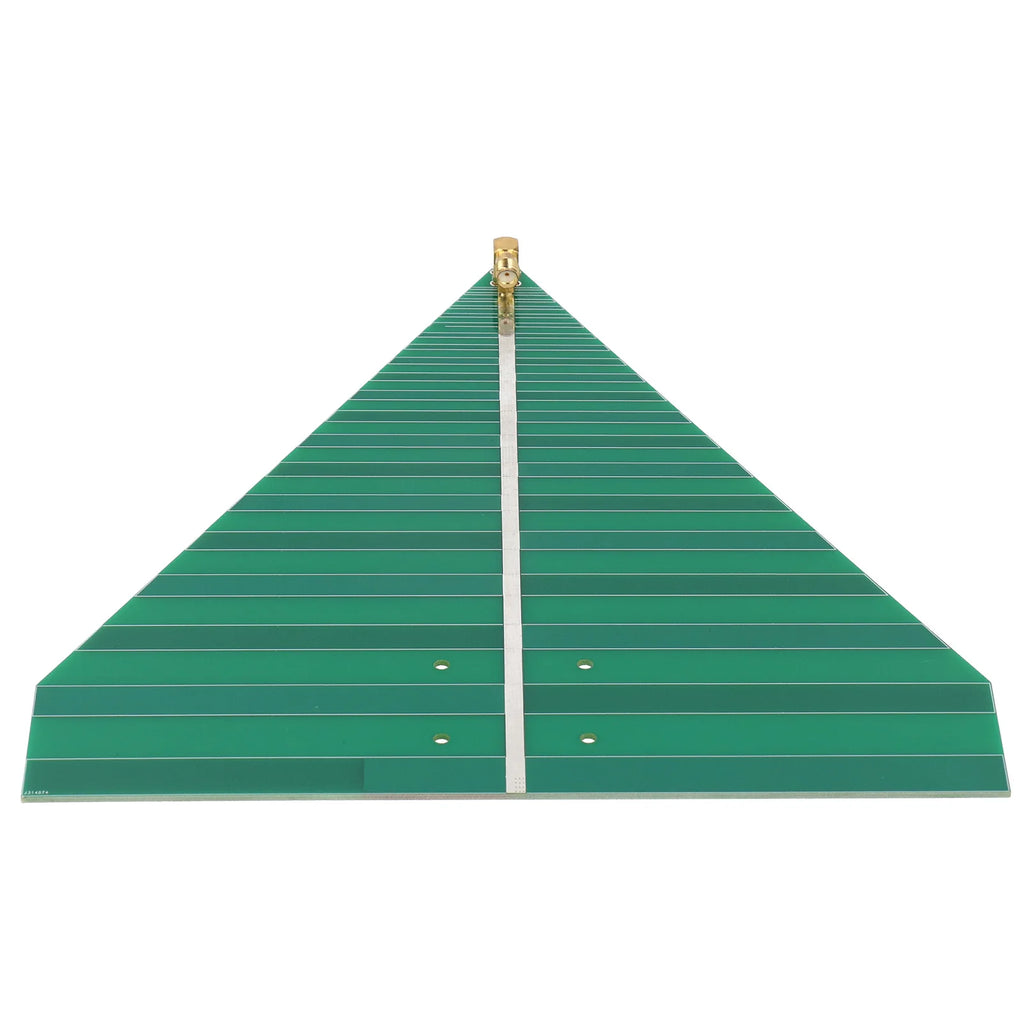

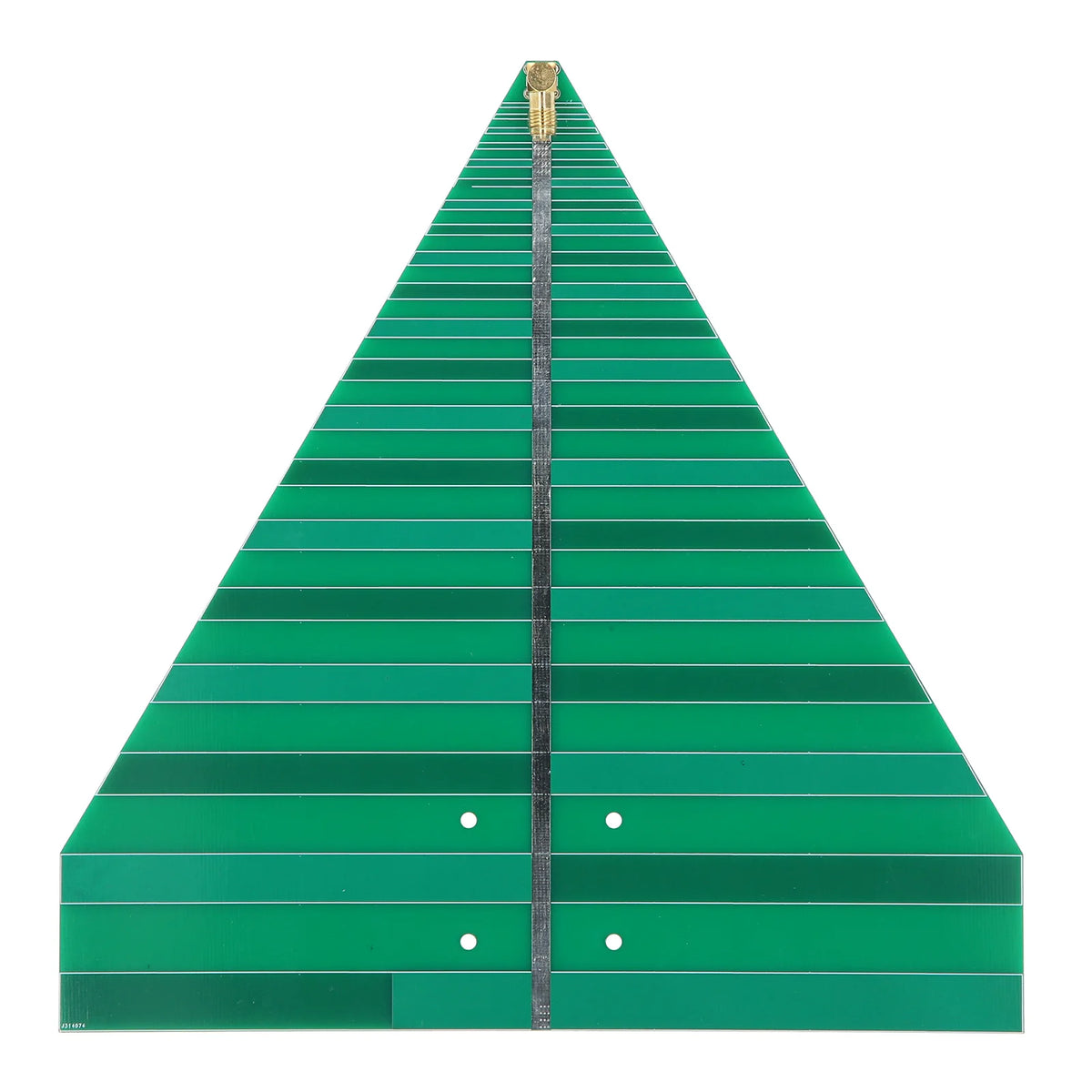

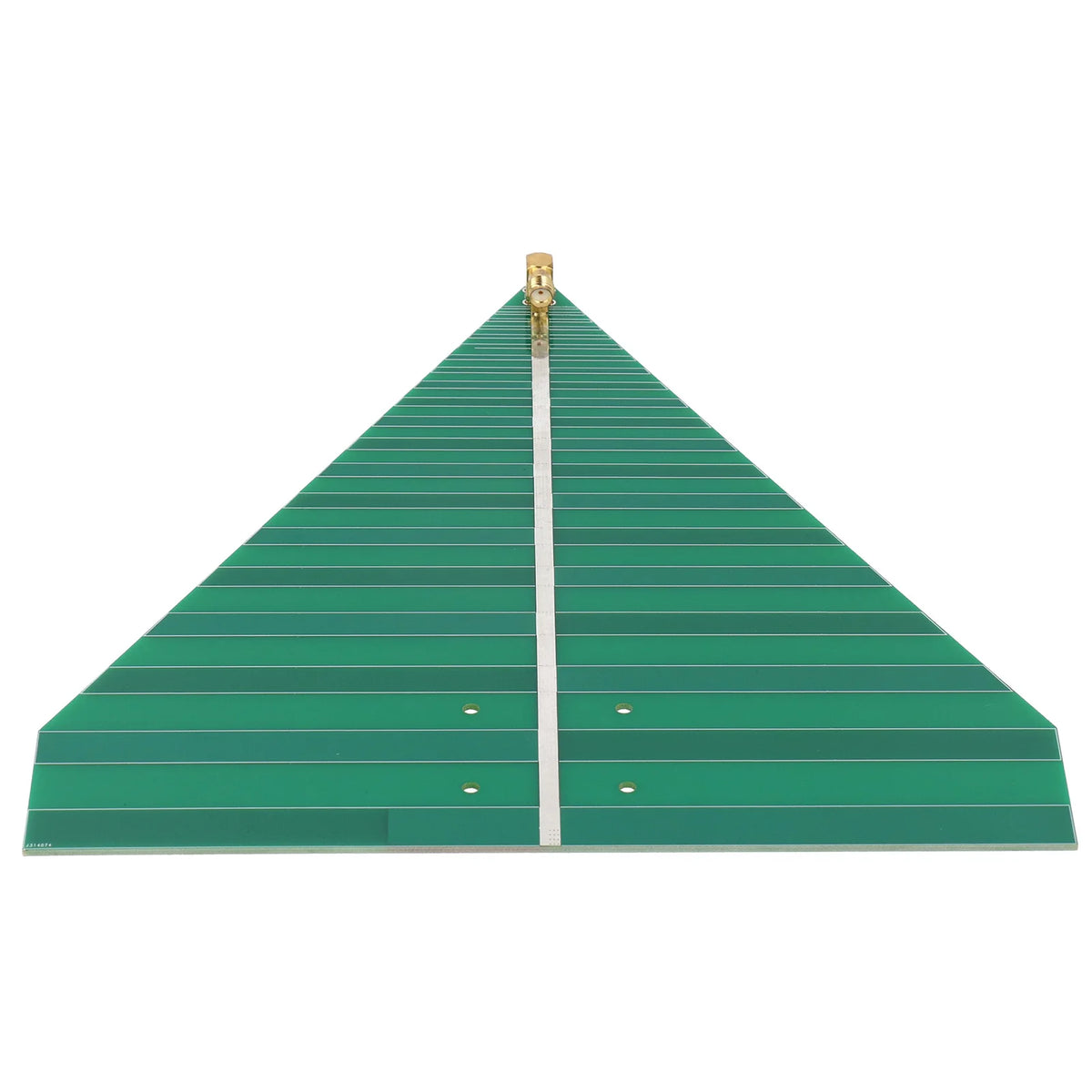

Step up your wireless coverage with this Ultra Wideband (UWB) Log Periodic Antenna, engineered for broad-spectrum performance across 600–6000MHz. Built on a precision printed circuit board (PCB) with directional linear polarization and a gain of 6–7dB, this antenna is the go-to choice for engineers, hobbyists, and tech enthusiasts who demand stable, high-power signal performance across a wide frequency range.
Key Features
- Ultra Wideband Coverage: Operates across 600–6000MHz, covering WiFi, LTE, 5G sub-6GHz, and more — making it incredibly versatile for a wide range of applications.

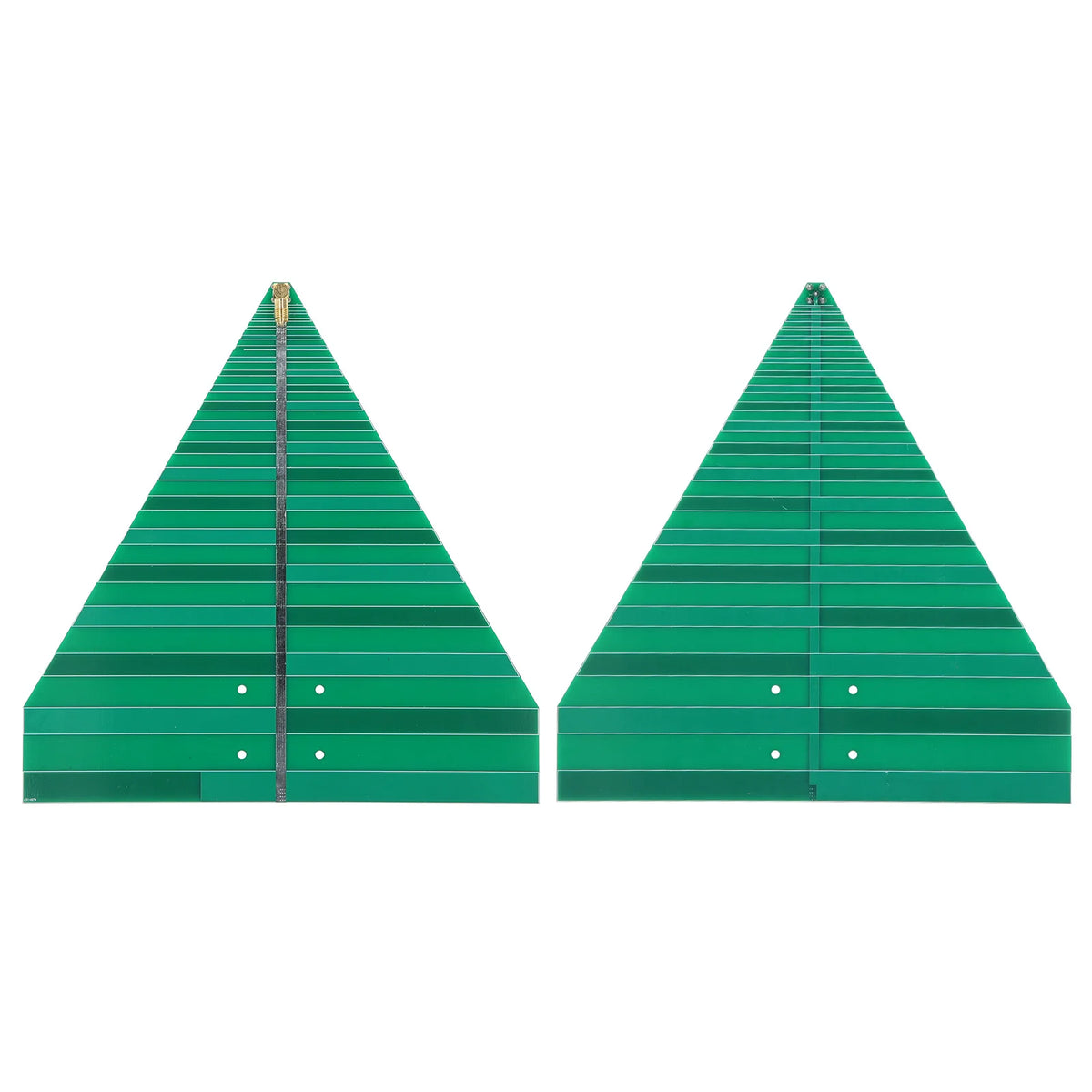

- Premium PCB Construction: Built on a 1.6mm thick double-sided board with 2.0 oz copper thickness for superior signal integrity and durability.
- Full Tinning Process: Ensures excellent conductivity for both large and small current loads, minimizing signal loss.
- Efficient Heat Dissipation: Large-area heat dissipation design allows for extended continuous operation without performance degradation.
- 50W Power Capacity: Handles up to 50 watts, making it suitable for demanding high-power setups.
- Directional Linear Polarization: Focused signal directionality for targeted, efficient transmission and reception.
- Low Standing Wave Ratio (SWR): Antenna standing wave ratio of less than 2 (typical), ensuring efficient power transfer.
Specifications
| Item Type | Log Periodic Antenna |
| Material | Printed Circuit Board (PCB) |
| Frequency Range | 600–6000MHz |
| Antenna SWR | <2 (typical) |
| Polarization | Directional Linear |
| Antenna Gain | 6–7dB |
| Power Capacity | 50W |
| Voltage | 24V |
| Battery Included | No |
What's in the Box
- 1 × Log Periodic UWB Antenna (PCB)
Made in Mainland China.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What frequency range does this log periodic UWB antenna support?
A: This ultra wideband log periodic antenna covers 600–6000MHz, making it compatible with a wide range of wireless technologies including WiFi (2.4GHz & 5GHz), LTE, and 5G sub-6GHz bands.
Q: What is the maximum power capacity of this PCB antenna?
A: The antenna supports up to 50 watts of power capacity, making it suitable for high-power wireless transmission applications.
Q: What connector type is included, and does it come with a battery?
A: No battery is included. Please refer to your specific application requirements for the connector type. Contact us if you need compatibility details before purchasing.
Q: Is this antenna suitable for outdoor or indoor use?
A: This PCB-based log periodic antenna is designed primarily for technical and engineering applications. Its durable construction and efficient heat dissipation make it reliable for extended use in various setups — confirm your environment's specific requirements before mounting.
