Log Periodic UWB WiFi Antenna – 600–6000MHz | 50W PCB

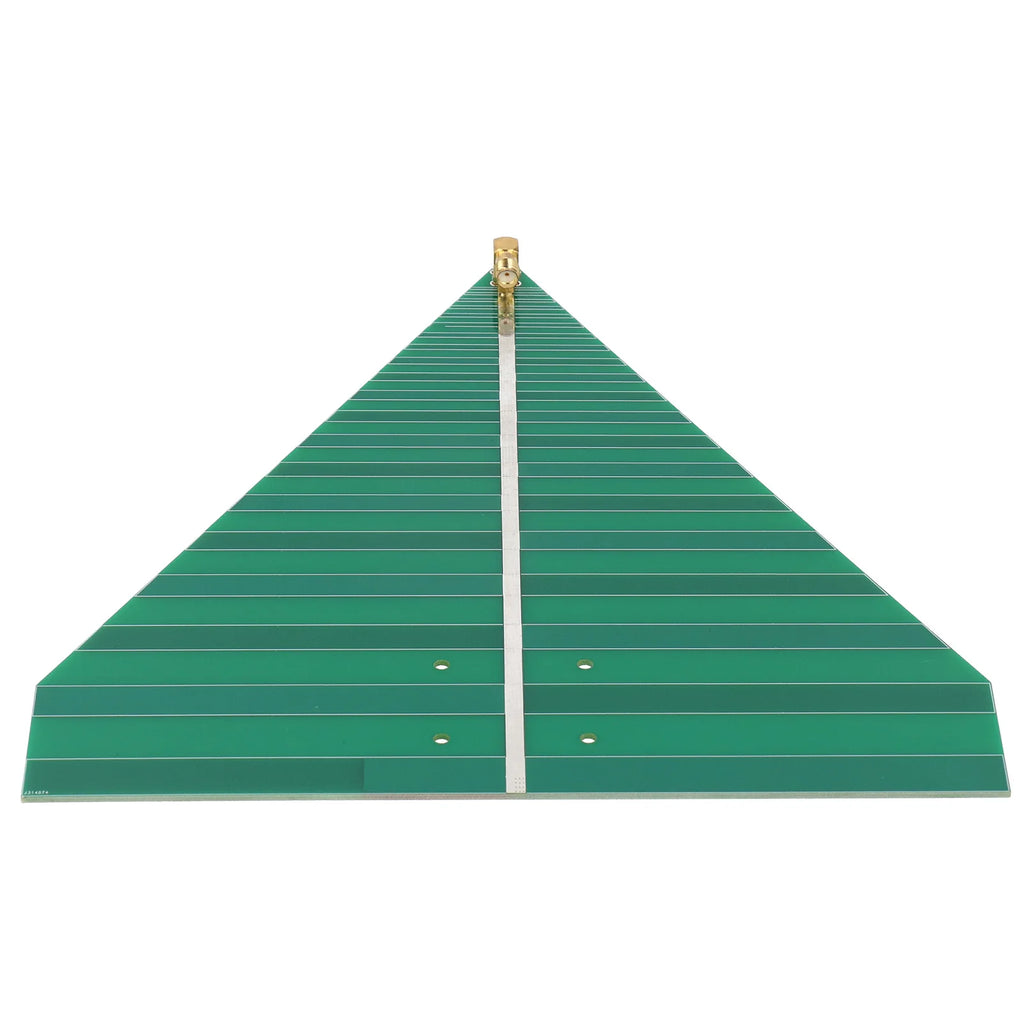

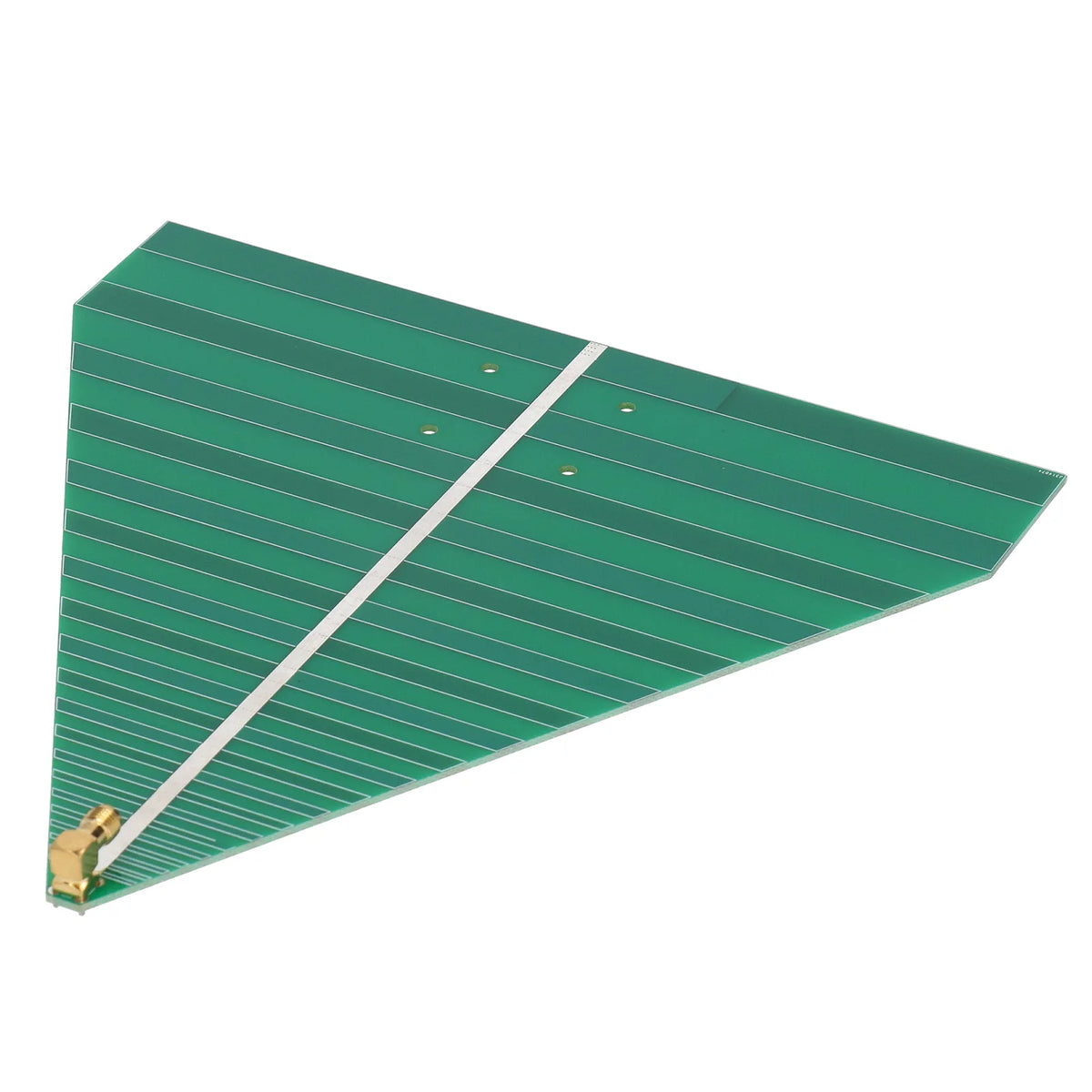

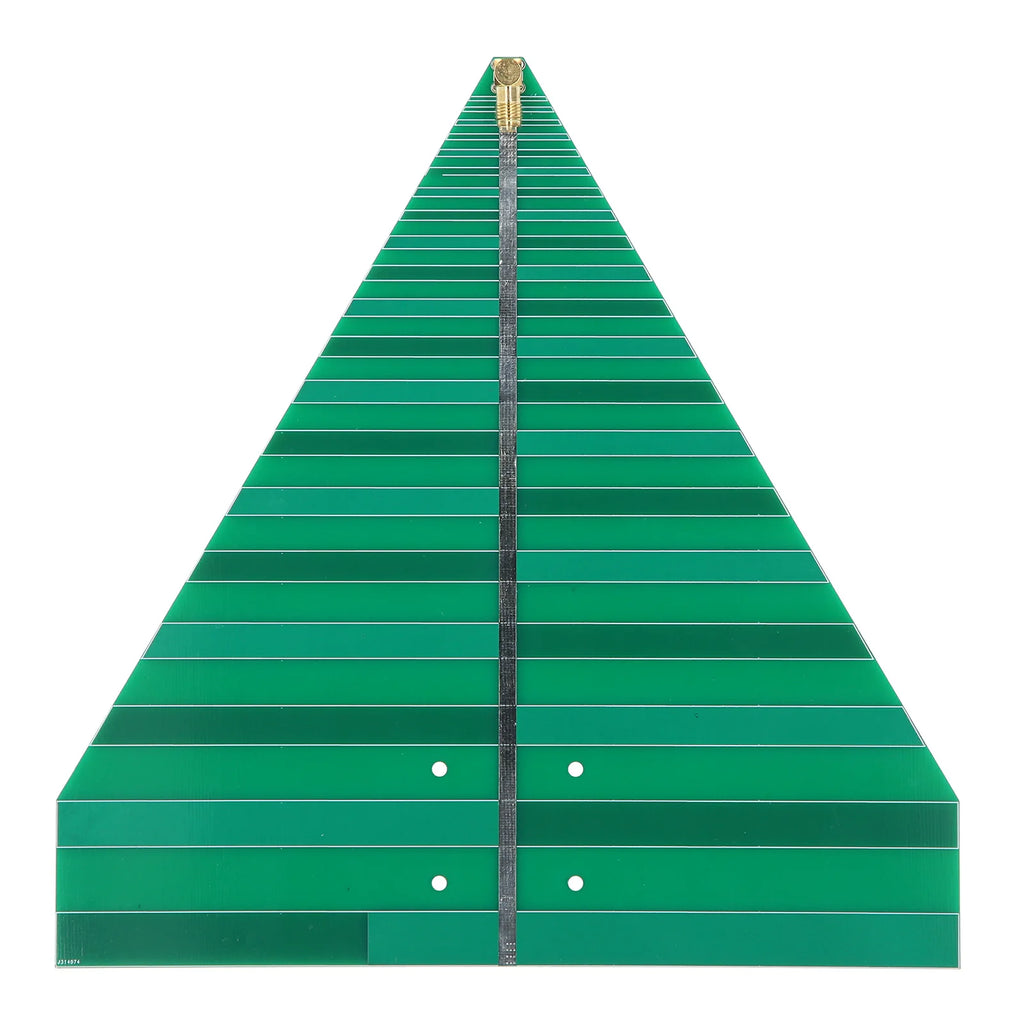

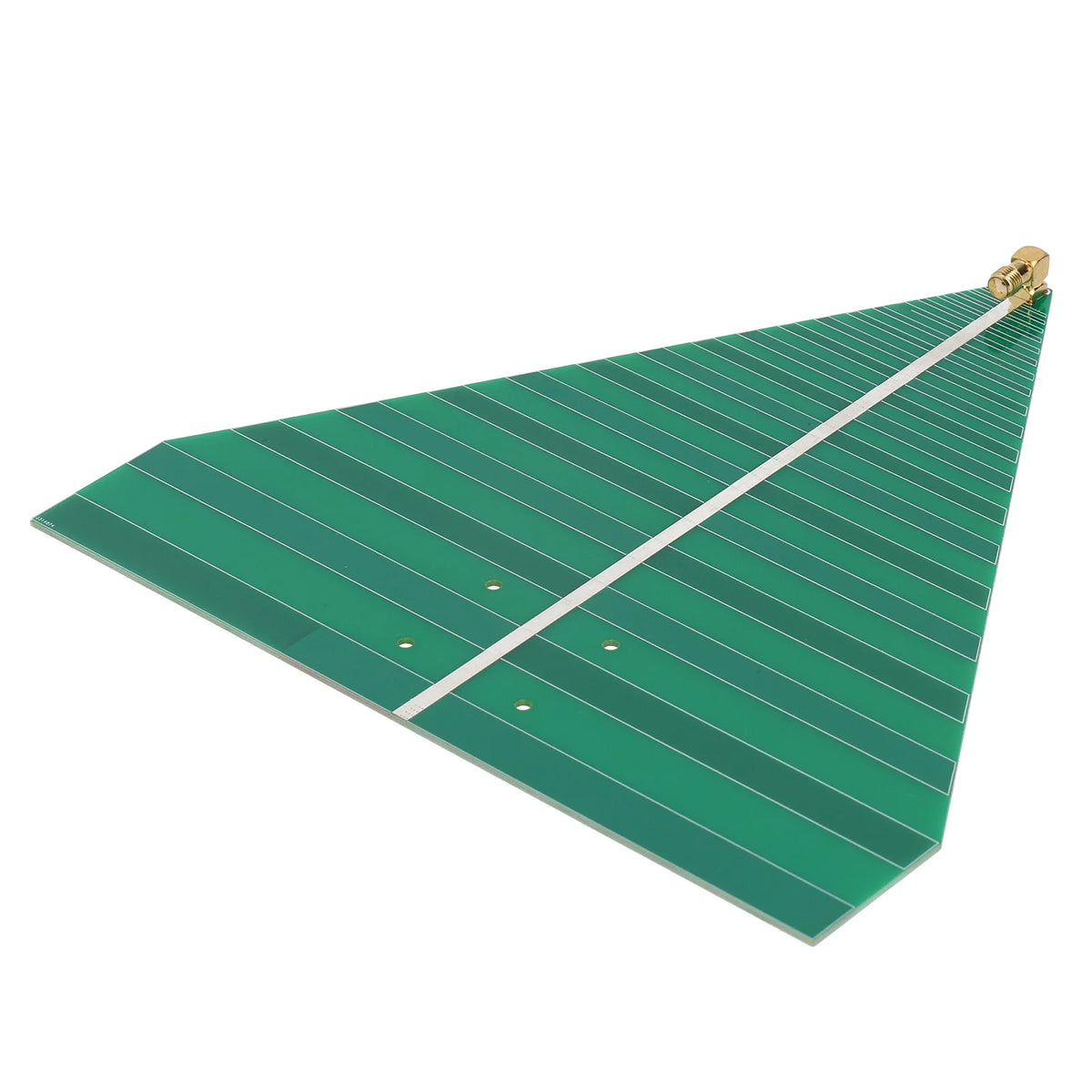

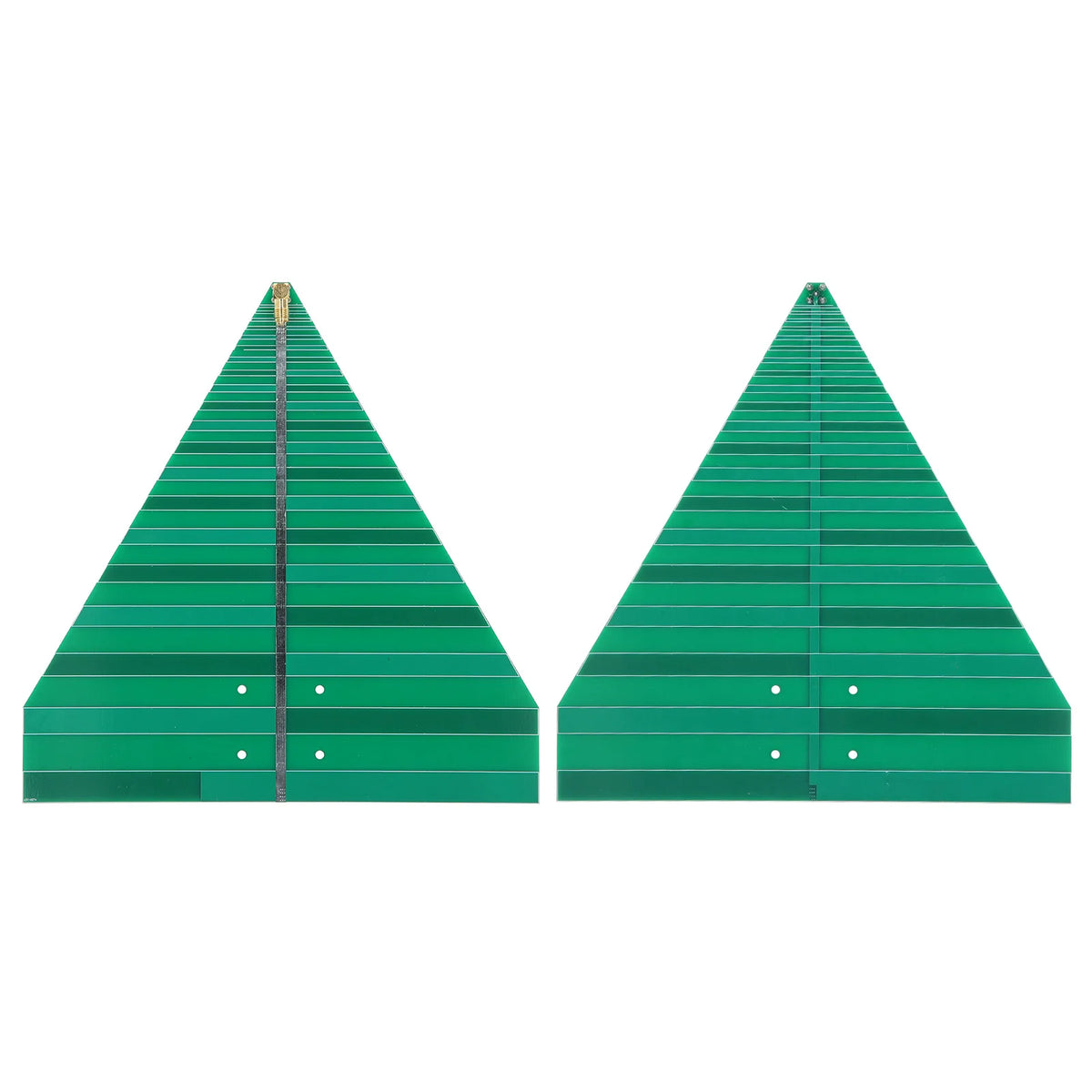

Upgrade your wireless setup with this ultra wideband (UWB) log periodic antenna, engineered to cover an impressive 600–6000MHz frequency range. Built on a high-quality printed circuit board, this directional antenna delivers stable, consistent performance for WiFi, signal testing, broadband transmission, and a wide range of RF applications.
Key Features
- Premium PCB Construction: Built with 1.6mm thick double-sided board and 2.0 oz copper thickness for superior conductivity and durability.
- Full Tinning Process: Ensures excellent current-passing performance for both large and small current applications.
- Efficient Heat Dissipation: Large-area heat dissipation design allows the antenna to run reliably for extended periods.
- Ultra Wideband Coverage: 600–6000MHz frequency range broadens the scope of application, making it suitable for diverse wireless environments.
- Directional Linear Polarization: Focused signal direction with 6–7dB gain for stronger, more targeted transmission.
- 50W Power Capacity: Handles higher power loads, making it ideal for demanding setups.
Specifications
| Item Type | Log Periodic Antenna |
| Material | Printed Circuit Board (PCB) |
| Antenna Frequency | 600–6000MHz |
| Antenna Standing Wave | Less than 2 (typical value) |
| Antenna Polarization | Directional Linear Polarization |
| Antenna Gain | 6–7dB |
| Power Capacity | 50W |
| Voltage | 24V |
| Color | Green |
What's in the Box
- 1 × Log Periodic UWB WiFi Antenna (Green)
Made in Mainland China.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What frequency range does this log periodic antenna support?
A: This ultra wideband log periodic antenna supports a broad frequency range of 600–6000MHz, making it suitable for WiFi, broadband signal testing, and a wide variety of RF transmission applications.
Q: What is the antenna gain and power capacity?
A: The antenna delivers a gain of 6–7dB with directional linear polarization, and is rated for up to 50W of power capacity, supporting demanding wireless setups.
Q: Is this antenna easy to install?
A: Yes. The PCB-based design is compact and straightforward to mount. Its standing wave ratio is less than 2 (typical value), ensuring efficient signal transfer with minimal loss when properly connected.
