51-Pin LVDS Cable 2Ch 8-Bit Dual Channel LCD Panel Cable
51-Pin LVDS Cable 2Ch 8-Bit Dual Channel LCD Panel Cable

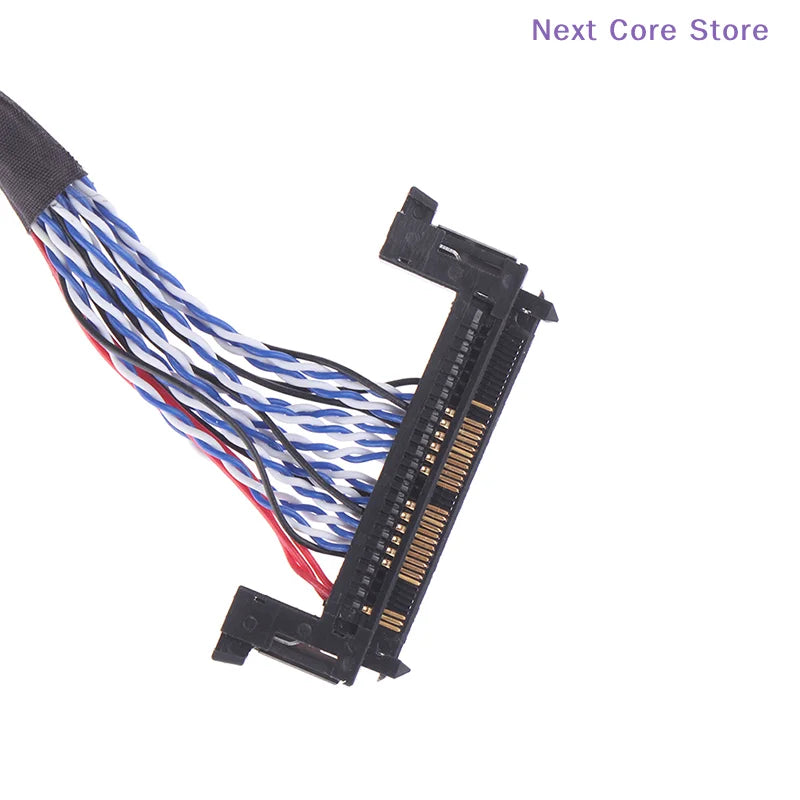

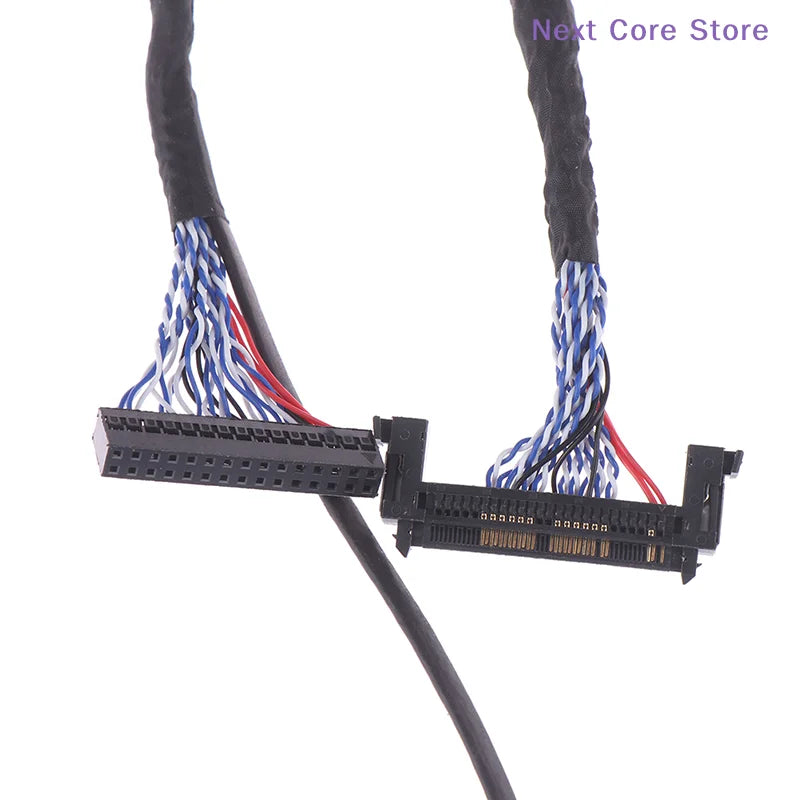

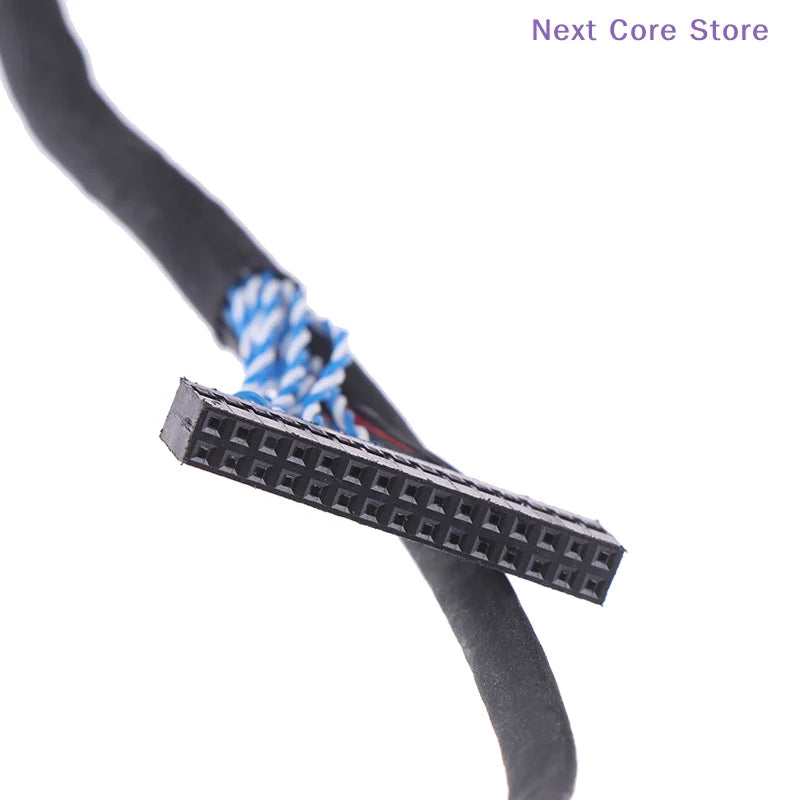

LVDS Cable – 51-Pin, 2 Channel, 8-Bit LCD Panel Connection
Keep your LCD panel running with a clean, reliable signal. This 51-pin dual-channel 8-bit LVDS (Low-Voltage Differential Signaling) cable is designed for seamless video data transmission between LCD controller boards and display panels. Whether you're repairing, upgrading, or building a display system, this cable delivers stable, high-quality connectivity in a compact form.
Key Features
- Configuration: 2-Channel (2Ch), 8-Bit signal transmission
- Pin Count: 51 pins for full compatibility with dual 8-bit LCD panels
- Available Lengths: ~50 cm / 1 m / 1.2 m — choose the length that suits your build

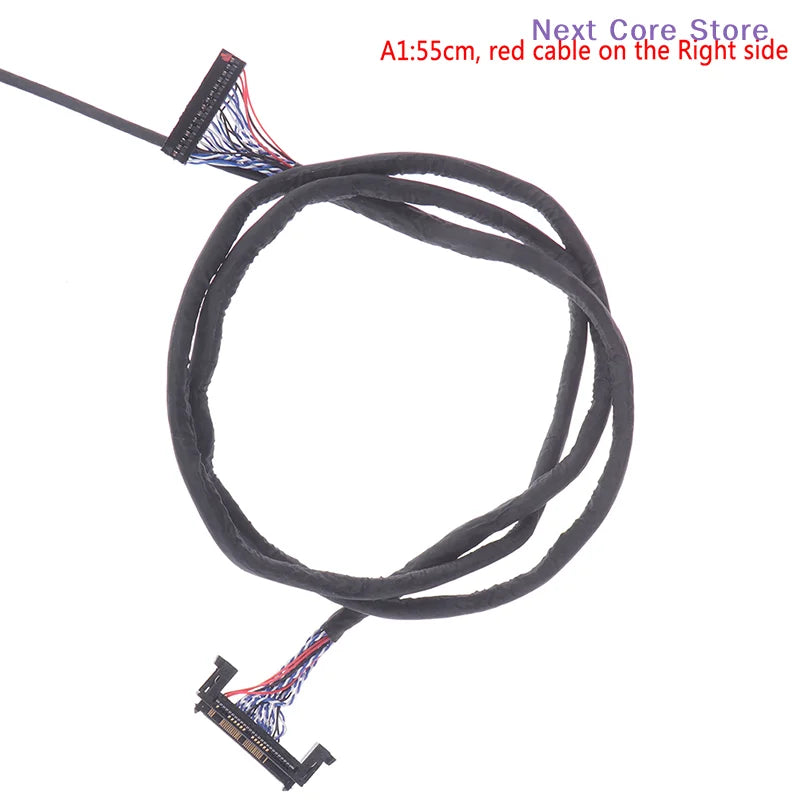

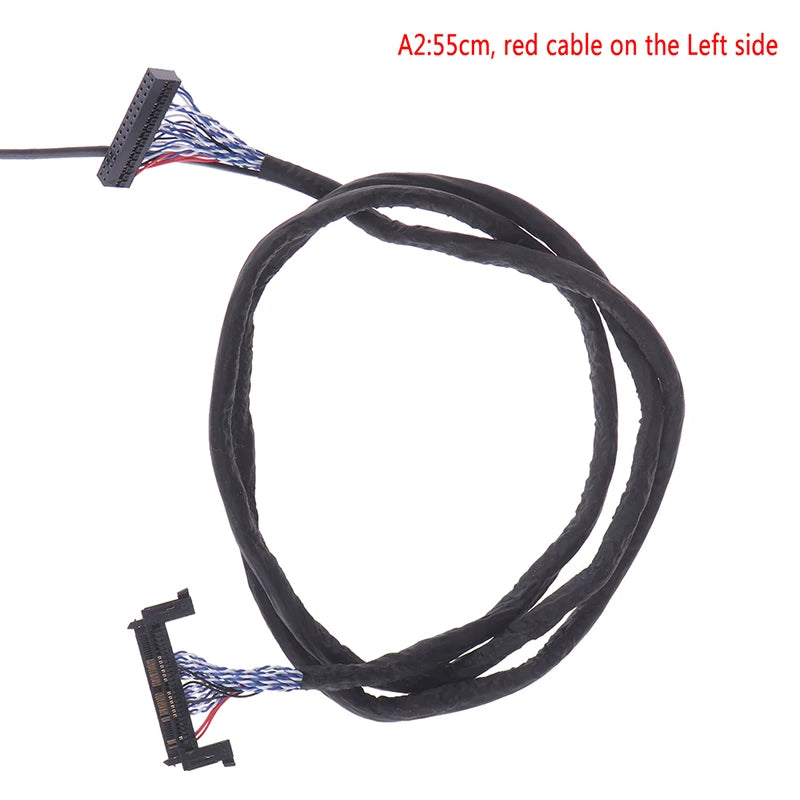

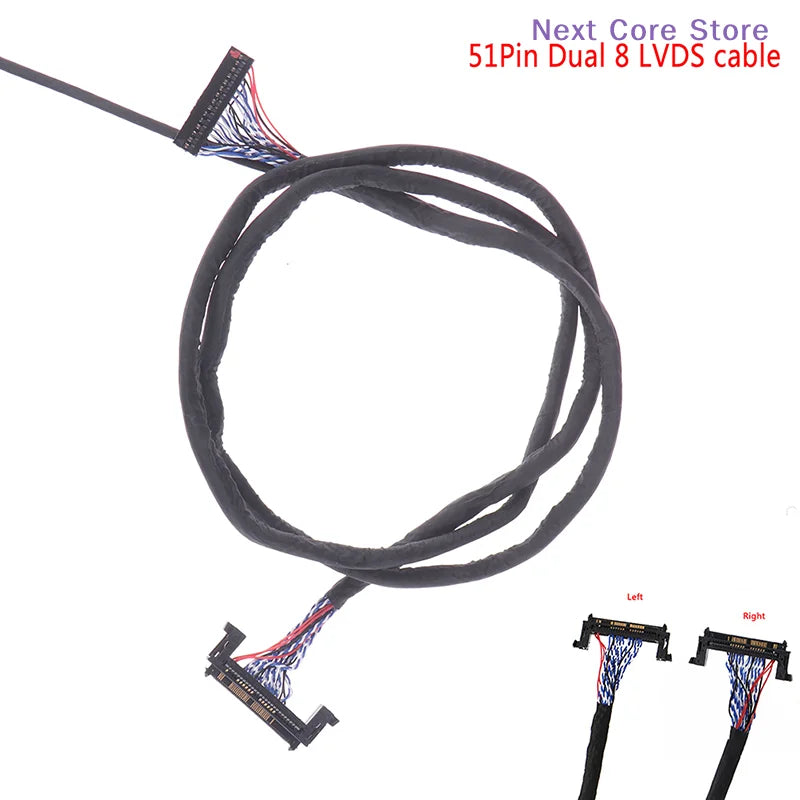

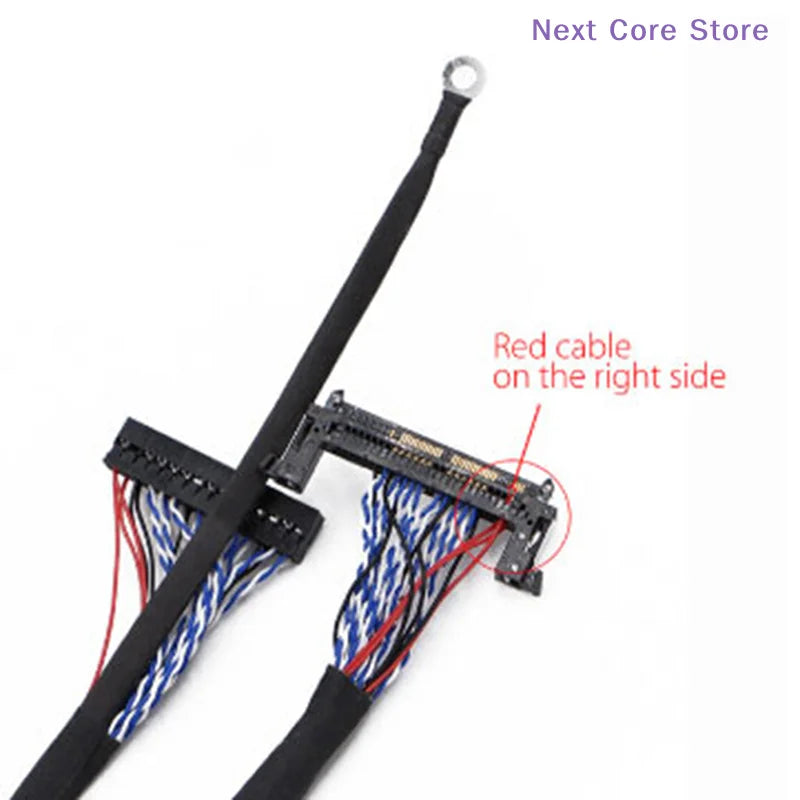

- Left & Right Power Support: Compatible with both left-power and right-power panel configurations
- Clean Signal: LVDS differential signaling minimizes interference for crisp, stable display output
- Broad Compatibility: Suitable for LCD panels requiring a 51-pin 2Ch 8-bit LVDS interface
Specifications
| Pin Count | 51 Pins |
| Channels | 2 Channel (Dual) |
| Bit Depth | 8-Bit |
| Cable Lengths | ~50 cm / 1 m / 1.2 m |
| Power Configuration | Left Power / Right Power |
| Country of Origin | Made in China |
What's in the Box?
- 1 × 51-Pin 2Ch 8-Bit LVDS LCD Panel Cable
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is an LVDS cable and what does it do?
A: LVDS (Low-Voltage Differential Signaling) cables transmit high-speed video data between an LCD controller board and a display panel. The 51-pin 2Ch 8-bit configuration is commonly used in laptop screens, monitor panels, and embedded display systems to carry full-color image data with minimal signal interference.
Q: How do I know if this 51-pin LVDS cable is compatible with my LCD panel?
A: Check your LCD panel's datasheet or the existing cable. You need to match the pin count (51 pins), channel count (2 channels), bit depth (8-bit), and power-side configuration (left or right power). Confirm the connector pitch on both ends before purchasing.
Q: Which cable length should I choose?
A: The ~50 cm length is ideal for compact builds such as laptops or small monitors. The 1 m and 1.2 m options provide more routing flexibility for larger enclosures or custom display setups. Measure the distance between your controller board and panel before selecting.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
