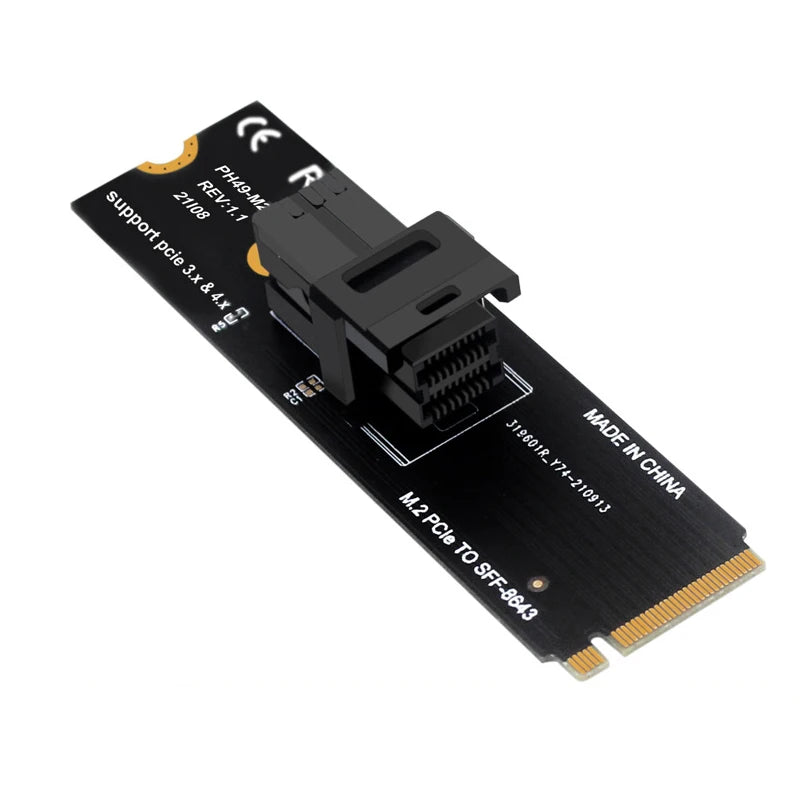

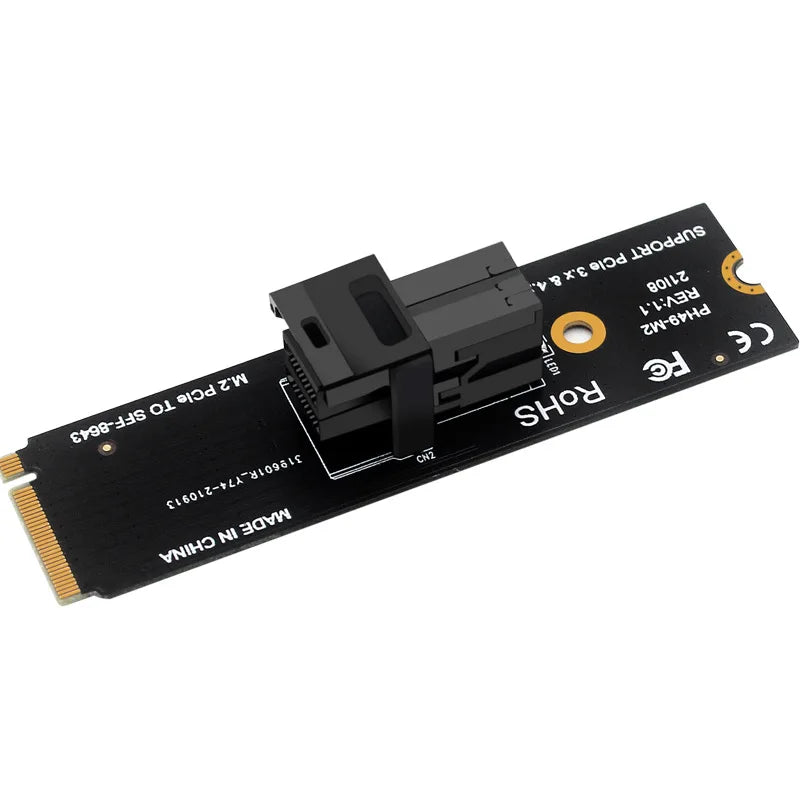

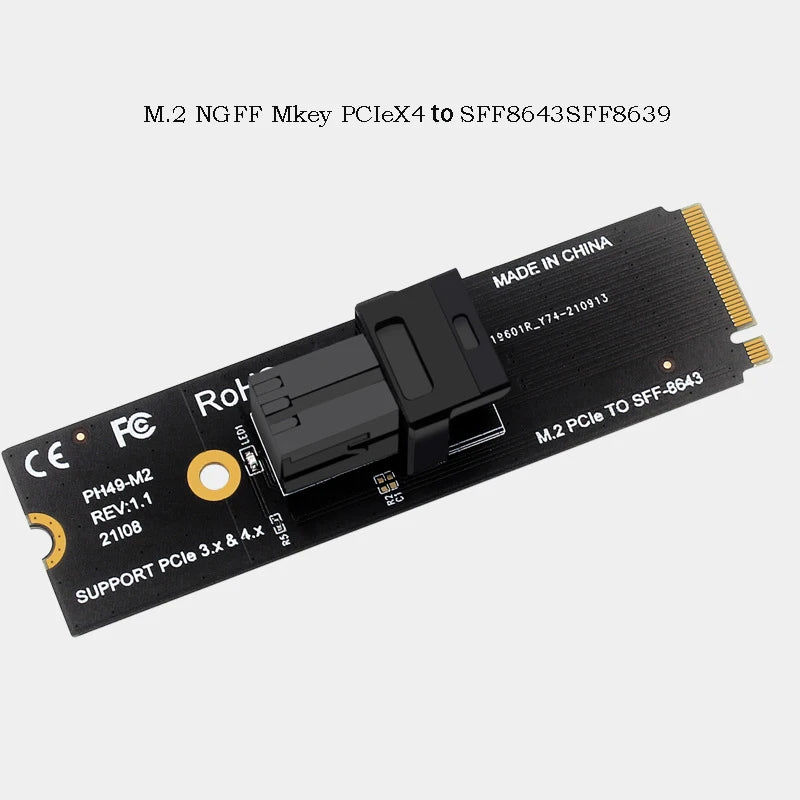

M.2 NGFF M-Key PCIe to SFF8643 / SFF8639 Convert Adapter Card
Unlock the full potential of your M.2 NVMe SSD with this high-performance M.2 NGFF M-Key PCIe X4/X8/X16 to SFF8643 & SFF8639 Convert Adapter Card (Model: PH49-M2). Designed for builders, enthusiasts, and IT professionals who need a reliable bridge between modern M.2 storage and U.2 / SFF-8643 / SFF-8639 interfaces, this card makes data transfers fast, clean, and straightforward.
Made in Mainland China.
Why Choose This Adapter?
- Broad Compatibility: Supports M.2 NGFF M-Key slots running PCIe X4, X8, or X16 — works with PCIe 4.0 and PCIe 3.0 for wide system compatibility.
- Dual Output Ports: Converts to both SFF-8643 (Mini-SAS HD) and SFF-8639 (U.2) connectors, giving you versatile connection options in one card.
- 2280 Form Factor Support: Accommodates standard 2280 M.2 SSDs for a secure, snug fit.
- Internal Installation: Designed for internal motherboard/PCIe slot mounting — no external power bricks or complex cabling needed.
- High-Speed Data Transfer: Leverages the PCIe lane bandwidth of your M.2 slot to deliver full-speed SSD throughput to SFF-8643/SFF-8639 devices.
- Compact Add-On Card Design: Low-profile, purpose-built PCB keeps your build clean and organized.
Technical Specifications
| Brand | OULLX |
|---|---|
| Model | PH49-M2 |
| Input Interface | M.2 NGFF M-Key PCIe X4 / X8 / X16 |
| Output Interface | SFF-8643 & SFF-8639 |
| Supported PCIe Gen | PCIe 4.0 & PCIe 3.0 |
| SSD Form Factor | 2280 |
| Installation Type | Internal Add-On Card |
| Country of Origin | Mainland China |
What's in the Box?
- 1 × M.2 NGFF M-Key to SFF8643/SFF8639 Convert Adapter Card (PH49-M2)
Perfect For
- NAS builds and server upgrades requiring U.2 connectivity
- Workstation builders bridging M.2 NVMe SSDs to SFF-8643 backplanes
- IT professionals extending SSD compatibility across multiple interface standards
- Anyone looking to maximize their M.2 PCIe slot with SFF-8639 / SFF-8643 devices
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Is this M.2 to SFF8643 adapter compatible with both PCIe 3.0 and PCIe 4.0 M.2 SSDs?
A: Yes! The PH49-M2 adapter card supports both PCIe Gen 3.0 and Gen 4.0 M.2 NGFF M-Key slots running at X4, X8, or X16 lane configurations, making it compatible with a wide range of modern NVMe SSDs and motherboards.
Q: What size M.2 SSD does this adapter support?
A: This adapter is designed for the standard 2280 M.2 form factor (22mm wide × 80mm long), which is the most common M.2 SSD size on the market.
Q: Does this card require additional power or drivers?
A: No external power connector is required — the card draws power through the PCIe slot. It functions as a passive convert adapter, so no additional drivers are needed; your operating system will recognize the connected SSD as usual.
Q: Can I use this adapter to connect a U.2 SSD to my M.2 slot?
A: Yes. The SFF-8639 output port on this card is the standard U.2 interface, so you can use a U.2 SSD in systems that only have an M.2 PCIe slot available, effectively bridging the two interface standards.
