MCP23017 16-Bit I2C I/O Expander Module for Arduino

$17.18 $20.33

MCP23017 16-Bit I2C I/O Expansion Board for Arduino

Expand your microcontroller's capabilities with the MCP23017 16-Bit I2C I/O Expander Module. Powered by the reliable MCP23017-E/SS driver chip, this compact board adds 16 fully configurable input/output pins to your Arduino or compatible development platform via the simple two-wire I2C (IIC) interface — no complex wiring required. Whether you're building a custom keypad, controlling relays, reading sensors, or handling interrupt-driven events, this module gives you the I/O headroom you need.

Up to 8 modules can be daisy-chained in parallel on a single I2C bus, giving you up to 128 additional I/O pins from a single pair of data lines. Perfect for makers, hobbyists, and engineers working on robotics, home automation, or prototyping projects.

Made in Mainland China.

Key Specifications

Driver Chip: MCP23017-E/SS
I/O Pins: 16 (configurable as Input, Output, or Interrupt)
Interface: I2C / IIC
Operating Voltage: 3.0V – 5.5V
Drive Current: 25mA per I/O pin
I2C Frequency: 100KHz, 400KHz, 1.7MHz
Parallel Connections: Up to 8 modules on one I2C bus

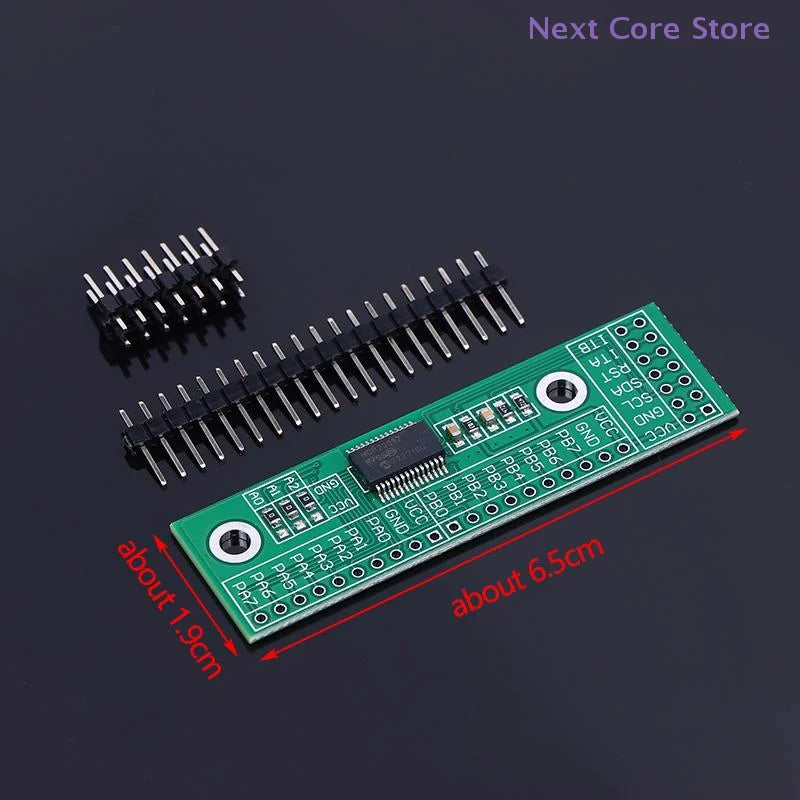

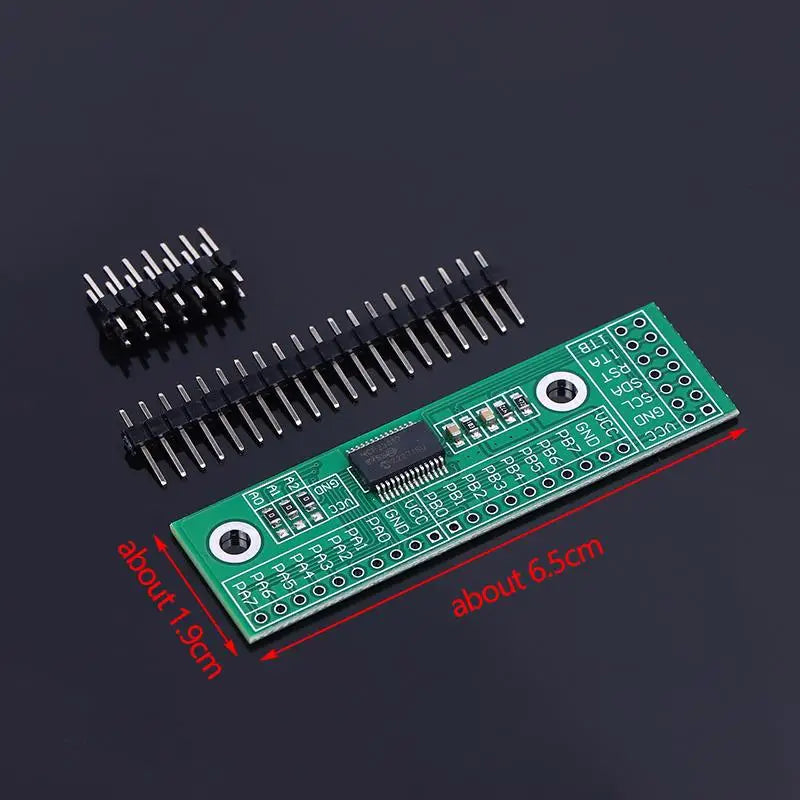

Board Dimensions: ~6.5 × 1.9 cm (2.56 × 0.75 in)
Package: 1 or 2 pieces (select your option)
Compatibility: Arduino and most I2C-compatible development boards

Why Choose This I/O Expander?

✅ Easy I2C Integration — Connects with just SDA, SCL, VCC, and GND
✅ Interrupt Support — Built-in interrupt output pins for efficient event handling
✅ Wide Voltage Range — Works with both 3.3V and 5V systems
✅ Stackable Design — Chain up to 8 units for massive I/O expansion
✅ Compact Form Factor — Fits neatly into breadboards and enclosures
✅ Brand New & High Quality — 100% new components, rigorously tested

What's in the Box

1 or 2 × MCP23017 16-Bit I2C I/O Expansion Board (based on selected option)

Frequently Asked Questions

Q: Is the MCP23017 I/O expander board compatible with Arduino Uno, Mega, and Nano?

A: Yes! The MCP23017 I2C I/O expander board is compatible with virtually all Arduino variants — including Uno, Mega, Nano, and other I2C-capable microcontroller boards — as long as they support 3.0V–5.5V logic levels. Simply connect the SDA and SCL lines to your Arduino's I2C pins.

Q: How many of these I/O expander modules can I connect to a single Arduino?

A: You can connect up to 8 MCP23017 modules in parallel on a single I2C bus by setting unique addresses using the address pins (A0, A1, A2). This gives you up to 128 extra I/O pins from just one I2C interface pair.

Q: Can each pin be individually configured as input or output?

A: Yes. All 16 I/O pins on the MCP23017 expander board are individually configurable as digital input, digital output, or interrupt-on-change pins via simple I2C register writes, making it extremely flexible for a wide range of Arduino projects.

Q: What is the maximum current each I/O pin can source or sink?

A: Each I/O pin on this expander board can source or sink up to 25mA, which is sufficient for driving LEDs, small signal relays, and other low-current loads directly.
