Mini PCI/PCI-E 2-Digit Laptop Motherboard Diagnostic Card

Mini PCI / PCI-E 2-Digit Laptop Motherboard Diagnostic Card

Keep your laptop running at its best with this professional-grade Mini PCI / PCI-E 2-Digit Diagnostic Card by OULLX. Designed specifically for laptop motherboard analysis, this compact debug tool displays POST (Power-On Self-Test) codes on its 2-digit LED readout, helping technicians and advanced users quickly identify and interpret motherboard status codes — saving time and guesswork during laptop servicing and troubleshooting.

⚠️ Important Compatibility Notice: This diagnostic card is designed for laptops only. It is not compatible with desktop computers, nor can it be used with a converter card to connect to a desktop. While compatible with most laptops, not all laptop motherboards are supported — this is a normal limitation of the tool, not a product defect. If your motherboard is not supported, please test with a different laptop. Made in Mainland China.

Key Features

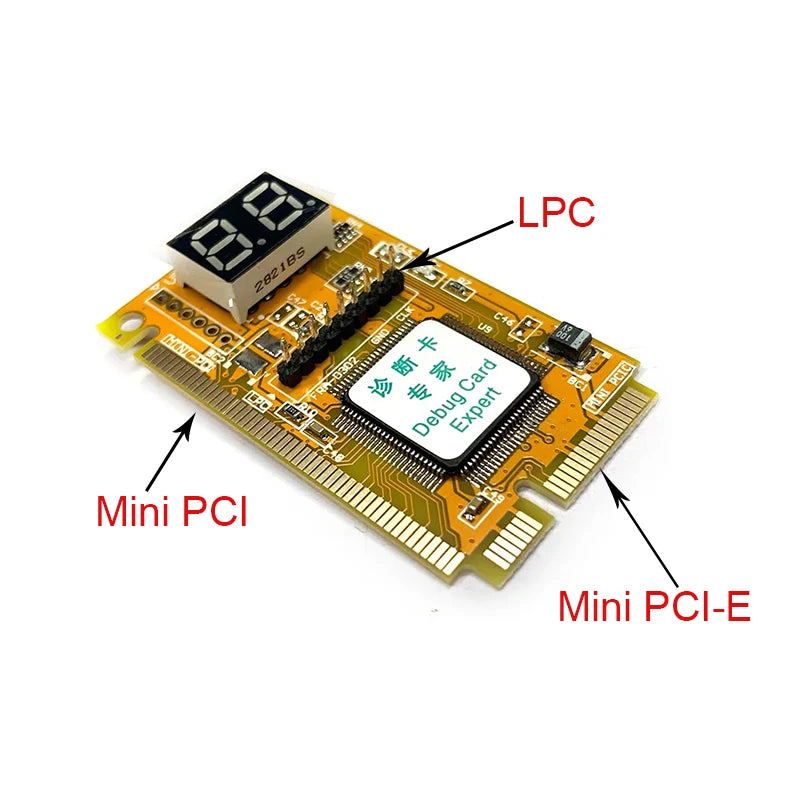

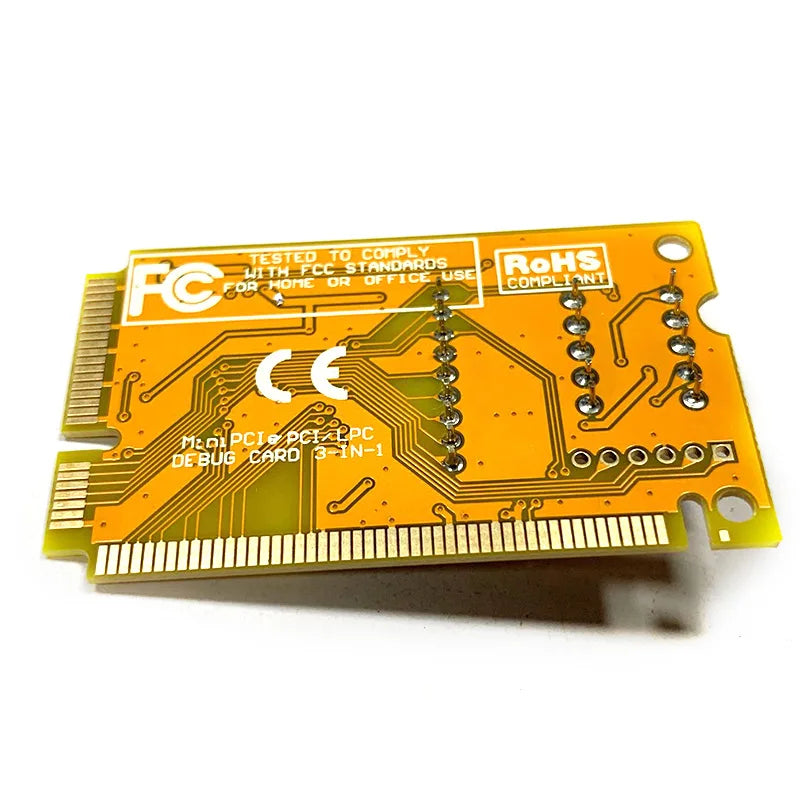

• Dual-Interface Support: Compatible with Mini PCI, Mini PCI-E, and LPC Bus interfaces — only one interface needs to be connected at a time.

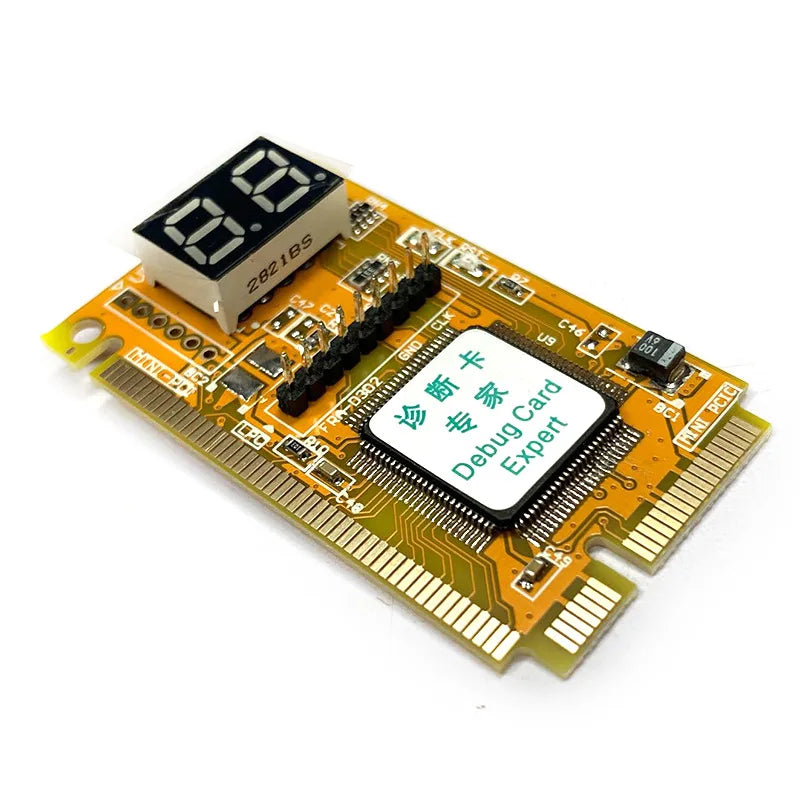

• 2-Digit LED Display: Clearly shows POST diagnostic codes for fast motherboard status interpretation.
• Stable Power Design: Equipped with 2 capacitors for stable power delivery and a red power indicator light for easy monitoring.
• Mini PCI-E Pin Support: Works with PIN-8, PIN-10, PIN-12, PIN-14, PIN-16, PIN-17, and PIN-19 for the Mini PCI-E port.
• LPC Bus Ready: Supports LPC interface with clearly defined pin layout (PIN1–LFRAME#, PIN2–LAD3, PIN3–LAD2, PIN4–LAD1, PIN5–LAD0, PIN6–GND, PIN7–LRESET#, PIN8–LCLK, PIN9–3.3V).
• Broad Laptop Compatibility: Supports popular platforms including IBM ThinkPad X60, T6, R6 series, and chips such as PC97551, PC87541, PC87591, H8S/2149, W83L950D, and TCPA.
• Pre-Tested Before Shipping: Every unit is tested prior to dispatch for quality assurance. Note: this is a technical product requiring familiarity with laptop hardware.

Technical Specifications

• Brand: OULLX
• Model: 2-Digit PCIE Diagnostic Card
• Interface Type: Mini PCI, Mini PCI-E, LPC Bus
• Installation: Internal (direct insertion into laptop slot)
• Display: 2-Digit LED POST Code Readout
• Power Indicator: Red LED
• Compatibility: Laptops only (not for desktop use)
• Origin: Made in Mainland China

LPC Pin Definitions for Common Laptops

• IBM X60: LPC port at U39 slot — A2→LRESET#, A3→LFRAME#, A5→LCLK, A9→LAD3, A10→LAD2, A11→LAD1, A12→LAD0
• IBM T6 / R6: LPC port at J26 — A1→LCLK, A3→LFRAME#, B2→LRESET#, B7→LAD3, A7→LAD2, B6→LAD1, A6→LAD0
• For motherboards without a dedicated LPC port, flying leads can be connected directly to the relevant chip pins.
