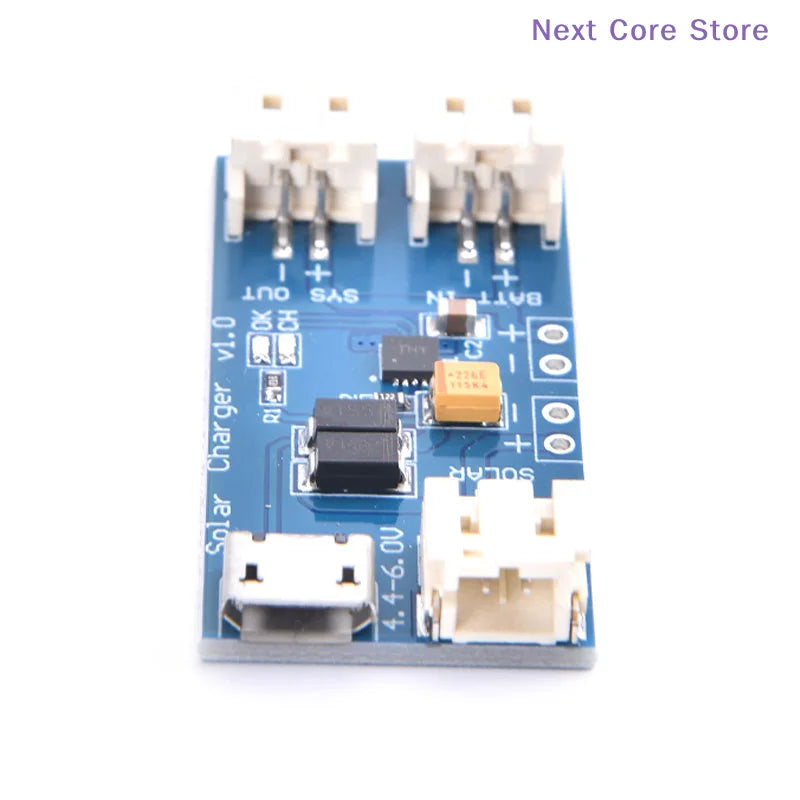

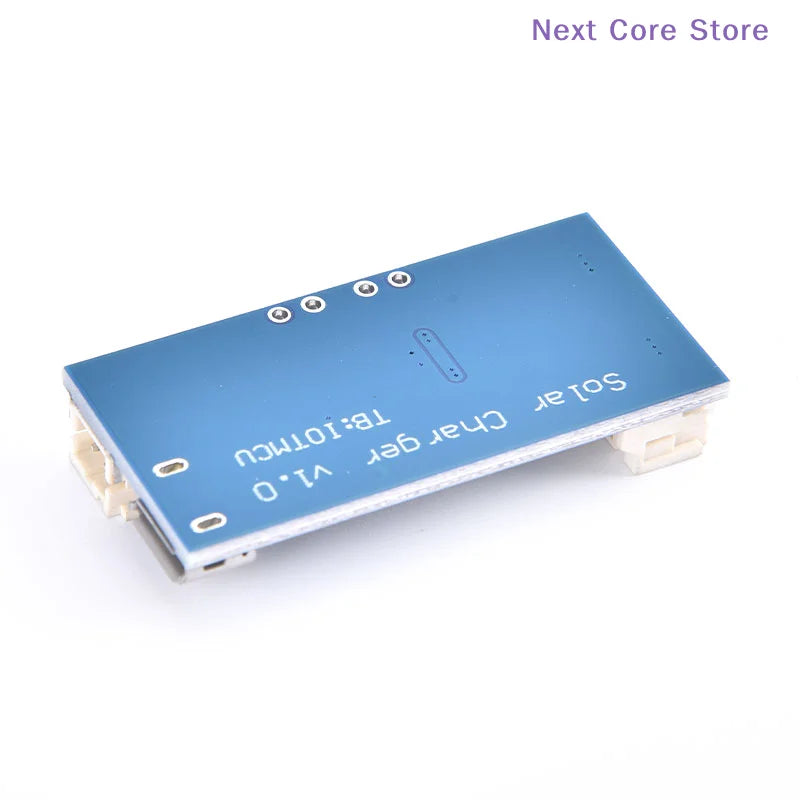

Mini Solar LiPo Battery USB Charger Board CN3065 Module

Mini Solar LiPo Charger Board – CN3065 Module

Power your lithium polymer battery projects with clean, renewable solar energy. The Mini Solar LiPo Charger Board (CN3065) is a compact, easy-to-use charging module designed to extract maximum power from a solar panel or other photovoltaic source and deliver it safely to a single-cell LiPo (lithium polymer) battery. It also supports USB charging via Micro-USB, giving you a versatile dual-input solution for any DIY electronics project.

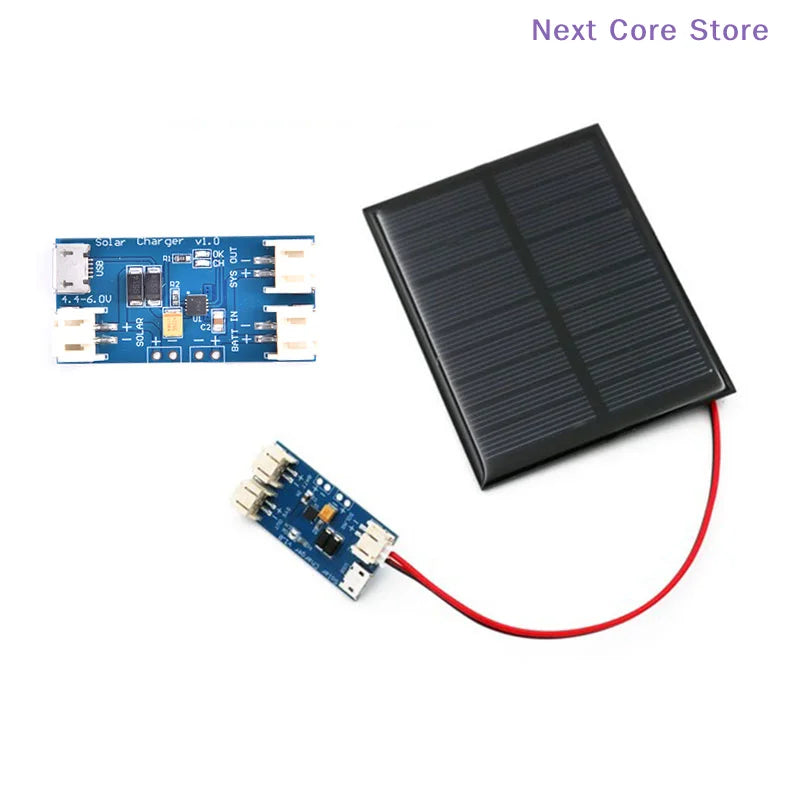

Simply connect your solar panel to the input side, attach your LiPo battery, and the board handles the rest — automatically managing charge current and protecting your battery from short circuits. Made in China.

Key Features

• Dual Charging Input: Solar panel (4.4–6V DC) and Micro-USB port for maximum flexibility
• CN3065 Controller IC: Efficient, reliable single-cell LiPo battery charging
• Max Charge Current: Up to 500mA — ideal for most small LiPo cells
• LED Status Indicators: Red = Charging | Green = Fully Charged — know your battery status at a glance
• Short Circuit Protection: Built-in protection safeguards your battery and circuitry
• 2-Pin JST / PH2.0 Connector: Standard connector for easy battery hookup
• Compact Footprint: Just 2cm × 4cm — fits into tight enclosures and portable builds
• Load-Parallel Output: Connect your load in parallel with the battery for seamless operation

Specifications

What's in the Box

• 1× Mini Solar LiPo Charger Board v1.0 (CN3065 Module)

Note: Battery and solar panel are not included. Color may vary slightly from images due to monitor calibration differences. Dimensions may have a ±2–3% variance due to manual measurement.

Related Products You May Like

• 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
• 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What type of battery is compatible with this solar LiPo charger board?

A: This charger board is designed for single-cell lithium polymer (LiPo) batteries. It connects via a standard 2-pin JST / PH2.0 connector. Always ensure your battery capacity matches the 500mA maximum charge current — it is generally recommended not to charge a battery at more than its rated capacity in milliamp-hours (mAh).

Q: Can I use a USB power source instead of a solar panel?

A: Yes! The CN3065 charger board supports dual-input charging. You can use either a solar panel (4.4V–6V DC input) or a standard Micro-USB connection to charge your LiPo battery, making it highly versatile for both outdoor solar projects and indoor USB-powered setups.

Q: How do I know when my battery is fully charged?

A: The board features two built-in LED status indicators. A red LED illuminates while the battery is actively charging. Once the battery reaches full charge, the LED switches to green, giving you a clear, at-a-glance status update without any additional monitoring equipment.

Q: Is short circuit protection included on this module?

A: Yes, the CN3065 module includes built-in short circuit protection to help safeguard both your battery and connected circuitry during charging operations.
