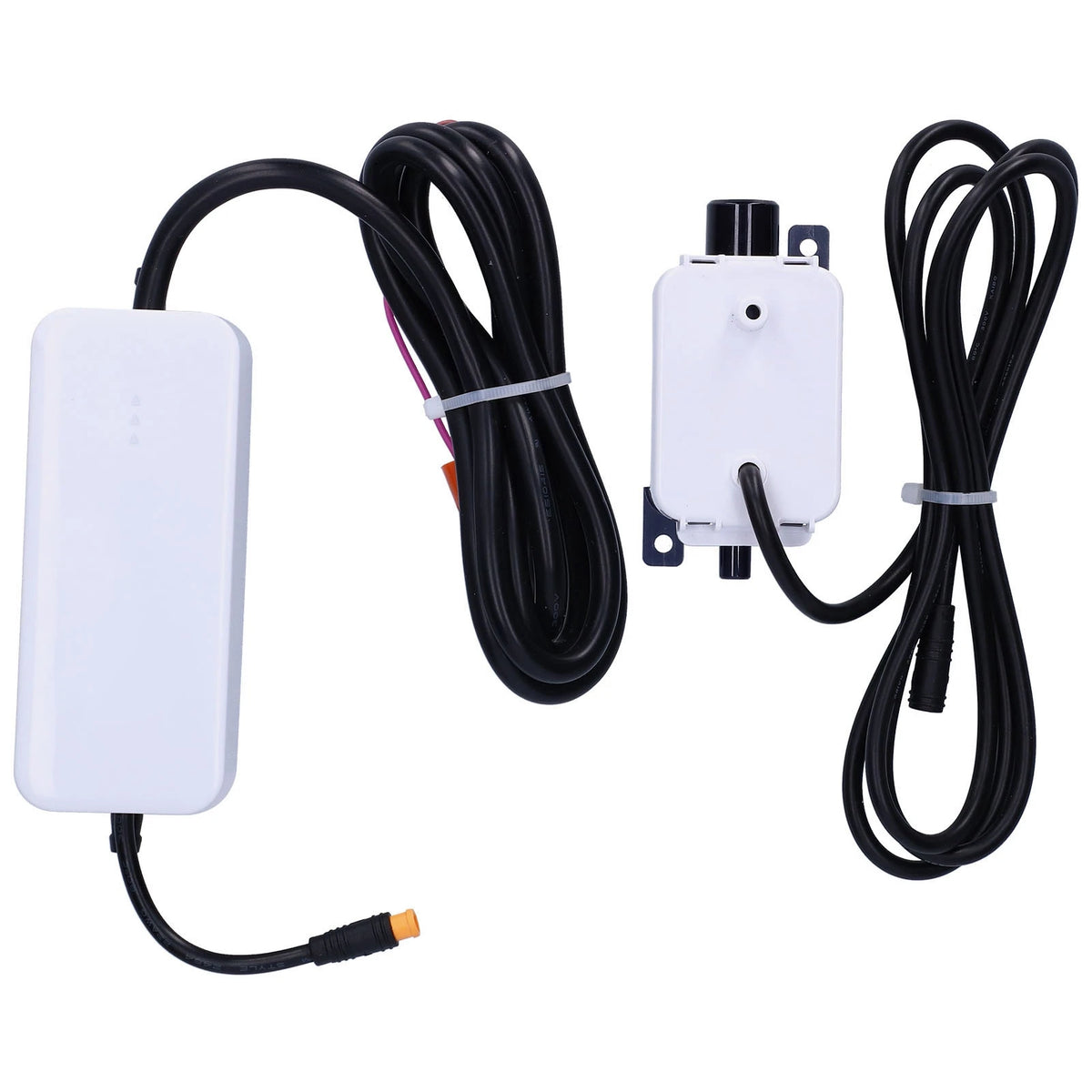

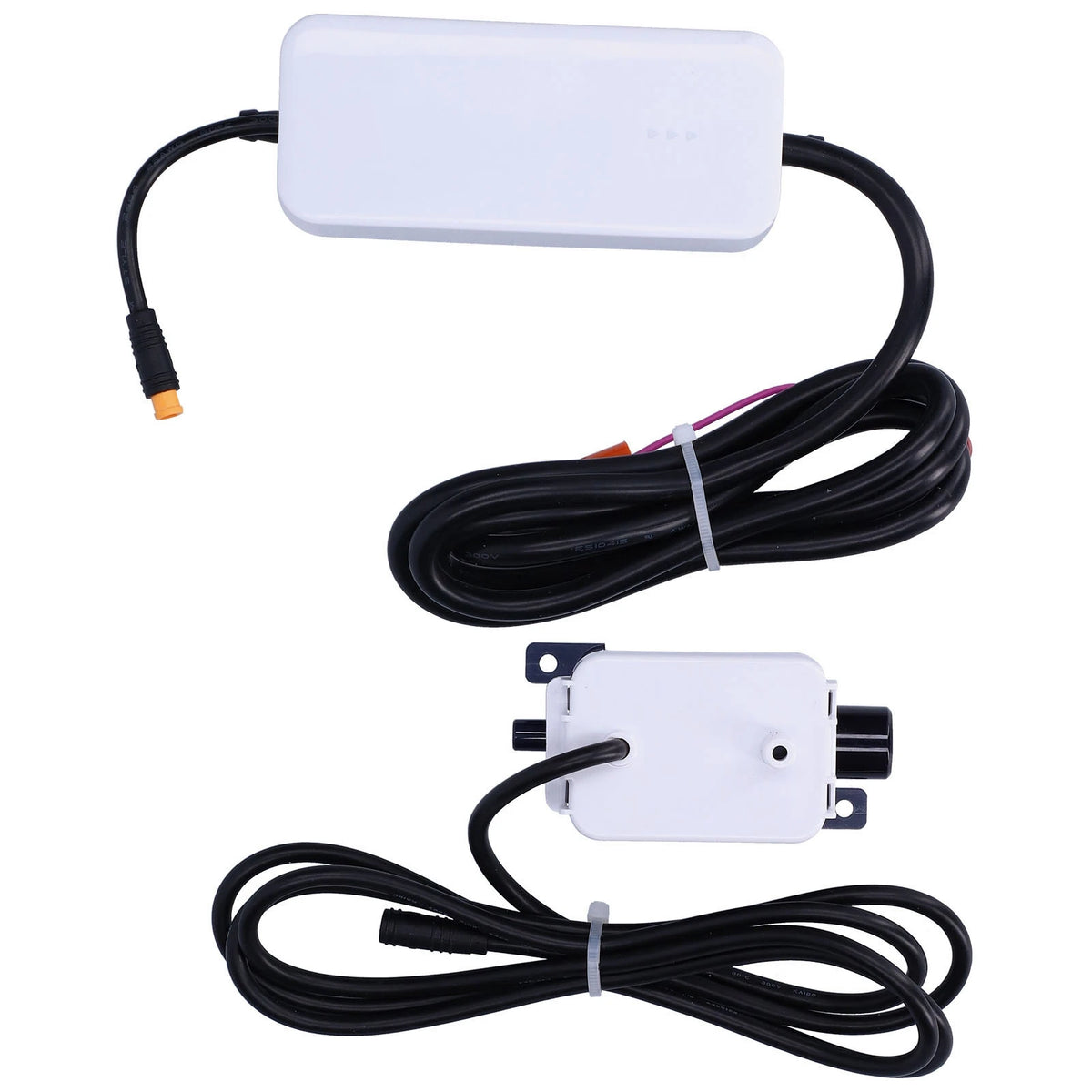

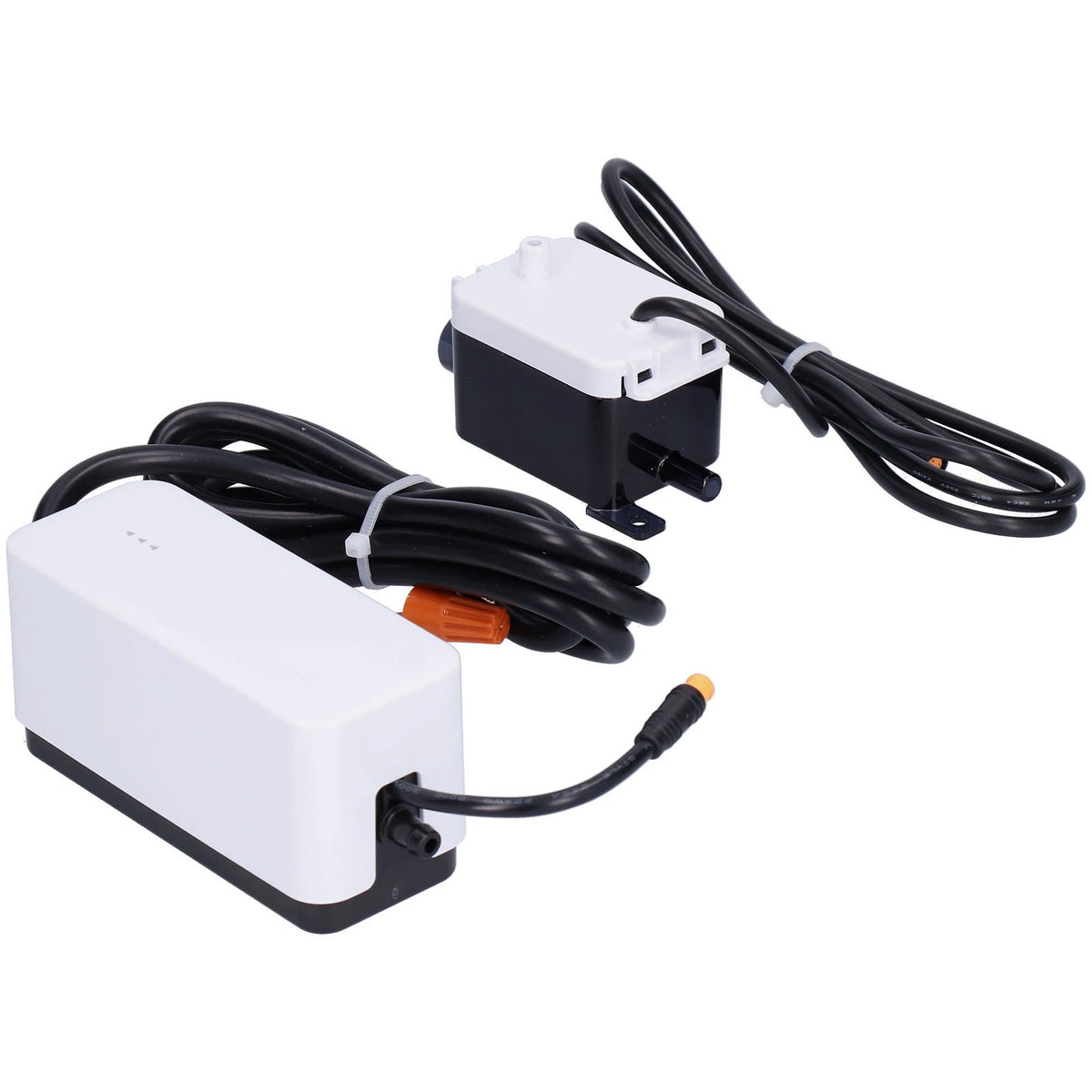

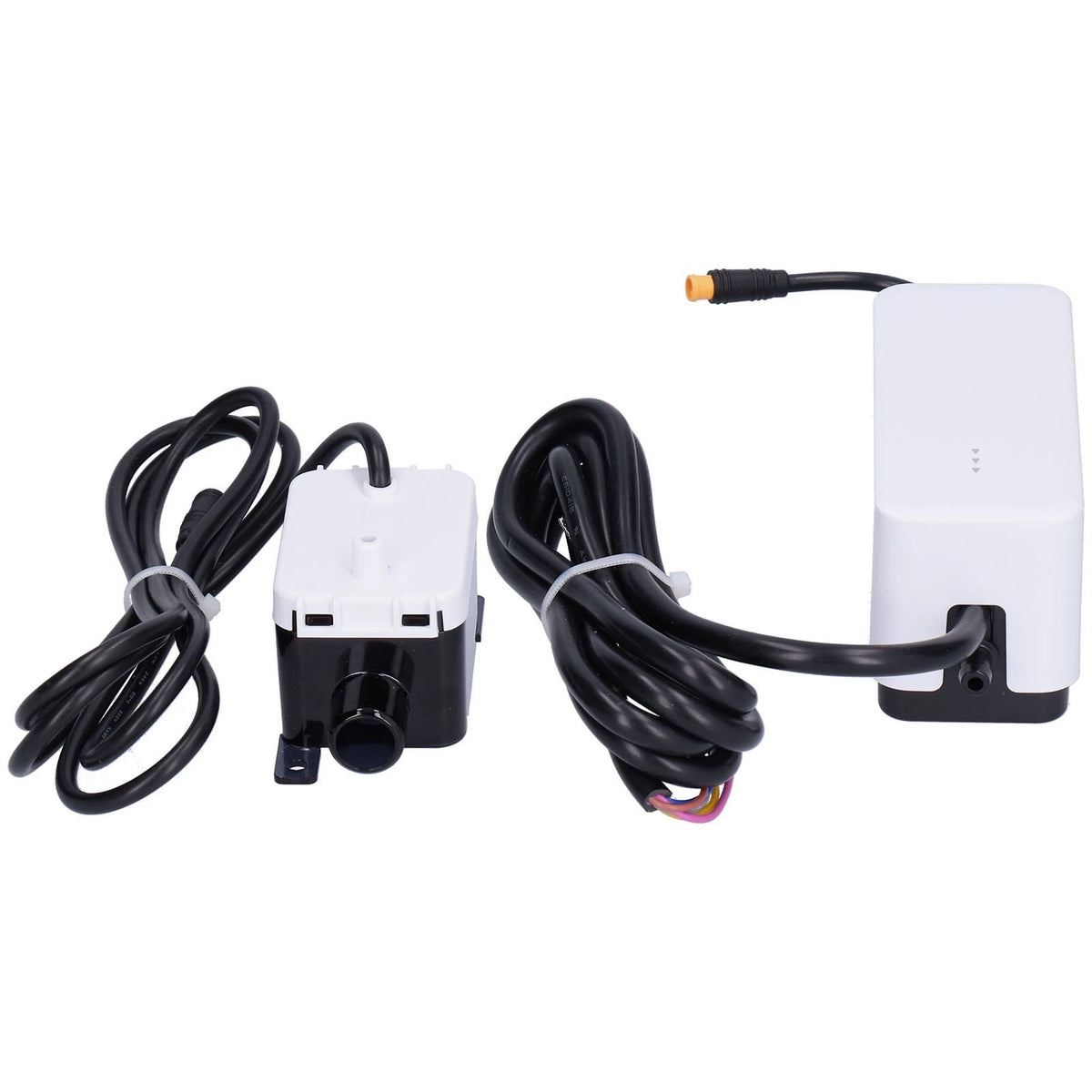

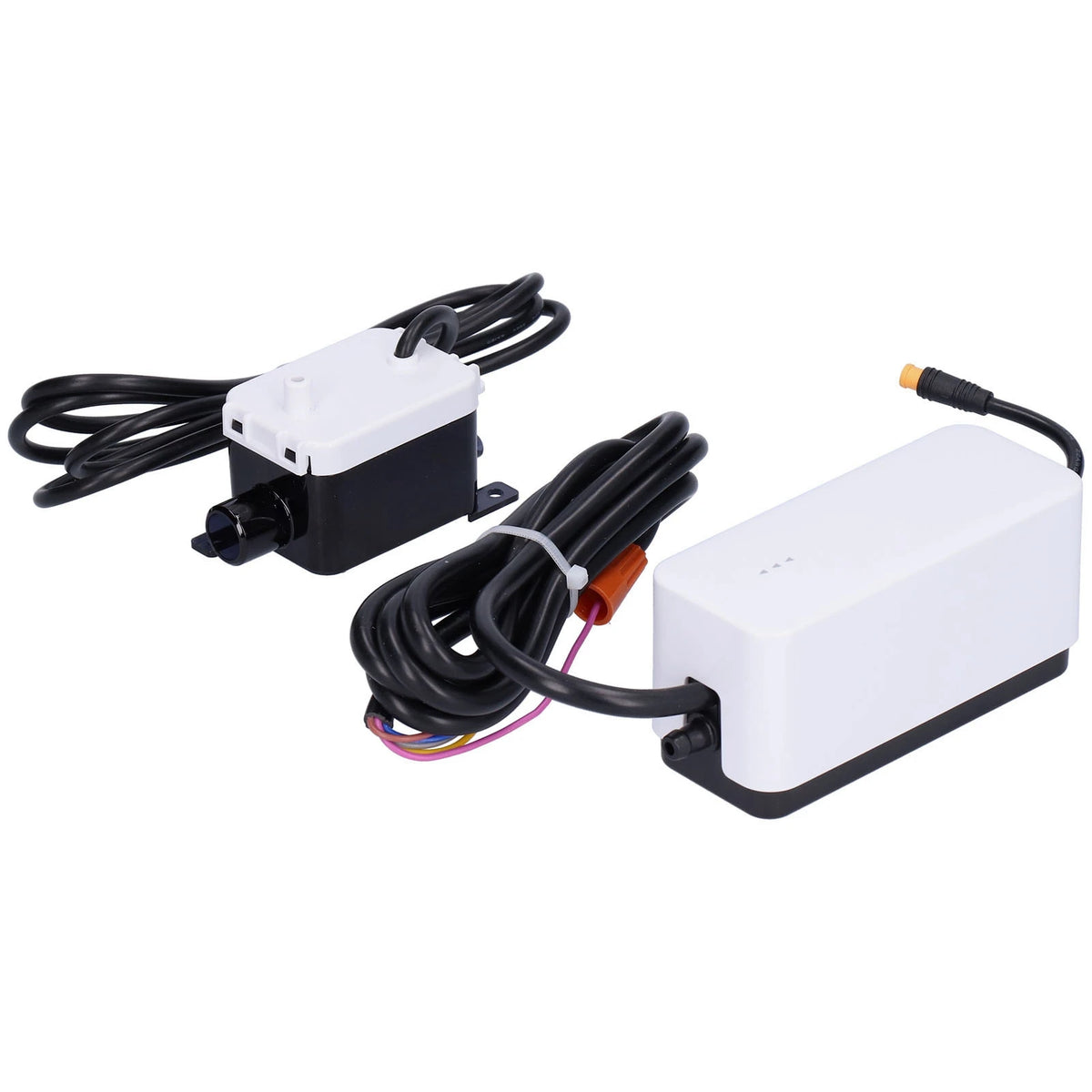

Fdit S1 Mini Split Condensate Drain Pump – Whisper-Quiet Automatic Drainage
Keep your air conditioning system running efficiently with the Fdit S1 Condensate Pump. Engineered for quiet, fully automatic operation, this compact wall-mounted pump removes condensate water from your HVAC system, dehumidifier, ice maker, or air conditioner — all while producing less than 19 dB of noise. Say goodbye to messy overflows and manual draining.
Why Choose the Fdit S1 Condensate Pump?
- Ultra-Quiet Operation: Runs at under 19 dB(A) at 1 meter — virtually silent in any indoor environment.
- Advanced Probe Induction Technology: Replaces traditional float-style sensors for more reliable, accurate automatic drainage — no more missed triggers from float displacement or loss of magnetic force.
- Wide Voltage Compatibility: Operates on AC 110–240V / 50–60Hz, making it suitable for use worldwide.
- Energy Efficient: Only 3W power consumption — a genuinely eco-friendly and cost-effective solution.
- High Lift Capacity: Maximum recommended head of approximately 10 meters (32.8 ft) with a maximum flow rate of 24 L/h.
- Durable Engineering Plastic Construction: Purpose-built housing resists everyday wear in typical HVAC environments.
- Built-In Safety Relay: Automatically cuts power to the AC unit if water reaches the warning level, protecting your equipment.
- Complete Kit Included: Everything you need for a clean installation right out of the box.
Technical Specifications
| Model | S1 |
| Material | Engineering Plastic |
| Voltage | 110–240V AC, 50–60Hz |
| Power | 3W |
| Noise Level | ≤19 dB(A) at 1 meter |
| Max Recommended Head | ~10 m / 32.8 ft |
| Max Flow Rate | 24 L/h |
| Water Storage Tank Capacity | 50 mL |
| Max Cooling Capacity | 30,000 BTU/h (up to 3HP) |
| Operating Temperature | 0–50°C |
| Installation | Wall-Mounted |
| Drive Mode | Electric (Automatic) |
Compatible Applications
The S1 condensate pump is ideal for:
- Mini split and central HVAC systems
- Wall-mounted and ceiling cassette air conditioners
- Dehumidifiers
- Ice makers and refrigeration equipment
- Any indoor equipment requiring automatic condensate drainage

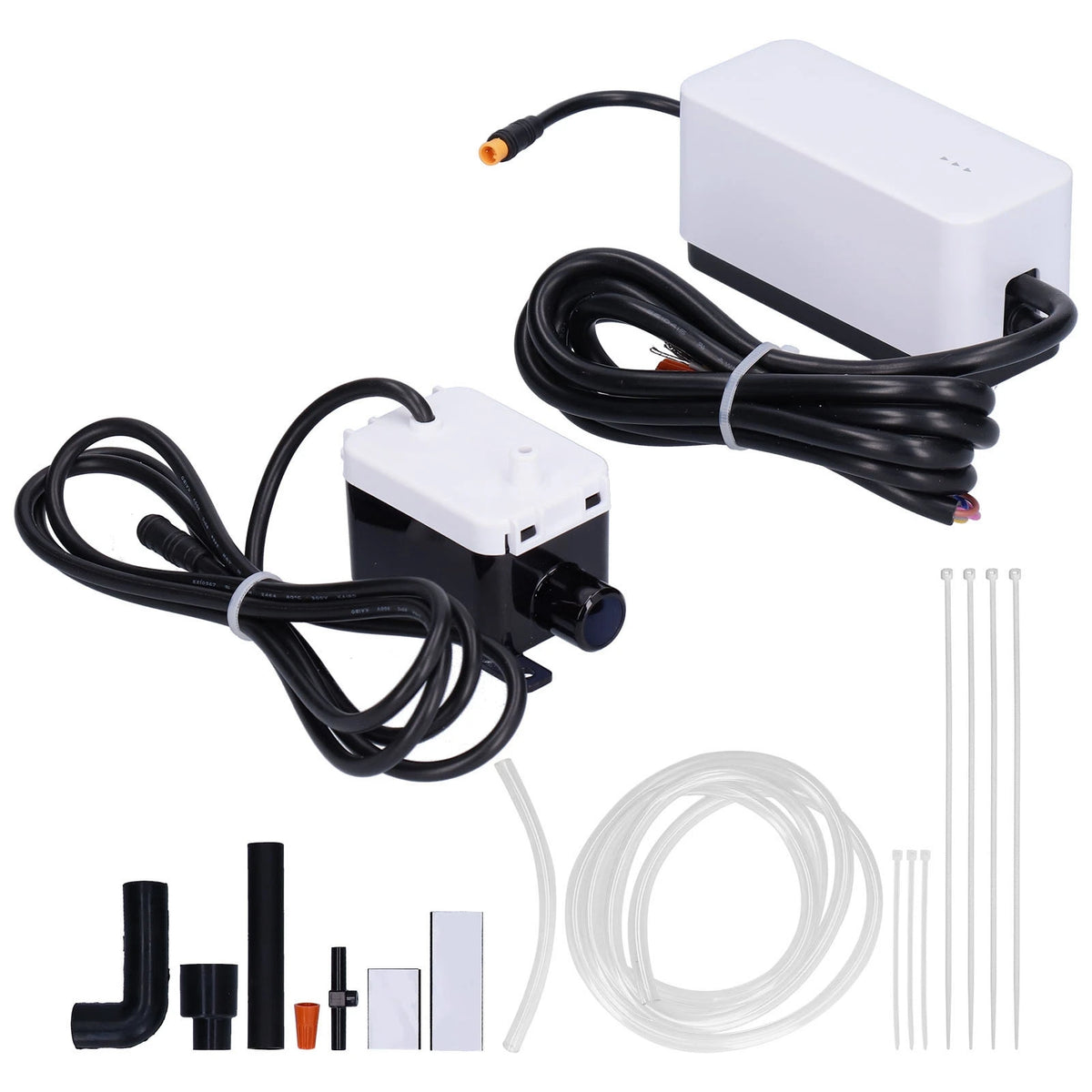

What's in the Box?
- 1× Drain Pump (S1)
- 1× Connector
- 2× Water Pipe
- 2× Buckle
- 1× Elbow
- 1× Air Pipe
- 1× Anti-Siphon Assembly
- 1× Adapter
- 7× Cable Ties
- 1× Nut
- 1× User Manual
Important Safety Notes
- For use with air conditioner condensate water only — not suitable for corrosive liquids.
- Do NOT submerge in water — this is not a submersible pump.
- Always disconnect from power before installing or adjusting.
- Installation and maintenance should be performed by a qualified professional.
- For indoor use only; avoid dusty or oil-mist environments.
- Use an independent power cord to ensure continuous, stable power supply.
- Regular seasonal inspection and cleaning is recommended to maintain optimal performance.
Made in Mainland China.
Looking for more home and garden tools? Check out our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle or explore our range of handy 105° Right Angle Driver with 1/4" Hex Screwdriver Bit.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Is the Fdit S1 condensate pump compatible with my mini split air conditioner?
A: Yes — the S1 condensate drain pump is compatible with mini split systems, central HVAC units, dehumidifiers, ice makers, and other equipment that produces condensate water, up to a maximum cooling capacity of 30,000 BTU/h (3HP).
Q: How loud is the S1 condensate pump during operation?
A: The S1 operates at a noise level of less than 19 dB(A) measured at 1 meter, making it one of the quietest condensate pumps available — suitable for bedrooms, offices, and other noise-sensitive indoor spaces.
Q: What voltage does this condensate pump support?
A: The S1 supports a wide voltage range of AC 110–240V at 50–60Hz, making it compatible with electrical systems in most countries worldwide, including the US, Canada, Europe, and Australia.
Q: Can I install the S1 drain pump myself?
A: While the pump comes with a full installation kit and user manual, installation and maintenance should be performed by a qualified HVAC professional to ensure safety and optimal performance.
