MKS SERVO42C Closed-Loop Stepper Motor Controller Nema 17
MKS SERVO42C Closed-Loop Stepper Motor Controller Nema 17

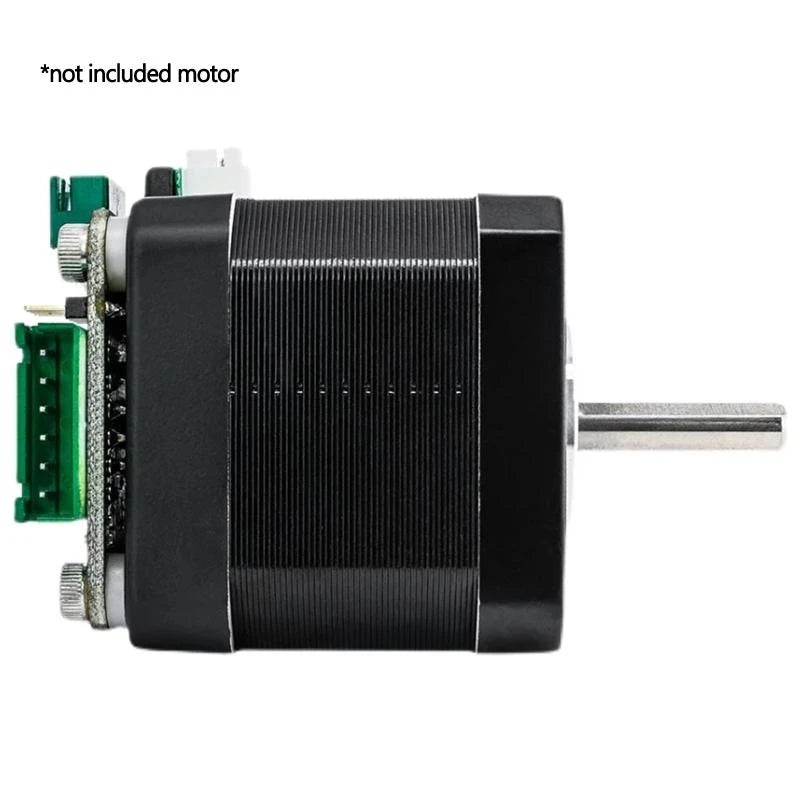

MKS SERVO42C PCBA Closed-Loop Stepper Motor Controller for Nema 17
Take full command of your stepper motor projects with the MKS SERVO42C V1.0 PCBA Controller. This compact, high-performance closed-loop servo controller board combines a 14-bit magnetic encoder with ARM Cortex-M0+ processing power to deliver precise position, speed, and torque control — eliminating missed steps and keeping your motion systems running smoothly at up to 1000 RPM.
Whether you're building a 3D printer, CNC router, or automation rig, the SERVO42C's Field-Oriented Control (FOC) algorithm means low noise, minimal vibration, and reduced heat generation — even under demanding loads.
Made in Mainland China.
Key Features
- Closed-Loop Control: Position, speed, and torque loops run simultaneously — no more lost steps at high speed.
- 14-Bit Magnetic Encoder: Ultra-fine angle resolution of just 0.08° for highly accurate positioning.
- Field-Oriented Control (FOC): Delivers low noise, low vibration, and low heat output.
- 4 Half-Bridge Driver with 8 MOSFETs: High operating efficiency across the full current range.
- Wide Input Voltage: Compatible with 7V–28V power supplies.
- Broad Microstepping Support: 1–256 subdivision (default 16), including odd subdivisions (e.g. 11).
- High Update Frequency: Position & velocity loops at 10 kHz; torque loop at 20 kHz.

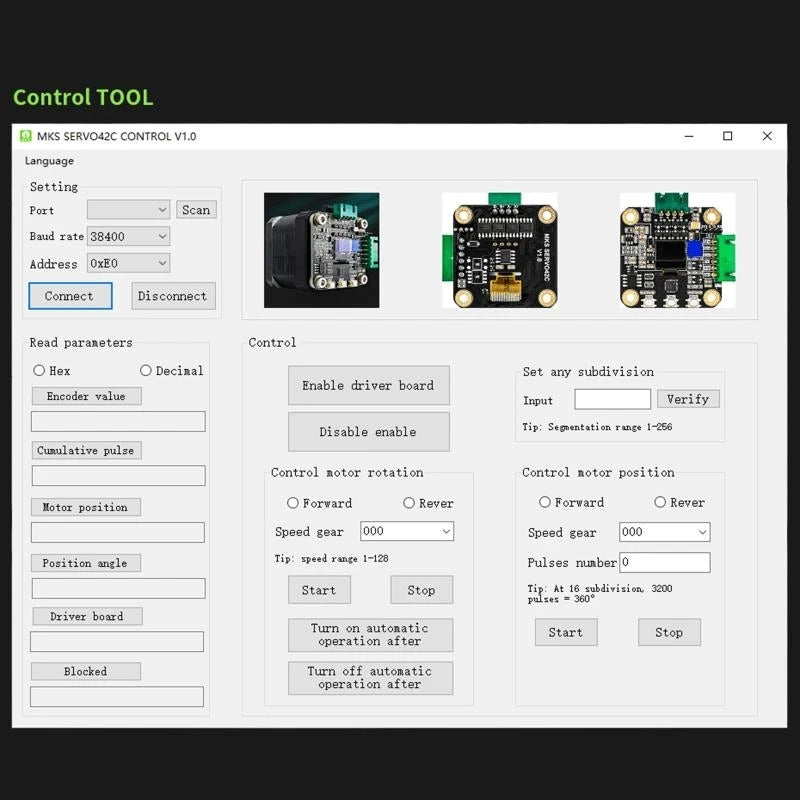

- USART Serial Interface: Connect to a PC via serial port for easy parameter adjustment and monitoring.
- Motor Compatibility: Supports Nema 17 motors with 0.9° or 1.8° step angles.
- 3D Printing Ready: Supports maximum printing speeds of 150–180 mm/s.
Specifications

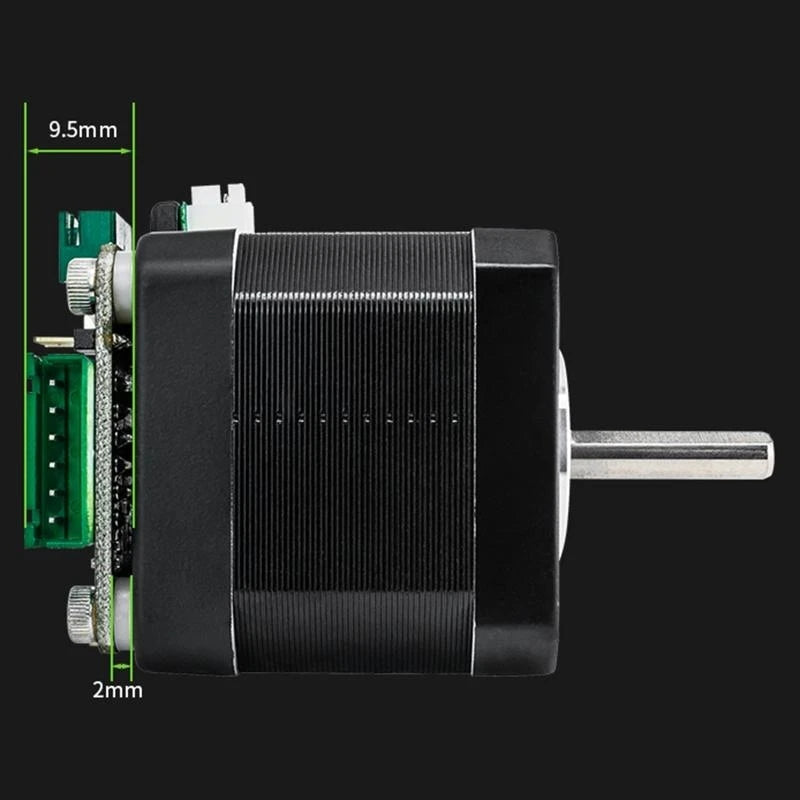

| Board Type | MKS SERVO42C V1.0 |
| Microprocessor | ARM Cortex-M0+ |
| Motor Driver | 4 Half-Bridge with 8 MOSFETs |
| Input Voltage | 7V – 28V |
| Encoder | 14-Bit Magnetic Encoder |
| Adjustable Current | 0 – 3000 mA |
| Subdivision | 1 – 256 (Default: 16) |
| Maximum Speed | 1000 RPM |
| Angle Resolution | 0.08° |
| Update Frequency | Position 10 kHz / Velocity 10 kHz / Torque 20 kHz |
| PCBA Size | ~39 × 35.8 mm (1.54 × 1.41 in) |
Package Contents
- 1 × MKS SERVO42C V1.0 Closed-Loop Stepper Motor Controller PCBA
