NeoKey Socket Breakout Board for MX-Compatible Mechanical Key Switches

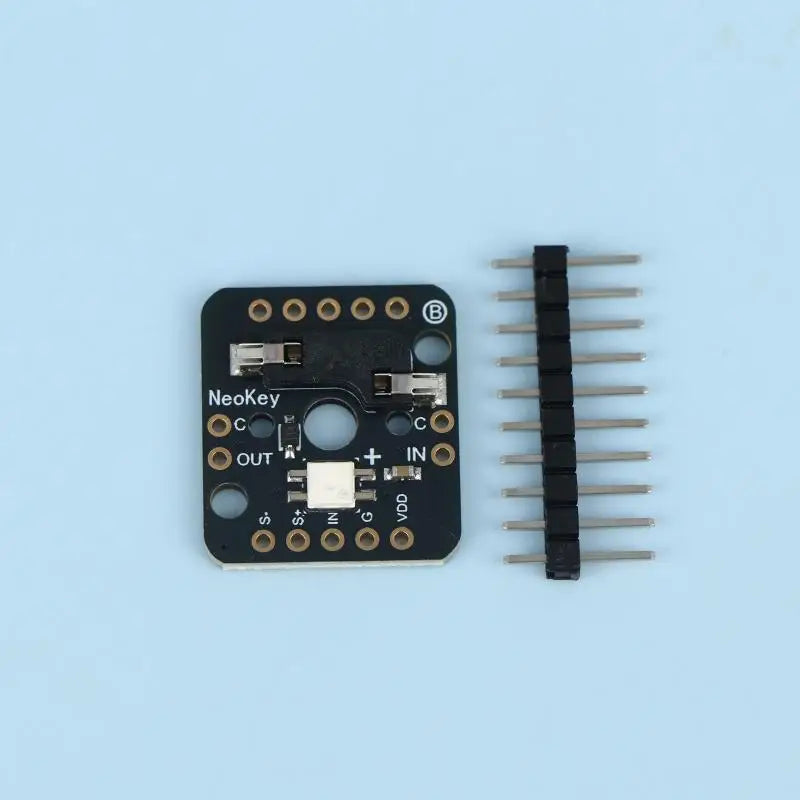

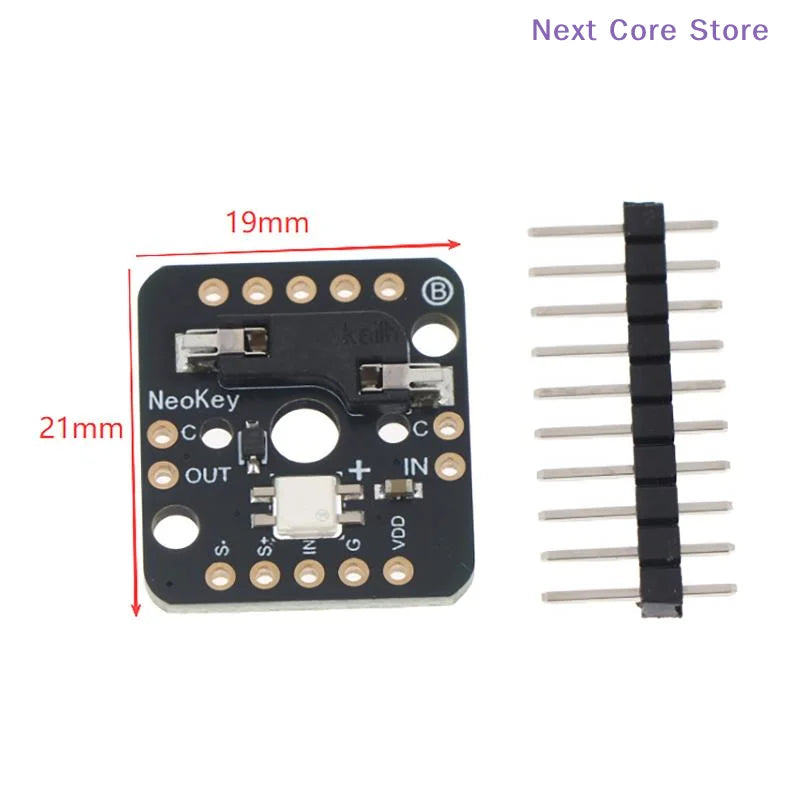

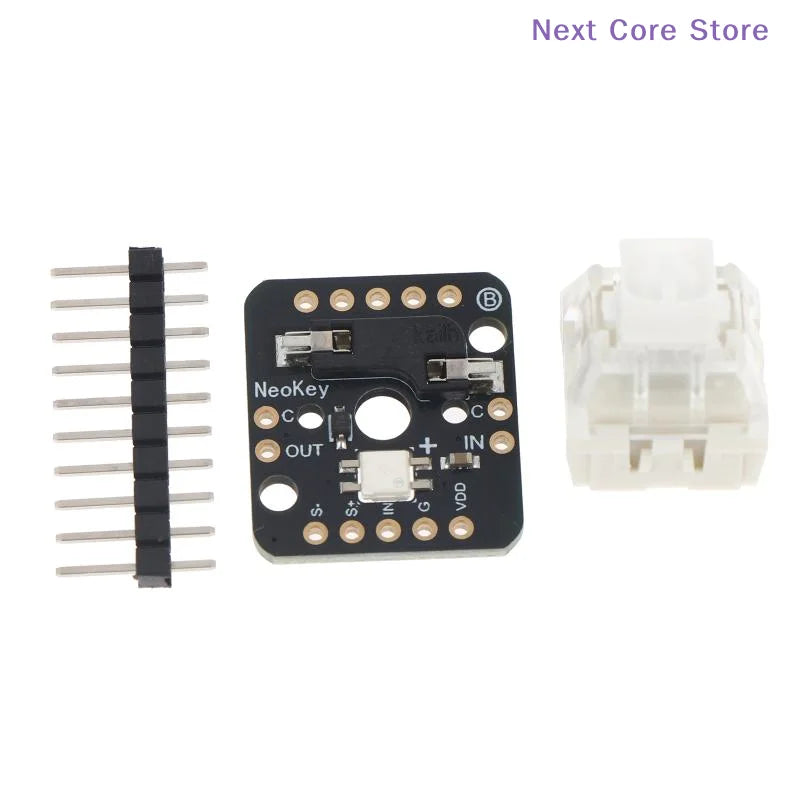

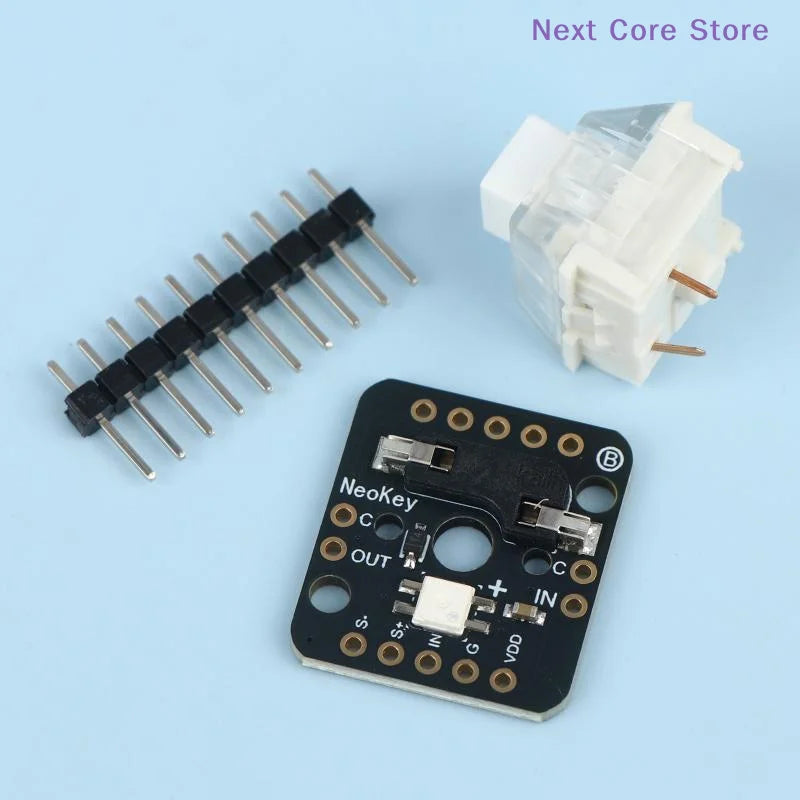

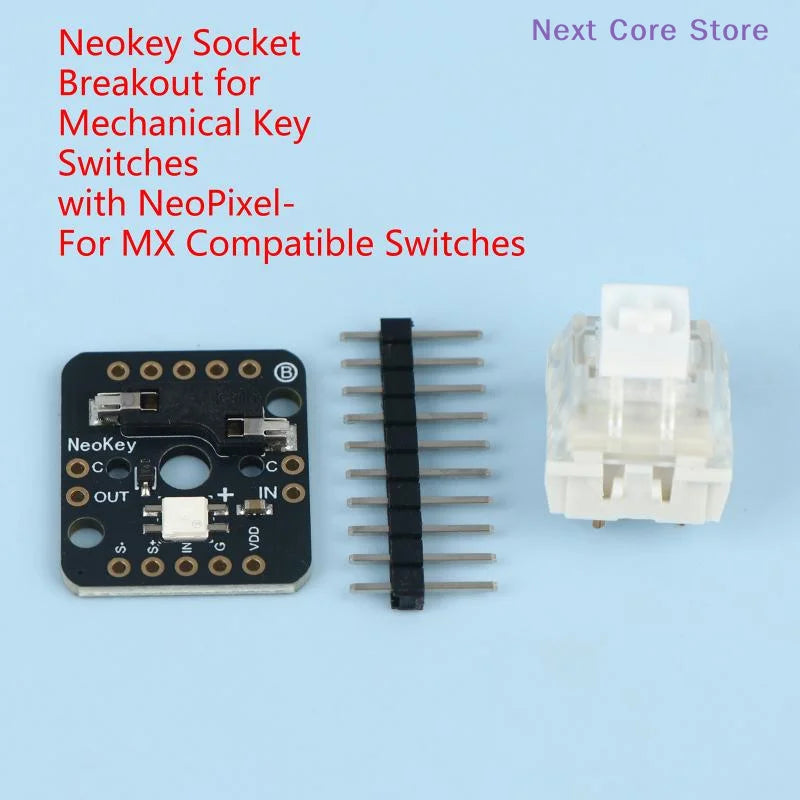

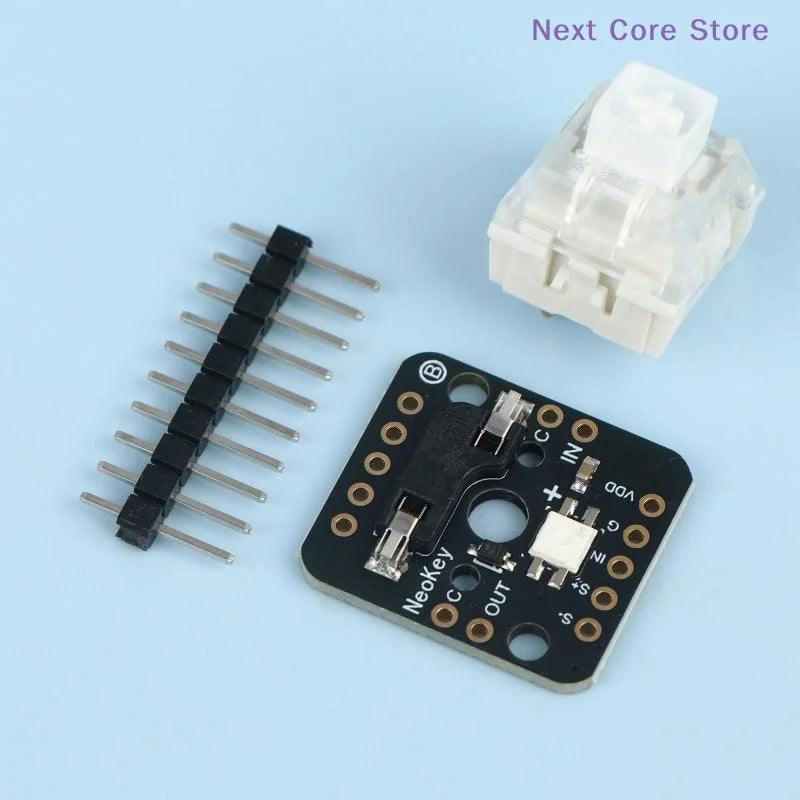

Build custom keyboard matrices and DIY electronics projects with ease using the NeoKey Socket Breakout Board. Designed for MX-compatible mechanical switches, this compact PCB features a Kailh hot-swap socket so you can plug in any MX-compatible switch without soldering — simply swap switches in seconds. A built-in 1N4148 signal diode is included in series with the switch, making it simple to create full key-grid matrices without worrying about ghosted key presses.
Made in Mainland China.
Key Features
- Hot-Swap Kailh Socket: Plug in any MX-compatible mechanical switch — no soldering required. A small dot of hot glue or epoxy keeps the switch firmly in place.
- Built-in 1N4148 Diode: Eliminates ghosting in key-grid matrices for reliable, accurate key detection in every build.

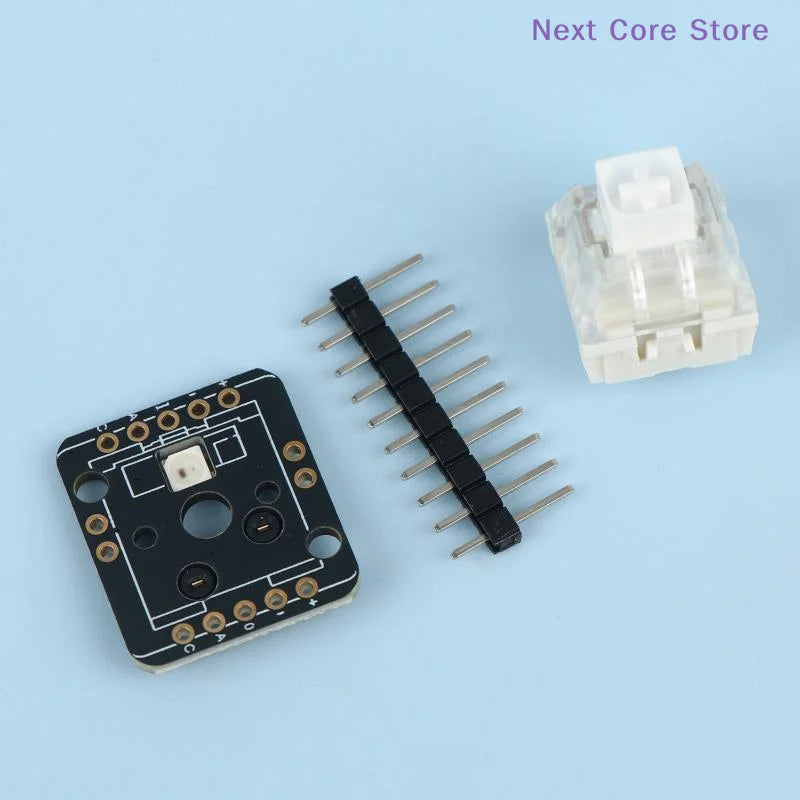

- Reverse-Mount RGB LED: Each board features a single reverse-mount pixel shining upward through the switch's LED window, fully chainable for stunning lighting effects.
- Chainable In/Out Pins: Link multiple boards together and control them as a single strand — perfect for custom keyboards, macro pads, and interactive builds.
- Flexible 5-Pin Layout on 0.1" Grid: Two rows of 5-pin contacts on both sides for maximum mechanical stability and versatile wiring options.
- Wide Voltage Support: Powers from 3V to 5VDC to suit virtually any microcontroller setup.
Pin Breakdown
- VDD (+): Power input — supply 3 to 5VDC
- GND (-): Ground connection
- In (I) / Out (O): Data input and output for chaining multiple boards
- Switch Anode (A): Positive side of the switch+diode — connect to microcontroller (pull-up) or logic power (pull-down)
- Switch Cathode (C): Negative side of the switch+diode — connect to ground (pull-up) or microcontroller (pull-down)
Specifications
- Compatibility: MX-compatible mechanical switches
- Socket Type: Kailh hot-swap socket
- Included Diode: 1N4148 signal diode
- Pin Grid: 0.1" (2.54mm) standard pitch
- Voltage: 3–5VDC
- Package Quantity: 1 pc
- Brand: eelhoe
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Note: Please allow 2–3% dimensional variance due to manual measurement. Colors may vary slightly from screen to screen.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What switches are compatible with the NeoKey Socket Breakout Board?
A: The NeoKey Socket Breakout Board is designed for any MX-compatible mechanical key switch. The Kailh hot-swap socket allows you to plug in MX-compatible switches from a wide range of brands without any soldering.
Q: Do I need to solder the switch to the board?
A: No soldering is needed for the switch itself thanks to the Kailh hot-swap socket. However, you may want to apply a small amount of hot glue or epoxy to secure the switch in place. You will need to solder the pin headers to the board for circuit connections.
Q: Can I chain multiple NeoKey Socket Breakout Boards together?
A: Yes! Each board features dedicated In (I) and Out (O) pins that allow you to chain multiple boards together and control them as a single strand, making it easy to build full keyboard matrices or macro pads with chainable RGB lighting.
Q: What voltage does the NeoKey Socket Breakout Board support?
A: The board supports a supply voltage of 3 to 5VDC via the VDD pin, making it compatible with a wide range of popular microcontrollers including Arduino and Raspberry Pi-based systems.
