No-Tune End Fed Half Wave Antenna Module 50Ω 10W PCB

No-Tune End Fed Half Wave Antenna Module 50Ω 10W PCB

$23.50 $27.80
Color10w

No-Tune End Fed Half Wave Antenna Module – 50 Ohms | 10W | Portable PCB Assembly

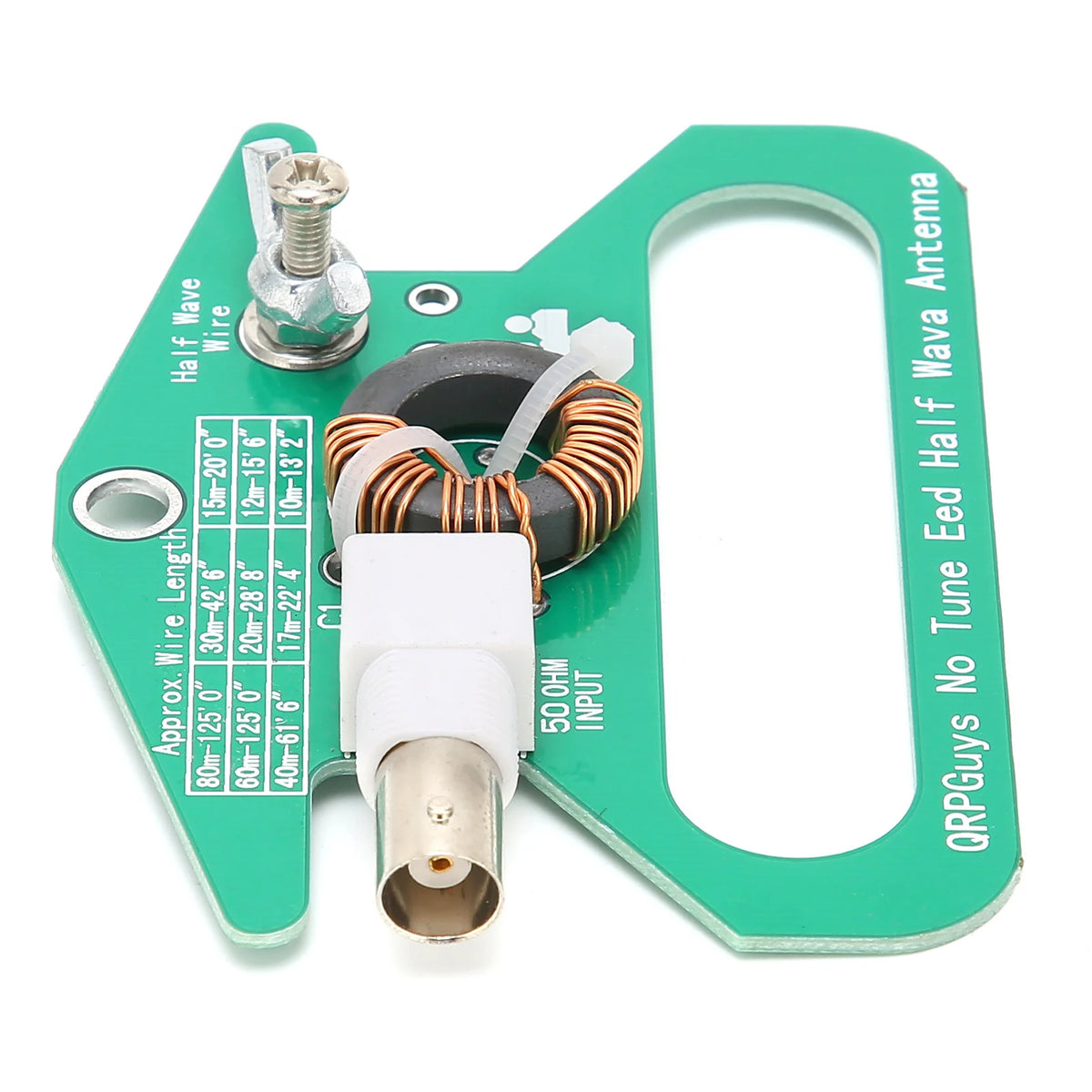

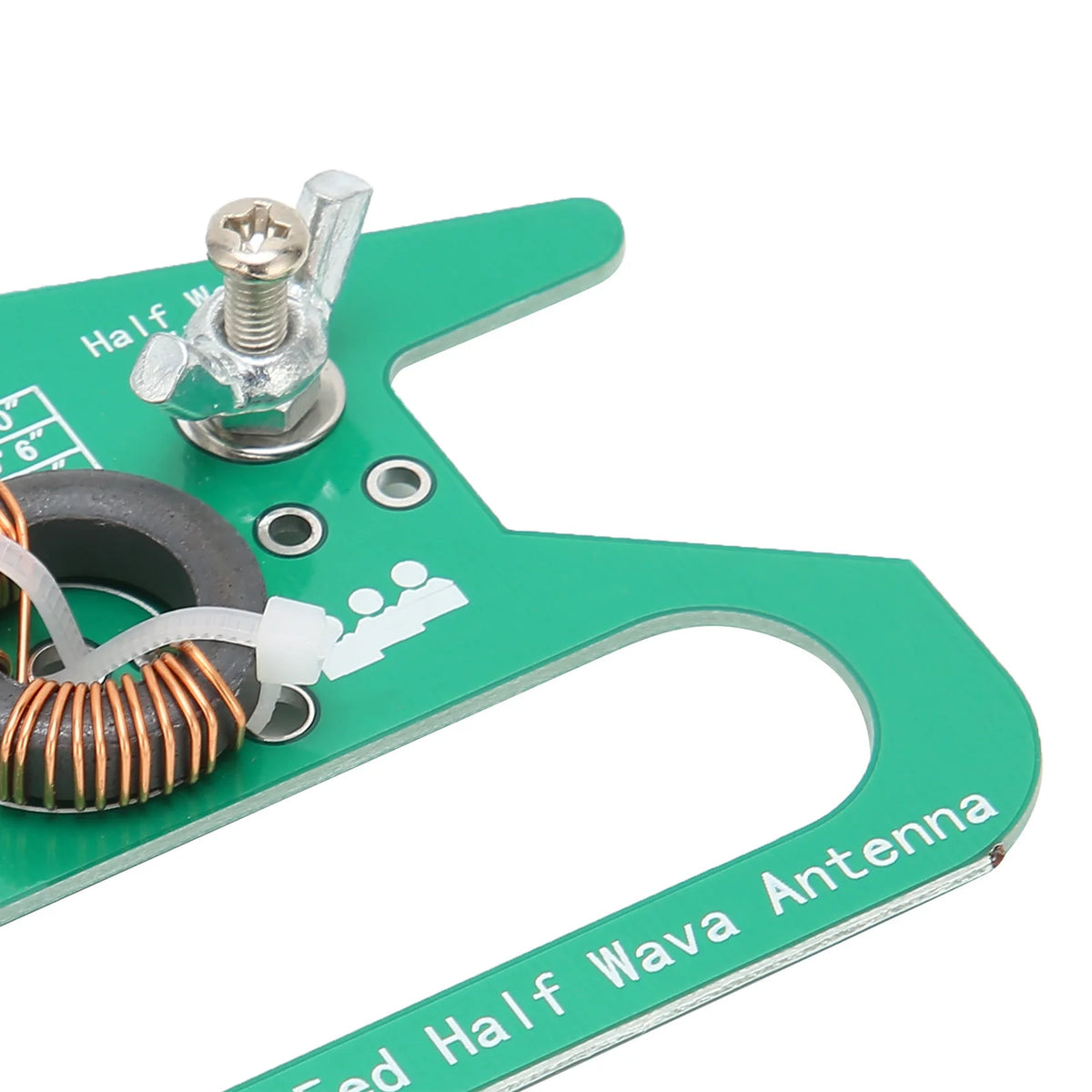

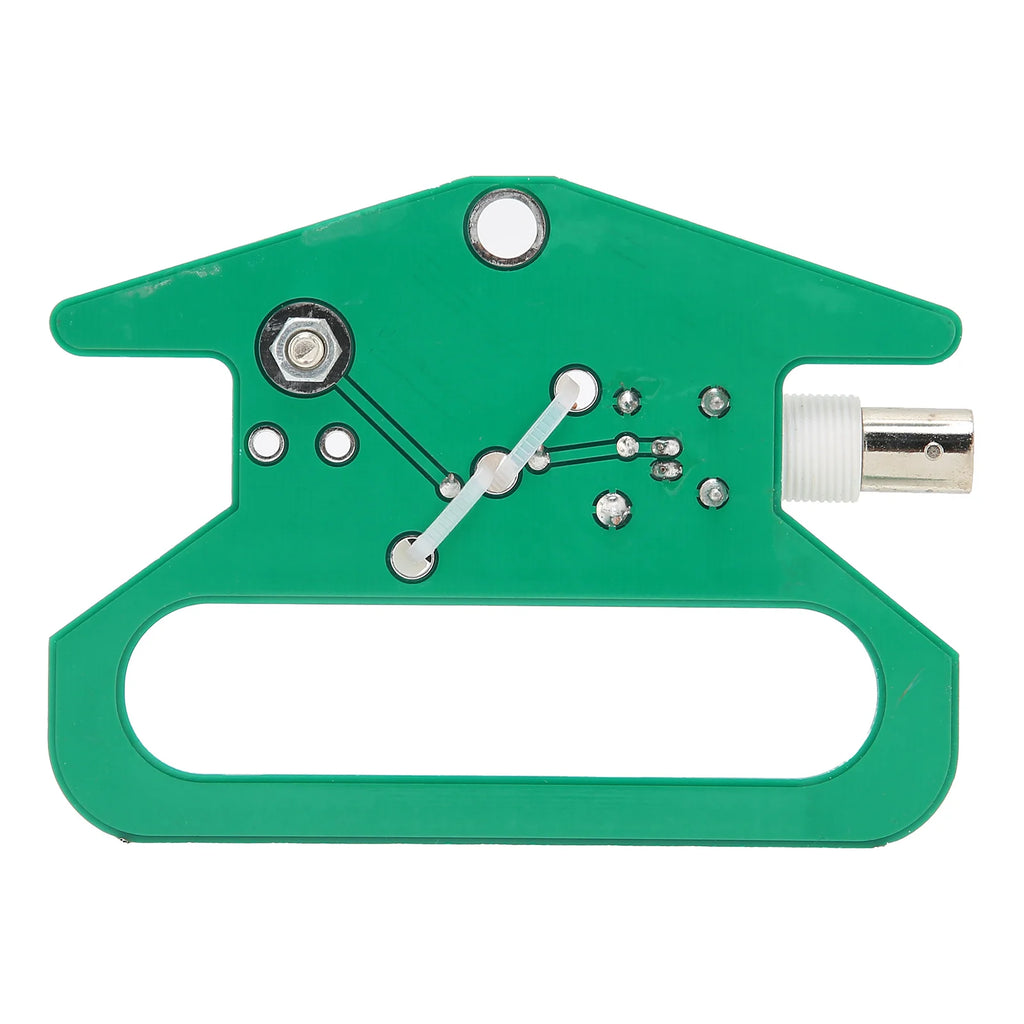

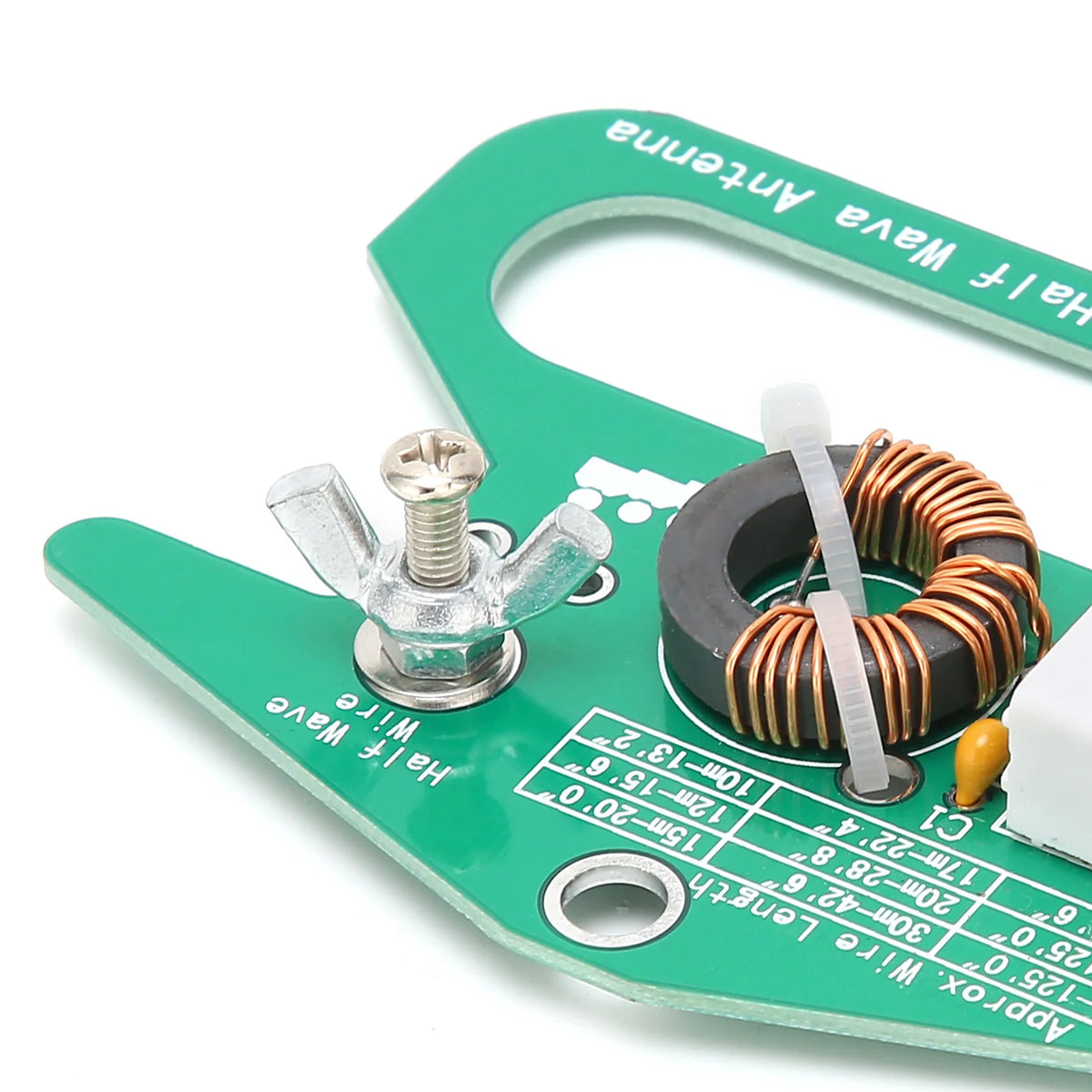

The No-Tune End Fed Half Wave (EFHW) Antenna Module is a compact, ready-to-use PCB assembly designed for amateur radio operators and RF enthusiasts who want a hassle-free, no-tune antenna solution. With a matched 50-ohm impedance output, this module connects directly to standard coaxial feedlines without the need for an additional antenna tuner — saving you time and effort in the field or at home.

Built on a high-quality 1.6mm double-sided PCB with full tinning process, this module delivers reliable performance for both low and high current applications. Its one-piece molded design ensures a smooth, burr-free surface and straightforward installation. The large heat-dissipation area keeps the module running stably over extended operating sessions — ideal for portable or field-day setups.

Made in Mainland China.

Key Features

  • No-Tune Design: Plug-and-play operation — no antenna tuner required for standard 50Ω systems
  • Premium PCB Construction: 1.6mm thick double-sided board with full tinning for excellent current handling
  • One-Piece Molding: Burr-free, smooth surface for safe and easy assembly
  • Large Heat Dissipation Area: Supports sustained, long-duration operation without overheating
  • Stable & High-Performance: Engineered for reliable RF performance across supported bands
  • Portable & Lightweight: Compact form factor ideal for field use, hiking, and portable radio setups

Specifications

Item Type No-Tune End Fed Half Wave Antenna Module
Material PCB (Printed Circuit Board)
Impedance 50 Ohms
Rated Power 10W
Voltage 24V (Low voltage: Below 50Vac or 75Vdc)
Battery Included No

Package Contents

  • 1 × No-Tune End Fed Half Wave Antenna Module

Important Usage Notes

  • Do NOT operate beyond the rated power (10W)
  • Do NOT apply over-voltage to the module
  • Do NOT exceed the rated current limits

You May Also Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: Do I need an antenna tuner to use this End Fed Half Wave Antenna Module?

A: No — that's the biggest advantage of this module. The no-tune EFHW antenna module is designed with a built-in 50-ohm impedance match, allowing it to connect directly to standard coaxial feedlines and most transceivers without any additional tuner required.

Q: What is the maximum power this antenna module can handle?

A: This module is rated for up to 10 watts. Do not exceed this rated power, voltage, or current to ensure safe and reliable operation. It is ideal for QRP (low-power) and portable radio applications.

Q: Is this module suitable for portable or field use?

A: Absolutely. The compact PCB form factor and lightweight design make this EFHW antenna module an excellent choice for field-day operations, portable amateur radio setups, hiking, and emergency communications kits. It is easy to assemble and deploy quickly in the field.

Q: What materials is the PCB made from?

A: The module is built on a high-quality 1.6mm thick double-sided printed circuit board (PCB) with a full tinning process applied. This ensures excellent conductivity, durability, and reliable performance for both small and large current applications. The one-piece molding means no burrs and a smooth finish.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
