OV9281 1MP Global Shutter Monochrome Camera – Raspberry Pi
OV9281 1MP Global Shutter Monochrome Camera – Raspberry Pi
OV9281 1MP Global Shutter Monochrome Camera – High-Speed Vision for Raspberry Pi
Capture fast-moving objects with absolute clarity using this OV9281-based 1MP monochrome global shutter camera. Designed for compatibility with Raspberry Pi 4B, 5B, Zero, and Zero 2W boards, this compact camera module is built for real-time visual detection, motion tracking, gesture recognition, and machine vision applications.
Key Features
- Global Shutter Technology: All pixels are exposed simultaneously, completely eliminating rolling shutter distortion and "jelly effect" — perfect for imaging fast-moving objects with sharp, distortion-free results.
- High Frame Rate Output: Delivers 1280×800 resolution at up to 120fps. Switch to VGA mode for up to 210fps. Supports ROI (Region of Interest) cropping and pixel defect correction for demanding real-time vision tasks.
- Plug-and-Play Raspberry Pi Compatibility: Features a dual-channel MIPI CSI interface for seamless, tool-free connection with Raspberry Pi 4B, 5B, Zero, and Zero 2W.
- Enhanced Low-Light Sensitivity: The monochrome sensor has no IR-cut filter, maximizing light intake and sensitivity in low-light or infrared environments — reducing processing overhead and improving detection accuracy.

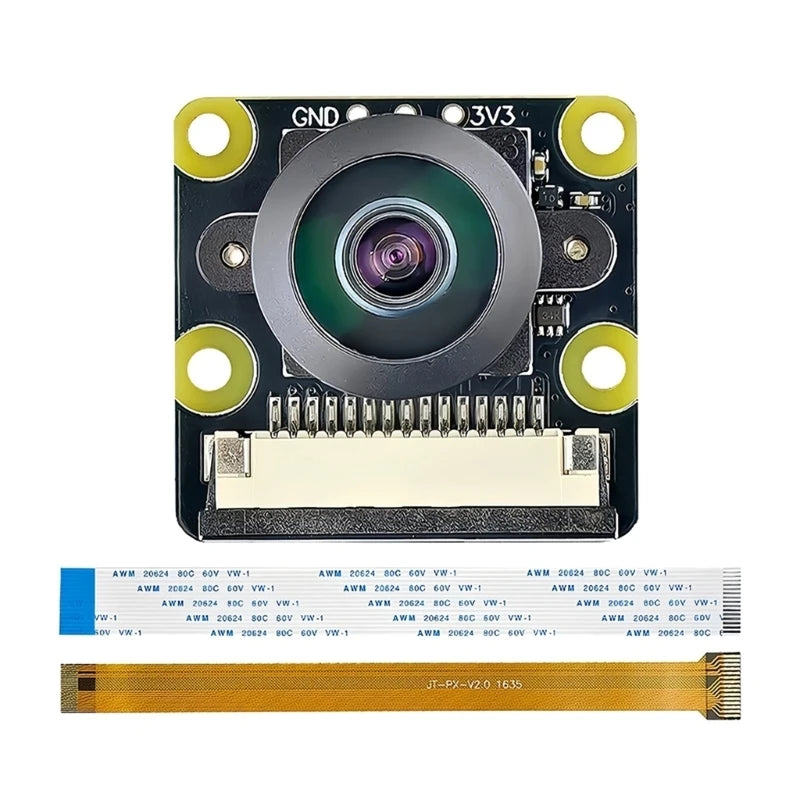

- Three Field-of-View Options: Choose from a 79° standard lens, 110° wide-angle lens, or 160° ultra-wide-angle lens to match your specific application requirements.
Specifications
| Sensor | OV9281 Monochrome (Black & White) |
| Resolution | 1MP (1280×800) |
| Shutter Type | Global Shutter |
| Max Frame Rate | 120fps @ 1280×800 / 210fps @ VGA |
| Sensor Size | 1/4 inch |
| IR Filter | None (full-spectrum monochrome) |
| Interface | Dual-channel MIPI CSI |
| Field of View | 79° / 110° / 160° |
| Board Material | PCB & Metal |

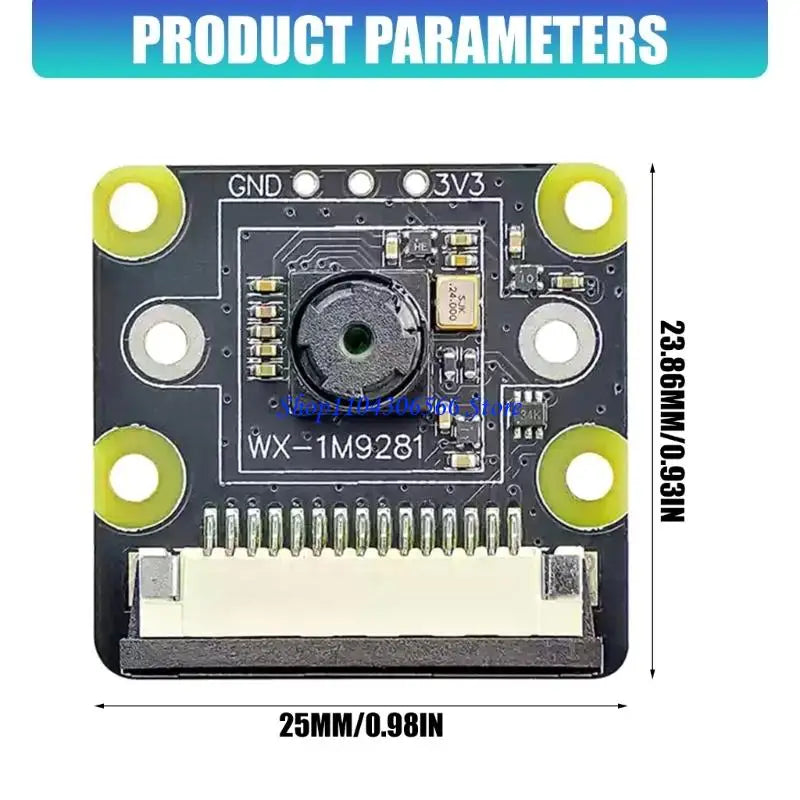

| Dimensions | 25 × 23.86 mm |
| Weight | 45g |
| Compatible Boards | Raspberry Pi 4B, 5B, Zero, Zero 2W |
What's in the Box
- 1 × OV9281 Global Shutter Monochrome Camera Module
Made in Mainland China.
Related Products You May Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What Raspberry Pi boards is this OV9281 global shutter camera compatible with?
A: This camera module is designed for plug-and-play use with Raspberry Pi 4B, 5B, Zero, and Zero 2W boards via its dual-channel MIPI CSI interface. No additional drivers or adapters are typically required.
Q: What is the difference between a global shutter and a rolling shutter camera?
A: A global shutter captures all pixels at exactly the same moment, which prevents motion distortion on fast-moving objects. A rolling shutter scans line by line, which can cause a "jelly" or skewing effect. This OV9281 module uses a global shutter, making it ideal for motion tracking, gesture recognition, and machine vision tasks.
Q: Can I use this camera in low-light or infrared applications?
A: Yes. Because this is a monochrome sensor without an IR-cut filter, it is highly sensitive to both visible light and near-infrared light, making it well-suited for low-light environments and IR-illuminated applications.
Q: What field-of-view lens options are available?
A: This camera is available with three lens options: 79° (standard), 110° (wide-angle), and 160° (ultra-wide-angle). Choose the option that best fits your application's viewing requirements.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
