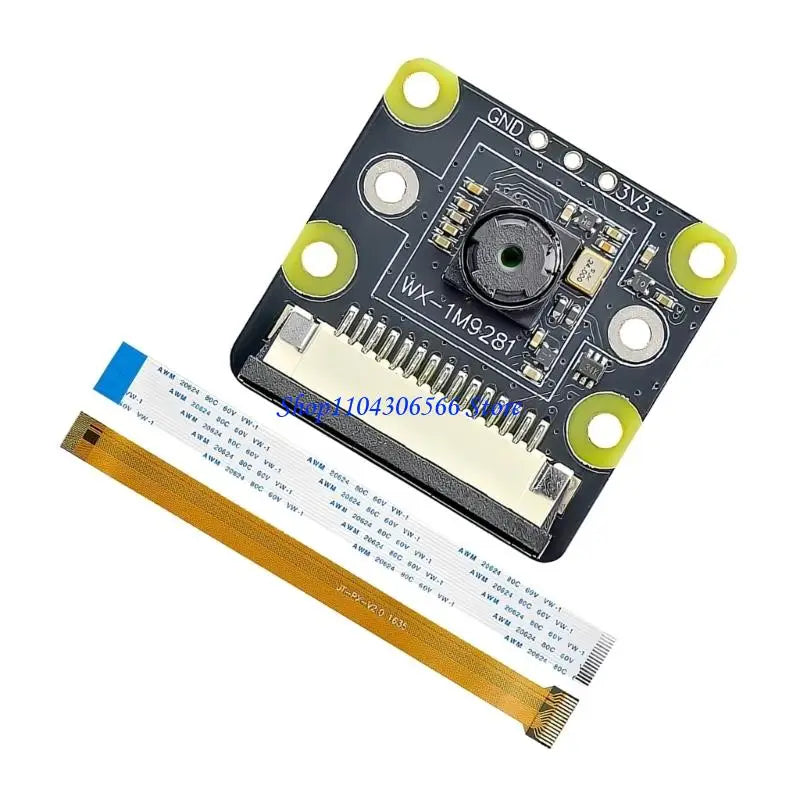

OV9281 1MP Global Shutter Monochrome Camera – Raspberry Pi

OV9281 1MP Global Shutter Monochrome Camera – High-Speed, Distortion-Free Imaging

Capture fast-moving subjects with crystal clarity using this OV9281 1MP Global Shutter Monochrome Camera. Designed for makers, developers, and machine vision enthusiasts, this compact camera module eliminates rolling shutter artifacts — delivering sharp, distortion-free frames even when tracking rapid motion. Whether you're building a gesture recognition system, a motion tracking rig, or a real-time visual detection project, this camera is engineered to keep up.

Made in Mainland China.

Key Features

• Global Shutter Technology: The OV9281 sensor synchronizes all pixel exposures simultaneously, completely eliminating the "jelly effect" caused by rolling shutters — ideal for fast-moving or high-speed subjects.
• High Frame Rate Output: Delivers 1280×800 resolution at up to 120fps in standard mode, and up to 210fps in VGA mode. Supports ROI (Region of Interest) cropping and point defect correction for demanding real-time applications.
• Plug-and-Play Raspberry Pi Compatibility: Features a MIPI CSI dual-channel connection, fully compatible with Raspberry Pi 4B, 5B, Zero, and Zero 2 W boards — no complex setup required.
• Enhanced Low-Light Sensitivity: The monochrome sensor omits the IR filter, maximizing light intake and sensitivity in dim or low-light environments, while also reducing processing overhead.
• Three Field-of-View Options: Choose from 79° standard, 110° wide-angle, or 160° ultra-wide-angle lens options to match your specific application requirements.

Specifications

Package Includes

• 1× Global Shutter Monochrome Camera Module

Related Products You May Like

• 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
• 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
• 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What is the difference between a global shutter and a rolling shutter camera?

A: A global shutter captures all pixels at the exact same moment, preventing motion distortion like the "jelly effect" that rolling shutter cameras can produce when photographing fast-moving objects. This OV9281 camera uses global shutter technology, making it ideal for machine vision, motion tracking, and high-speed imaging applications.

Q: Which Raspberry Pi boards is this camera compatible with?

A: This camera module is compatible with Raspberry Pi 4B, 5B, Zero, and Zero 2 W via its MIPI CSI dual-channel interface. It is designed for plug-and-play use with these boards, requiring no additional adapters or complex configuration.

Q: Why is a monochrome (black and white) sensor better for certain applications?

A: Monochrome sensors omit the color (Bayer) filter, which means each pixel receives more light. This results in significantly higher sensitivity, sharper contrast, and better performance in low-light environments compared to a color sensor of the same resolution — making it excellent for machine vision, barcode scanning, and gesture recognition tasks.

Q: Can I choose the field of view for this camera?

A: Yes! This camera is available in three lens options: 79° standard, 110° wide-angle, and 160° ultra-wide-angle. You can select the field of view that best suits your project requirements at the time of purchase.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
