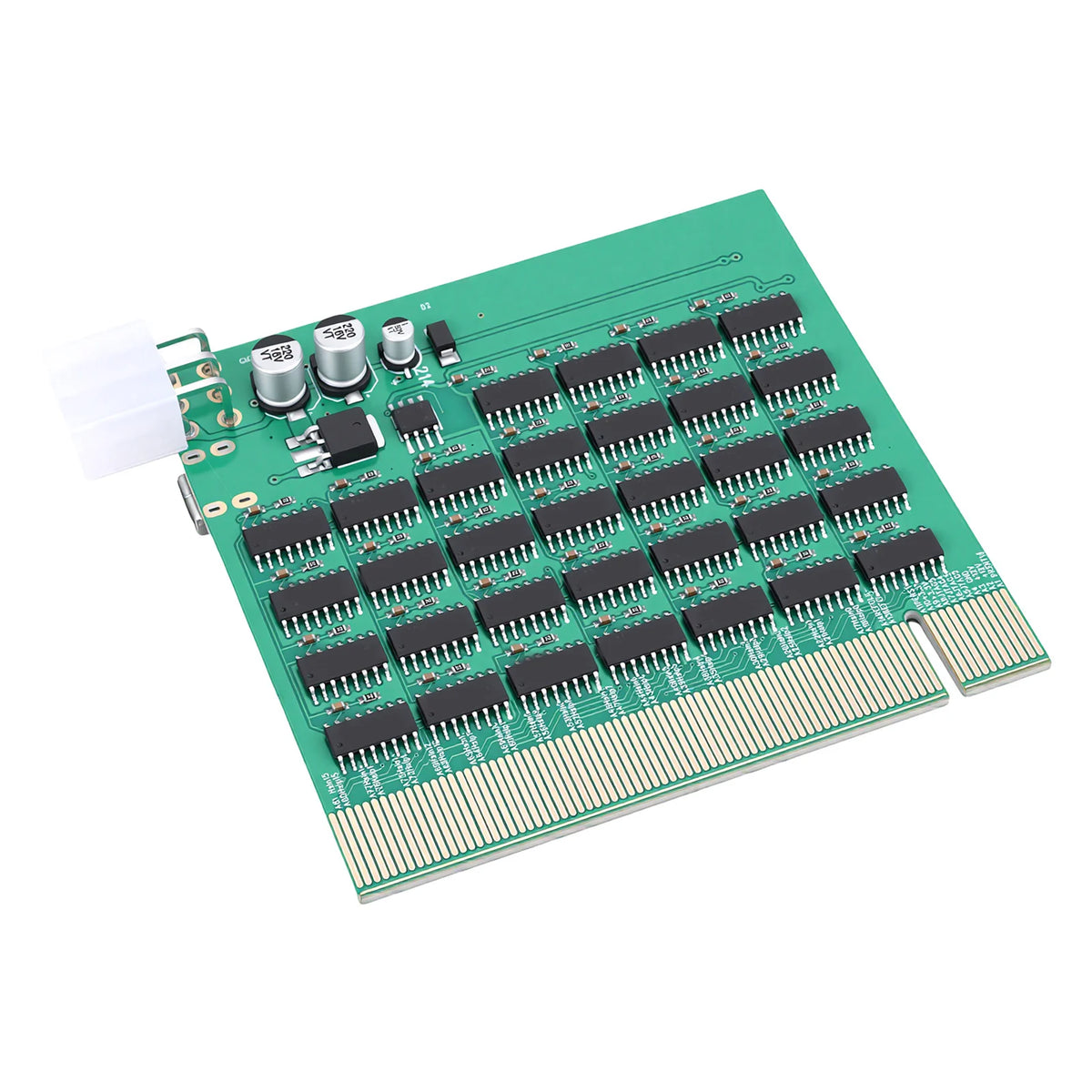

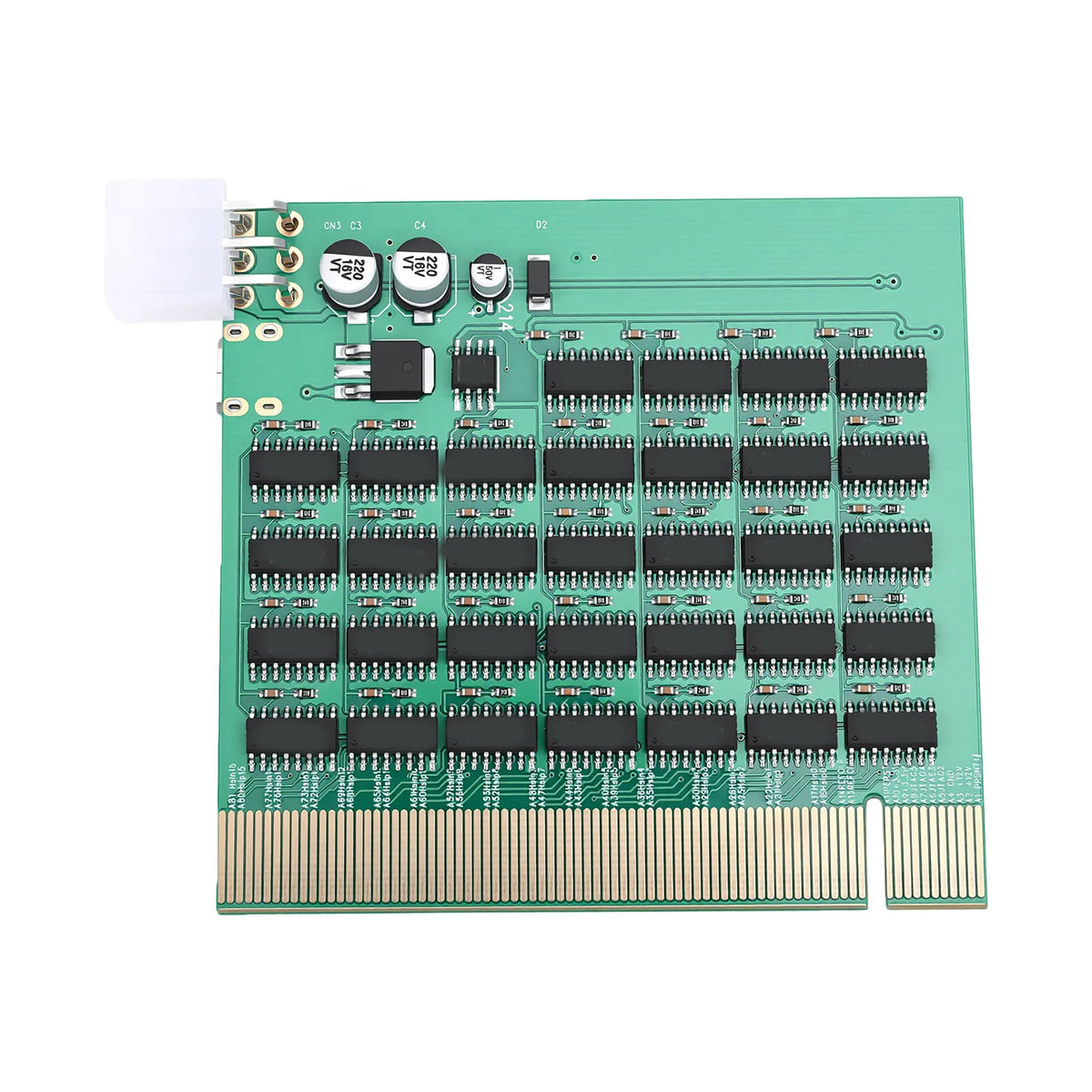

PCIe 16X Slot Tester Card with LED Indicators
Take the guesswork out of desktop motherboard diagnostics with this professional-grade PCIe 16X Slot Tester Card. Simply insert it into any PCIe 16X slot to instantly identify open or short circuits in the Southbridge chipset — helping you determine whether issues stem from a faulty graphics card, damaged chip, or isolated capacitor. Powered conveniently via USB Type-C or a standard 6-pin GPU power connector, this compact diagnostic card is an essential addition to any PC technician's toolkit.
Made in Mainland China.
Key Features
- Instant PCIe 16X Diagnostics: Insert into the PCIe 16X slot to automatically detect open or short circuits in the Southbridge — no manual probing required.
- LED Fault Indicator Array: Press the onboard switch to illuminate all LEDs simultaneously. Any unlit LED pinpoints the corresponding Southbridge pin for further inspection, including isolation capacitor checks.

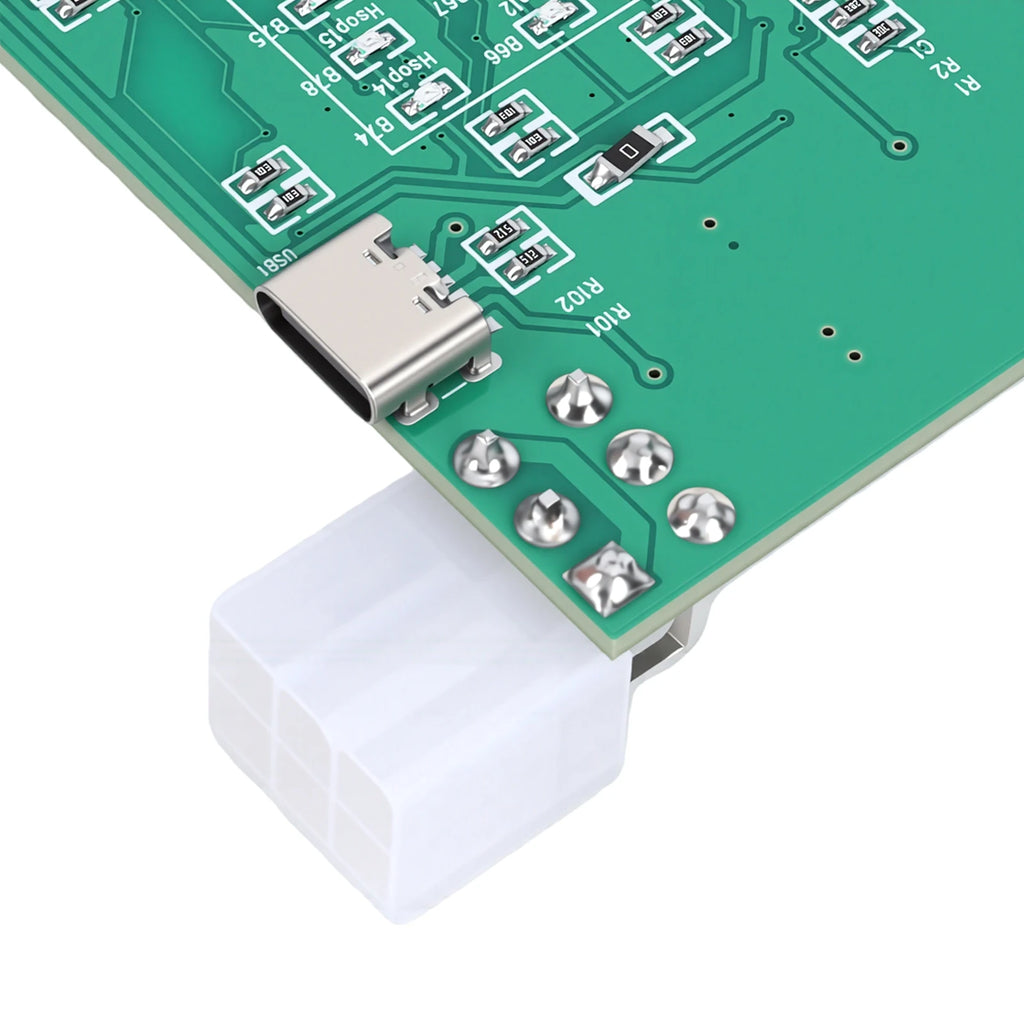

- Flexible Power Input: Accepts 6–24V DC via USB Type-C cable or directly through a motherboard 6-pin GPU power connector. Activate by shorting the 24P power supply green and black wires.
- Software-Controlled Circuit: Rapidly diagnoses Southbridge open/short conditions, streamlining the workflow and eliminating the need for a separate resistance card.
- Essential Repair Tool: Ideal for diagnosing motherboards that fail to POST (FF code or no display), or systems exhibiting unstable GPU output — covers the most common display-related desktop failures.
- PCB Construction: Durable printed circuit board build designed to withstand repeated insertion cycles in a busy repair environment.
Specifications
| Item Type | PCIe 16X Slot Tester Card |
| Material | PCB |
| Voltage Range | 6–24V DC |
| Power Input | USB Type-C or 6-Pin GPU Connector |
| Battery | Not required |
| Country of Origin | Mainland China |
What's in the Box

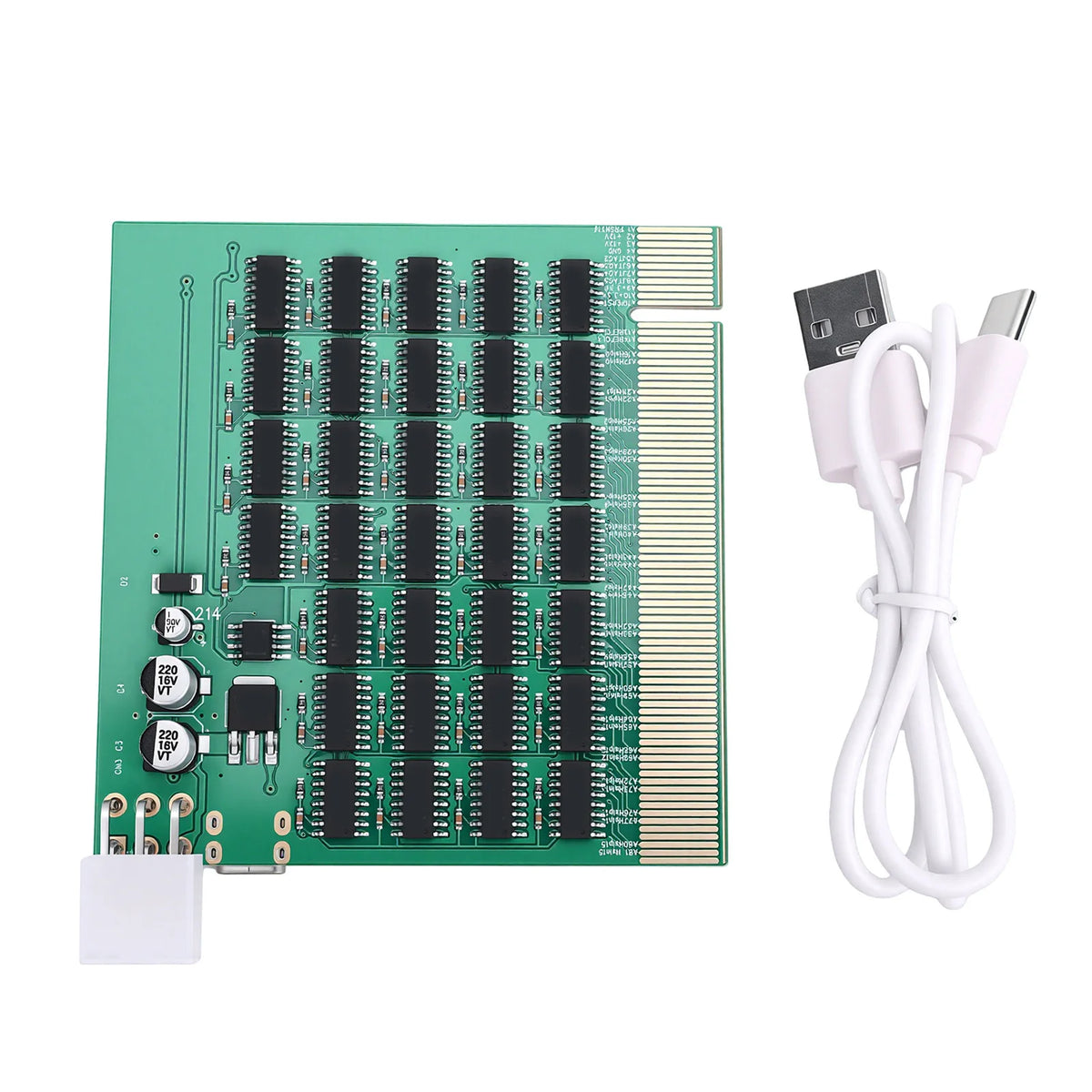

- 1 × PCIe 16X Tester Card with LED Indicators
- 1 × USB Type-C Cable
How to Use
- Short the green and black wires of the 24P ATX power supply to activate it, OR connect power via Type-C cable.
- Insert the tester card firmly into the PCIe 16X slot on the motherboard.
- Press the onboard switch — all LEDs should illuminate.
- Any LED that remains off indicates a fault at the corresponding Southbridge pin or isolation capacitor.
Related Products You May Like
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit – HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Which motherboards is this PCIe 16X slot tester compatible with?
A: This PCIe 16X tester card is compatible with any desktop motherboard that features a standard PCIe 16X (x16) expansion slot. It is particularly useful for diagnosing ATX and Micro-ATX form factor boards that are failing to boot, displaying an FF POST code, or producing no video output.
Q: Does the PCIe tester card need an external power source?
A: The tester supports two power options: you can connect a USB Type-C cable (6–24V DC input) or use the motherboard's 6-pin GPU power connector. No additional batteries are required, making it quick to set up on a workbench.
Q: What does it mean if one of the LEDs does not light up?
A: Each LED on the card corresponds to a specific Southbridge pin or signal line. If any LED fails to illuminate when you press the switch, that indicates a potential open or short circuit on the corresponding pin, or a damaged isolation capacitor — giving you a clear starting point for further board-level repair.
Q: Can this card diagnose GPU issues as well as motherboard faults?
A: Yes. By isolating the PCIe slot signals, the tester helps you determine whether a no-display or unstable graphics issue originates from the motherboard's Southbridge circuitry or from the graphics card itself, saving significant diagnostic time.
