PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP R37D CN

PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card

R37D / CN
$368.38 $435.83
Skip to product information
PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP R37D CN
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP R37D CN
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP R37D CN
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
  • PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card PCIe Expansion Card HIP
PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card

PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Card

$368.38 $435.83
Color
Ships FromCN

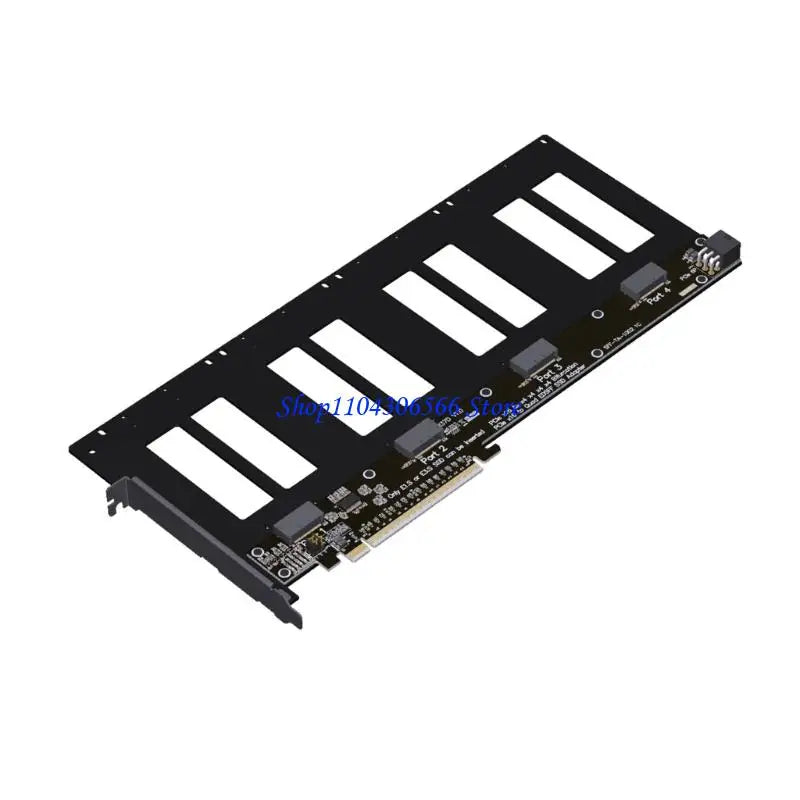

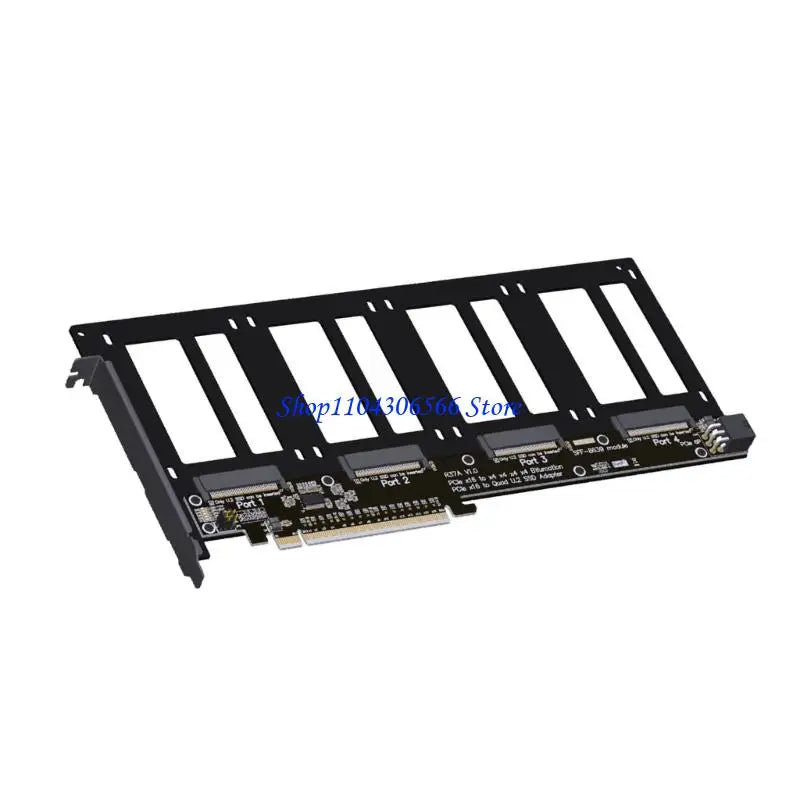

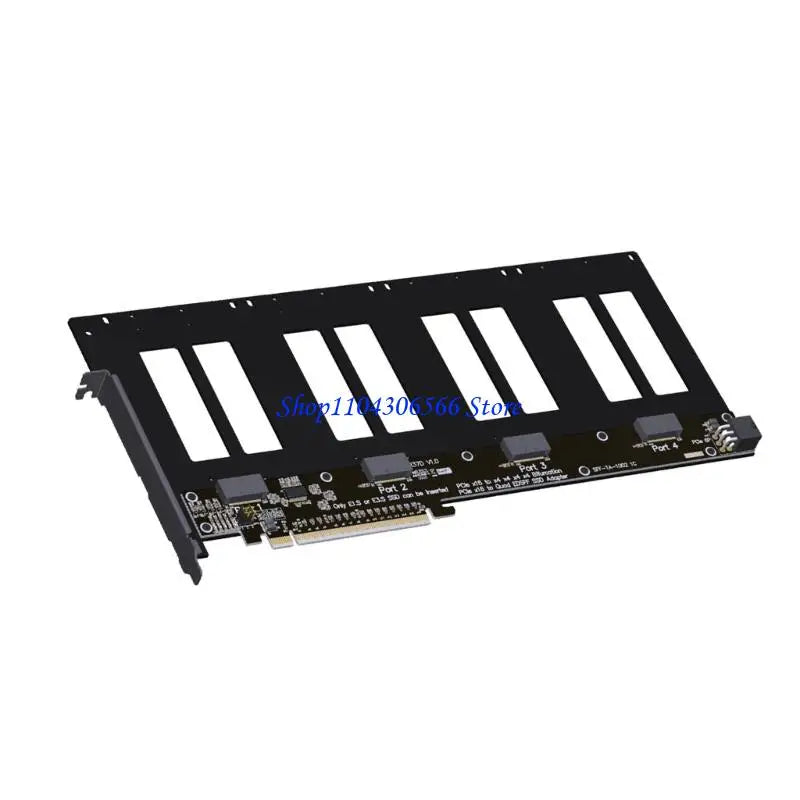

PCIe 5.0 x16 to 4-Port Bifurcation Splitter Expansion Card

Unlock the full potential of your server or workstation storage with this high-bandwidth PCIe 5.0 x16 to 4-Port Bifurcation Splitter Adapter Expansion Card. Engineered for demanding environments, this card splits a single PCIe 5.0 x16 slot into four independent lanes, each delivering up to 128 Gbps of bandwidth — a total throughput of 4×128 Gbps — for blazing-fast data transfer with U.2 and E1.S/E3.S NVMe drives.

Made in Mainland China.

Key Features

  • PCIe 5.0 x16 Support: Harnesses next-generation PCIe 5.0 technology for maximum throughput, future-proofing your storage infrastructure.
  • 4-Port Expansion: Splits one x16 slot into four independent connections, allowing simultaneous use of multiple U.2 or E1.S/E3.S NVMe drives.
  • 4 × 128 Gbps Bandwidth: Each port delivers up to 128 Gbps of dedicated bandwidth, eliminating bottlenecks in high-performance workloads.
  • Dedicated E1.S & E3.S Baseplate: Integrated baseplate ensures perfect drive alignment and a stable, secure connection for E1.S and E3.S form-factor drives.
  • Gold-Plated Connectors (10U Thickness): Premium-grade connectors ensure long-lasting signal integrity and corrosion resistance for reliable operation.
  • Easy Integration: No assembly required — plug directly into your compatible PCIe 5.0 x16 motherboard slot and expand storage capacity effortlessly.

Specifications

Interface PCIe 5.0 x16
Ports 4 × U.2 / E1.S / E3.S
Bandwidth Per Port 128 Gbps
Type R37A / R37D
R37A Dimensions Approx. 29.4 × 13.6 cm / 11.57 × 5.37 in
R37D Dimensions Approx. 32.34 × 15.14 cm / 12.73 × 5.93 in
Connector Plating Gold-plated, 10U thickness
Material Plastic & PCB
Assembly Required No
Origin Mainland China

Package Includes

  • 1 × PCIe 5.0 x16 to 4-Port Bifurcation Splitter Expansion Card

Notes

  • Please allow ±1–2 cm measurement variance due to manual measurement methods.
  • Colors may vary slightly between product images and the actual item due to monitor calibration differences.
  • Motherboard must support PCIe bifurcation (x4x4x4x4) in BIOS/UEFI for full 4-port functionality.

You May Also Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What drives are compatible with this PCIe 5.0 x16 bifurcation splitter adapter card?

A: This expansion card is compatible with U.2, E1.S, and E3.S NVMe drives. It includes a dedicated baseplate for E1.S and E3.S drives to ensure proper alignment and stable connections. Please verify your drive's form factor and interface before purchasing.

Q: Does my motherboard need to support bifurcation to use this card?

A: Yes. Your motherboard must support PCIe bifurcation (configured as x4x4x4x4) in the BIOS/UEFI settings to utilize all four ports simultaneously. Check your motherboard's manual or manufacturer's website to confirm bifurcation support on the target PCIe 5.0 x16 slot.

Q: What is the total bandwidth provided by this expansion card?

A: This card supports PCIe 5.0 x16 with a total bandwidth of 4 × 128 Gbps (one per port), delivering exceptional throughput for high-performance storage workloads in servers, workstations, and data-intensive computing environments.

Q: Is any assembly or additional hardware required?

A: No assembly is required. The card comes ready to install. Simply insert it into a compatible PCIe 5.0 x16 slot on your motherboard. No additional brackets or adapters are included beyond what is listed in the package contents.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
