PCIe Pass-Through Baffle Plate – Water Cooling Integration Made Easy
Upgrade your PC's thermal management with this PCIe Pass-Through Fitting Bracket. Designed for enthusiasts, overclockers, and power users, this baffle-style slot plate lets you seamlessly route external water cooling tubes into your case without drilling custom holes or compromising your chassis. Whether you're running extended gaming sessions, heavy computational workloads, or a full overclocking rig, this bracket delivers the compatibility and durability you need.
Made in Mainland China.
Key Features
- Easy Integration: Mounts into a standard PCIe expansion slot, providing a clean pass-through point for water cooling lines — no case modification required.
- Broad Compatibility: Works with most standard ATX, mATX, and ITX cases and motherboards that feature an open PCIe expansion slot.

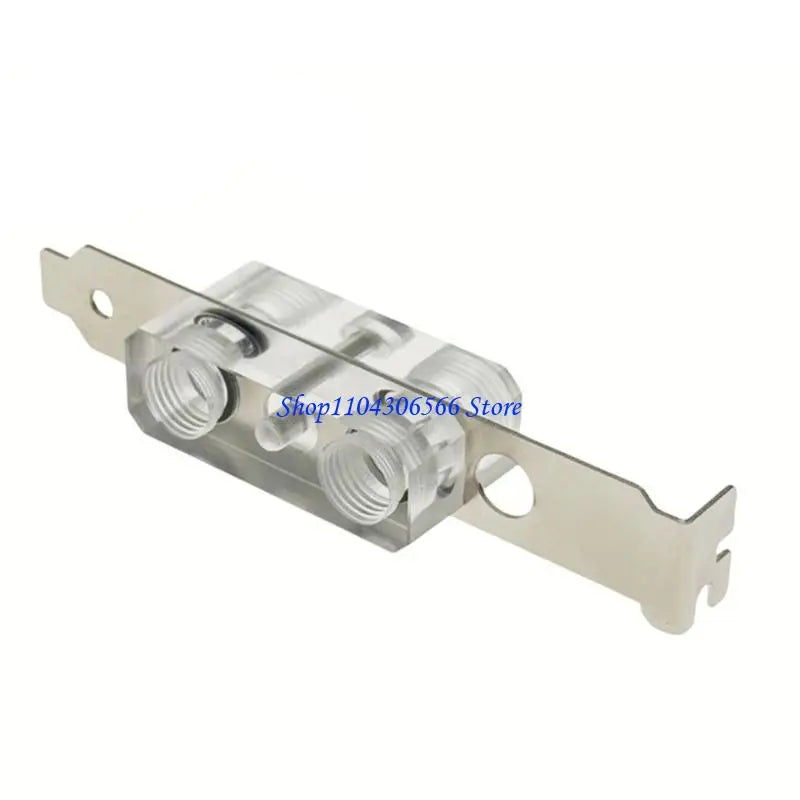

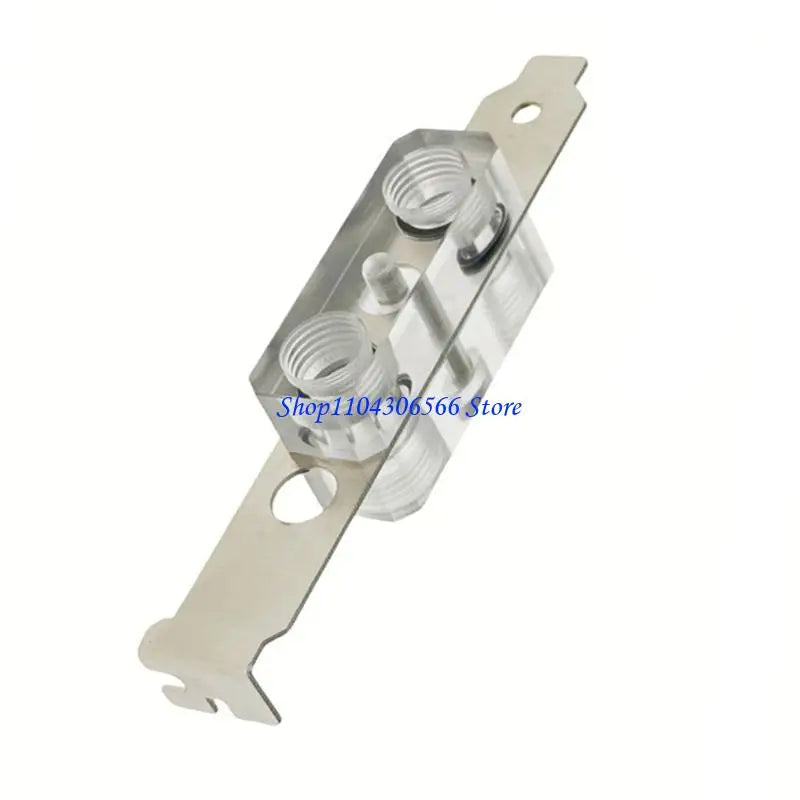

- Durable Construction: Built from heat-resistant iron sheet combined with clear acrylic — tough enough to handle demanding, high-temperature environments.
- Supports CPU & GPU Cooling: Compatible with a wide range of external water cooling modules for both processors and graphics cards.

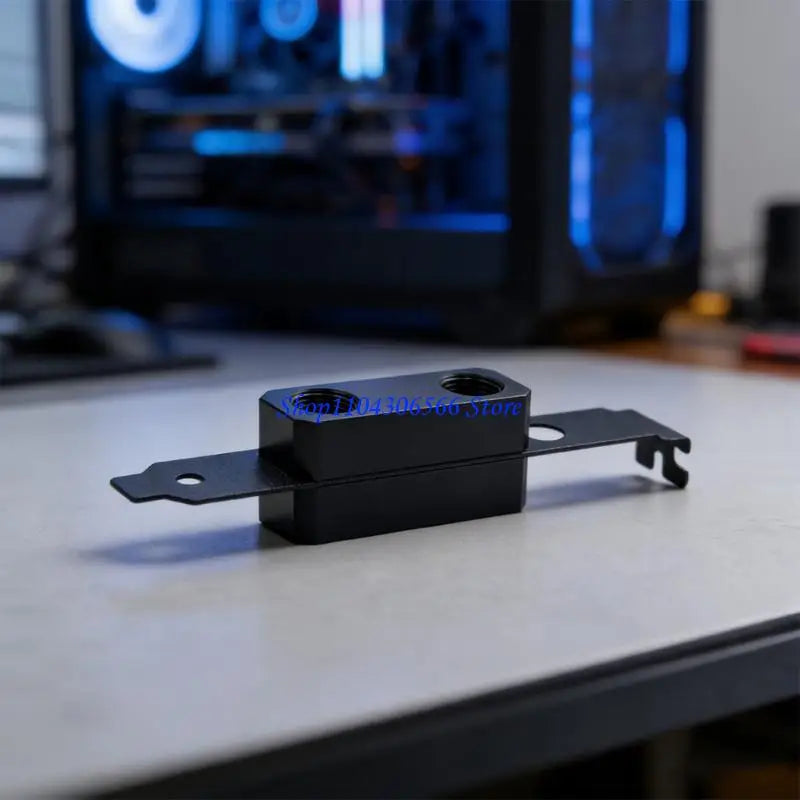

- Clean Aesthetic: Available in Black/Clear finish for a sleek, professional look inside any windowed case.
- Compact Size: Approximately 12 cm (4.72 inches) — fits neatly without interfering with nearby components.
Specifications
| Material | Iron Sheet + Acrylic |
| Color | Black / Clear |
| Interface | PCIe / AGP Expansion Slot |
| Size | ~12 cm / 4.72 inches |
| Type | Add-On / Expansion Card Bracket |
Package Includes
- 1 × PCIe Baffle Pass-Through Bracket
Note: Please allow 1–2 cm variance due to manual measurement. Colors may vary slightly from screen to screen.
Build Your Ultimate Cooling Setup
Pair this bracket with the right tools and accessories for your build. Explore our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel for hardware installation, or check out our 105° Right Angle Driver with 1/4" Hex Screwdriver Bit for tight-space assembly work.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which PC cases are compatible with this PCIe pass-through baffle bracket?
A: This bracket is designed to fit standard PCIe and AGP expansion slots found in the vast majority of ATX, mATX, and ITX mid-tower and full-tower cases. As long as your case has an open expansion slot and supports standard bracket sizing (~12 cm), it should be compatible. Always verify your case's slot opening dimensions before purchasing.
Q: Does this bracket include water cooling fittings or tubes?
A: No — this bracket is the baffle/pass-through plate only. It provides the slot-mount opening through which your water cooling tubes or fittings are routed. You will need to source your own water cooling fittings, tubes, and pump/radiator components separately.
Q: What materials is this pass-through bracket made from?
A: The bracket is constructed from a combination of heat-resistant iron sheet and clear acrylic, making it sturdy and capable of withstanding the heat generated in high-performance computing environments.
