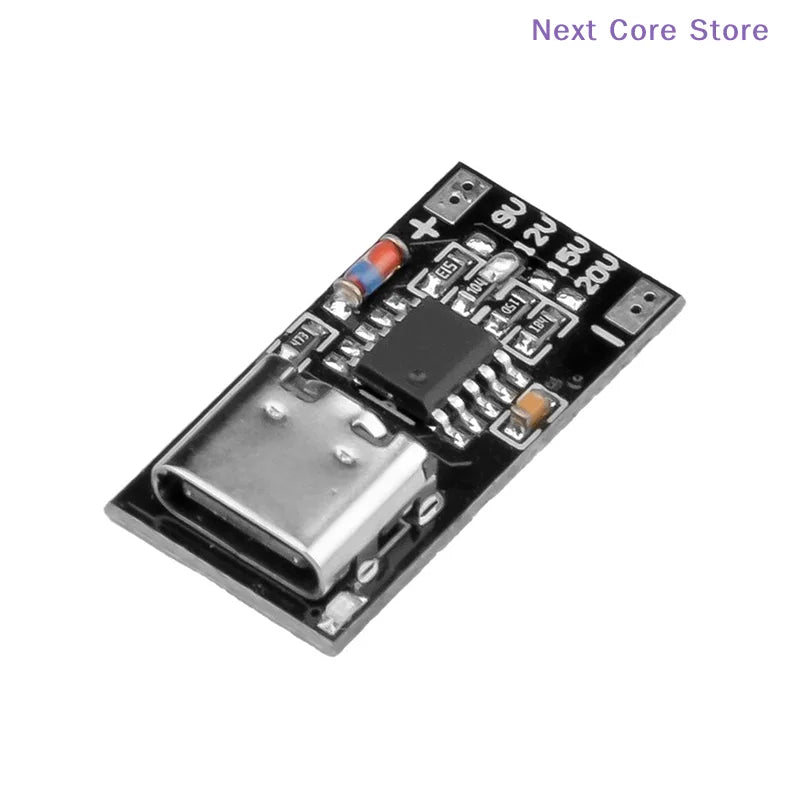

PD/QC Fast Charge Trigger Decoy Board – Type-C USB Boost Module

Unlock the full voltage potential of your PD/QC-compatible charger or power bank with this compact Fast Charge Trigger Decoy Board. Designed for makers, hobbyists, and electronics enthusiasts, this tiny module negotiates with your fast-charge source to output a selectable DC voltage — turning any USB-C PD/QC charger into a versatile bench power supply for routers, LED drivers, optical network terminals, and more.

Key Features

  • Multi-Protocol Fast Charge Support: Compatible with PD 3.0 / 2.0, QC 4+ / 3.0 / 2.0, FCP, and AFC charging protocols.

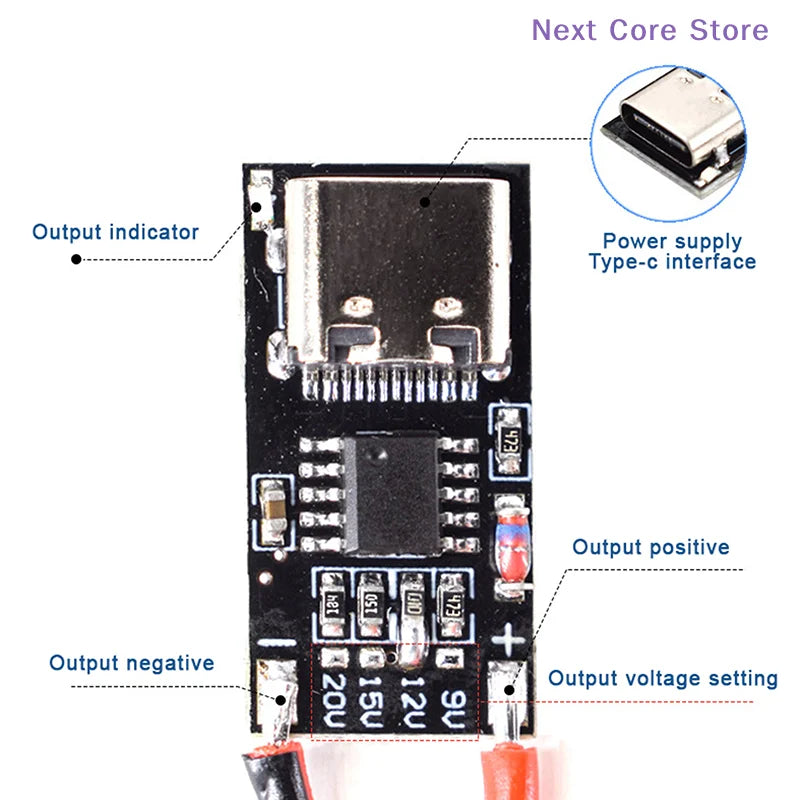

  • Selectable Output Voltages: Four fixed voltage gears — 9V, 12V, 15V, and 20V — selected by shorting the corresponding pads on the board.
  • Up to 5A Maximum Current: Handles up to 5A; actual output current and power are determined by your charger and connected load.
  • Type-C Power Input: Powered entirely via a standard USB Type-C port — no extra connectors needed.

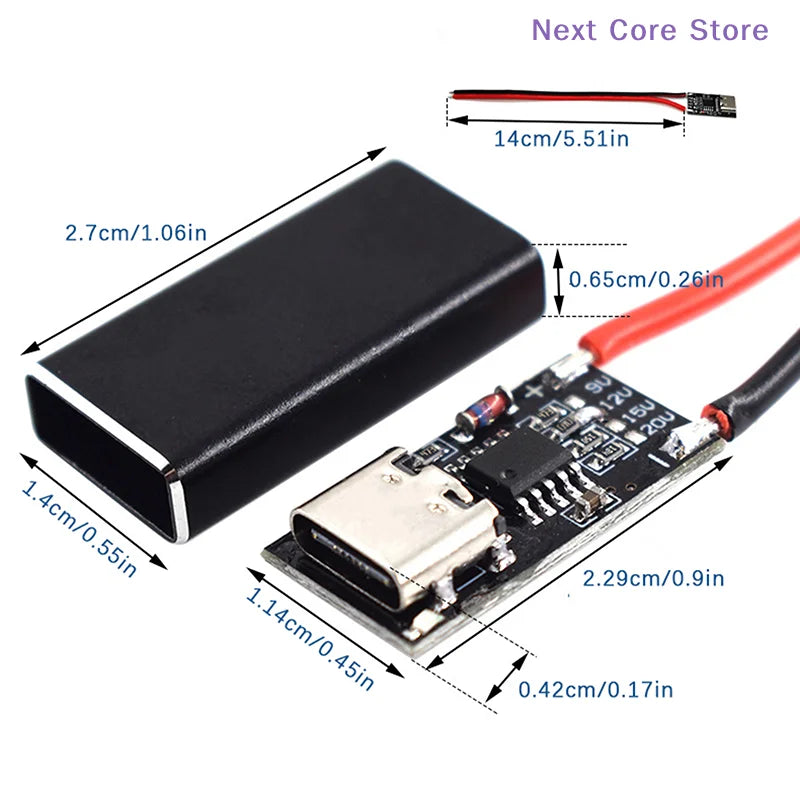

  • Compact Form Factor: Ultra-small dimensions of just 22.9 × 11.4 × 4.2 mm, fitting easily into any project enclosure.
  • Automatic Downshift Protection: If the requested voltage exceeds your charger's capability, the module automatically steps down to the highest voltage the charger supports.
  • Wide Application Range: Convert DC-powered devices to USB-C power supply, run routers or network equipment from a power bank, and more.

Supported Fast Charging Protocols

PD 3.0 / PD 2.0  |  QC 4+  |  QC 3.0 / QC 2.0  |  FCP  |  AFC

Specifications

Output Voltages 9V / 12V / 15V / 20V (pad-selectable)
Maximum Current 5A
Input Port USB Type-C
Dimensions 22.9 × 11.4 × 4.2 mm
Country of Origin Made in China

What's in the Box?

  • 1 × PD/QC Fast Charge Trigger Decoy Board (Type-C USB Boost Module)

Important Notes

  • Your charger or power bank must support PD or QC fast charging to trigger higher voltage outputs.
  • To select a voltage, short the corresponding pads on the board before connecting to your charger.
  • If your charger only supports up to 9V but the board is set to 20V, the module will automatically negotiate and output 9V.
  • Actual color may vary slightly from images due to lighting and display differences. Dimensional tolerance is ±1–3 mm.

Explore More Electronics Tools

Looking for other handy electronics tools? Check out our 10-Pc Hex Nut & Bolt Extractor Kit or the 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel for your workshop needs.

Learn more: EPA guidance on lithium-ion battery handling

Frequently Asked Questions

Q: What fast charging protocols does this PD/QC decoy board support?

A: This fast charge trigger module supports PD 3.0, PD 2.0, QC 4+, QC 3.0, QC 2.0, FCP, and AFC protocols, making it compatible with a wide range of modern USB-C chargers and power banks.

Q: How do I select the output voltage on the Type-C USB boost module?

A: Simply short the pad corresponding to your desired voltage (9V, 12V, 15V, or 20V) on the board before connecting your charger. The module will then negotiate that voltage with the charger automatically.

Q: What happens if my charger doesn't support the voltage I've selected?

A: The decoy board includes automatic downshift protection. If your charger's maximum supported voltage is lower than the selected setting, the module will step down and output the highest voltage your charger can deliver.

Q: Can I use this module to power a router or network device from a power bank?

A: Yes! This is one of the most popular use cases. By triggering 9V or 12V output from a compatible PD/QC power bank, you can power routers, optical network terminals (light cats), and other DC-powered devices via USB-C.
