Automatic PIR Motion Sensor Light Switch – Multi-Voltage Wall Mount
Take control of your lighting automatically with this versatile PIR (Passive Infrared) Motion Sensor Light Switch. Compatible with DC 12V, DC 24V, and AC 110–250V systems, this wall-mount sensor is ideal for indoor and outdoor use — including hallways, garages, stairways, basements, closets, warehouses, and more. When motion is detected within range, lights switch on instantly; when the area is clear, the timer counts down and turns them off — saving energy effortlessly.
Made in Mainland China.
Key Features
- Pyroelectric Infrared Technology: Built-in human body infrared sensing module with industrial-grade chip for large load capacity and strong anti-interference performance.

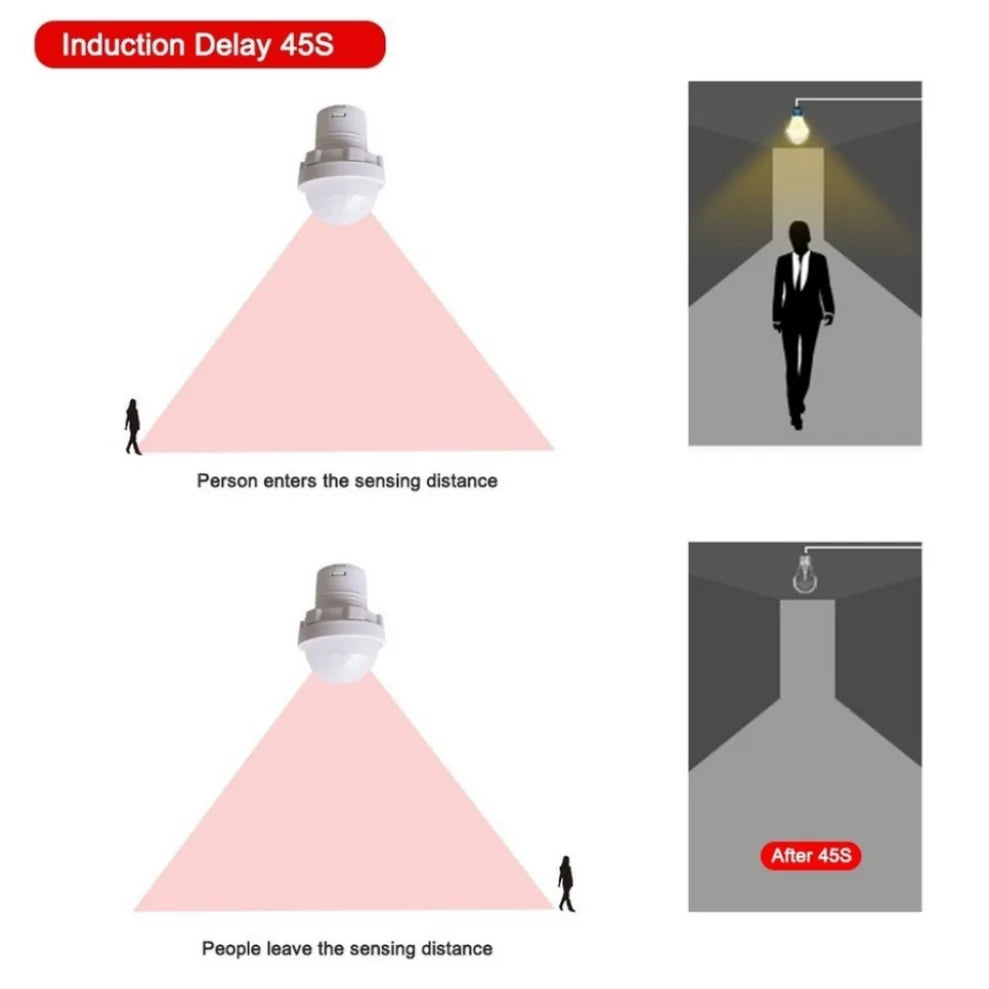

- Auto On/Off: Lights activate automatically when someone enters the detection zone and switch off after the set delay time once the area is vacant.

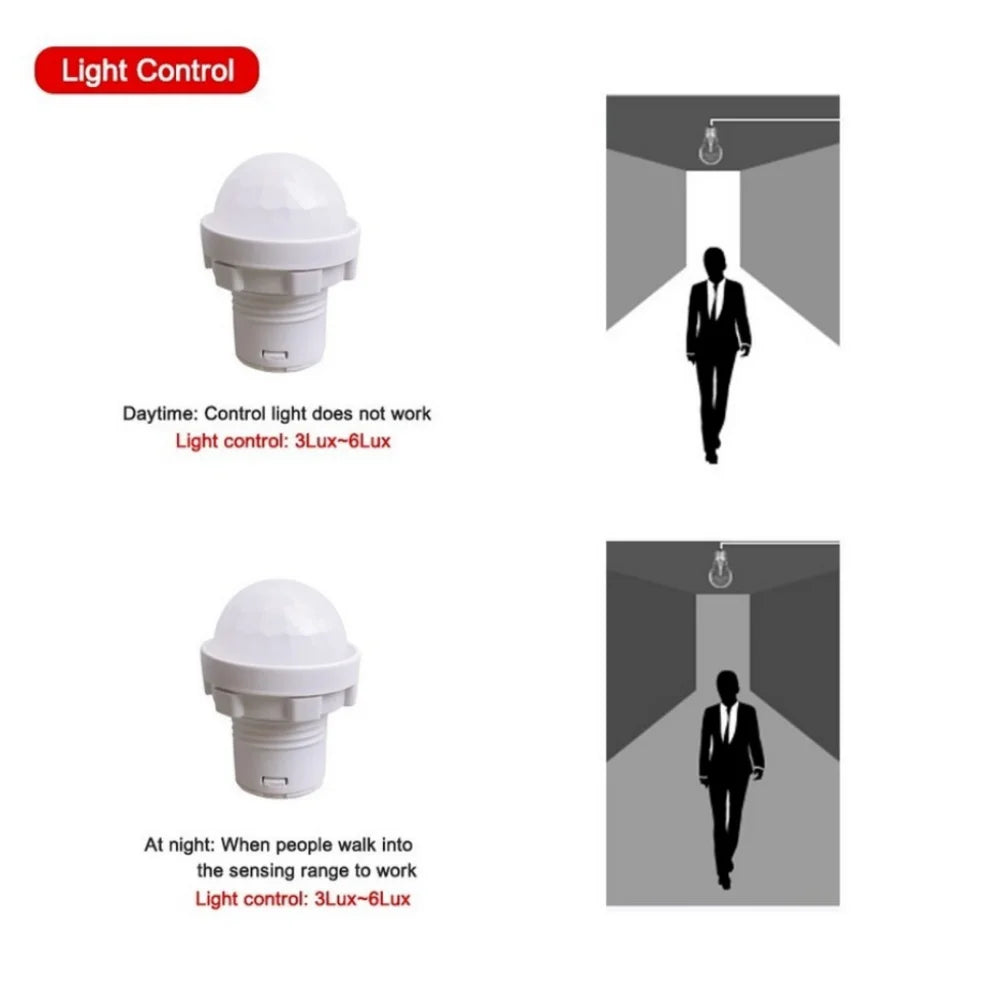

- Day/Night Mode (LUX Adjustment): Freely select whether the sensor operates 24/7 or only activates at night — perfect for outdoor and security lighting setups.

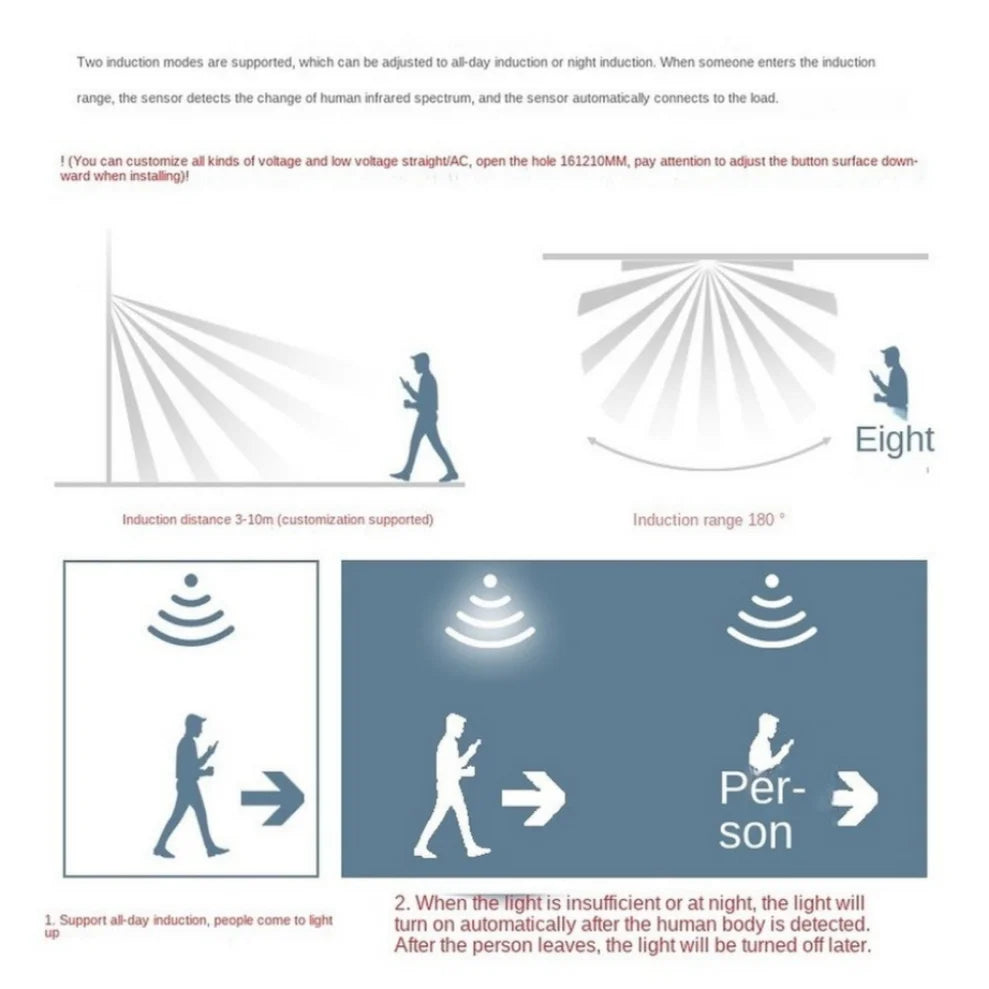

- Adjustable Detection Distance: Up to 12 meters (at 25°C) with a wide 180° detection angle — tune it to suit your specific space.
- Adjustable Delay Timer: Set the light-on delay from 5 seconds to 6 minutes to match your needs.
- Adjustable Sensitivity (SENS): Fine-tune sensor responsiveness to avoid false triggers in high-traffic or windy environments.
- Multi-Voltage Compatible: Works with DC 12V, DC 24V, and AC 110–250V — suitable for a wide range of electrical systems globally.
- CE & RoHS Certified: Meets international safety and environmental compliance standards.

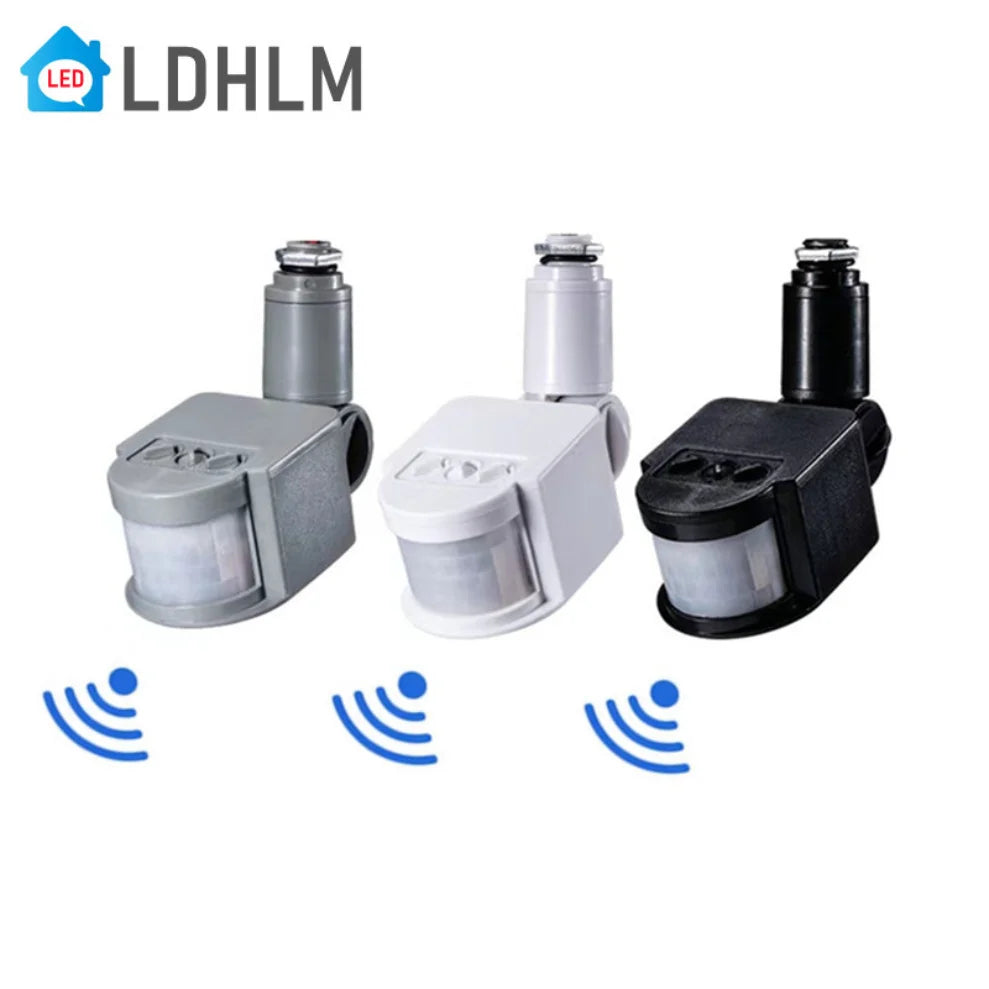

- Durable ABS Plastic Housing: Available in black, white, and gray to complement any décor.
Technical Specifications
| Working Voltage | DC 12V / DC 24V / AC 110–250V |
| Current | 3A |
| Detection Range | 180° |
| Detection Distance | Up to 12m (at 25°C) |
| Delay Time | 5 seconds – 6 minutes (adjustable) |
| Ambient Illumination (LUX) | 2 – 2000 LUX (adjustable) |
| Operating Temperature | –10°C to +40°C |
| Operating Humidity | <93% RH |
| Installation Height | 1.8m – 2.5m |
| Material | ABS Plastic |

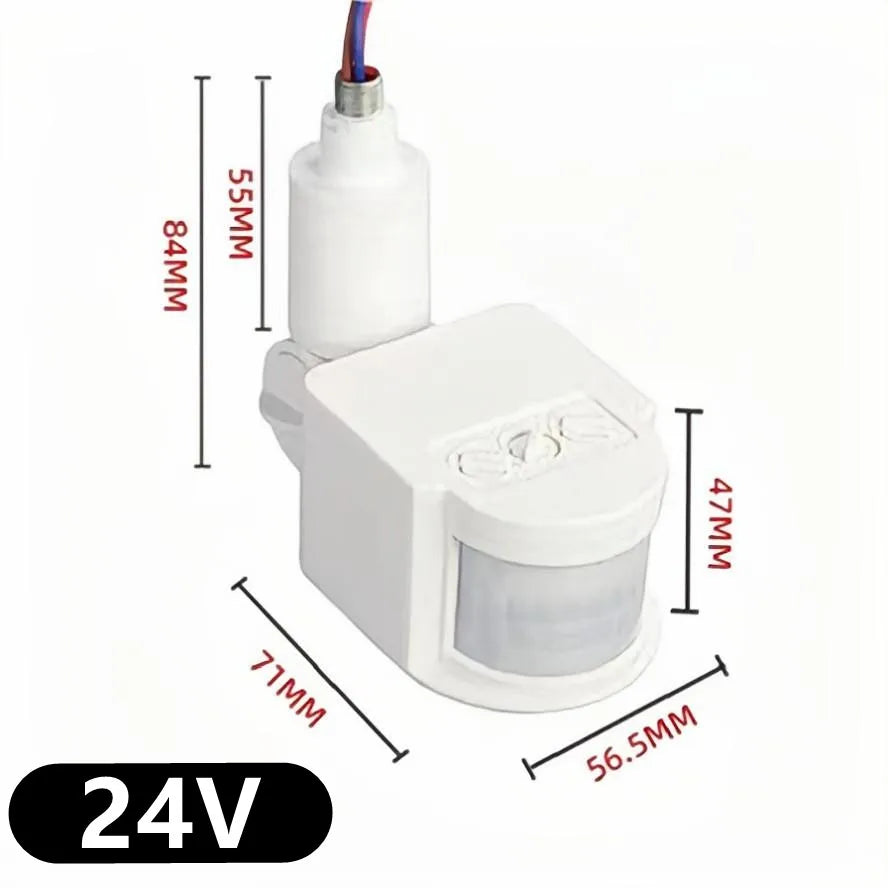

| Dimensions | 60 × 45 × 160 mm |
| Colors Available | Black, White, Gray |
| Certifications | CE, RoHS |
| Warranty | 1 Year |

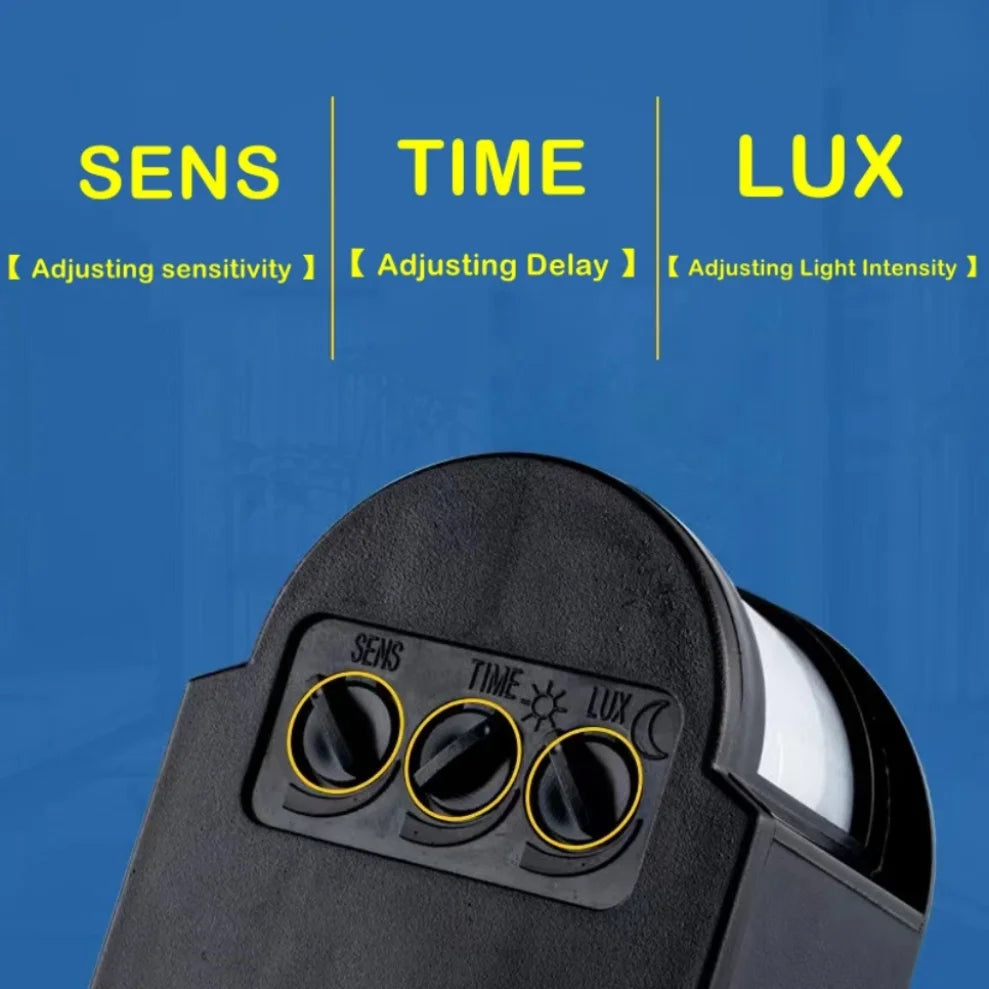

Adjustment Guide
- LUX Knob: Set to "sun" for all-day operation; set to "moon" for night-only activation.
- TIME Knob: Adjusts the delay before lights switch off after no motion is detected (5 sec – 6 min).
- SENS Knob: Controls detection sensitivity. Reduce if lights trigger too easily in your environment.

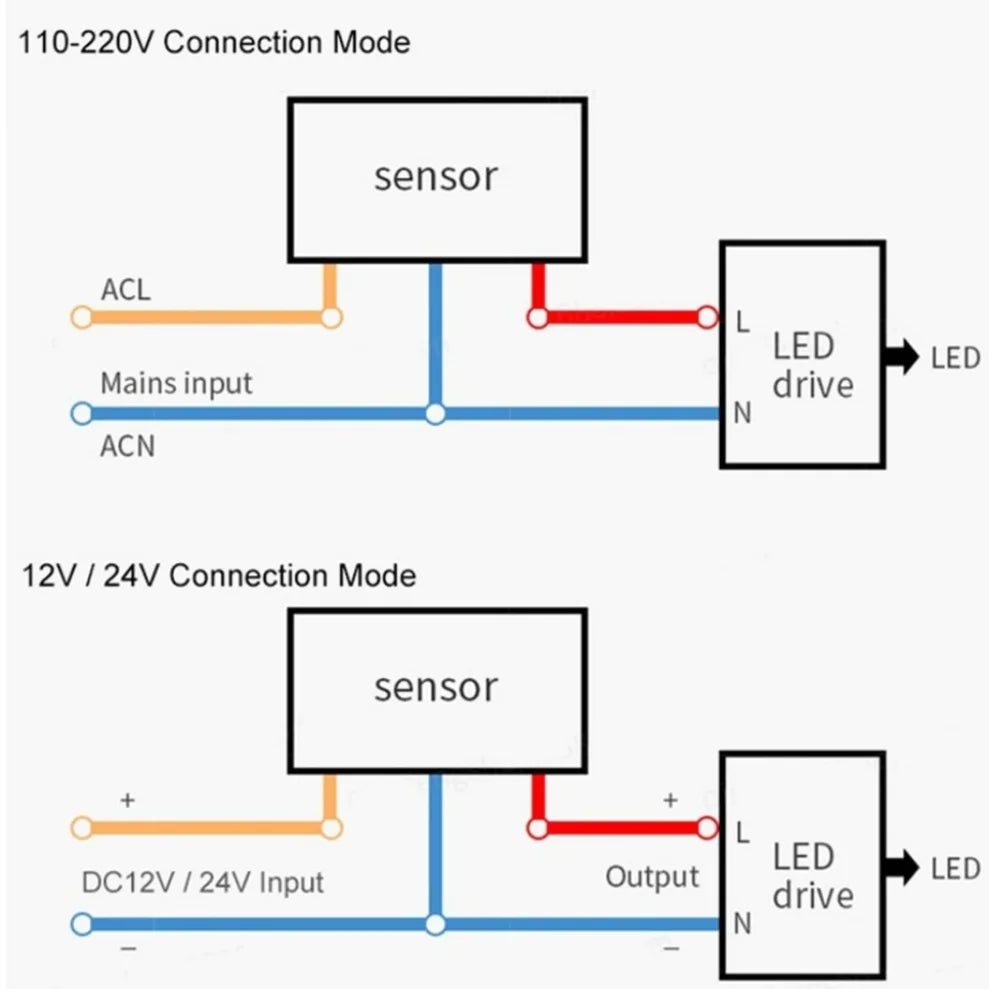

Wiring Guide
- N – Blue wire: Neutral (zero) line
- L – Brown wire: Live (fire) line
- Output – Red wire: Sensor output line to load (lamp)
- Blue + Brown = Input power; Blue + Red = Connected to load (lamp)
Ideal Installation Locations
Hallways, stairwells, garages, basements, warehouses, closets, outdoor entryways, bathrooms, advertisement light boxes, and more.
Package Includes
- 1 × PIR Motion Sensor Light Switch
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltages is this PIR motion sensor light switch compatible with?
A: This sensor switch is compatible with DC 12V, DC 24V, and AC 110–250V, making it suitable for a wide variety of residential, commercial, and low-voltage outdoor lighting setups around the world.
Q: Can I use this PIR sensor switch outdoors?
A: Yes. The switch is designed for both indoor and outdoor wall-mount installation. It operates within a temperature range of –10°C to +40°C and up to 93% relative humidity, making it well suited for outdoor entryways, garages, and garden paths.
Q: How do I adjust the sensor so it only activates at night?
A: Simply turn the LUX adjustment knob to the "moon" position. In this mode, the sensor remains inactive during daylight hours and automatically enters its active detection state at night — ideal for energy-efficient automated outdoor lighting.
Q: What is the maximum detection distance of this motion sensor?
A: The sensor can detect motion at distances of up to 12 meters (approximately 39 feet) at 25°C, with a wide 180° detection angle. Detection distance is also adjustable via the SENS knob to fine-tune coverage for your specific space.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
