PIR Infrared Motion Sensor Switch 100–240V Auto Light Control
PIR Infrared Motion Sensor Switch 100–240V Auto Light Control
PIR Infrared Motion Sensor Switch – Automatic Light Control for Home & More
Upgrade your home or workspace with this smart PIR Infrared Motion Sensor Switch. Designed for universal voltage compatibility (100–240V), this compact plug-and-play switch automatically turns lights on when motion is detected and off after a 45-second delay — no manual flipping required. Perfect for hands-free convenience in corridors, hallways, bathrooms, basements, garages, closets, and warehouses.
Key Features
- Wide Voltage Compatibility: Works on 100–240V systems (110V and 220V), making it suitable for use worldwide.

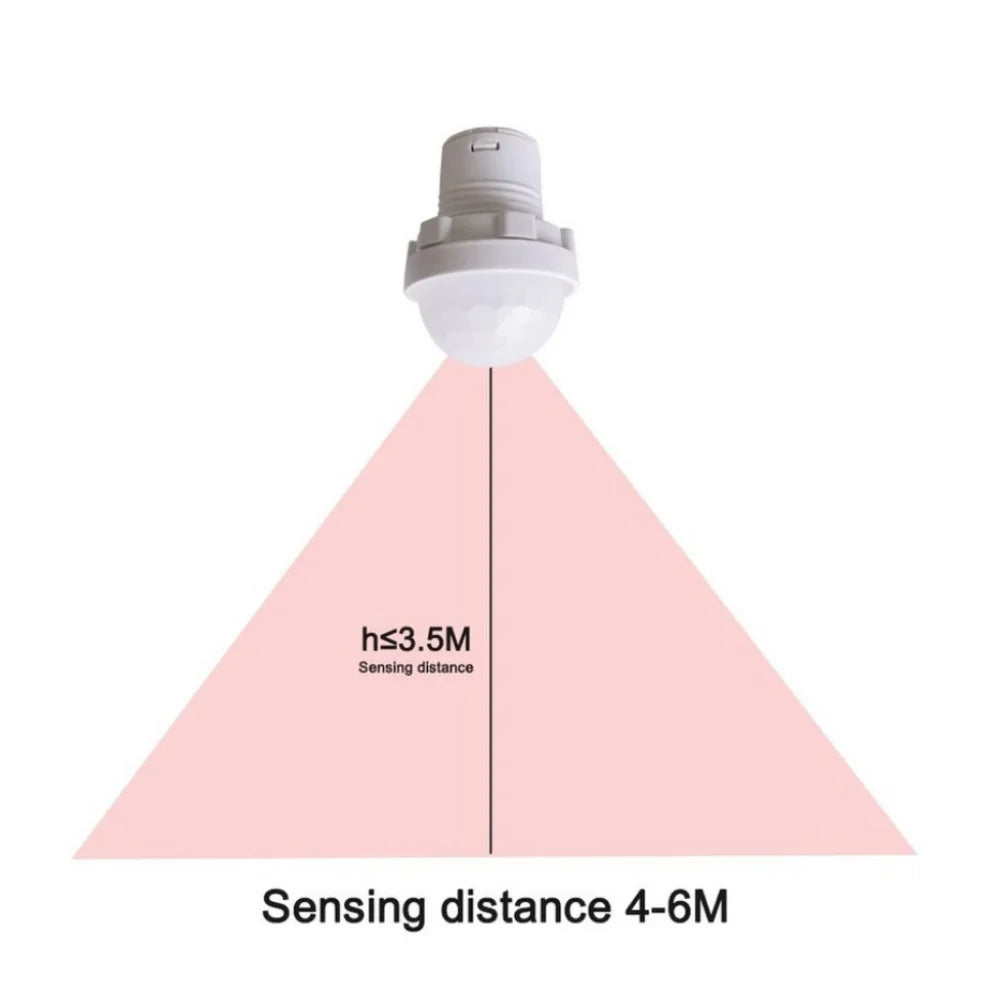

- PIR Infrared Detection: Detects human body heat and movement within a 4–6 meter range and a 110° cone-shaped induction angle.
- Light Control Sensor: Only activates in low-light conditions (3–6 Lux), so it won't trigger unnecessarily in bright environments.

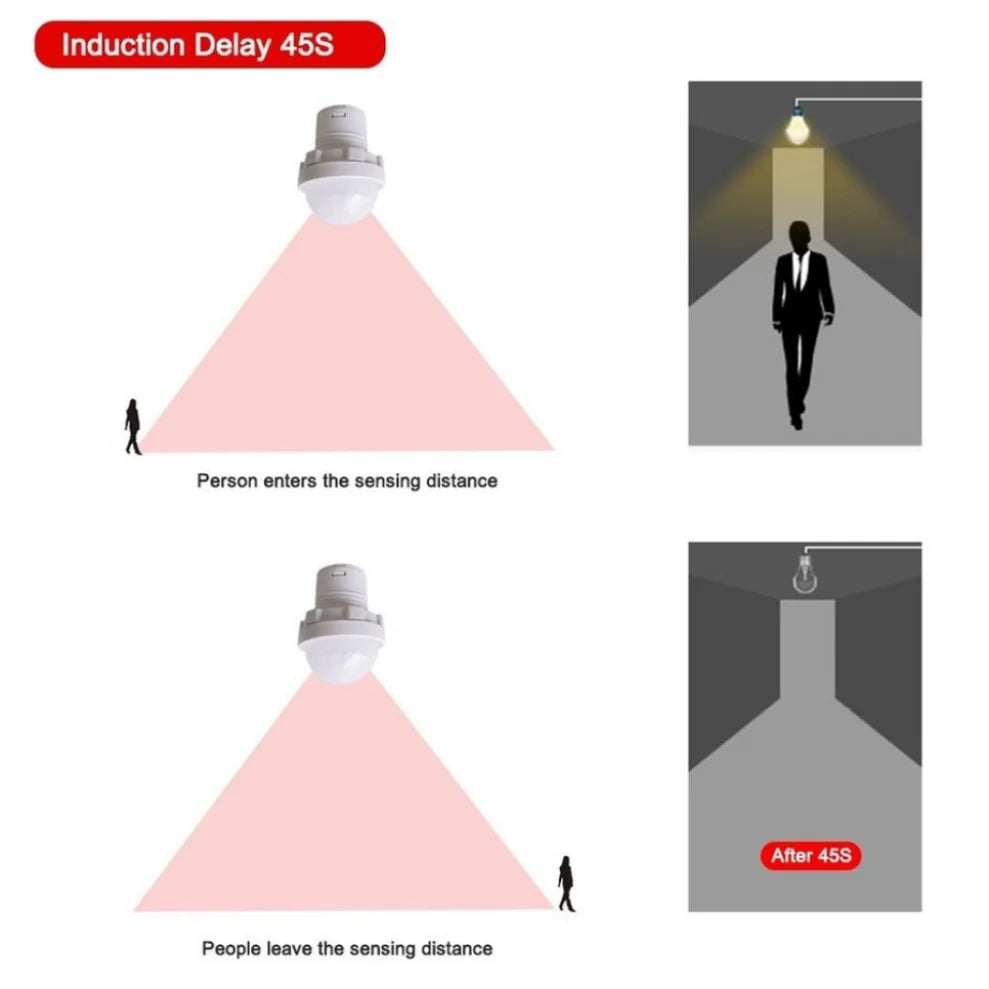

- 45-Second Auto Delay: Lights stay on for 45 seconds after the last detected movement, then switch off automatically.
- Energy Efficient: Ultra-low static current (<50μA) keeps standby consumption minimal.
- Compact & Easy to Install: Small, lightweight plastic housing with a simple plug-and-play setup — no wiring expertise needed.
- CE Certified: Meets CE safety and quality standards for reliable everyday use.

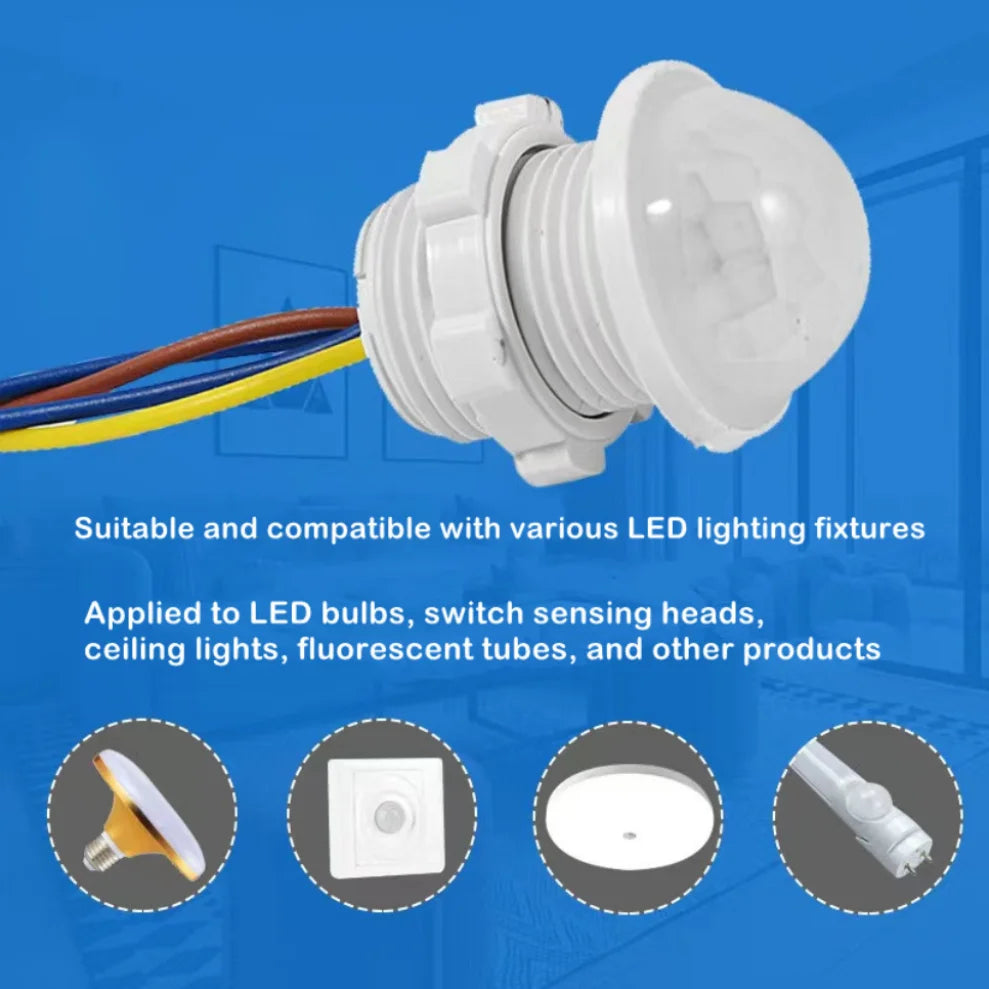

- Versatile Use: Ideal for automatic lighting, ventilation fan control, advertisement light boxes, and other electrical automation needs.
Specifications
| Material | PVC Plastic |
| Color | White |
| Working Voltage | 100–240V AC |
| Load Power | 40W |
| Current Rating | 3A |
| Static Current | <50μA |
| Time Delay | 45 seconds |
| Light Control Threshold | 3–6 Lux |
| Induction Angle | 110° cone shape |
| Induction Distance | 4–6 meters |
| Working Temperature | -20°C to +40°C |
| Certification | CE |
| Warranty | 1 Year |
| Country of Origin | Made in China |
Ideal For
- Hallways, corridors & stairwells
- Bathrooms & powder rooms
- Basements, garages & storage rooms
- Closets & wardrobes
- Warehouses & utility areas
- Advertisement light boxes
- Automatic ventilation & exhaust fan control
You May Also Like
- 1-to-2 USB Splitter Hub – Charge 2 Devices at Once
- 1-to-8 PWM Fan Hub SATA Molex 3-Pin 4-Pin Speed Controller
- 1 to 2/4 Port Gigabit Ethernet Splitter 1000Mbps RJ45 Hub
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage is this PIR motion sensor switch compatible with?
A: This motion sensor switch supports a wide input voltage range of 100–240V AC, making it compatible with both 110V and 220V/240V electrical systems used around the world.
Q: Will the sensor switch turn on the light during the daytime?
A: No. The built-in light control feature only allows the switch to activate when ambient light levels drop to between 3 and 6 Lux, so it will not trigger during bright daytime conditions — only in dim or dark environments.
Q: How far away can this sensor detect movement?
A: The PIR infrared sensor has an induction distance of 4–6 meters with a 110° cone-shaped detection angle, providing broad coverage for most rooms and entryways.
Q: How long does the light stay on after movement is detected?
A: The sensor switch includes a 45-second auto time delay — the connected light or device will remain on for 45 seconds after the last detected motion, then automatically switch off.
Q: Is this switch difficult to install?
A: Not at all. This is a simple plug-and-play device — small and lightweight, it is designed for easy installation and operation without any special tools or wiring knowledge.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
