PIR Motion Sensor LED Downlight 5W–20W | Recessed Ceiling Spot
PIR Motion Sensor LED Downlight 5W–20W | Recessed Ceiling Spot
Upgrade your hallway, staircase, foyer, or balcony with the GGBEE PIR Motion Sensor LED Recessed Downlight. This smart spot light automatically activates when it detects movement in low-light conditions, then switches off after the area is clear — delivering hands-free convenience and energy efficiency wherever you need it most.
Made in Mainland China.
How It Works

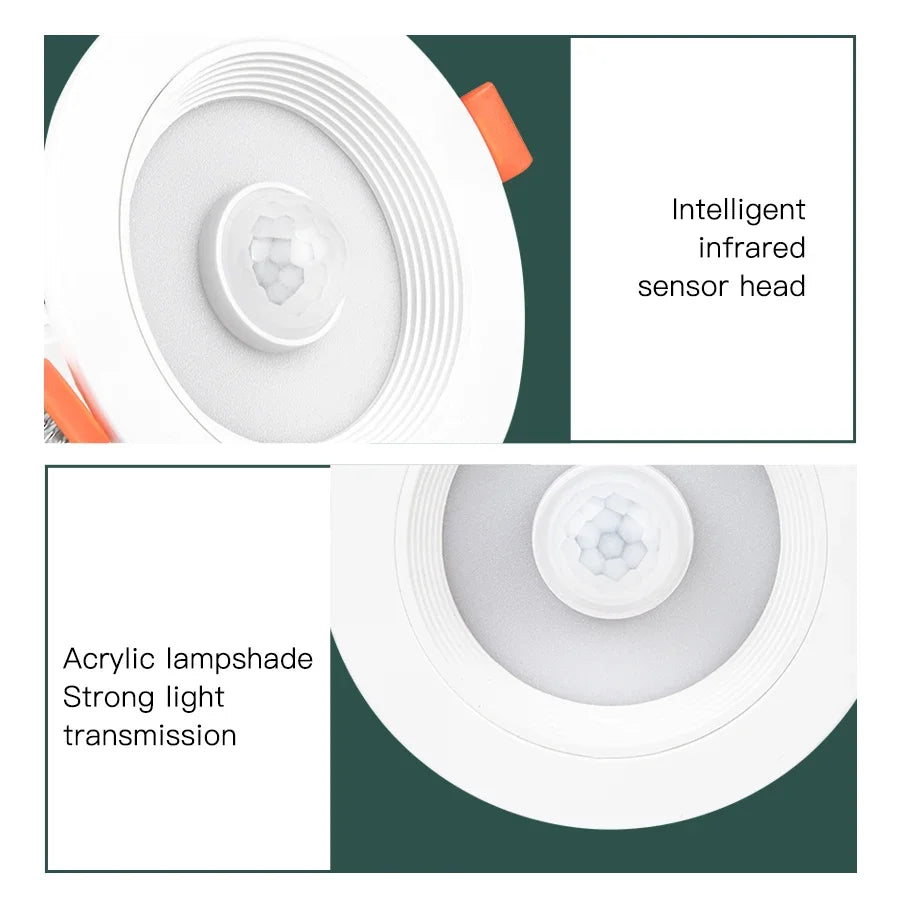

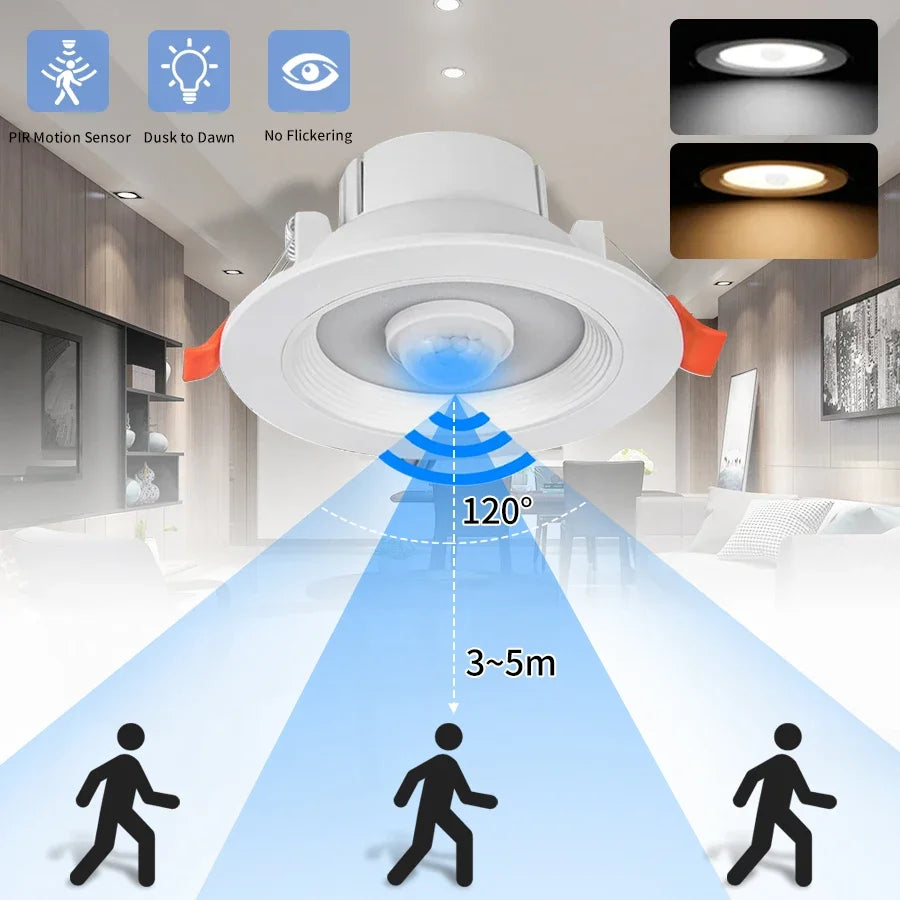

The built-in Passive Infrared (PIR) sensor detects human body heat within a range of 3–5 metres. During daylight hours the light stays off; as soon as the environment is dark enough and motion is detected, the light turns on automatically for 25–30 seconds, then switches itself off approximately 20 seconds after the area is vacated. No switches, no wasted energy.
Key Features
- ✅ Wide voltage compatibility — AC 85–265 V works worldwide
- ✅ Four wattage options — 5 W, 10 W, 15 W, 20 W to suit any room size
- ✅ High luminous efficiency — 80–100 lm/W with CRI > Ra85 for true, vibrant colour rendering
- ✅ Dual colour temperature — Warm White (2800–3500 K) or Cool White (6000–6500 K)
- ✅ IP52 rated — moisture-proof and suitable for covered outdoor areas
- ✅ No UV, no radiation, no flicker — gentle on eyes and safe for the whole family
- ✅ Energy-saving — uses up to 45–70% less energy than traditional fluorescent, halogen, or incandescent lamps
- ✅ CE, RoHS & CCC certified — meets international safety standards

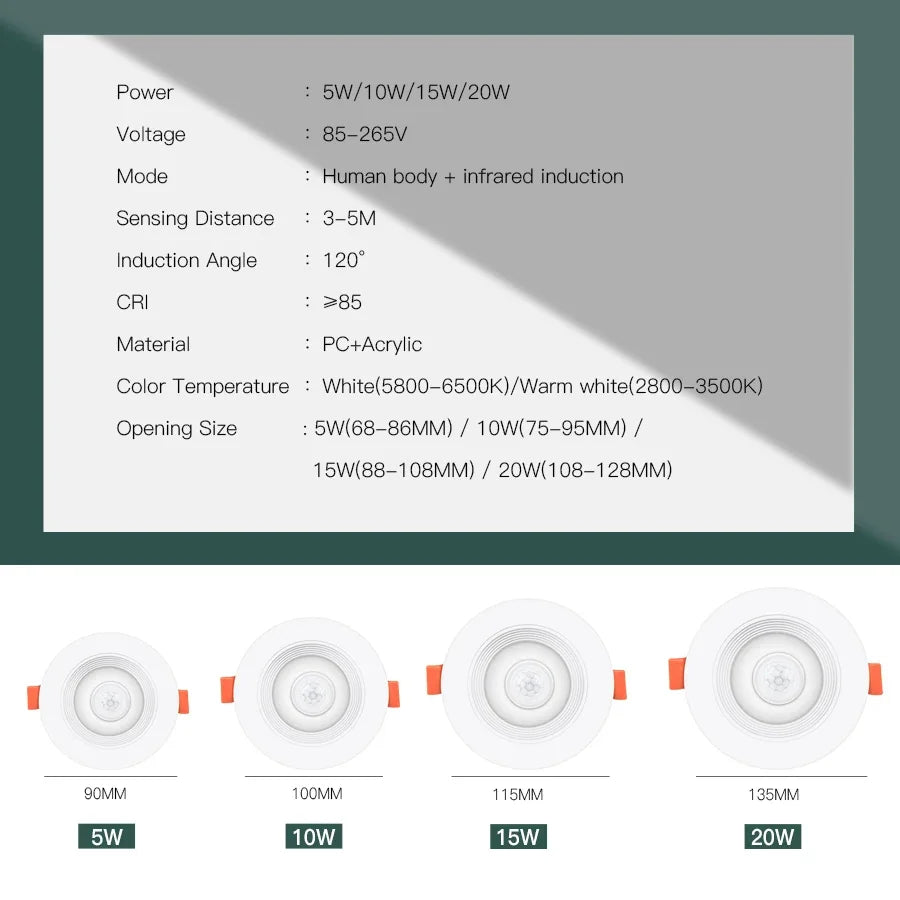

Full Specifications
| Input Voltage | AC 85–265 V |
| Power Options | 5 W / 10 W / 15 W / 20 W |
| Sensing Mode | Human Body + Infrared Induction |
| Sensing Distance | 3–5 m |
| Luminous Flux | 80–100 lm/W |
| CRI | > Ra85 |
| Colour Temperature | Warm White 2800–3500 K | Cool White 6000–6500 K |
| Material | PC + Acrylic |
| Dimmable | No |
| IP Rating | IP52 |
| Certifications | CE, RoHS, CCC |

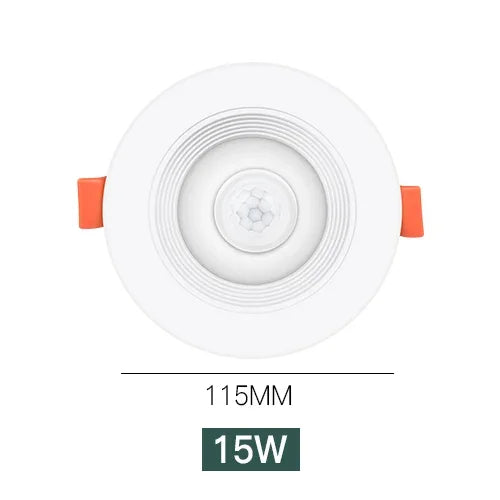

Cut-Out / Opening Sizes
| Wattage | Opening Size | Depth |
|---|---|---|
| 5 W | 68–86 mm | 5.0 cm |
| 10 W | 75–95 mm | 5.8 cm |
| 15 W | 88–108 mm | 5.9 cm |
| 20 W | 108–128 mm | 5.9 cm |
Ideal Locations
Designed for entrance halls, hallways, staircases, doorways, balconies, and foyers — any transitional space where hands-free, automatic lighting adds safety and comfort.
You Might Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Will the PIR motion sensor LED downlight work during the day?
A: No — the sensor is designed to activate only in dark or low-light environments. During daylight hours the light remains off automatically, ensuring energy is used only when genuinely needed.
Q: How long does the light stay on after detecting motion?
A: Once triggered, the LED spot light stays on for approximately 25–30 seconds. It will then switch off around 20 seconds after no further movement is detected within the 3–5 m sensing range.
Q: What wattage should I choose for my hallway or staircase?
A: For a compact hallway or small entrance, the 5 W or 10 W option typically provides ample brightness. Larger staircases or open foyers benefit from the 15 W or 20 W version, which delivers up to 2000 lm of luminous flux for wider coverage.
Q: Is this recessed ceiling light compatible with my country's voltage?
A: Yes. The downlight supports AC 85–265 V, making it compatible with electrical systems in virtually every country worldwide — no additional adapters or transformers required.
