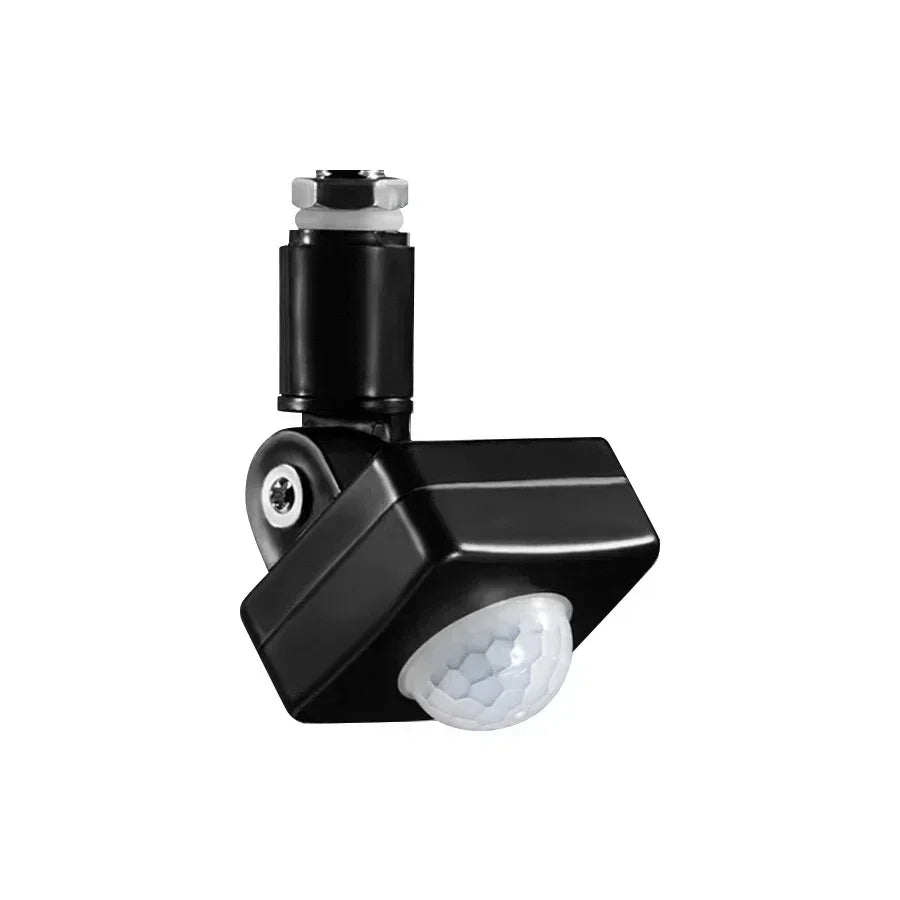

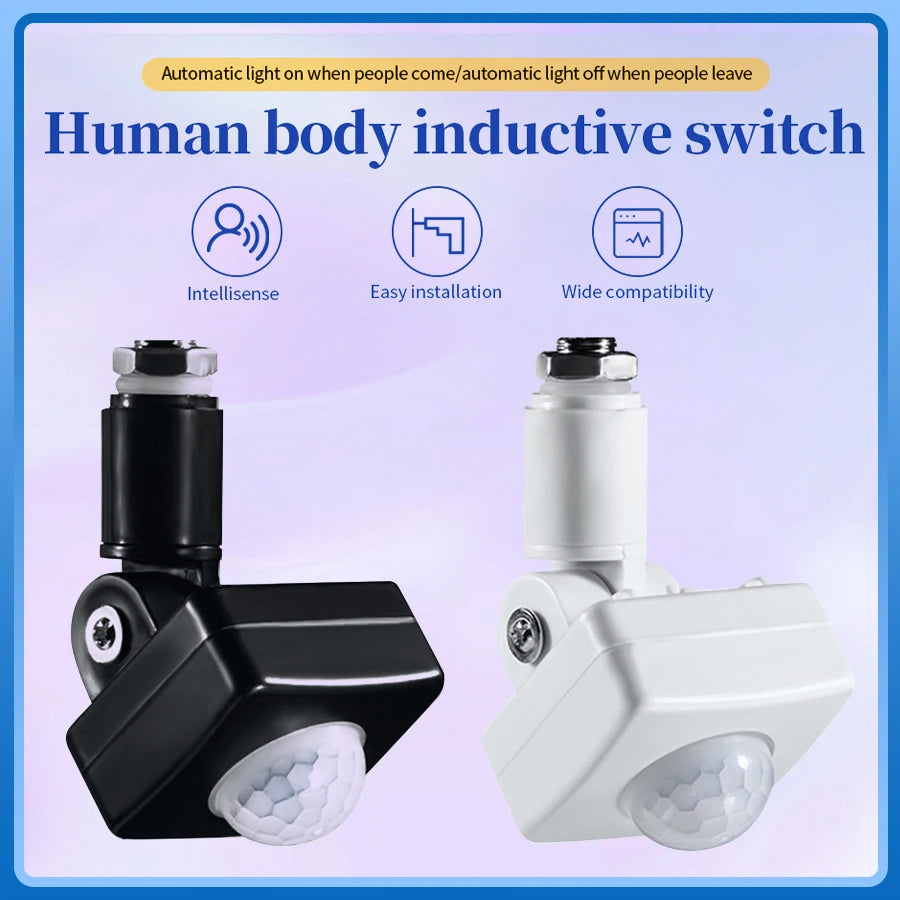

PIR Motion Sensor Light Switch 120° Auto LED AC 110–240V
PIR Motion Sensor Light Switch 120° Auto LED AC 110–240V
GGBEE PIR Motion Sensor Light Switch – Smart Automatic Control for Stairs, Corridors & Hallways
Upgrade any hallway, staircase, or corridor with the GGBEE PIR Infrared Motion Sensor Light Switch. This compact, high-sensitivity passive infrared detector automatically turns your lights on when motion is detected and off after a customizable delay — saving energy and adding hands-free convenience to your home.
Works with standard AC 110–240V wiring and fits easily into a 10mm or 12mm open-type wall cutout. Compact at just 42×40×20mm, it installs discreetly and operates reliably across a wide range of environments.
Key Features

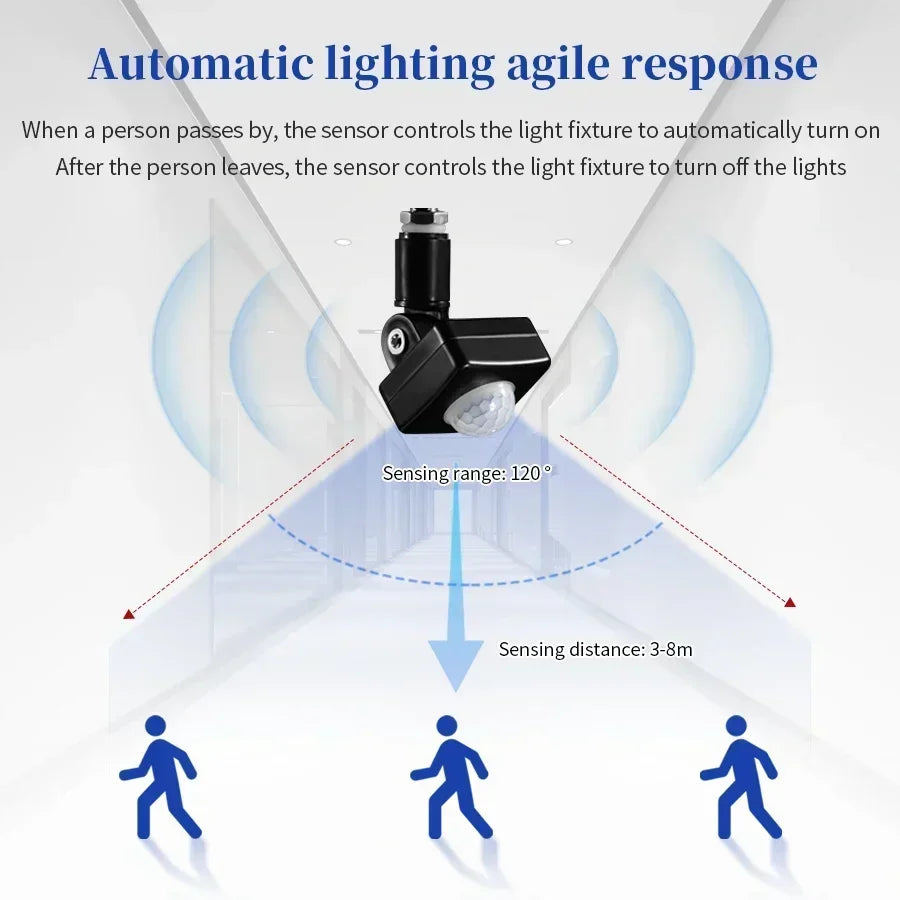

- Wide 120° Detection Angle – Broad Fresnel-lens coverage captures movement across the full width of a corridor or landing
- 3–8M Detection Range – Adjustable sensitivity covers small hallways to longer passages (tested at 25°C)
- Adjustable Delay Time (10s–5 min) – TIME dial lets you set how long lights stay on after motion stops
- Day/Night LUX Control – LUX dial switches between always-on sensing (day) or night-only sensing (moon mode) so lights only trigger in the dark
- Adjustable Sensitivity (SENS dial) – Fine-tune detection sensitivity to eliminate false triggers
- Broad Voltage Compatibility – Operates on AC 110–240V, 4A rated current, supporting loads up to 100W
- Flame-Retardant ABS Housing – Impact-resistant, durable casing built for long-term wall installation
- CE & RoHS Certified – Meets European safety and environmental standards
How the 3 Adjustment Dials Work
- LUX Switch: Rotate toward the sun icon → sensor activates day and night. Rotate toward the moon icon → sensor activates in darkness only (ideal for energy saving).
- TIME Switch: Controls the delay period (10±5 seconds to 5±1 minute) before lights switch off after motion stops.
- SENS Switch: Adjusts detection sensitivity. If lights stay on unexpectedly, reduce sensitivity to minimum position.
Technical Specifications
| Detection Angle | 120° |
| Detection Distance | 3–8M (at 25°C) |
| Working Voltage | AC 110–240V |
| Rated Current | 4A |
| Max Load Power | <100W |
| Delay Time | 10s (±5s) – 5 min (±1 min) |
| Ambient Lighting | 2–2000 LUX (adjustable) |
| Working Temperature | -10°C to 40°C |
| Working Humidity | <93% RH |
| Installation Height | 1.8m–2.5m |
| Installation Type | Open type (10mm / 12mm opening) |

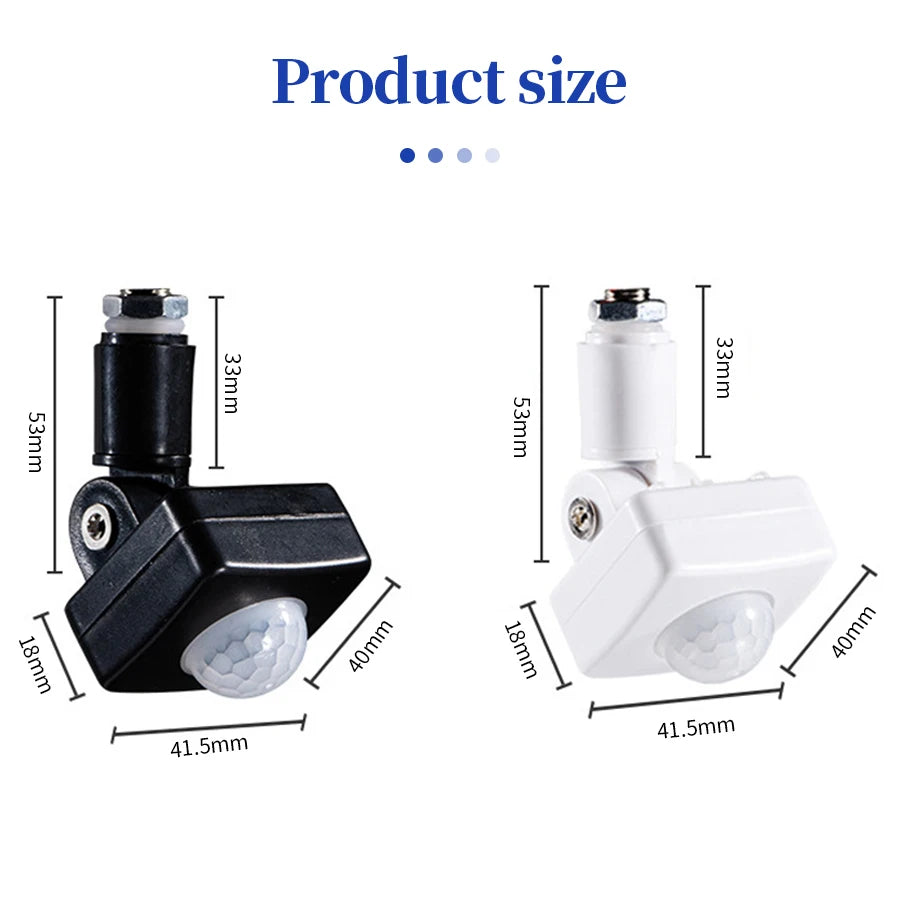

| Dimensions | 42 × 40 × 20mm |
| Material | ABS (flame-retardant) |
| Certification | CE, RoHS |
Perfect For
- Staircases & landings
- Hallways & corridors
- Garages & utility rooms
- Basements & storage areas
- Offices & commercial spaces
Made in Mainland China.
Looking to complete your smart home setup? Check out these related picks from our store:
10-Piece Gardening Tool Kit – Iron Head & Plastic Handle |
10-Pc Hex Nut & Bolt Extractor Kit 9–19mm
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: Will this PIR motion sensor switch work with my existing wiring at 110V or 220V?
A: Yes — the GGBEE PIR motion sensor switch is compatible with AC 110–240V, making it suitable for both North American (110V) and European/international (220–240V) electrical systems. Always consult a qualified electrician for installation.
Q: Can I stop the sensor from triggering during daylight hours?
A: Absolutely. Simply rotate the LUX dial to the moon position. In this mode, the sensor remains inactive during the day and automatically activates only when ambient light drops below your set LUX threshold — perfect for energy-efficient night-time automation.
Q: How do I adjust how long the light stays on after motion stops?
A: Use the TIME dial on the sensor. You can set the delay anywhere from approximately 10 seconds to 5 minutes. This is the hold-on period after the last detected motion — once it expires and no new motion is detected, the lights switch off automatically.
Q: What is the maximum bulb wattage I can connect to this switch?
A: The switch supports a maximum load of 100W at a rated current of 4A. This is compatible with most standard LED, CFL, or incandescent bulbs used in corridors and staircases.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
