Smart PIR Motion Sensor Switch with Adjustable Time Delay
Upgrade your home or workspace lighting with this intelligent PIR Motion Sensor Switch by GGBEE. Designed for effortless plug-and-play installation, this compact sensor automatically switches lights and fans on when motion is detected — and off again after your chosen delay. Save energy, add convenience, and enjoy hands-free control in corridors, bathrooms, garages, closets, and more.
Key Features
- Wide Detection Coverage: 110° detection angle with a sensing range of 3–6 metres keeps entire rooms covered.

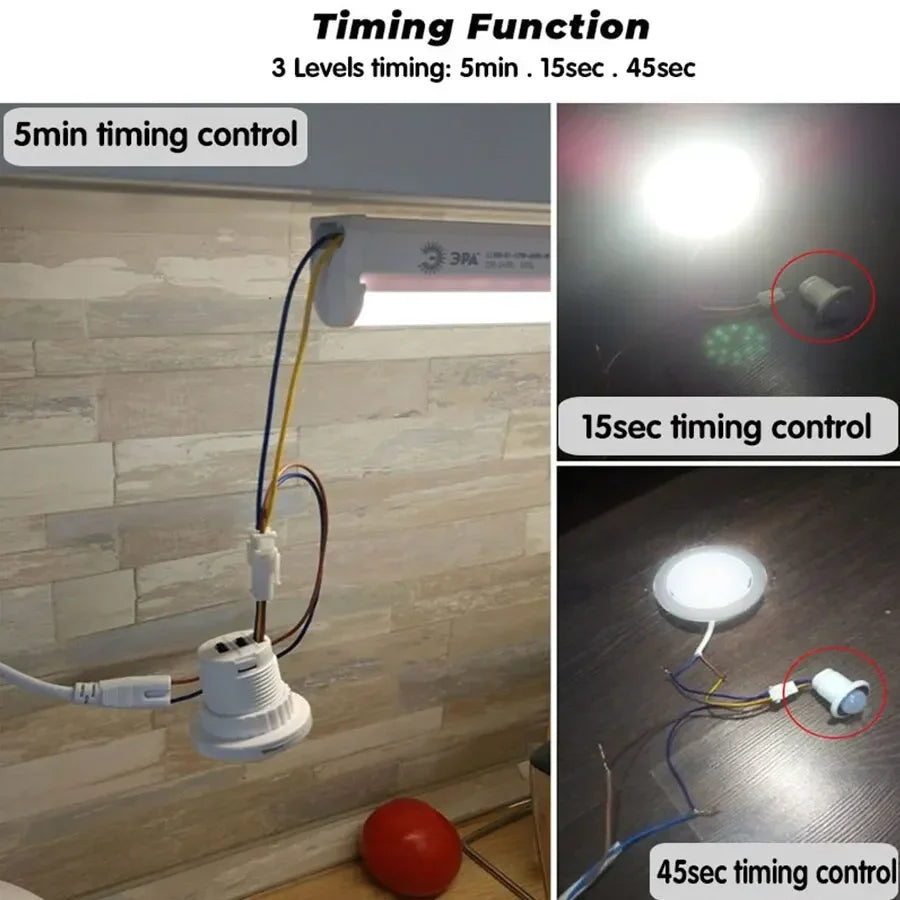

- 3 Adjustable Time Delay Settings: Choose 15 seconds, 45 seconds, or 5 minutes — the light stays on just as long as you need it.
- 3 Ambient Light Modes: Set to Deep Dark (activates only in low light), Light Dark (activates in moderate ambient light), or All Day (activates regardless of brightness) for total flexibility.
- Broad Voltage Compatibility: Works on AC 85–265 V, 50/60 Hz — suitable for most global electrical systems.
- Ultra-Low Standby Power: Standby consumption under 0.1 W keeps your energy bills minimal.
- Universal Lamp Compatibility: Works with LED lamps, LED downlights, ceiling lights, energy-saving bulbs, and fluorescent lamps (output ≤ 40 W).

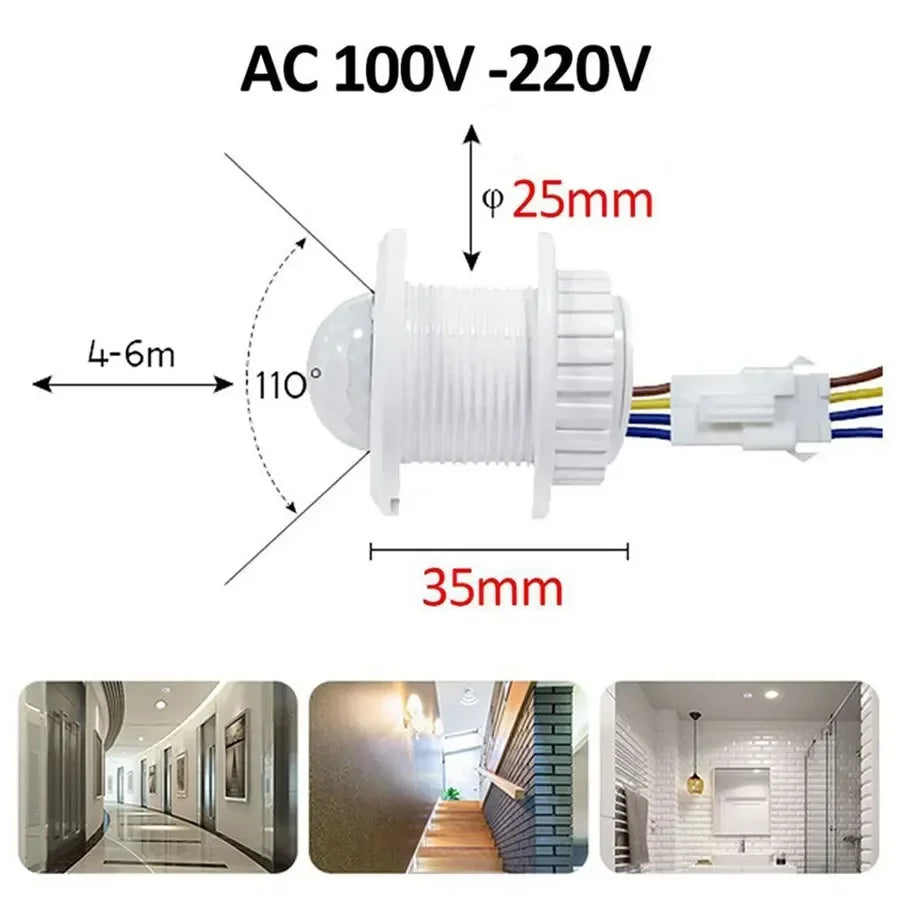

- Easy Installation: Fits into a 25–26 mm diameter mounting hole. Small, lightweight, and simple to wire up.
- CE & RoHS Certified: Meets international safety and environmental standards.
Technical Specifications
| Working Voltage | AC 85–265 V, 50/60 Hz |
| Output Power | ≤ 40 W |
| Detection Angle | 110° |
| Sensing Distance | 3–6 m |
| Time Delay Options | 15 sec / 45 sec / 5 min |
| Ambient Light Modes | Deep Dark / Light Dark / All Day |
| Standby Power | < 0.1 W |
| Operating Temperature | -10 °C to +45 °C |
| Colour | White |
| Mounting Hole Diameter | 25–26 mm |
| Certification | CE, RoHS |
| Country of Origin | Made in China |
Ideal Applications
- Hallways & corridors
- Bathrooms & powder rooms
- Basements & utility rooms
- Garages & car ports
- Warehouses & storage areas
- Closets & walk-in wardrobes
- Exhaust fans & ventilation systems
What's in the Box?
- 1 × PIR Motion Sensor Switch
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What types of lights are compatible with this PIR motion sensor switch?
A: This motion sensor switch is compatible with LED lamps, LED downlights, ceiling lights, energy-saving compact fluorescent lamps (CFL), and standard fluorescent lamps, as long as the total load does not exceed 40 W. It is not recommended for use with incandescent or halogen bulbs above the rated output.
Q: Can I use this motion sensor switch outdoors?
A: This sensor switch is primarily designed for indoor use in environments such as corridors, bathrooms, garages, and storage areas. It operates within a temperature range of -10 °C to +45 °C. For outdoor installations, ensure the unit is protected from direct exposure to rain or moisture, as it is not rated as weatherproof.
Q: How do I adjust the time delay and brightness mode settings?

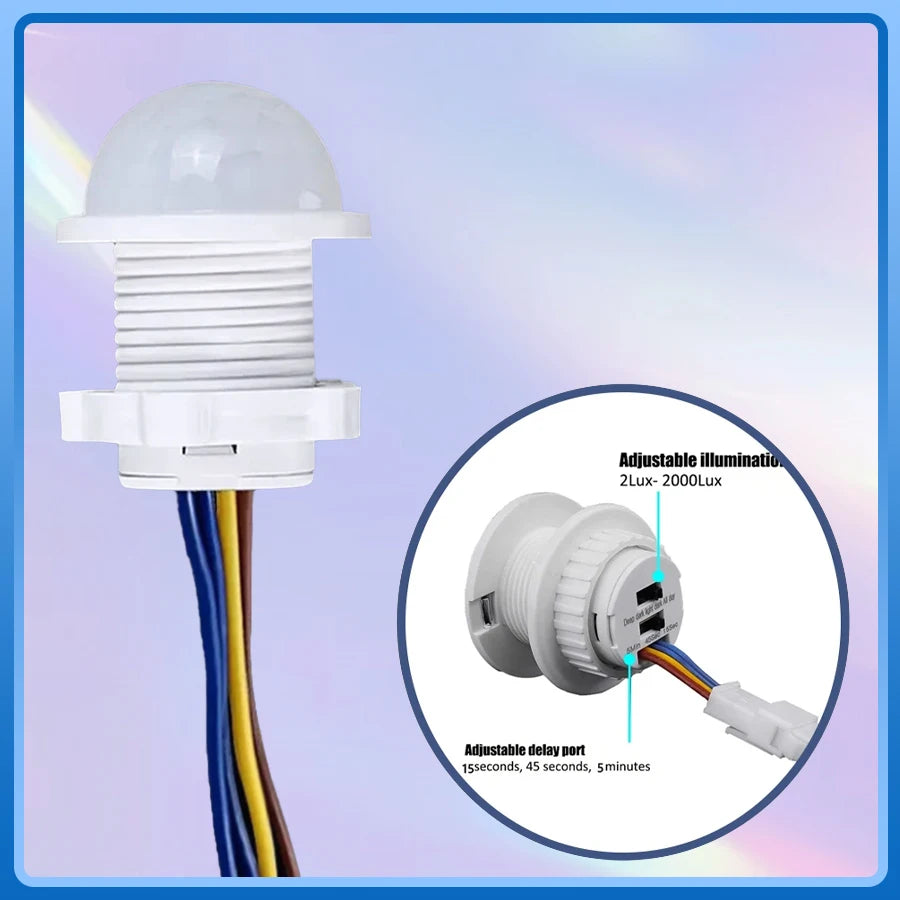

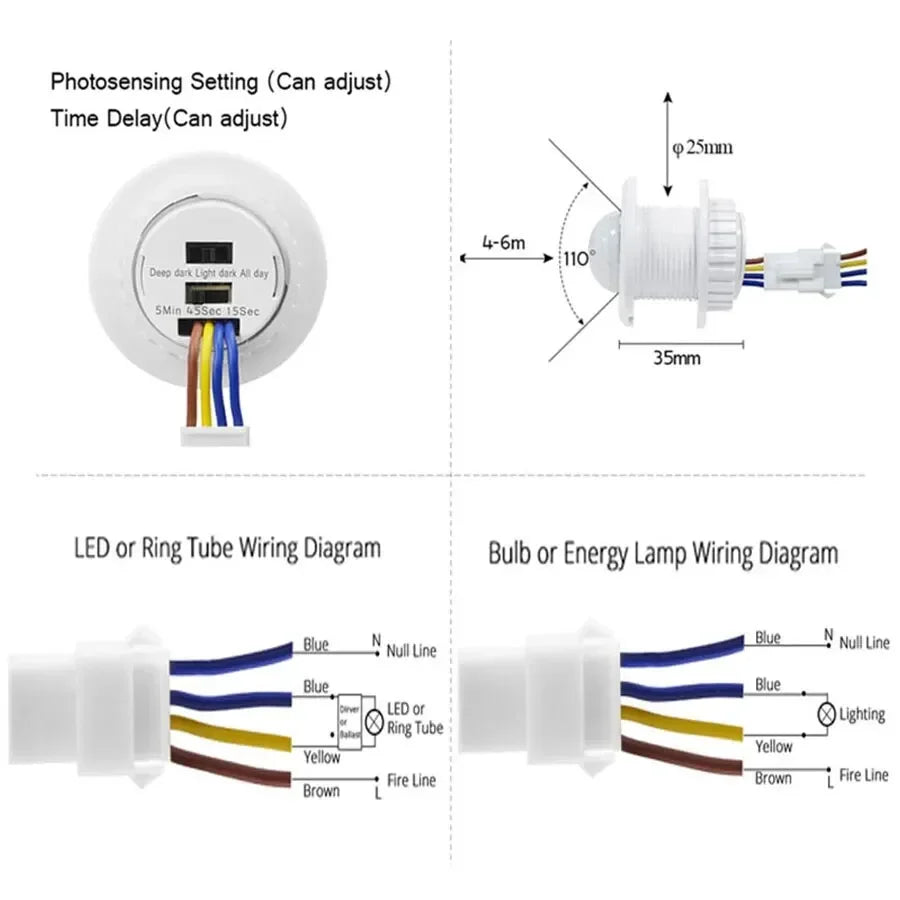

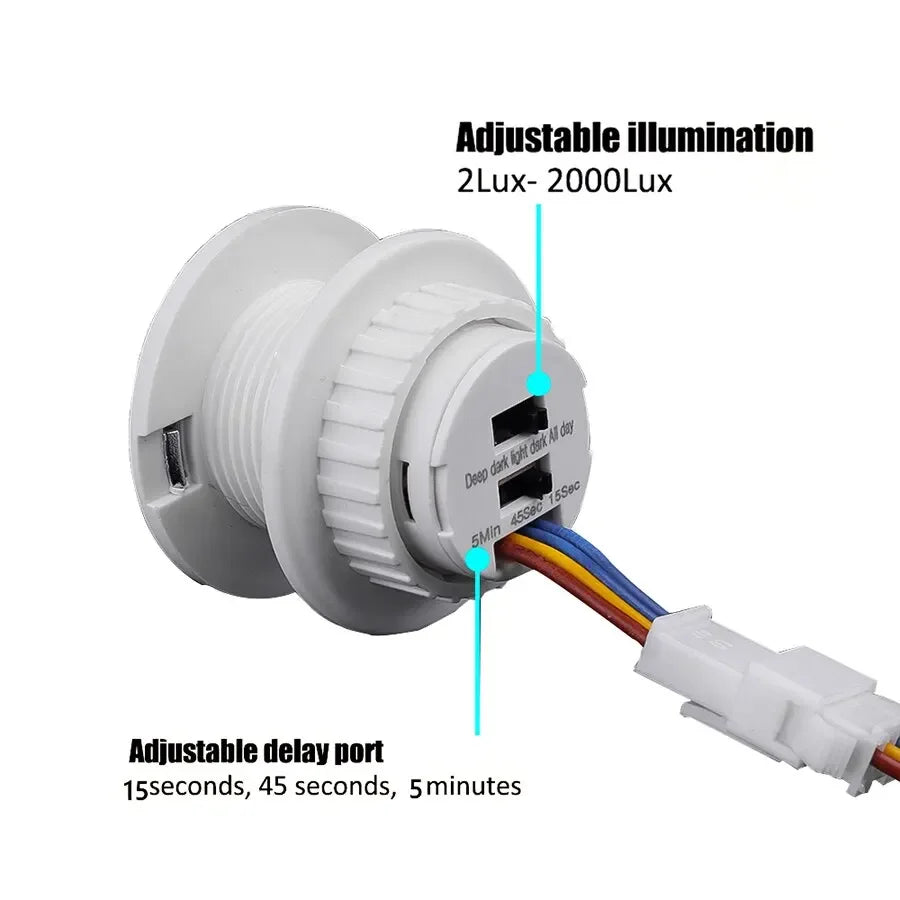

A: The switch features three selectable time delay settings (15 seconds, 45 seconds, and 5 minutes) and three ambient light modes (Deep Dark, Light Dark, All Day). These are adjusted via the onboard mode selector on the unit itself. Refer to the included wiring diagram for setup guidance.
Q: What size mounting hole does this sensor switch require?
A: The sensor switch requires a circular mounting hole with a diameter of 25 or 26 mm for a secure and clean installation in ceilings or wall panels.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
