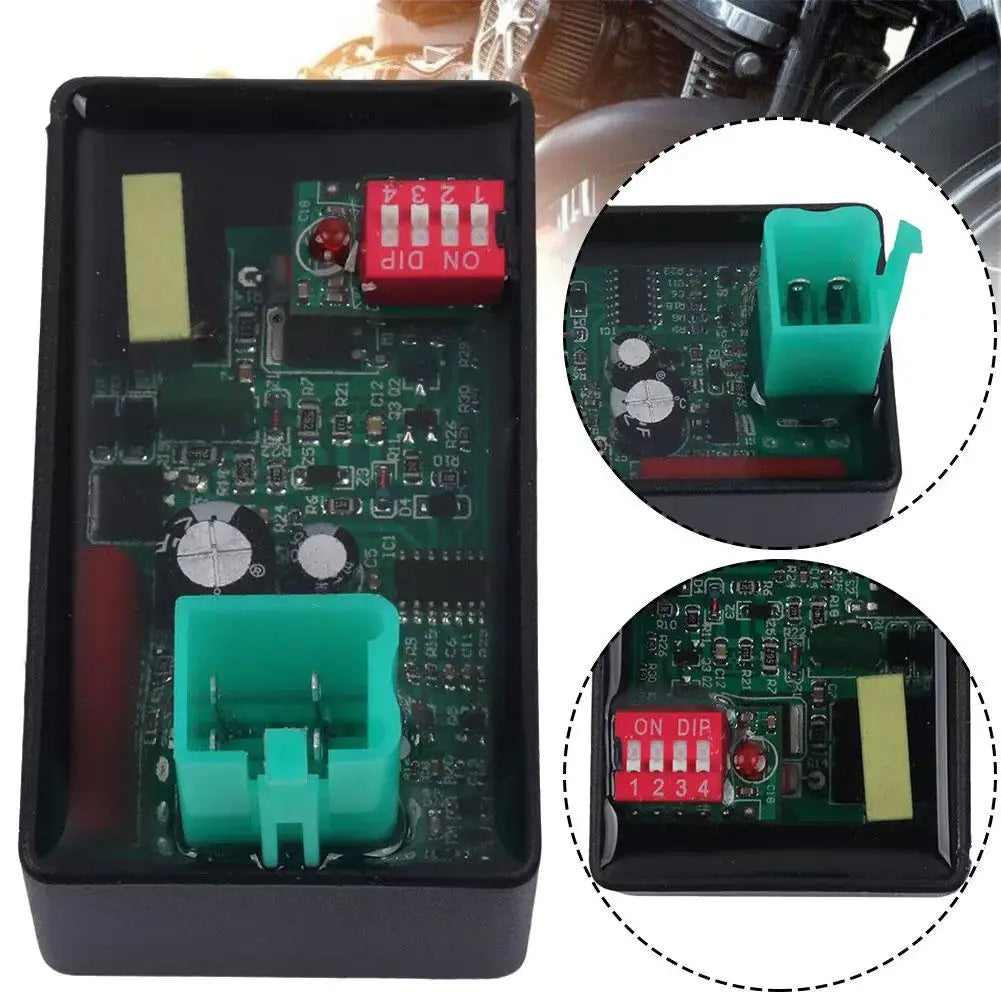

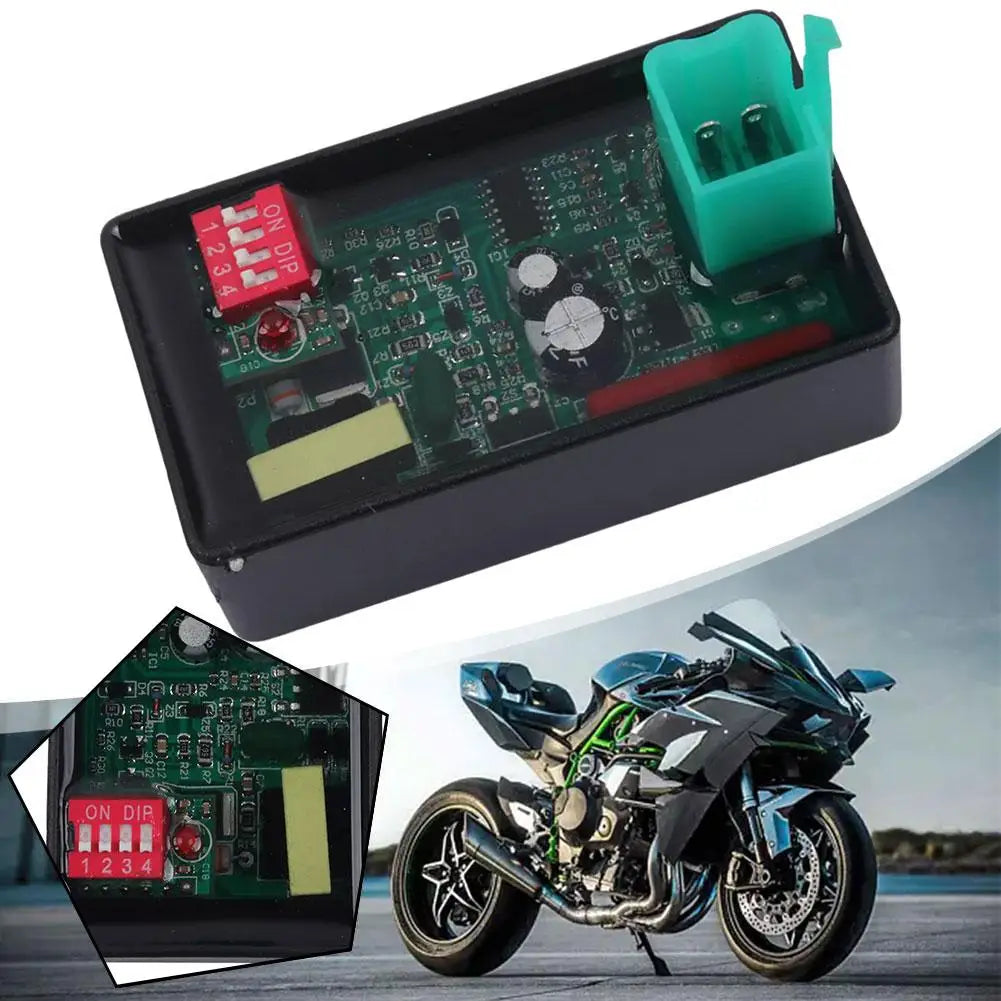

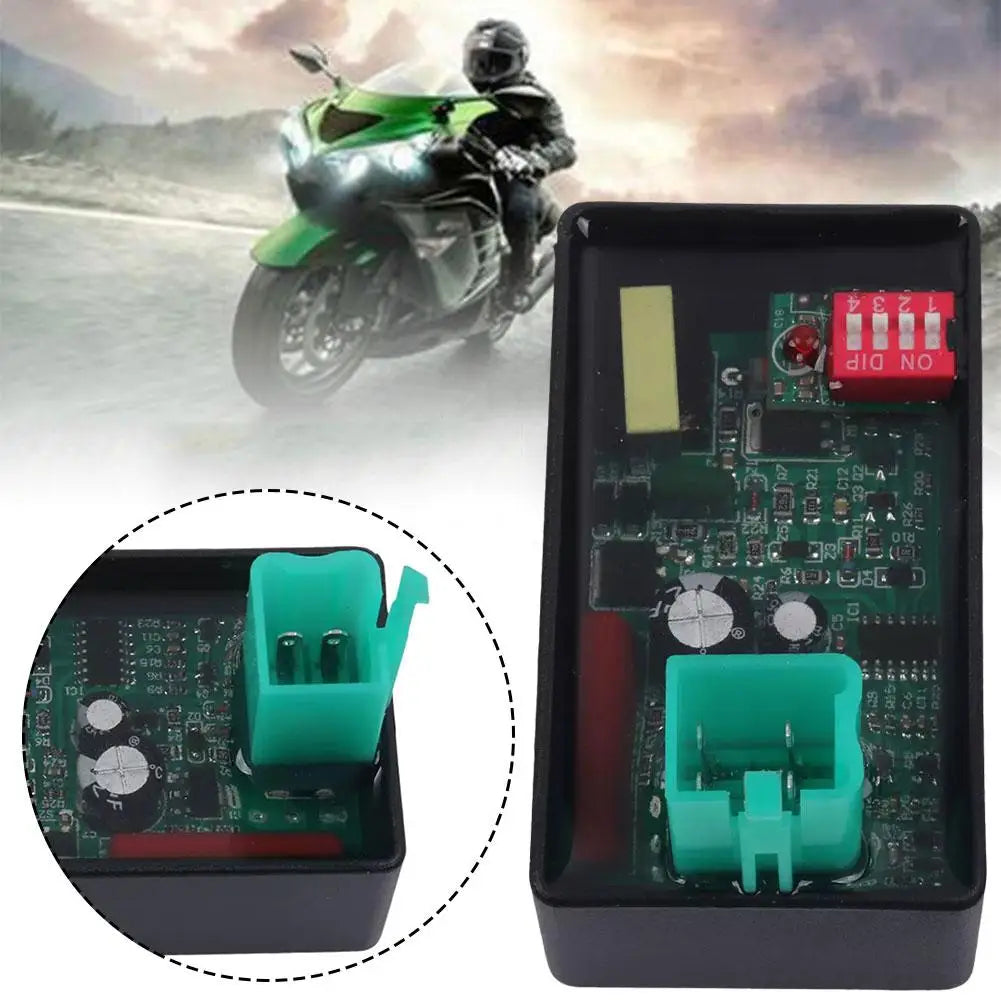

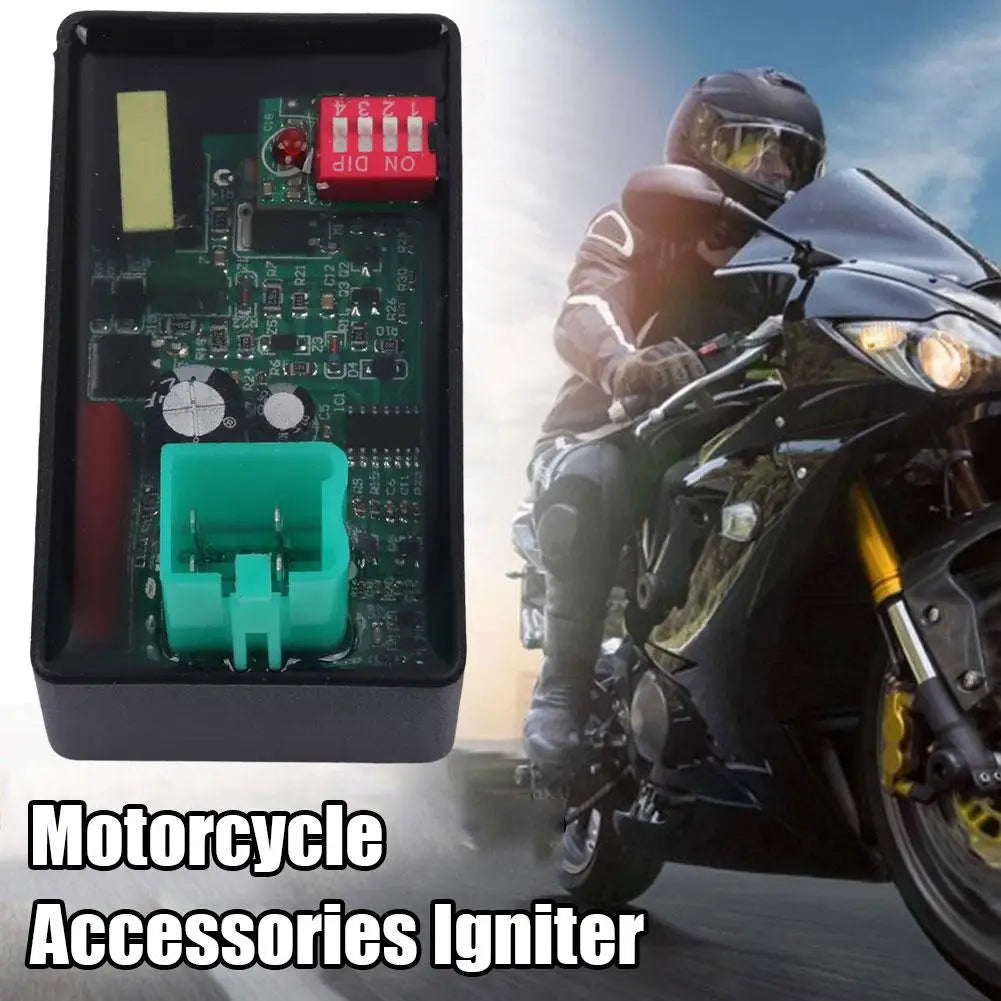

Programmable DC CDI Racing Ignition Box – 4/6 Pin | ATV, Dirt Bike & Scooter

Upgrade your ride's ignition system with this Programmable DC CDI Box. Designed for a wide range of small-displacement 4-stroke engines, this CDI unit delivers reliable, performance-tuned spark timing via an easy-to-adjust DIP switch — no laptop or special tools required. Whether you're pushing your ATV through tough terrain or wringing out more performance from your dirt bike or scooter, this drop-in unit is built to deliver consistent starts and smooth power delivery.

Made in Mainland China.

Key Features

  • Programmable Timing: Built-in DIP switch allows you to adjust ignition advance settings for different riding conditions and engine sizes
  • DC CDI Design: Works with DC-powered ignition systems (12V) — ideal for newer machines with battery-powered headlights

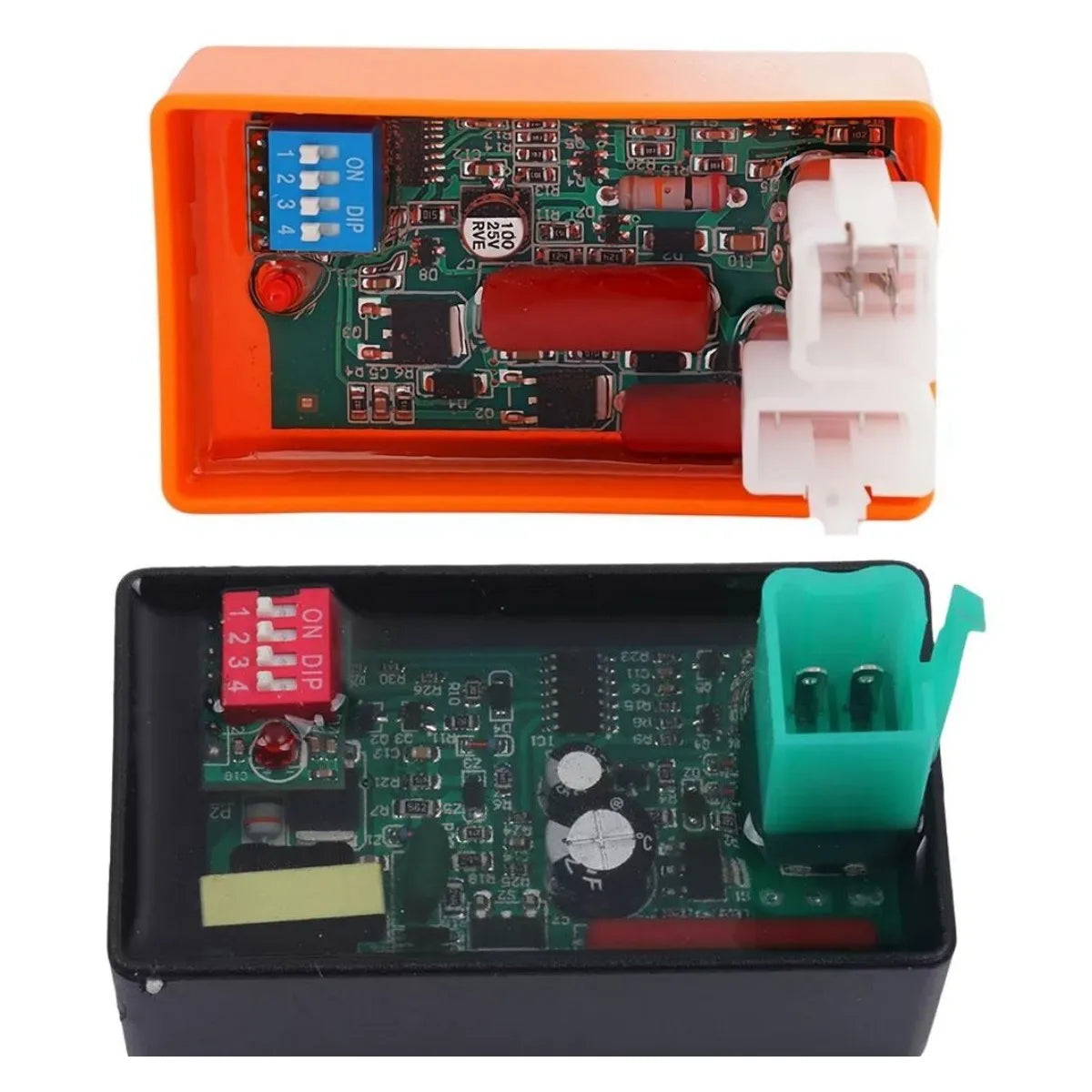

  • 4-Pin & 6-Pin Compatible: Dual-plug configuration fits a broad range of popular models
  • Wide Engine Compatibility: Fits 50cc, 70cc, 90cc, 110cc, and 125cc engines
  • CE Certified: Meets external testing certification standards for quality assurance
  • Durable Plastic Housing: Lightweight yet tough — weighs only 0.09 kg
  • High-Quality Construction: No high-concern chemicals used in materials

Compatibility

  • ATVs – 50cc to 150cc
  • Dirt Bikes (50cc–125cc)
  • Go Karts
  • Scooters & Mopeds
  • Fits models including: Active Wave 110, TC100, ATV 150, and similar

How to Tell if You Need a DC CDI

Turn on your headlights with the engine OFF and the ignition in the "ON" position. If the headlight turns on, your machine is DC — this CDI box is the right choice for you. If the headlight does not turn on, your machine is AC and requires an AC CDI unit instead.

Specifications

  • Voltage: 12V DC
  • Pin Configuration: 4-Pin / 6-Pin
  • Material: Plastic
  • Item Weight: 0.09 kg
  • Certification: CE
  • Origin: Mainland China

What's in the Box

  • 1 × Programmable DC CDI Box (4-Pin or 6-Pin as selected)

Related Products You May Like

Looking to tackle more mechanical projects? Check out these helpful tools from our store:

Learn more: FuelEconomy.gov on vehicle maintenance

Frequently Asked Questions

Q: What vehicles is this programmable CDI box compatible with?

A: This DC CDI box is designed for 4-stroke ATVs, dirt bikes, go karts, scooters, and mopeds with engine sizes ranging from 50cc to 125cc (and some 150cc models). It fits popular models including the Active Wave 110, TC100, and ATV 150. Always verify your machine uses a DC ignition system and confirm the pin count before purchasing.

Q: What is the difference between a DC CDI and an AC CDI?

A: A DC CDI draws power from the battery, while an AC CDI draws power directly from the magneto/stator. To check which type your machine needs, turn the ignition to "ON" with the engine off — if the headlight illuminates, your machine is DC. Newer machines are typically DC. This product is a DC CDI unit operating at 12V.

Q: How does the DIP switch programmability work?

A: The built-in DIP switch lets you select different ignition timing advance settings without any external software or special equipment. Simply flip the DIP switches to your preferred setting to optimize ignition timing for your engine size and riding style. Refer to the included documentation for the specific switch configurations.

Q: Is this CDI box a direct replacement for my stock unit?

A: This CDI box is designed as a performance upgrade/replacement for compatible 4-stroke engines. Always compare the pin count (4-pin or 6-pin) and connector style with your existing CDI before installing. It is CE certified and built to high-quality standards for reliable fitment on supported models.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
