PWM DC Motor Speed Controller Module – 5V to 35V Adjustable Regulator

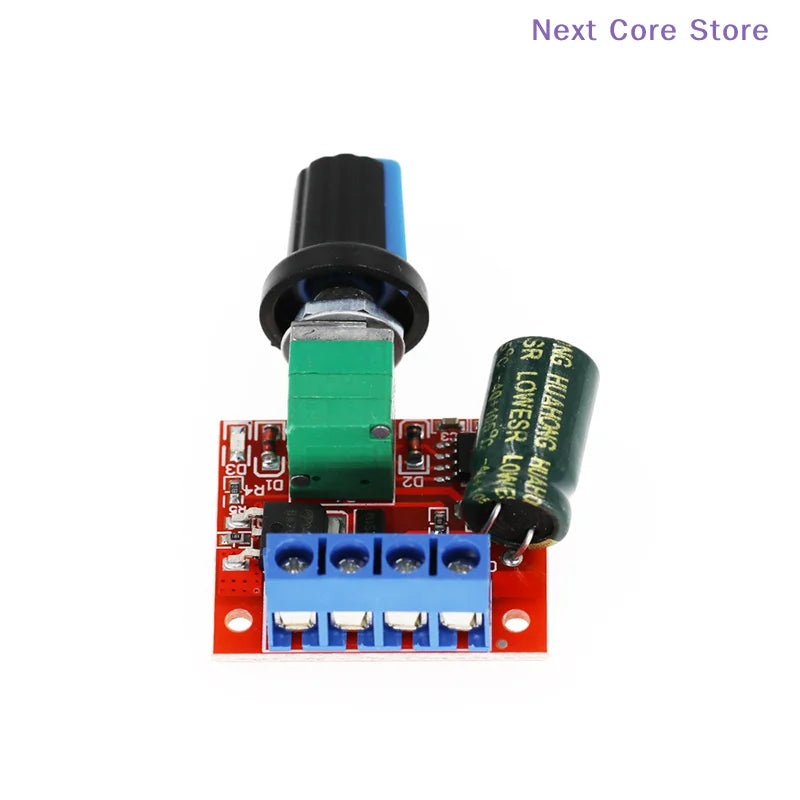

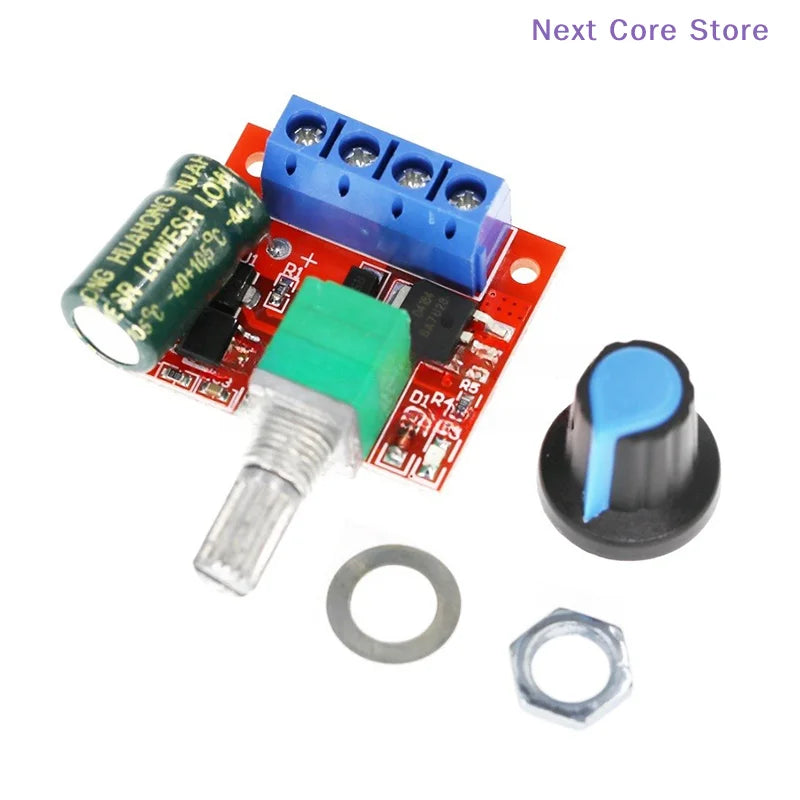

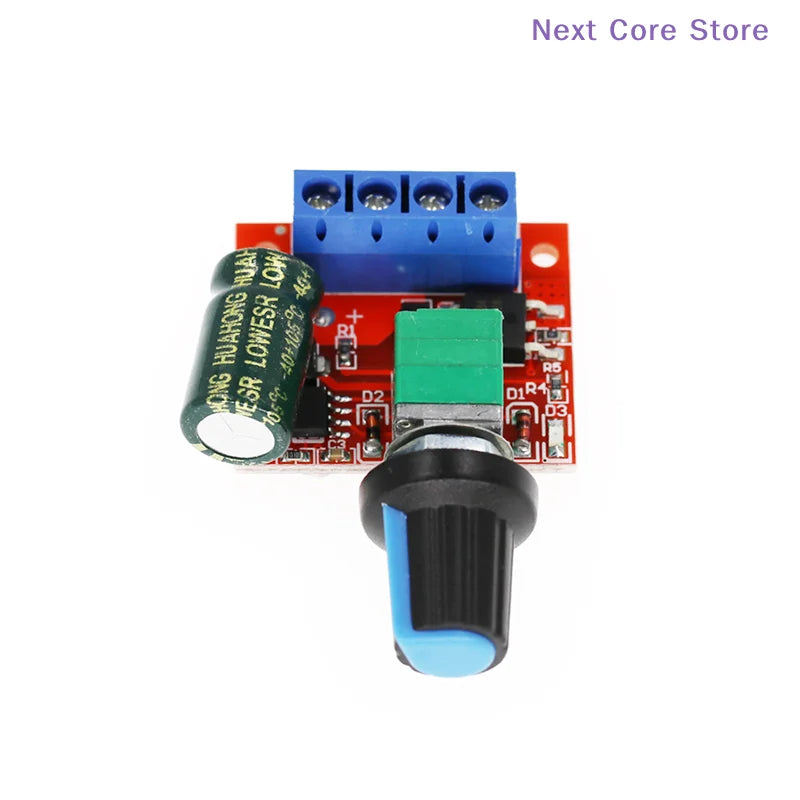

Take precise control of your DC motors and LED loads with this compact, high-efficiency PWM Motor Speed Controller. Designed for electronics enthusiasts, DIY makers, and hobbyists, this module delivers smooth, stepless speed regulation with a simple rotary potentiometer — no complex setup required.
Made in Mainland China.
Why You'll Love It
- Wide Voltage Compatibility: Works seamlessly across a 4.5V–35V DC input range, making it versatile for a broad spectrum of projects.
- Stepless Speed Control: The on-board rotary potentiometer adjusts PWM duty cycle from 1% to 100%, giving you full control over motor speed or LED brightness.
- High Conversion Efficiency: Low power consumption with a standby quiescent current of just 7µA — energy-conscious without sacrificing performance.
- Built-In Power Switch: The potentiometer doubles as a power switch for added convenience and safety.
- Continuous 5A Output: Capable of delivering a steady 5A to your DC motor or load, with a maximum output power of 90W.
- Short-Circuit Protection: Default disconnection on short circuit helps protect your components and circuits.

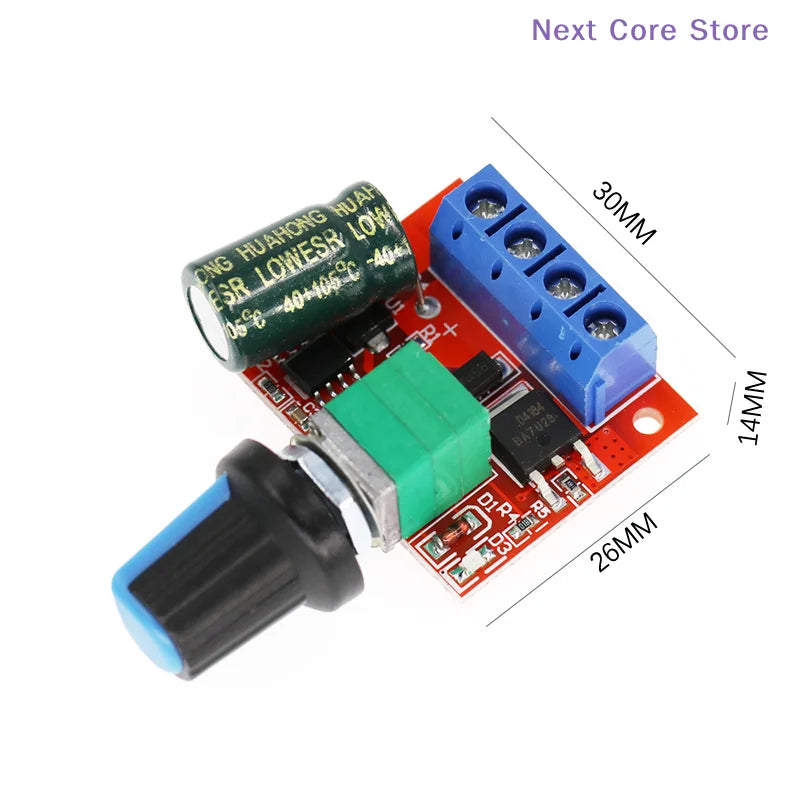

- Compact Form Factor: Tiny 30mm × 26mm × 14mm footprint fits neatly into any project enclosure or breadboard setup.
- On-Board Power Indicator: Easily confirm power status at a glance.
Technical Specifications
| Potentiometer Type | Synthetic Carbon Film |
| Working Voltage | DC 4.5V – 35V |
| Output Current | 0 – 5A (continuous) |
| Max Output Power | 90W |
| Quiescent Current | 7µA (standby) |
| PWM Duty Cycle | 1% – 100% |
| PWM Frequency | 20 kHz |
| Dimensions | 30mm × 26mm × 14mm (excl. handle) |
What's in the Box
- 1 × PWM DC Motor Speed Controller Module
Perfect For
- DIY electronics projects and prototyping
- DC motor speed regulation
- LED light dimming and brightness control
- Arduino, Raspberry Pi, and other maker board integrations
- Repair, maintenance, and hobbyist applications
Looking for more tools and accessories for your projects? Check out our 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel, our 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle, or explore our 10-Pc Hex Nut & Bolt Extractor Kit for even more workshop essentials.
Note: Slight color variation may occur due to monitor and camera differences. Minor dimensional tolerances are within normal range.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What voltage range does this PWM motor speed controller support?
A: This PWM DC motor speed controller module supports an input voltage of DC 4.5V to 35V, making it compatible with a wide variety of DC motors, fans, LED strips, and other DC loads commonly used in DIY and maker projects.
Q: Can this controller be used to dim LED lights as well as control motor speed?
A: Yes! In addition to adjusting DC motor speed, this module is ideal for controlling LED light brightness. The rotary potentiometer provides stepless adjustment from 1% to 100% PWM duty cycle, giving you smooth, precise control over both motors and LED loads.
Q: Is there any short-circuit protection built into this module?
A: Yes, the module features default disconnection on short circuit, which helps safeguard your connected components and circuitry in the event of an accidental short during operation or testing.
