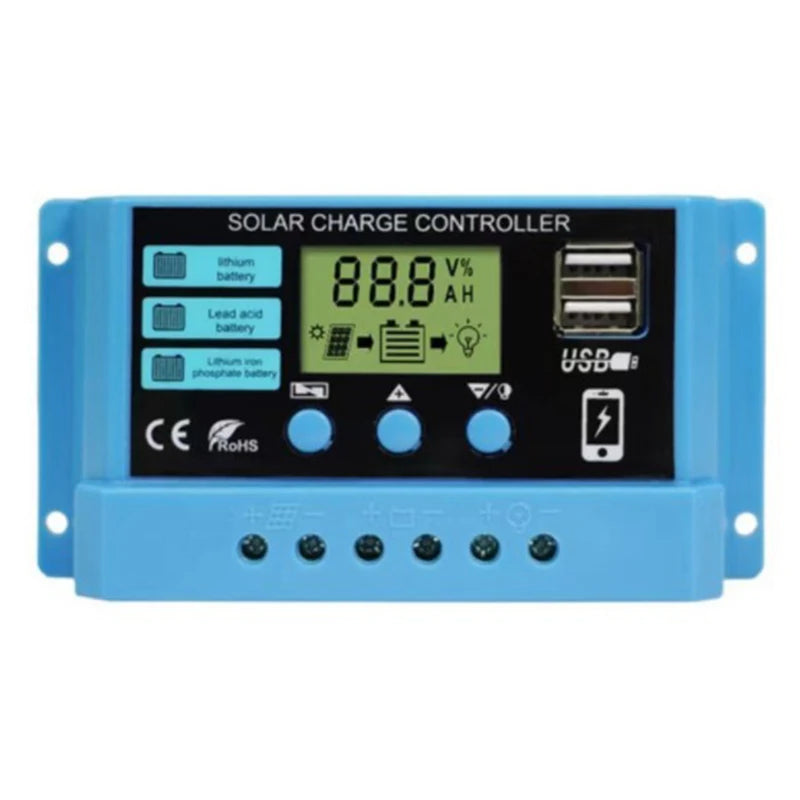

PWM Solar Charge Controller – 10A / 20A / 30A | 12V & 24V Auto | LCD Display & Dual USB
Maximize your solar panel system's efficiency with this intelligent PWM Solar Charge Controller. Available in 10A, 20A, and 30A models, it automatically detects 12V or 24V battery banks and delivers smart 4-stage PWM charging for lead-acid and lithium battery types alike. A crisp backlit LCD screen and dual 5V/2A USB ports make it a versatile, user-friendly hub for off-grid home lighting, RV, and photovoltaic systems.
Made in Mainland China.
Key Features

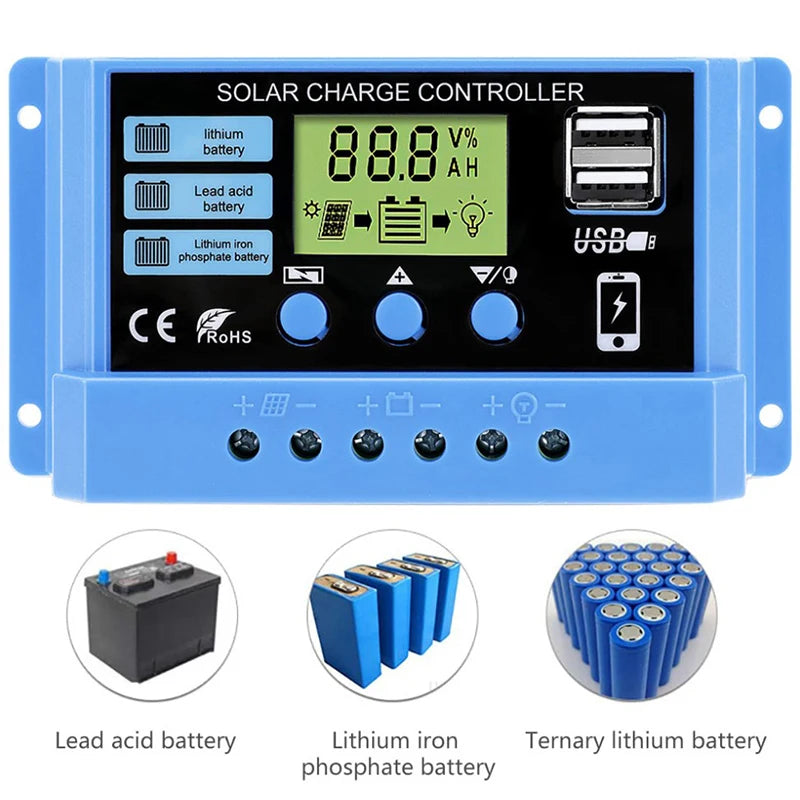

- Universal Battery Compatibility: Works with Sealed, Gel, and Flooded lead-acid batteries as well as Lithium (LiCoMnNiO2 / LiFePO4) — automatically identified by the controller.
- Intelligent 4-Stage PWM Charging: Bulk → Absorption → Equalize → Float for optimized battery longevity and capacity.
- Multiple Load Control Modes: 24-Hour Working Control, Light Control, and combined Light + Dual Timer Control to suit any installation scenario.
- Comprehensive Automatic Protections: Reverse-polarity, battery reverse, over-heating, over-current, overload, and low-voltage lightning protection keep your system safe.
- Automatic Temperature Compensation: Adjusts charge parameters based on ambient temperature for year-round reliability.
- Dual USB 5V/2A Output: Charge two devices simultaneously directly from your solar system.

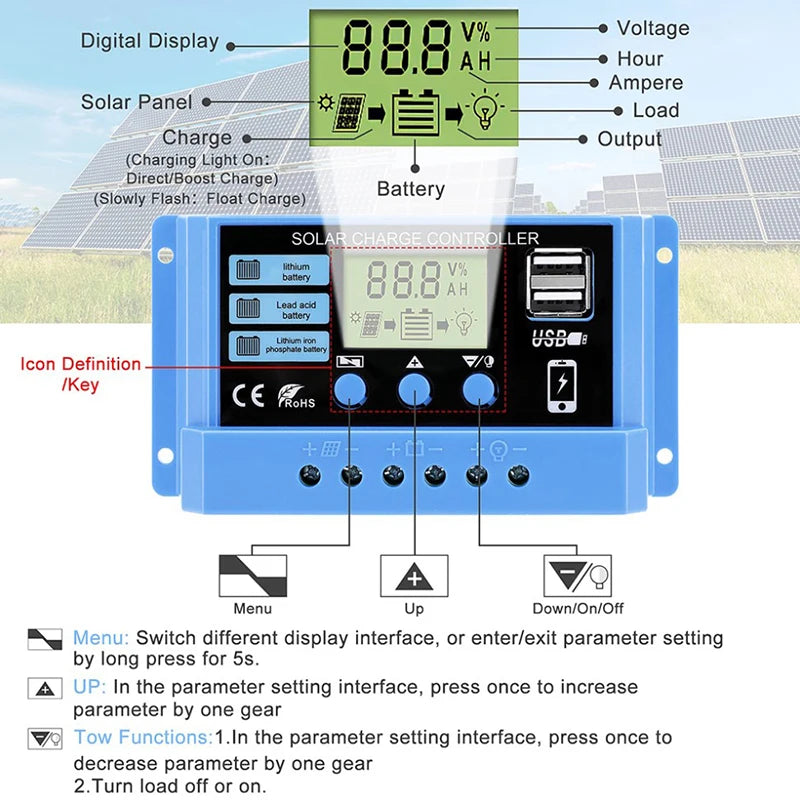

- Backlit LCD Display: Real-time monitoring of voltage, current, battery state, and operating conditions at a glance.

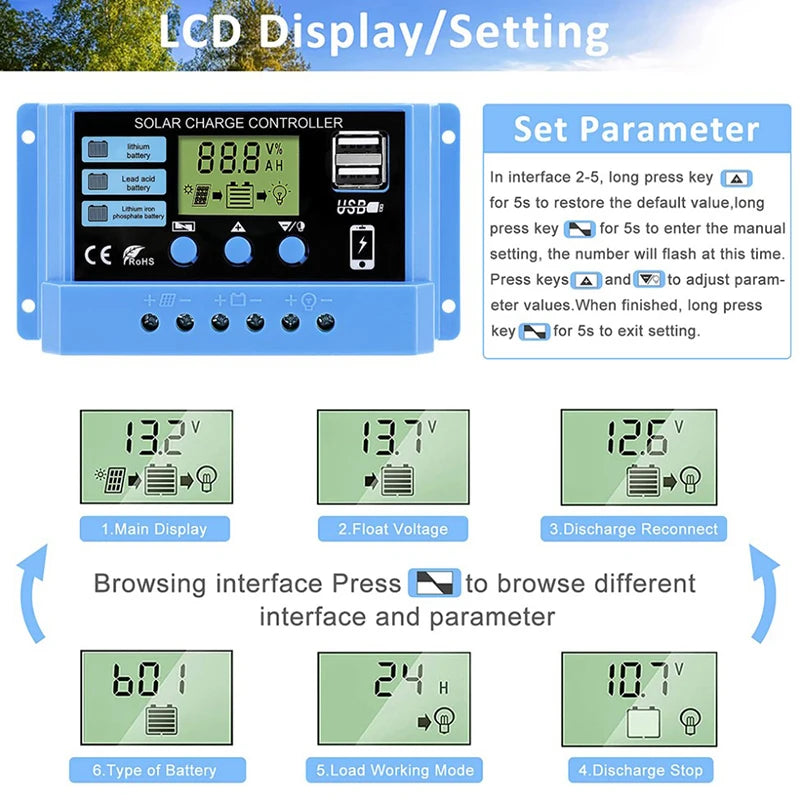

- Adjustable Parameters: Flexible setting of control parameters via the front-panel interface to meet diverse application requirements.
Solar Panel Input Capacity by Model
| Model | Battery Voltage | Max Panel Voltage | Max Panel Wattage |
|---|---|---|---|
| 10A | 12V | 25V | 120W |
| 10A | 24V | 50V | 240W |
| 20A | 12V | 25V | 240W |
| 20A | 24V | 50V | 480W |
| 30A | 12V | 25V | 360W |
| 30A | 24V | 50V | 720W |
Specifications
- Models Available: 10A, 20A, 30A
- System Voltage: 12V / 24V Auto-detect
- Charging Method: PWM (Pulse Width Modulation)
- USB Output: Dual 5V / 2A
- Display: Backlit LCD
- Compatible Batteries: Lead-Acid (Sealed/Gel/Flooded), Lithium (LiFePO4, LiCoMnNiO2)
- Origin: Mainland China
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What battery types are compatible with this PWM solar charge controller?
A: This solar charge controller is compatible with a wide range of battery chemistries including Sealed lead-acid, Gel, Flooded (wet) lead-acid, as well as Lithium Iron Phosphate (LiFePO4) and Lithium (LiCoMnNiO2). The controller automatically detects your battery voltage (12V or 24V) and adjusts charging parameters accordingly.
Q: What is the difference between the 10A, 20A, and 30A models?
A: The amperage rating determines the maximum current the controller can handle and, consequently, the maximum solar panel wattage you can connect. The 10A model supports up to 120W (12V) or 240W (24V), the 20A up to 240W (12V) or 480W (24V), and the 30A up to 360W (12V) or 720W (24V). Choose based on the total wattage of your solar panel array.
Q: Does this controller work with off-grid home lighting systems?
A: Yes! This PWM solar charge controller is designed for home photovoltaic and off-grid lighting systems. Its multiple load control modes — including 24-Hour, Light Control, and Light + Dual Timer — make it ideal for automating solar-powered lighting installations.
Q: Can I charge USB devices directly from this solar controller?
A: Absolutely. The controller features dual USB output ports (5V / 2A each), allowing you to charge smartphones, tablets, or other USB-powered devices directly from your solar battery system without an additional inverter or adapter.
