Refrigerator Door Light NC Push Button Switch | HIP
Refrigerator Door Light NC Push Button Switch | HIP

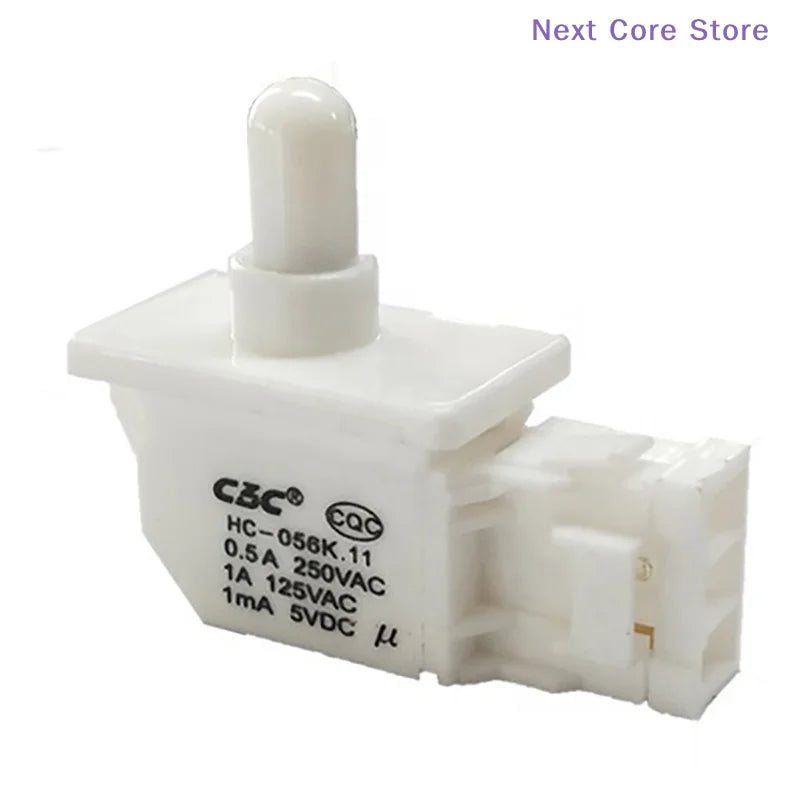

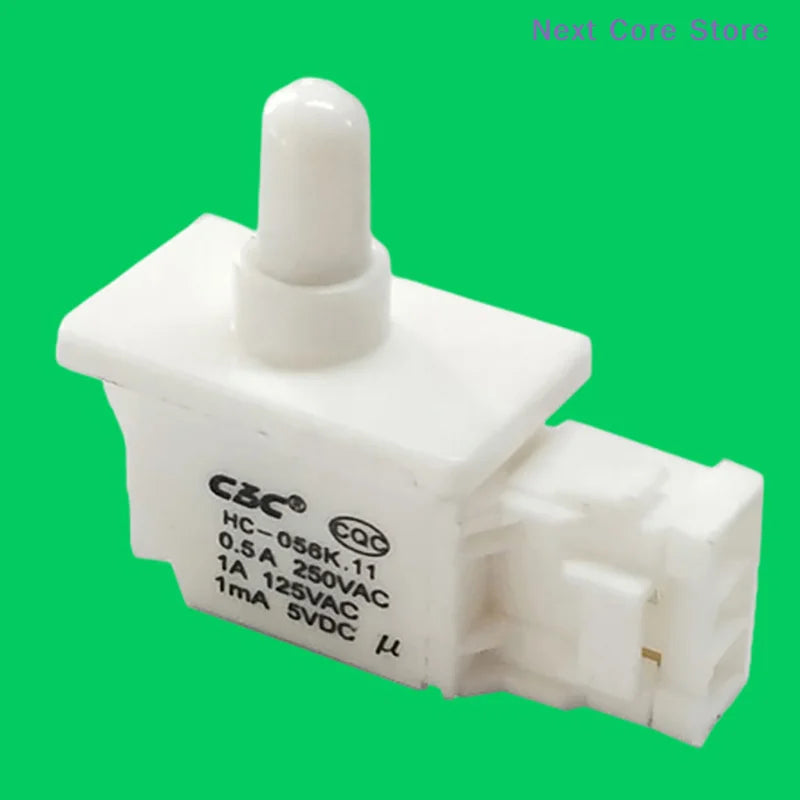

Refrigerator Door Light Control Push Button Switch – Normally Closed (NC)
Keep your refrigerator's interior light working exactly as it should with this reliable Normally Closed (NC) Push Button Switch. Designed as a direct replacement for standard refrigerator door light switches, this compact component automatically controls the interior light — turning it on when the door opens and off when it closes. Easy to install and built to last, it's a simple, cost-effective fix for any fridge with a faulty door light switch.
Key Features

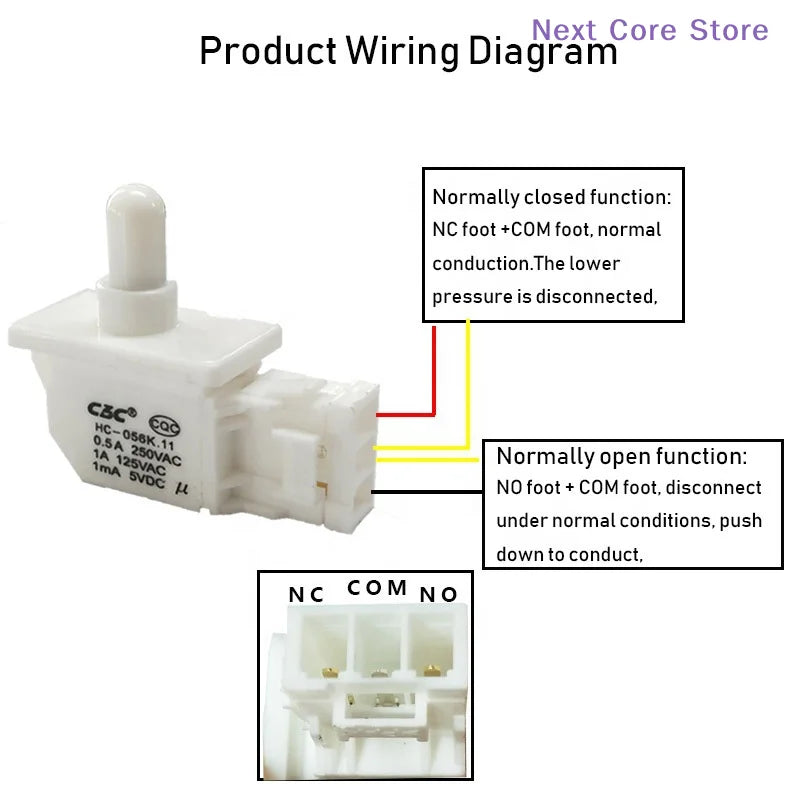

- Normally Closed (NC) Function: Supports normally open / normally closed conversion for versatile wiring options
- Durable Construction: Made from metal and plastic for long-lasting performance
- Wide Temperature Range: Operates reliably from -15°C to +85°C — ideal for refrigerator environments
- Low Contact Resistance: ≤50mΩ for efficient electrical conductivity
- High Insulation Resistance: ≥100MΩ for safe operation
- Easy Panel Installation: Fits panel thickness of 1–2.5mm for a secure, flush fit
- Brand New & High Quality: 100% new component ready to install right out of the box
Technical Specifications
- Electrical Parameters: 1.4A 250VAC / 0.7A 125VAC
- Switch Function: Normally open / normally closed conversion
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Withstand Voltage: 1500V AC / 1 min
- Ambient Temperature: -15°C to +85°C
- Relative Humidity: <90% (at +20°C)
- Panel Thickness: 1–2.5mm
- Material: Metal + Plastic
What's in the Box
- 1× Refrigerator Door Light Control Switch (NC)
Made in Mainland China.
You May Also Like
- 10-Piece Gardening Tool Kit – Iron Head & Plastic Handle
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does a normally closed (NC) refrigerator door switch do?
A: A normally closed (NC) push button switch maintains a closed circuit when not pressed. In a refrigerator, this means the light circuit is completed (light ON) when the door is open (switch not pressed), and the circuit breaks (light OFF) when the door closes and presses the switch button. It's the standard mechanism used in most household refrigerators.
Q: How do I install this refrigerator door light switch?
A: Installation is straightforward — the switch is designed to fit panels with a thickness of 1–2.5mm. Simply remove the old faulty switch, thread the new switch through the panel hole, and connect the wiring terminals. No special tools are required for most standard refrigerator models.
Q: Is this switch compatible with my refrigerator?
A: This is a universal-style push button switch that fits most standard refrigerators using a similar NC light control mechanism. We recommend measuring your existing switch and verifying the panel thickness (1–2.5mm) and electrical ratings (1.4A 250VAC / 0.7A 125VAC) match your appliance's requirements before ordering.
