RF 433MHz Wireless Remote Control Switch with 30A Relay Receiver & Transmitter
Take control of your electrical devices from up to 100 meters away with this versatile RF 433MHz Wireless Remote Control Switch. Compatible with a wide voltage range — AC 75V–240V and DC 9–72V — this relay switch is ideal for controlling LED lights, water pumps, motors, and more. With multiple trigger modes, easy code learning, and CE/FCC/RoHS certifications, it's a reliable and flexible solution for both home and industrial use.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Works with AC 75V–240V and DC 9–72V systems, including 12V, 24V, 48V, 72V, 110V, and 220V setups

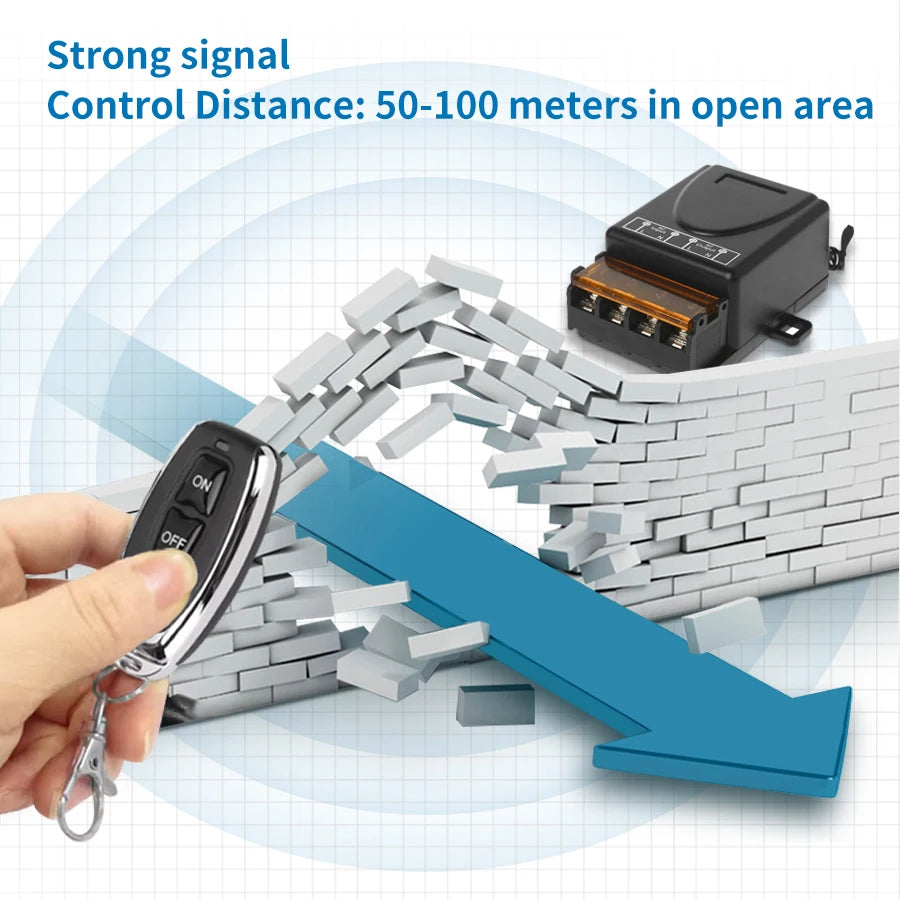

- Long Wireless Range: Up to 100 meters (open field) for convenient remote operation
- 30A Peak Relay: Handles peak loads up to 30A; rated load current should remain under 15A for safe continuous operation

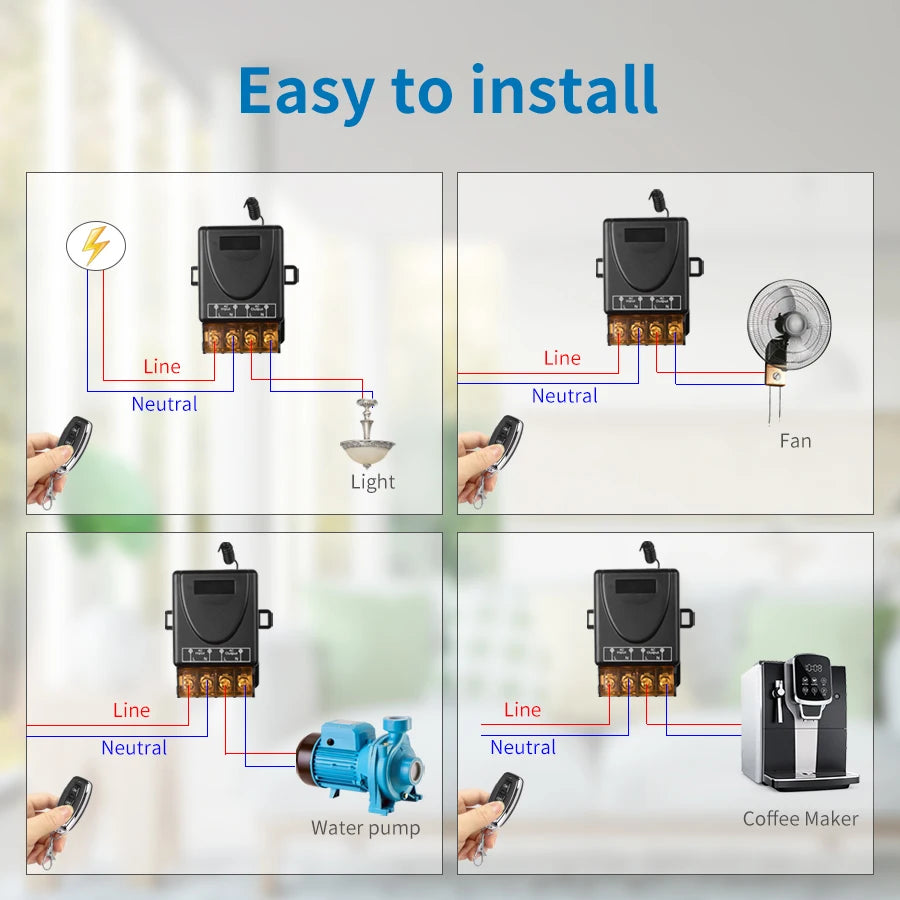

- 1-in-4-Out Wiring: Flexible wiring configuration supports multiple output channels
- 5 Trigger Modes: Momentary, Toggle, Latched, and Delay Time (5s / 10s / 15s) — programmable via LED indicator

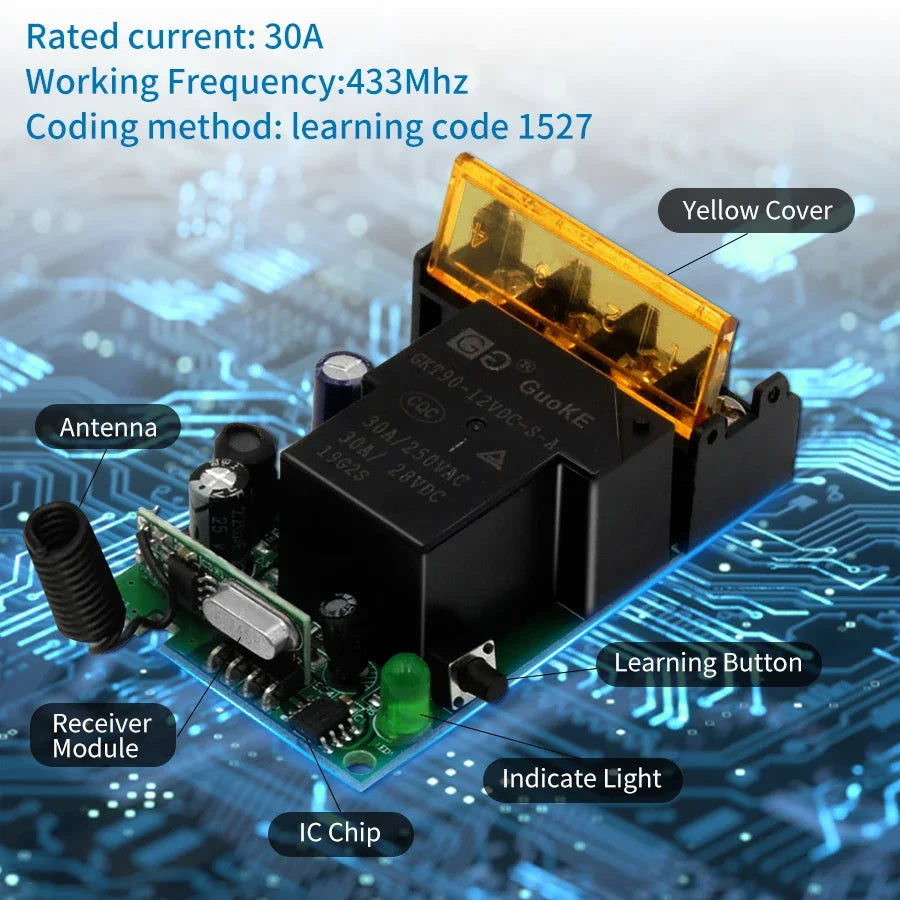

- Learning Code Technology: Easily pair or clear remote codes with the onboard learning button

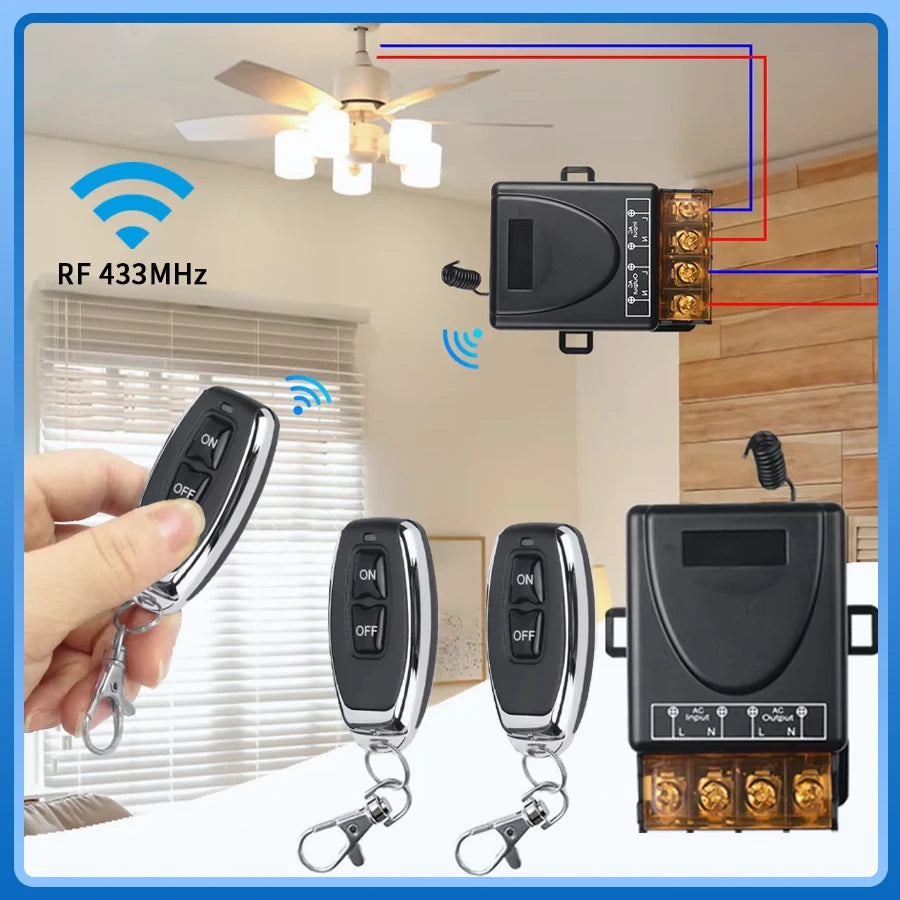

- Universal Application: Compatible with LED lights, water pumps, electric motors, garage doors, and more
- Certified & Safe: CE, FCC, EMC, and RoHS certified for quality and safety assurance
- Compact & Durable: Plastic housing; receiver box approx. 65×45×28mm, transmitter approx. 55×28×10mm
Technical Specifications

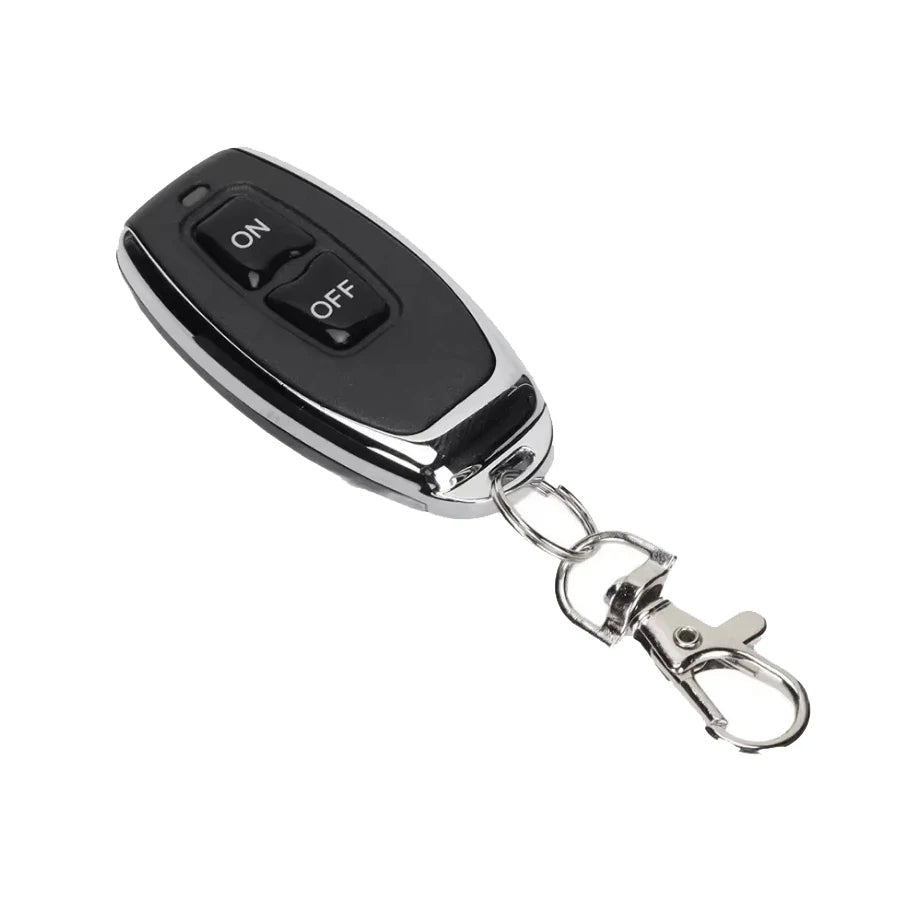

Transmitter (Remote Control)
- Operating Voltage: DC 12V (23A/12V battery × 1)
- Transmitting Frequency: 433MHz
- Encoding Type: Fixed Code
- Receiver Sensitivity: > -105dB
- Transmission Distance: 100M (open field)
- Size: approx. 55 × 28 × 10mm
Receiver
- Operating Voltage: AC 75V–240V / DC 9–72V
- Output Voltage: Equals operating voltage
- Operating Frequency: 433MHz
- Encoding Type: Learning Code (also compatible with optional 315MHz remote controllers)
- Rated Contact Current: 15A / 240VAC, 15A / 110VAC
- Box Size: approx. 65 × 45 × 28mm
How to Program (Learning & Clearing)
Power the receiver with 12V before programming.
- Momentary Mode: Press Learning Button 1 time → LED flashes 1 time → Press transmitter → LED flashes 3 times (success)
- Toggle Mode: Press Learning Button 2 times → LED flashes 2 times → Press transmitter → LED flashes 3 times (success)
- Latched Mode: Press Learning Button 3 times → LED flashes 3 times → Press transmitter → LED flashes 3 times (success)
- Delay 5s: Press 4 times → LED flashes 4 times → Press transmitter → LED flashes 3 times (success)
- Delay 10s: Press 5 times → LED flashes 5 times → Press transmitter → LED flashes 3 times (success)
- Delay 15s: Press 6 times → LED flashes 6 times → Press transmitter → LED flashes 3 times (success)
- Clear All Codes: Hold Learning Button for 8 seconds until LED flashes 3 times and then turns off
⚠️ Important Note: Although the relay is marked 30A/240VAC, this refers to the peak current capacity. For continuous safe operation, keep your load's rated current below 15A.
What's in the Box
- 1 × RF 433MHz Relay Receiver
- 1 × RF 433MHz Remote Control Transmitter
Related Products You May Like
- 10-Pc Hex Nut & Bolt Extractor Kit 9–19mm | HIP Tools
- 105° Right Angle Driver with 1/4" Hex Screwdriver Bit | HIP
- 1/2" Drive 8-Piece Hex Short Socket Set – Vanadium Steel
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What voltage ranges does this RF 433MHz wireless relay switch support?
A: The receiver supports a wide range of voltages — AC 75V to 240V and DC 9V to 72V — making it compatible with 12V, 24V, 48V, 72V, 110V, and 220V systems. This makes the switch highly versatile for a variety of residential and industrial applications including LED lighting, water pumps, and electric motors.
Q: What is the maximum load current for this relay switch?
A: While the relay is rated for a peak current of 30A, the rated continuous load current should not exceed 15A at 240VAC or 110VAC. Always ensure your application's steady-state current stays under 15A to maintain safe and reliable operation.
Q: How far can the wireless remote control reach?
A: In an open area with no obstructions, the transmitter can communicate with the receiver from up to 100 meters (approximately 330 feet). Range may be reduced in environments with walls, metal structures, or significant RF interference.

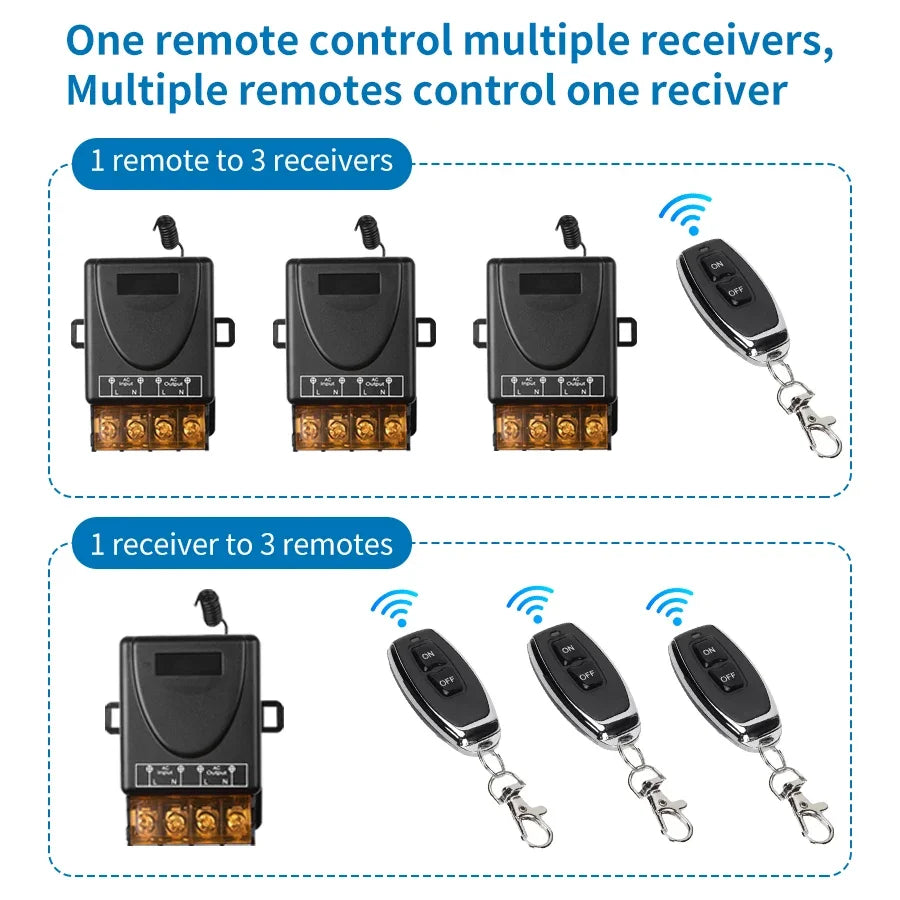

Q: Can I use multiple remote controls or program additional remotes to this receiver?
A: Yes. The receiver uses a learning code system, which allows you to pair additional compatible 433MHz remote controls (or optional 315MHz controllers) to the same receiver. Simply use the learning button to add new remotes, and hold it for 8 seconds to clear all stored codes if needed.
