RF Microwave Power Splitter Divider Module – 1 to 2 Ch, DC-5G

RF Microwave Power Splitter Divider Module – 1 to 2 Ch, DC-5G

$8.66 $10.25
ColorA

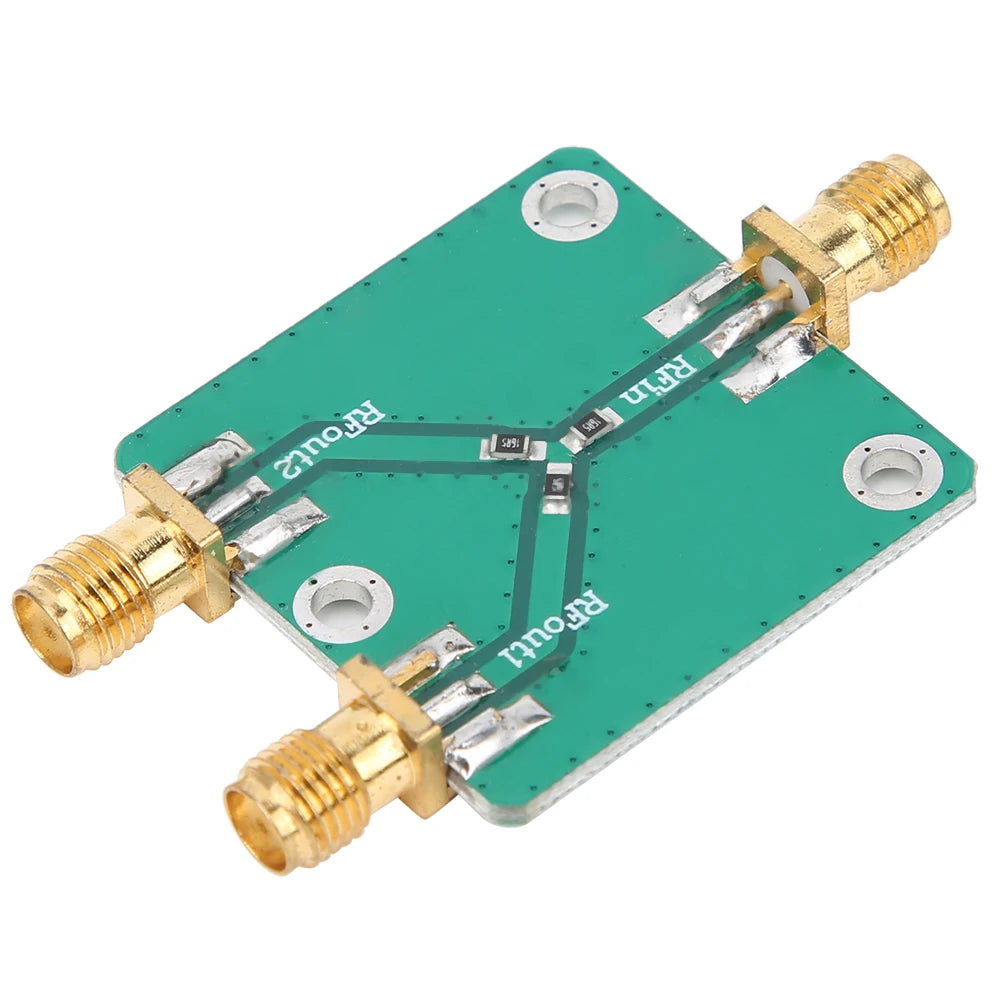

RF Microwave Resistor Power Splitter / Divider Module

Split one RF signal into two with precision and consistency. This compact RF Microwave Power Distributor Module is engineered for stable performance across a wide DC–5G frequency range, making it an excellent choice for hobbyists, engineers, and RF enthusiasts working on microwave circuits, antenna systems, signal distribution setups, and more.

Key Features

  • High-Quality Construction: Precisely assembled with premium components for stable, long-lasting performance.

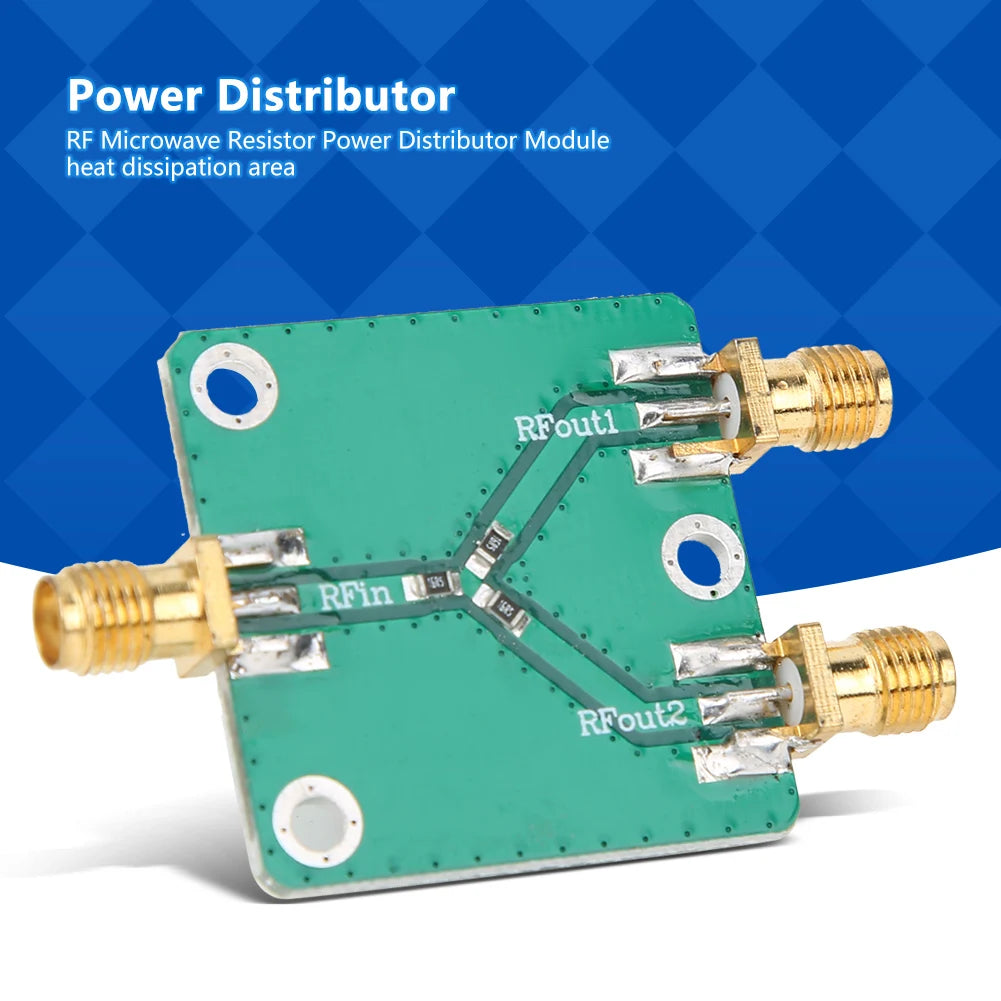

  • Large Heat Dissipation Area: Designed to sustain extended operation without thermal issues, ensuring reliable use over time.

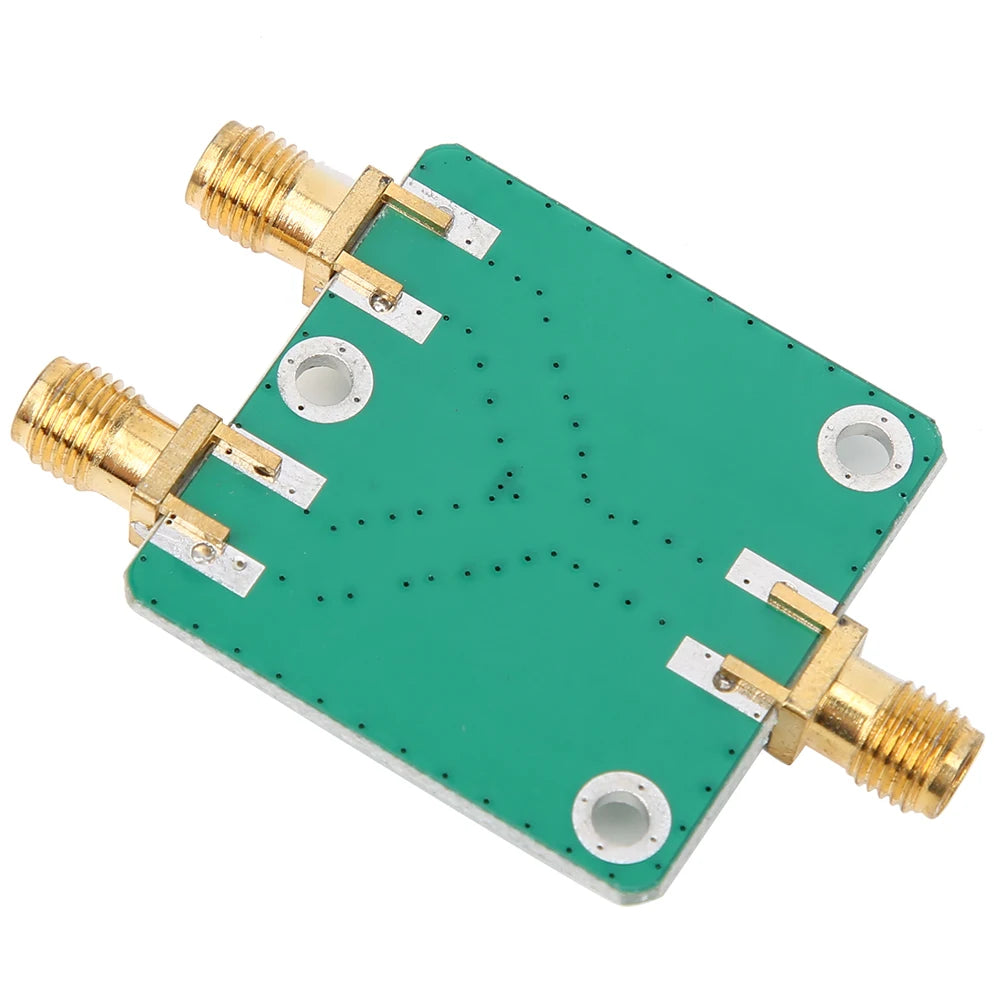

  • Heavy-Duty PCB: 1.6mm thick double-sided board with 2.0 Oz copper thickness and full-process spray tin coating for excellent current flow performance.
  • 1-to-2 Power Channel Split: Cleanly divides one input RF signal into two equal output channels.
  • Wide Frequency Range: Operates from DC up to 5GHz, covering a broad spectrum of RF applications.
  • SMA-K Connectors: Standard female head (outer screw, inner hole) for universal compatibility.
  • 50-Ohm System Impedance: Industry-standard impedance for seamless integration with existing RF equipment.

Specifications

Item Type RF Power Distributor / Splitter
Power Channel 1 to 2
Power Frequency DC – 5G
Output Attenuation 6dB
Withstand Power 0.5W (27dBm)
PCB Thickness 1.6mm Double-Sided, 2.0 Oz Copper
Dimensions Approx. 33 × 33mm / 1.3 × 1.3 in (excluding joints)
Connector Type SMA-K (Standard Female, Outer Screw & Inner Hole)
System Impedance 50 Ohms
Material PCB
Condition 100% Brand New
Country of Origin Made in Mainland China

Package Contents

  • 1 × RF Microwave Power Distributor Module

You May Also Like

Looking for more tools and gadgets for your projects? Check out these related products:

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What frequency range does this RF power splitter divider support?

A: This RF microwave power splitter divider module supports a wide frequency range from DC up to 5GHz, making it suitable for a broad variety of RF and microwave signal distribution applications.

Q: What type of connectors does the power distributor module use?

A: The module uses SMA-K standard female connectors (outer screw and inner hole), which are widely compatible with most RF cables and equipment used in amateur radio, antenna, and microwave circuit setups.

Q: What is the system impedance, and why does it matter?

A: The system impedance is 50 ohms, which is the industry standard for RF systems. This ensures seamless integration with most RF test equipment, antennas, and transceivers without signal mismatch or excessive loss.

Q: How much power can this RF power distributor handle?

A: The module can withstand up to 0.5W (27dBm) of input power, with a 6dB output attenuation on each of the two output channels. It is best suited for signal distribution rather than high-power transmission applications.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
